Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 3 PNC and OE references.

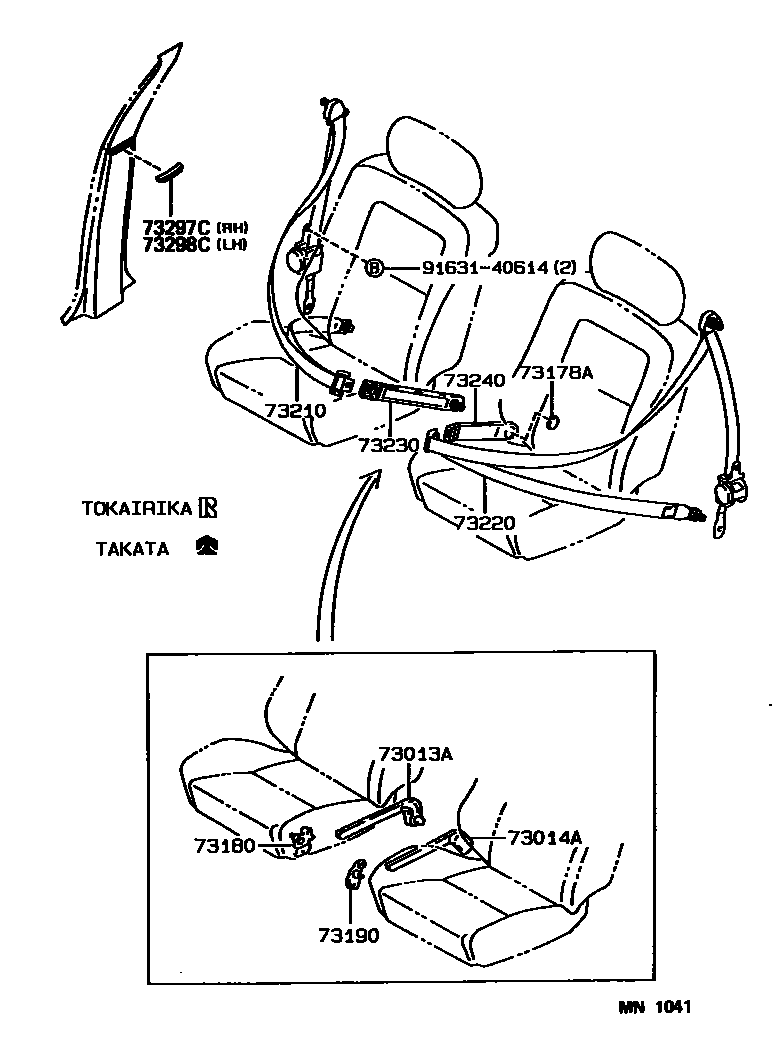

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MN1041
安全带和儿童保护座椅 — MN1041 (199009 – 999999)

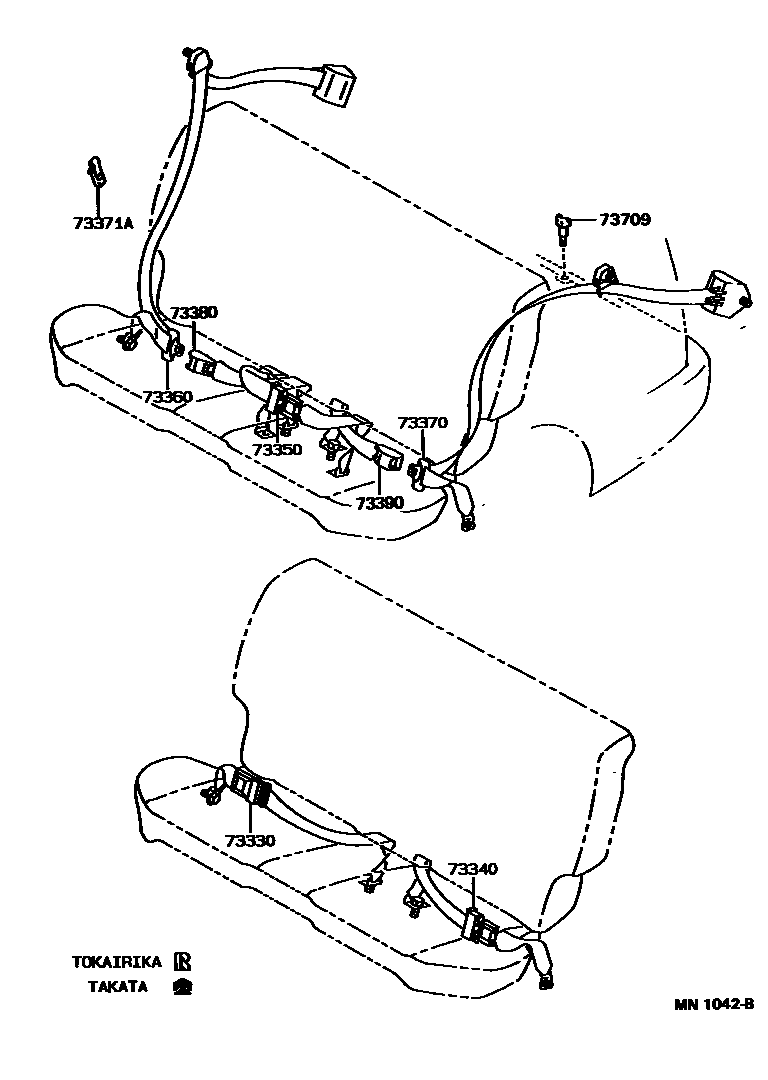

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MN1042B
安全带和儿童保护座椅 — MN1042B (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
73180Right seat belt inner anchor bracket assembly73011-12040
73190Left side seat belt inner anchor bracket assembly73012-12040
73709Tie anchor bracket sub-assembly73708-12030
