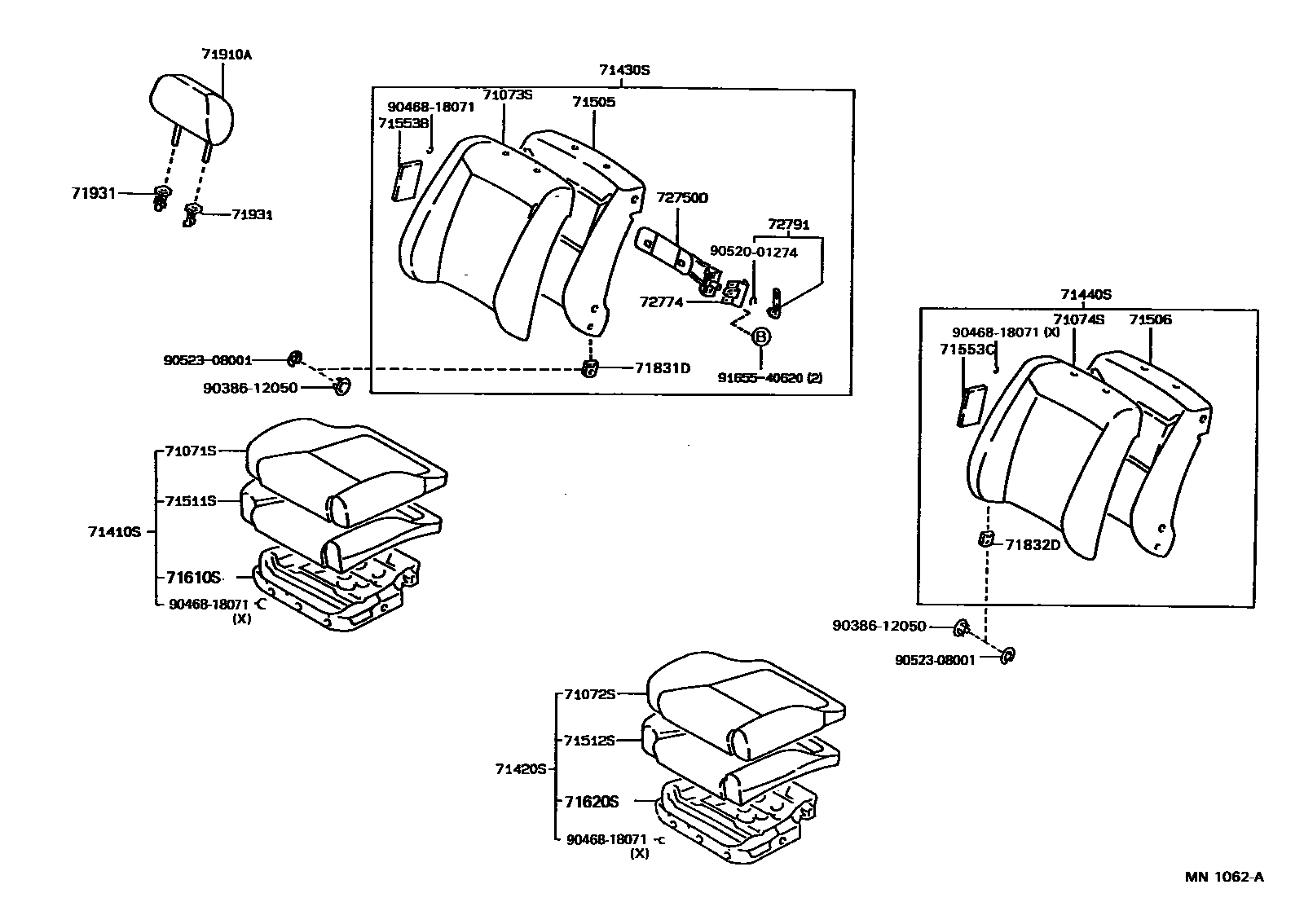

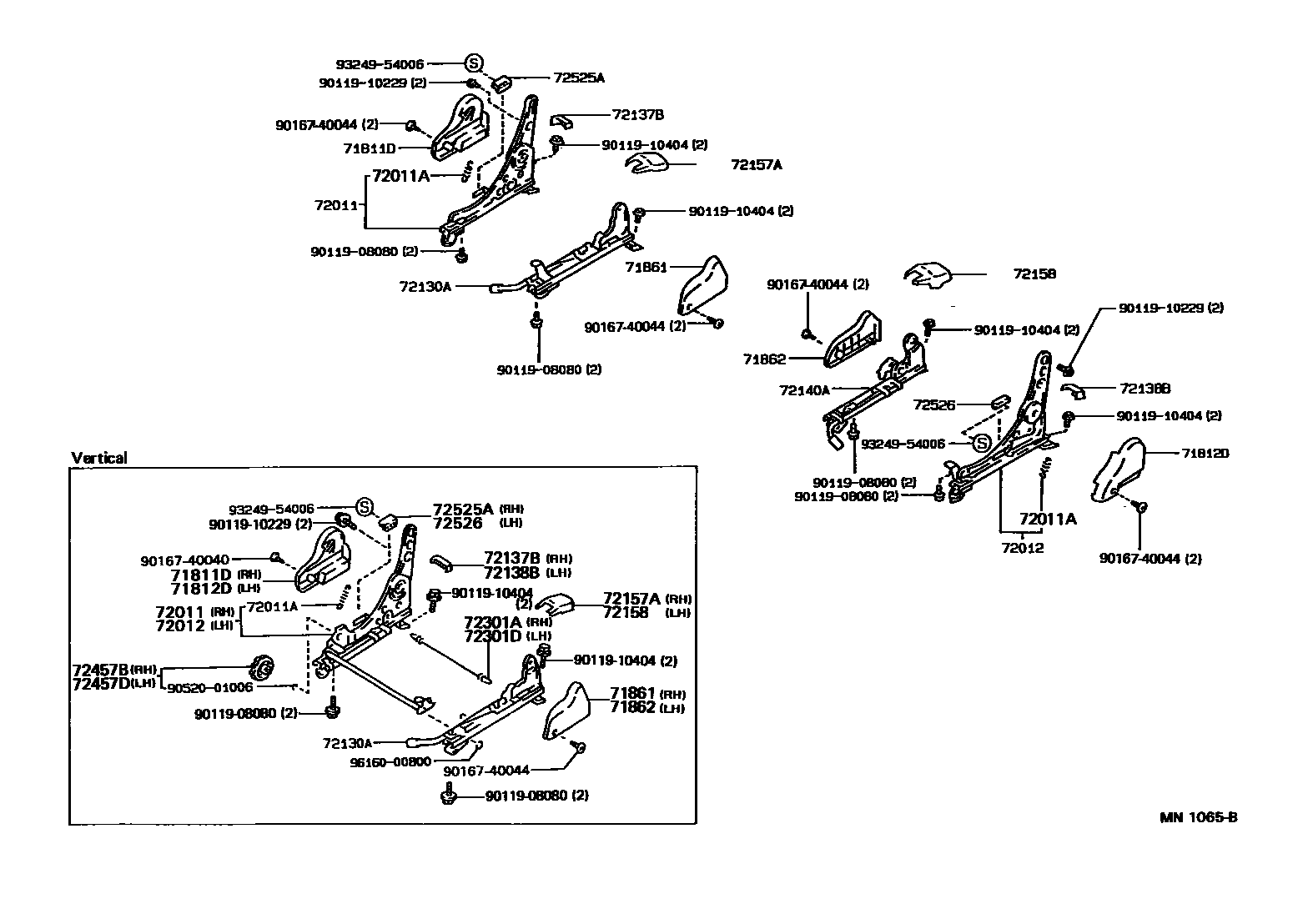

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12030 · 71505-12050 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71506-12040 · 71506-12050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12670 · 71511-12680 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12670 · 71511-12680 |
| 71553B | Front B seat back cushion | 71553-12200 |
| 71553C | Front C seat back cushion | 71553-12200 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12320 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-12320 |
| 71831D | Front right seat hinge cover | 71831-12010 |
| 71832D | Front left seat hinge cover | 71831-12010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12560 · 72010-12570 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-20046 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-12540 · 72020-12550 |
| 72130A | Front right seat inner slide rail assembly | 72130-12540 · 72130-12550 |
| 72140A | Front left seat inner slide rail assembly | 72140-12450 · 72140-12460 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12110 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12110 |
| 72750D | Right lumbar support adjuster assembly | 72750-12060 |
| 72774 | Lumbar support spring guard | 72774-12020 |
