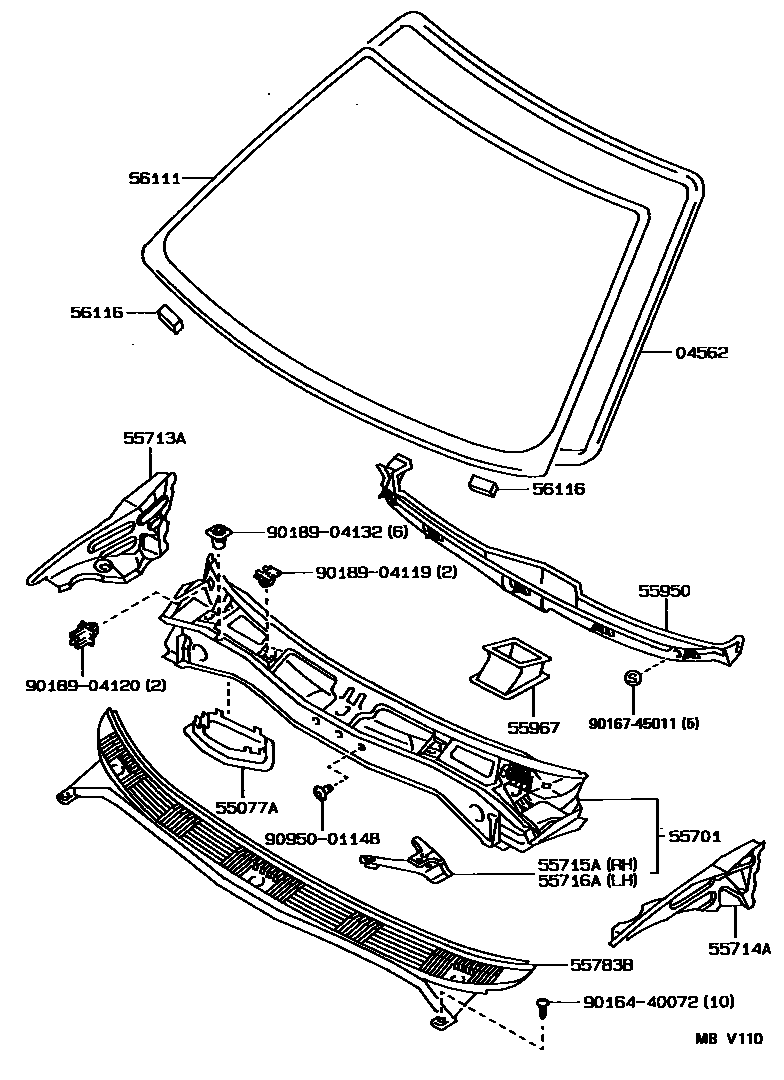

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 55077A | Heater air duct hole cover sub-assembly | 55077-12080 · 55077-12090 |
| 55701 | Front apron sub-assembly | 55700-12460 · 55700-12630 |
| 55713A | Right front wall upper side panel | 55713-12070 |
| 55714A | Left front wall upper side panel | 55714-12070 |
| 55715A | From cowl upper cover to fender right stay | 55715-12090 |
| 55716A | From cowl upper cover to fender left stay | 55716-12090 |
| 55783B | Ventilation grille on center cowl No. 1 | 55708-12020 · 55708-12070 |
| 55950 | Defroster nozzle assembly | 55950-12100 · 55950-12110 |
| 55967 | Lower defroster nozzle | 55967-12010 · 55967-12020 |
| 56111 | windshield | 56111-1A250 · 56111-1A360 |
| 56116 | windshield spacer | 56116-24010 |
