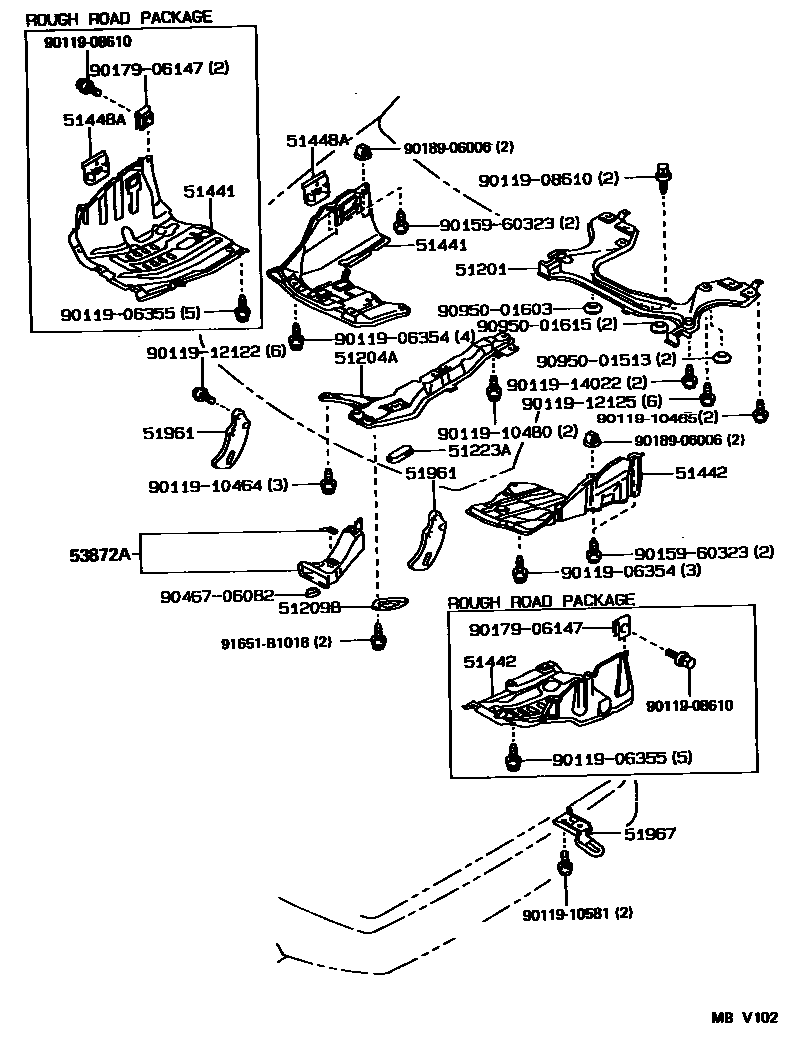

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12290 |
| 51204A | Engine center mount beam sub-assembly | 51204-12070 |
| 51209B | Center beam front protective cover sub-assembly | 51209-20010 |
| 51223A | Engine mounting hole cover | 51223-20020 · 51223-20030 |
| 51441 | No. 1 engine bottom cover | 51408-12030 · 51441-12120 |
| 51442 | No. 2 engine bottom cover | 51409-12020 · 51442-12050 · 51442-12060 · 51442-12070 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51961 | No. 1 hook | 51963-12180 |
| 51967 | Rear transport hook | 51095-12080 |
| 53872A | downdraft | 53872-12010 |
