Toyota COROLLA 制动配管和卡箍 — Figure 4708

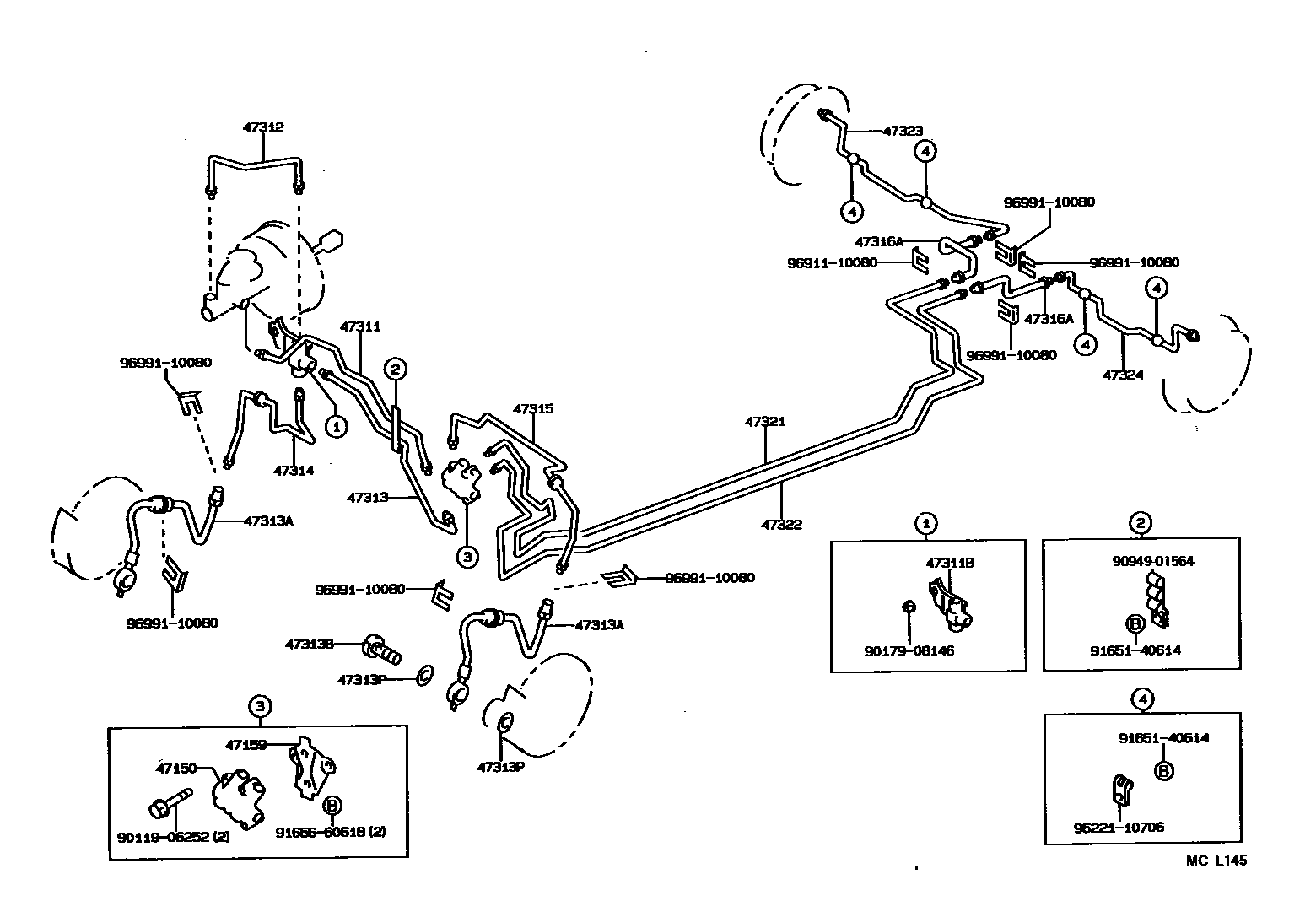

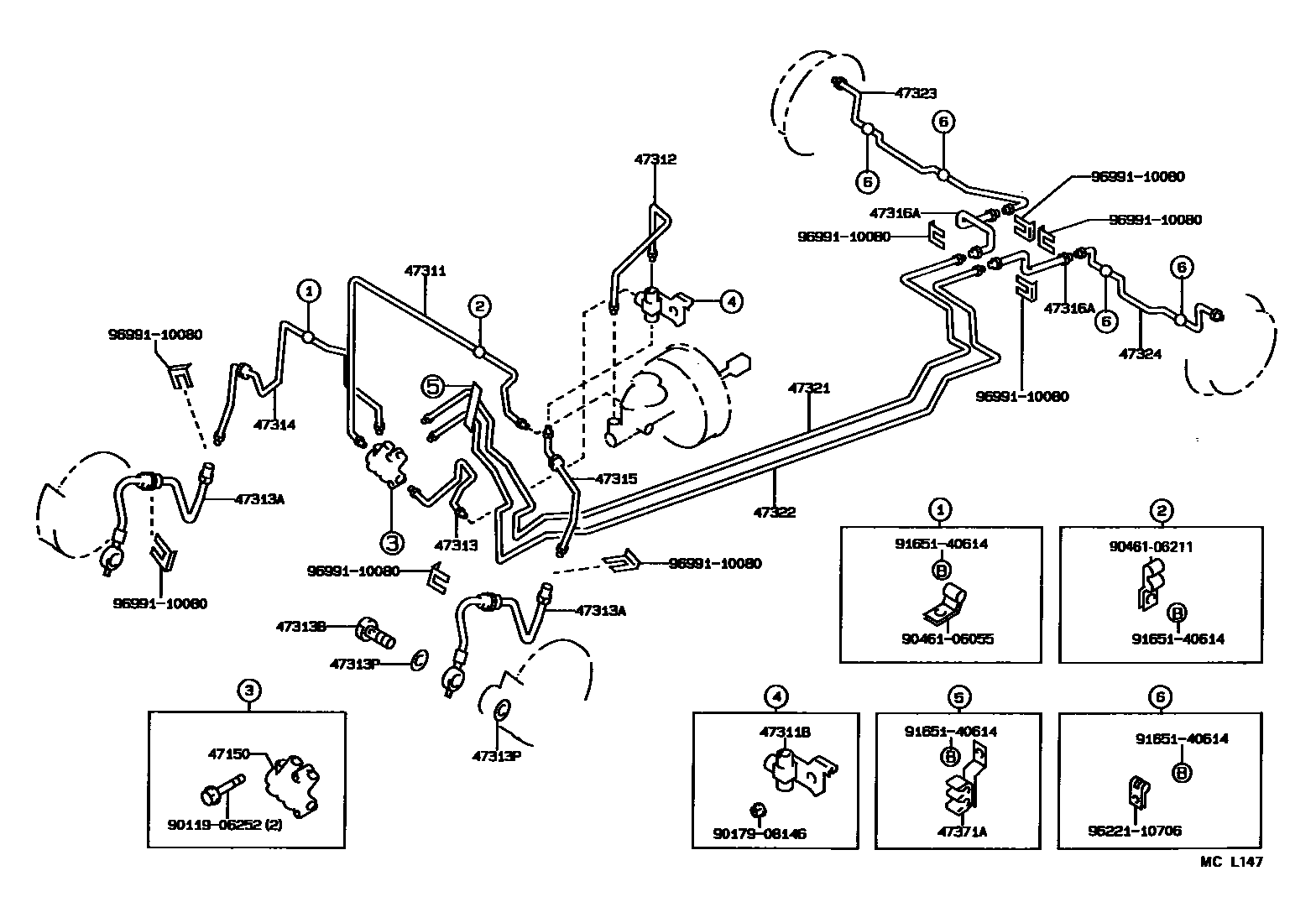

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-12110 |
| 47159 | Proportional valve bracket | 47159-12050 |
| 47311 | No. 1 front brake pipe | 47311-12390 · 47311-12430 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10159 · 90413-10221 |
| 47312 | No. 2 front brake pipe | 47312-12260 · 47312-12270 |
| 47313 | No. 3 front brake pipe | 47313-12190 · 47313-12240 |
| 47313A | No. 1 front flexible hose | 90947-02532 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12260 · 47314-12270 |
| 47315 | No. 5 front brake pipe | 47315-12400 · 47315-12440 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02558 |
| 47321 | No. 1 rear brake pipe | 47321-12060 · 47321-12070 |
| 47322 | No. 2 rear brake pipe | 47322-12210 · 47322-12240 |
| 47323 | No. 3 rear brake pipe | 47323-12220 |
| 47324 | No. 4 rear brake pipe | 47324-12180 |
| 47371A | No. 1 brake pipe clamp | 47371-12010 |
