Toyota COROLLA 后鼓式制动器分泵和底板 — Figure 4706

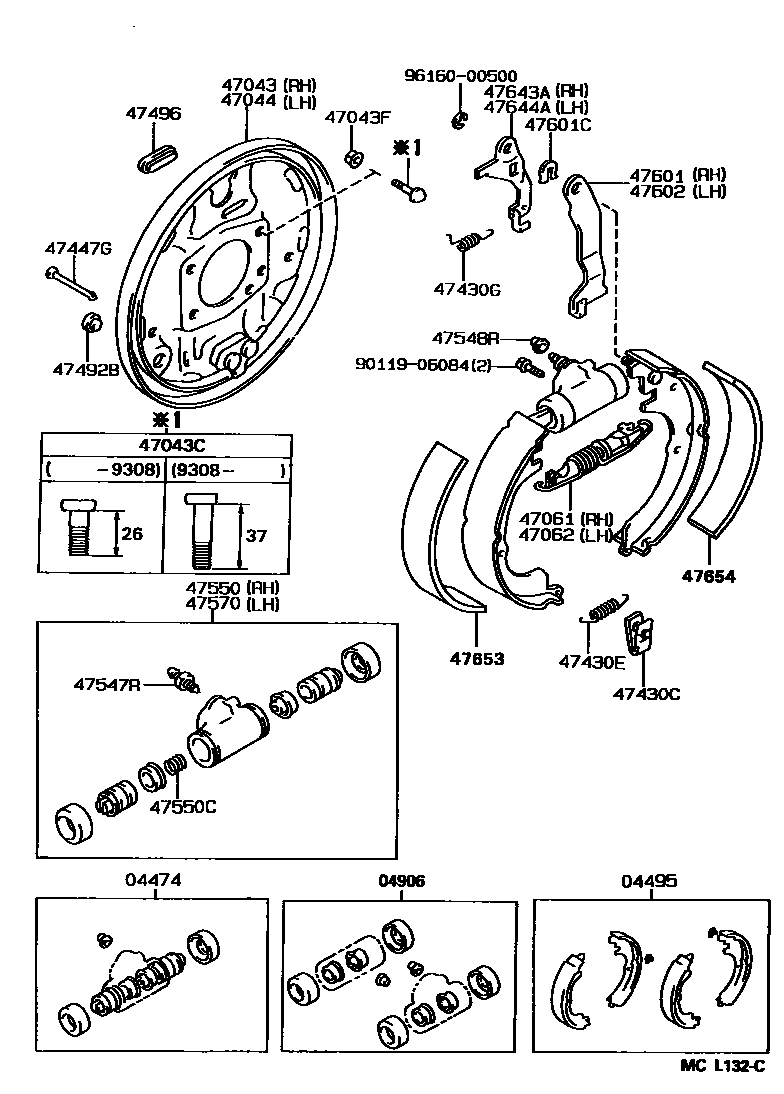

Toyota COROLLA EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-10032 |
| 04495 | Rear brake shoe assembly | 04495-12181 |
| 04906 | Rear wheel pump cup assembly | 04906-10021 |
| 47043 | Right rear brake base plate sub-assembly | 47043-12090 · 47043-16030 |
| 47043C | Bolts (used to secure the base plate to the rear axle housing) | 42184-12020 · 42184-22020 |
| 47043F | Nut (used to fix the base plate to the rear axle housing) | 90179-10095 · 94181-11000 |
| 47044 | Left rear brake base plate sub-assembly | 47044-12090 · 47044-16030 |
| 47061 | Right parking brake shoe push rod assembly | 47061-12020 |
| 47062 | Left parking brake shoe push rod assembly | 47062-12020 |
| 47430C | Limit spring (for rear brake shoe) | 47446-10010 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-18299 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90506-12276 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-10010 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-32010 |
| 47496 | Hole plug (for rear brake) | 47491-20011 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-10042 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90501-07006 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-10042 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47611-12050 |
| 47601C | C-shaped washer (for rear brake) | 90213-06013 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47612-12050 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-12030 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-12030 |
| 47653 | Rear brake shoe friction lining (for front or upper side) | 47651-20170 |
| 47654 | Rear brake shoe friction lining (for rear or lower side) | 47651-20170 |
