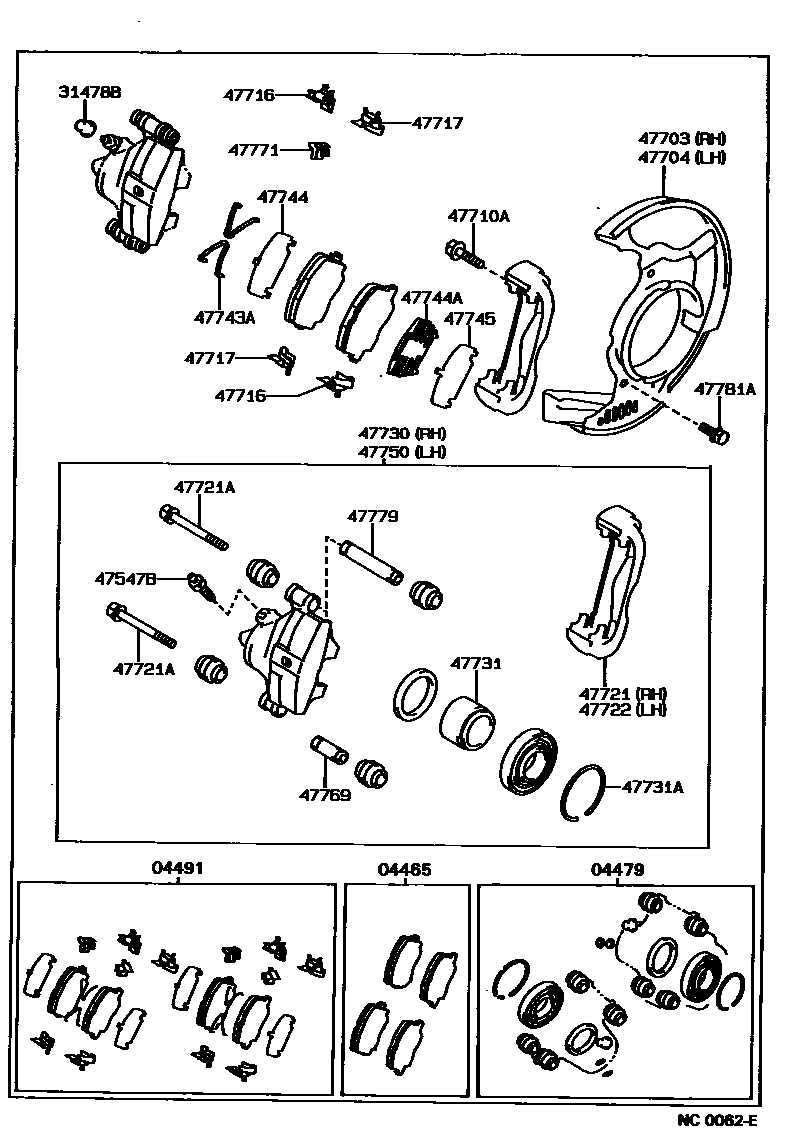

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

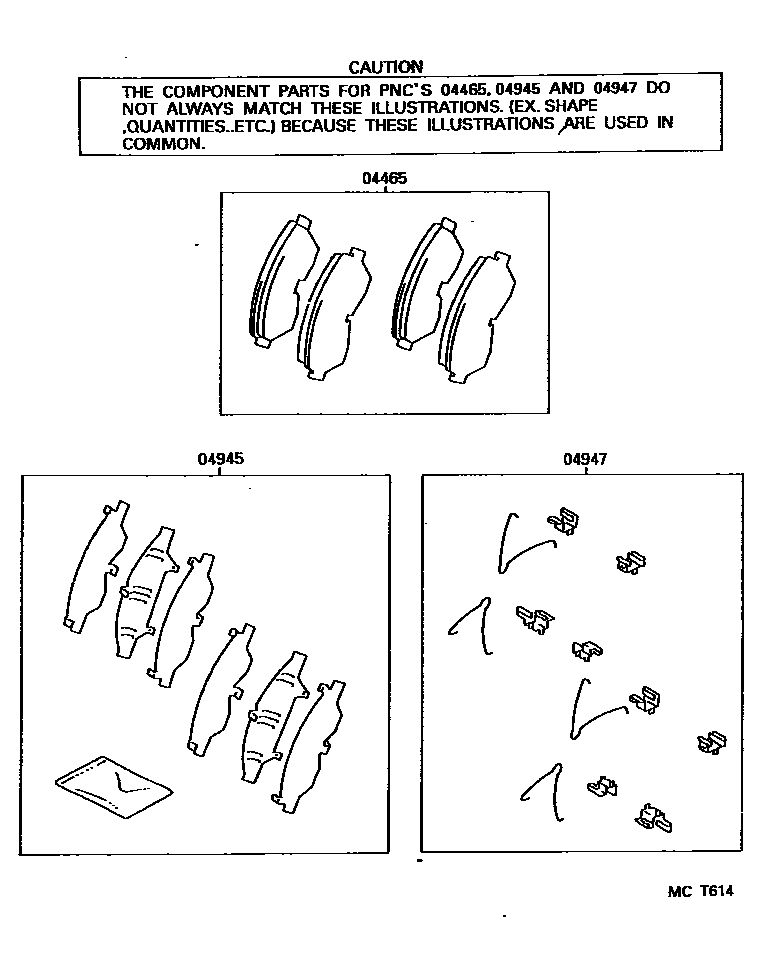

| 04465 | Front disc brake pad assembly | 04465-20020 · 04465-20060 · 04465-21010 |
| 04479 | Front disc brake cylinder assembly | 04479-12091 |
| 04491 | Front disc brake pad assembly | 04491-12341 · 04491-20800 · 04491-20801 |
| 04945 | Front silencer gasket assembly | 04945-32060 · 04945-32110 |
| 04947 | Front disc brake mounting kit | 04947-32010 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47703 | Right front disc brake dust cover sub-assembly | 47781-12150 · 47781-20290 |
| 47704 | Left front disc brake dust cover sub-assembly | 47782-12150 · 47782-20290 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90119-12040 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-32031 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-32031 |
| 47721 | Right front disc brake cylinder retainer | 47721-12120 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90119-09003 · 90119-09004 |
| 47722 | Left front disc brake cylinder retainer | 47721-12120 |
| 47730 | Right front disc brake cylinder assembly | 47730-12310 · 47730-12350 |
| 47731 | Front disc brake piston | 47731-12150 |
| 47731A | retaining ring (for front disc brake piston) | 90522-61001 |
| 47743A | Silencer spring (for front disc brake) | 47743-12070 · 47743-32010 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-16011 · 47744-32010 |
| 47744A | No. 3 silencer gasket (for front disc brake) | 47742-32040 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-32040 |
| 47750 | Left disc brake cylinder assembly | 47750-12310 · 47750-12350 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-12030 |
| 47771 | No. 1 pad wear indicator plate | 47771-32010 |
| 47775 | Bushing boot (for front disc brake) | 47775-32010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-16010 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90109-06134 |
