Toyota COROLLA 车轮和车轮盖 — Figure 4103

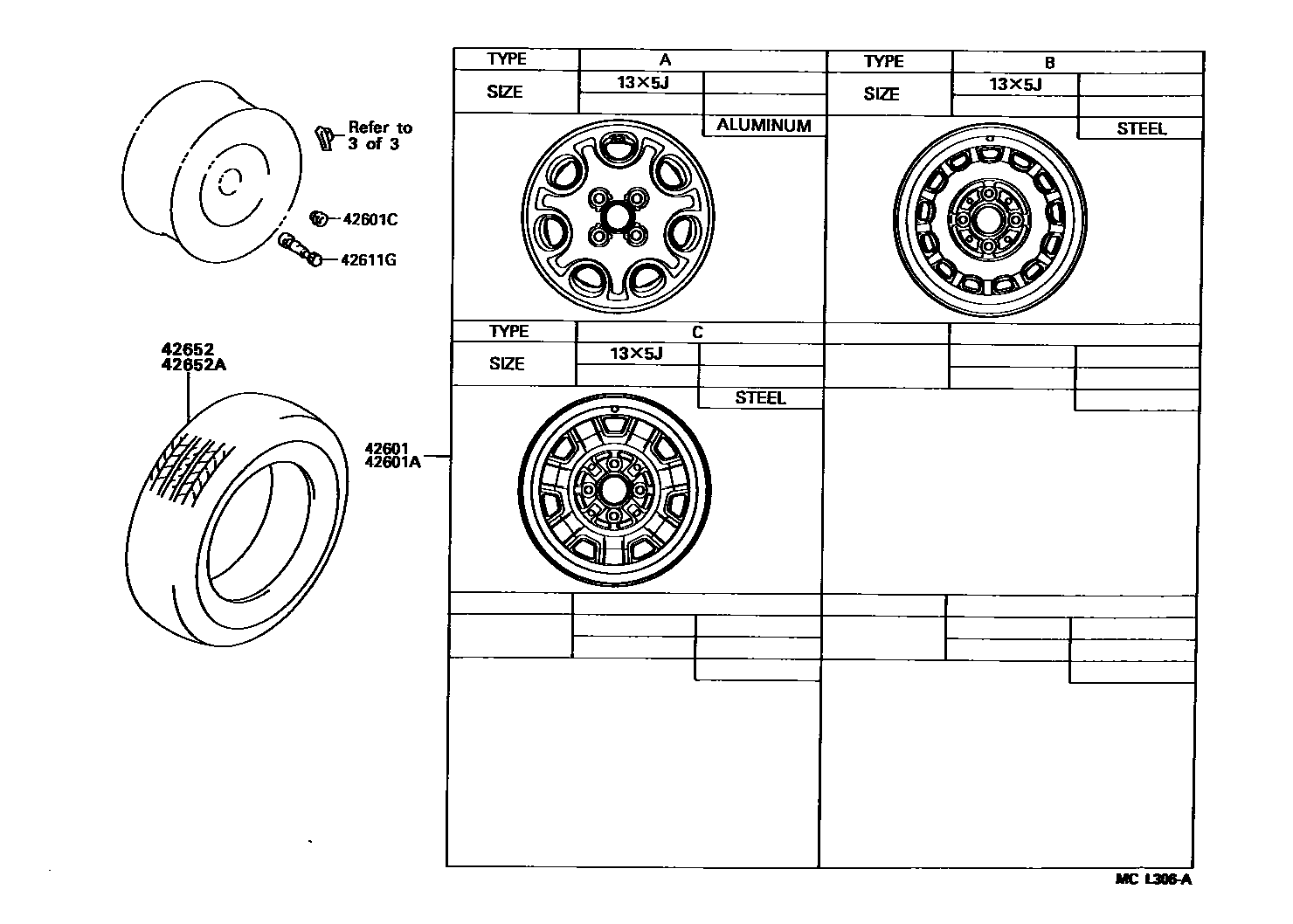

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-1A030 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A030 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

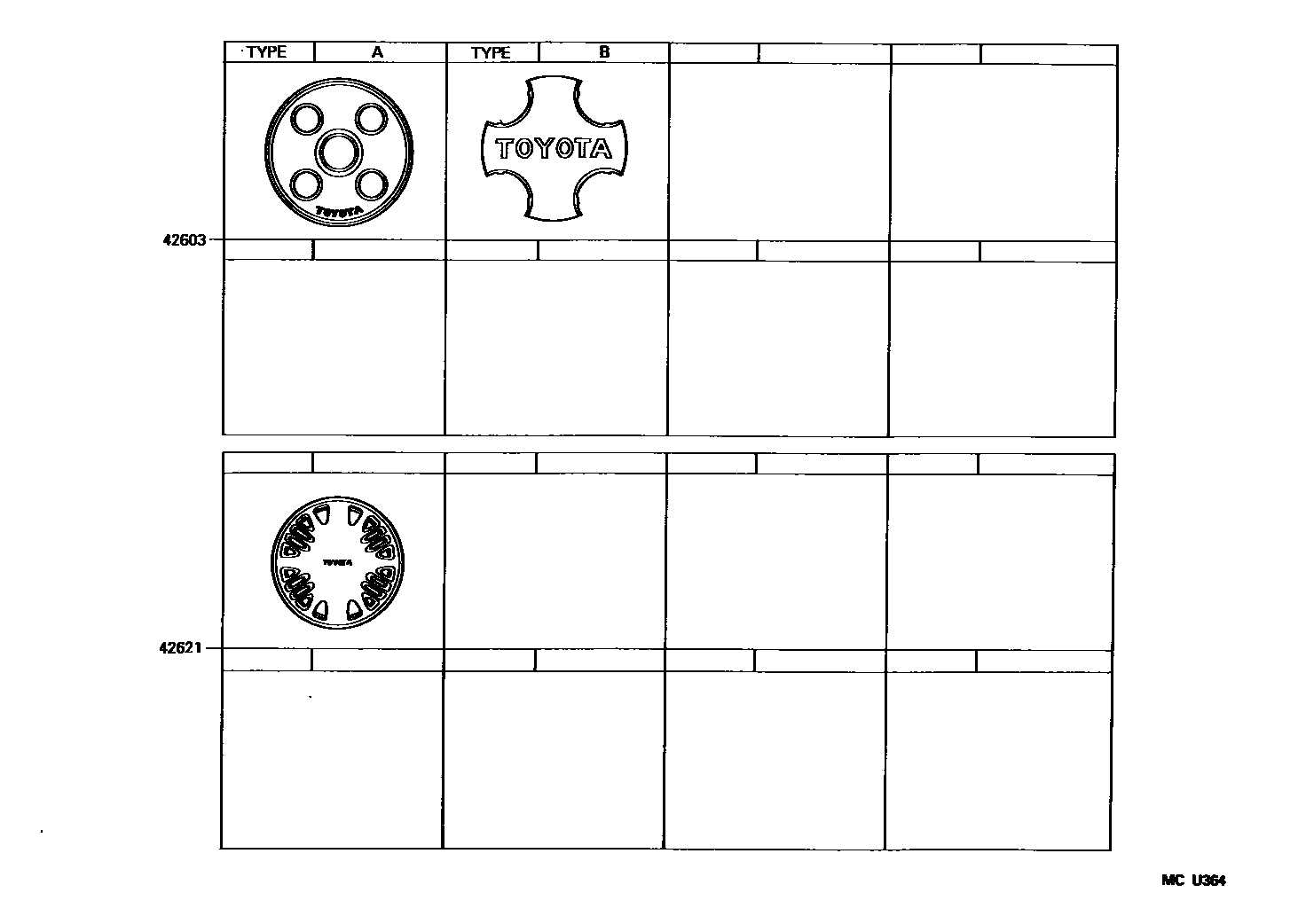

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12390 · 42603-12450 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42652 | tires | 42605-12200 · 42605-20100 · 42652-12730 · 42652-12770 · 42652-12780 · 42652-12790 · 42652-14140 · 42652-14290 |
| 42652A | Tire (for Spare Wheel) | 42605-12200 · 42605-20100 · 42652-12730 · 42652-12770 · 42652-12780 · 42652-12790 · 42652-14140 · 42652-14290 |
