Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512

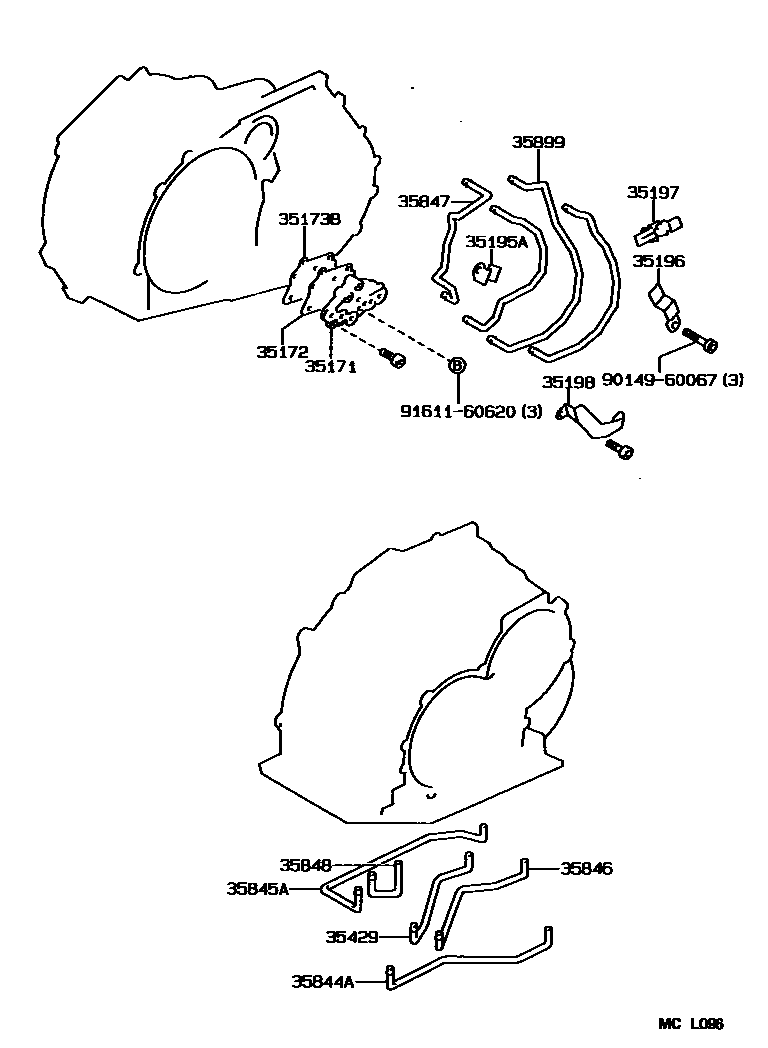

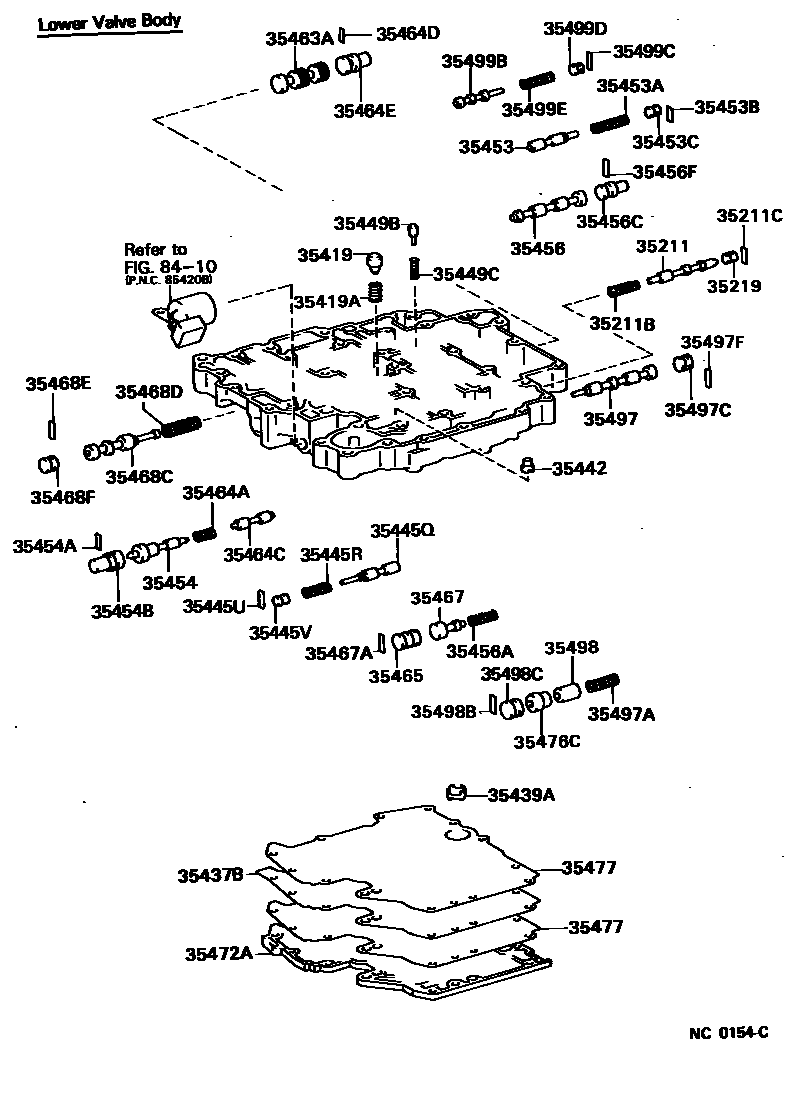

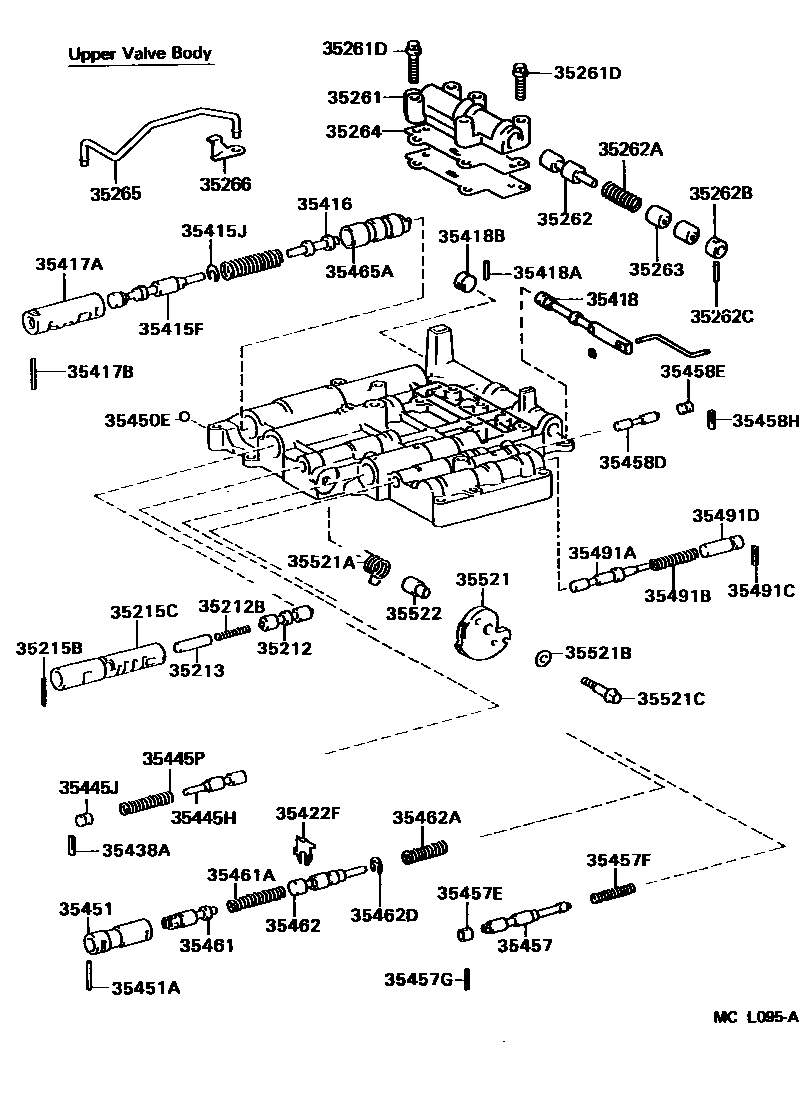

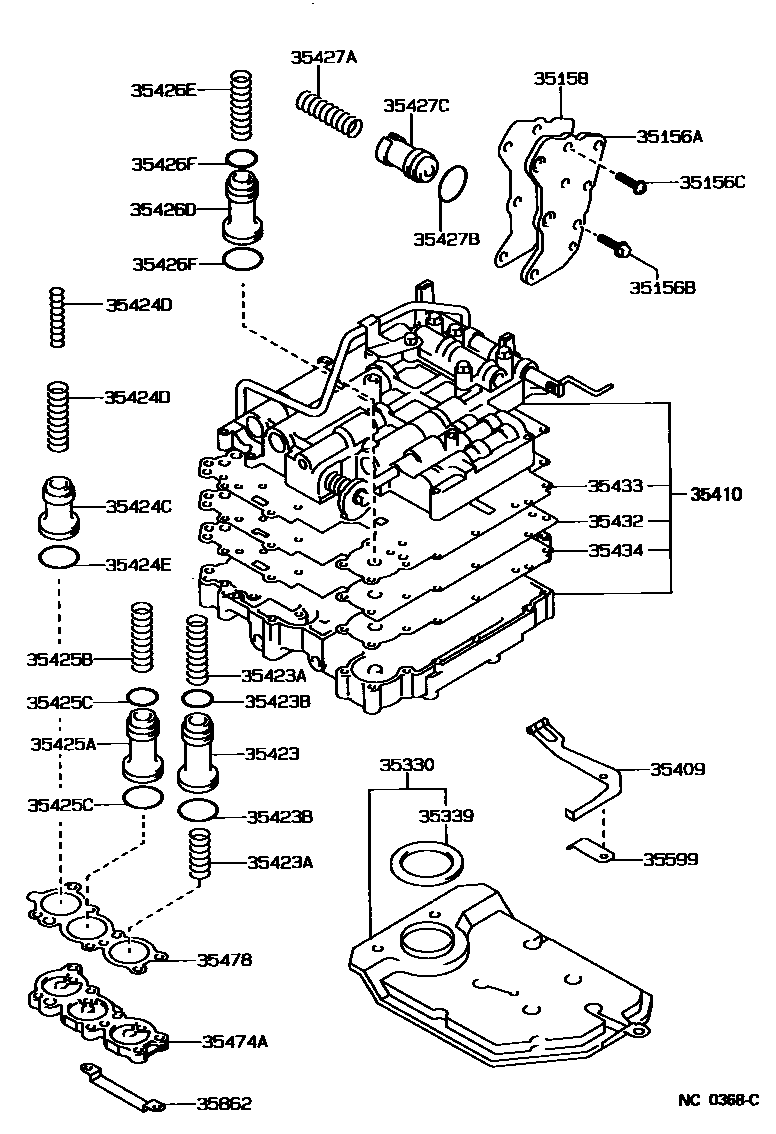

Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 4 images and 149 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35156A | No. 2 gearbox block | 35156-20010 |
| 35156B | Bolt (for gearbox block No. 2) | 90105-06049 |
| 35156C | Bolt (for gearbox block No. 2) | 90149-60041 |
| 35158 | No. 2 gearbox shield gasket | 35158-20020 |
| 35171 | Transmission axle housing cover | 35171-12020 |
| 35172 | Transaxle housing cover gasket | 35172-12020 · 35172-12021 |
| 35173B | Transmission axle housing cover | 35173-12010 · 35173-12011 |
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-12020 |
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-12020 |
| 35197 | No. 3 transmission axle oil supply pipe clamp | 35197-12020 |
| 35198 | No. 4 transmission axle oil supply pipe clamp | 35198-12010 |
| 35211 | lock signal valve | 35211-32010 |
| 35211B | Compression spring (for locking signal valve) | 90501-08057 |
| 35211C | Straight key (for locking signal valve) | 90282-03002 |
| 35212 | lock relay valve | 35212-12010 |
| 35212B | Compression spring (for locking relay valve) | 90501-05010 |
| 35213 | Lock relay control valve | 35213-12010 |
| 35215B | Direct pin (for locking relay valve sleeve) | 90250-03038 |
| 35215C | No. 1 locking relay valve sleeve | 35215-12021 |
| 35219 | Lock signal valve plunger | 90339-04005 |
| 35261 | No. 2 pressure regulator valve body | 35261-12010 |
| 35261D | Bolt (for pressure regulator valve No. 2) | 90105-05003 · 90105-05014 |
| 35262 | No. 2 pressure regulator valve | 35262-12010 |
| 35262A | Compression spring (for pressure regulator valve No. 2) | 90501-08098 |
| 35262B | Plunger (for pressure regulator valve No. 2) | 90339-05006 |
| 35262C | Roller (for pressure regulator valve No. 2) | 90361-02023 |
| 35263 | pressure regulator valve plunger | 35263-12010 |
| 35264 | Pressure regulator valve body piece | 35264-12010 |
| 35265 | Clutch pressure supply pipe | 35265-12010 |
| 35266 | Clutch pressure oil supply pipe clamp | 35266-12010 |
| 35330 | Valve body oil filter assembly | 35330-12020 |
| 35339 | Oil filter gasket | 35339-12010 |
| 35409 | Manual lock spring sub-assembly | 35409-20010 |
| 35410 | Transmission valve body assembly | 35410-12163 |
| 35415F | Main regulator valve | 35415-12020 |
| 35415J | Gasket (for main regulator valve) | 90201-08021 |
| 35416 | No. 1 main regulator valve plunger | 35416-12010 |
| 35417A | Main regulator valve sleeve | 35417-12020 |
| 35417B | Direct sales (for main regulator valve sleeve) | 90250-03038 |
| 35418 | Manual valve | 35418-12020 |
| 35418A | Direct sales (for manual valves) | 90250-02007 |
| 35418B | Plunger (for manual valve) | 90339-04007 |
| 35419 | No. 1 one-way valve | 35419-12030 |
| 35419A | Compression spring (for one-way valve) | 90501-10079 |
| 35422F | Valve damping stop | 35422-22010 |
| 35423 | B-2 Accumulator Piston | 35423-20010 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-12135 · 90501-14101 · 90501-26048 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-22185 · 90301-29187 |
| 35424C | C-1 Accumulator Piston | 35424-20010 · 35424-20030 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-19023 · 90501-24018 · 90501-25044 · 90501-26053 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-23194 · 90301-29187 |
| 35425A | C-2 Accumulator Piston | 35425-12020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-23063 · 90501-25012 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-23194 · 90301-29187 |
| 35426D | C-3 Accumulator Piston | 35426-12020 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-23050 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-20002 · 90301-29187 |
| 35427A | Compression spring (for B-4 accumulator piston) | 90501-26040 |
| 35427B | O-ring (for B-4 accumulator piston) | 90301-22185 |
| 35427C | B-4 Accumulator Piston | 35427-12010 |
| 35429 | pipeline pressure oil pipe | 35429-12030 |
| 35432 | No. 1 valve body plate | 35432-12120 |
| 35433 | No. 1 valve body gasket | 35433-12040 |
| 35434 | No. 2 valve body gasket | 35434-12020 |
| 35437B | Valve body cover | 35437-20010 |
| 35438A | Second gear slide regulator valve spring seat | 35438-22020 |
| 35439A | Pipe pressure oil filter | 35439-20010 |
| 35442 | Throttle regulator oil filter | 35442-32010 |
| 35445H | Second gear slide regulator valve | 35445-12010 |
| 35445J | Plunger (for second gear slide regulator valve) | 90339-02003 |
| 35445P | Compression spring (for second gear coast regulator valve) | 90501-10081 |
| 35445Q | Low gear coast regulator valve | 35445-12010 |
| 35445R | Compression spring (for low range coast regulator valve) | 90501-09046 |
| 35445U | Straight key (for low speed coast regulator valve) | 90282-03002 |
| 35445V | Plunger (for low range coast regulator valve) | 90339-02003 |
| 35449B | Pressure reducing valve | 35449-32010 |
| 35449C | Compression spring (for pressure reducing valve) | 90501-09032 |
| 35450E | Ball (for upper valve body) | 35495-22020 |
| 35451 | Throttle valve sleeve | 35451-32010 |
| 35451A | Direct sales (with throttle sleeve) | 90250-03038 |
| 35453 | lock regulator valve | 35453-20010 |
| 35453A | Compression spring (for locking regulator valve) | 90501-10080 |
| 35453B | Straight key (for locking the pressure regulator valve) | 90282-03002 |
| 35453C | Plunger (for locking the regulator valve) | 90339-02003 |
| 35454 | Low gear coast shift valve | 35454-20010 |
| 35454A | Straight key (for low gear coast shift valve) | 90282-03002 |
| 35454B | Plunger (for low range coast shift valve) | 90339-04008 |
| 35456 | 2nd-3rd gear shift valve | 35456-32010 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-06027 |
| 35456C | Plunger (for 2-3 gear shift valve) | 90339-07005 |
| 35456F | Straight key (for 2-3 gear shift valve) | 90282-03001 |
| 35457 | Throttle regulator valve | 35457-12010 |
| 35457E | Plunger (for throttle regulator valve) | 90339-05006 |
| 35457F | Compression spring (for throttle regulator valve) | 90501-09040 |
| 35457G | Direct sales (for throttle regulator valve) | 90250-02007 |
| 35458D | reverse valve | 35458-32020 |
| 35458E | Plunger (for reverse valve) | 90339-04002 |
| 35458H | Straight key (for reverse valve) | 90282-03003 |
| 35461 | Downshift plug | 35408-32010 |
| 35461A | Compression spring (for downshift plug) | 90501-10054 |
| 35462 | throttle valve | 35462-12020 |
| 35462A | Compression spring (for throttle valve) | 90501-07027 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35463A | 1-2 gear lower shift valve | 35463-32010 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-06025 |
| 35464C | 1-2 gear upper shift valve | 35464-32020 |
| 35464D | Straight key (for 1-2 gear shift valve) | 90282-03001 |
| 35464E | Plunger (for 1-2 gear shift valve) | 90339-07005 |
| 35465 | Intermediate shift valve plunger | 35465-32010 |
| 35465A | Main regulator valve plunger sleeve | 35465-12010 |
| 35467 | Intermediate shift valve | 35467-32010 |
| 35467A | Straight key (for intermediate shift valve) | 90282-03001 |
| 35468C | Secondary regulator valve | 35468-12020 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-14105 |
| 35468E | Straight key (for secondary regulator valve) | 90282-03001 |
| 35468F | Plunger (for secondary regulator valve) | 90339-03004 |
| 35472A | Lower valve body cover | 35472-12050 |
| 35474A | Accumulator cover | 35474-12010 |
| 35476C | Three-speed slide valve | 35476-20010 |
| 35477 | Valve body cover gasket | 35477-20010 |
| 35478 | Accumulator cover gasket | 35478-32010 |
| 35491A | No. 1 accumulator control valve | 35491-12010 · 35491-20010 |
| 35491B | Compression spring (for No. 1 accumulator control valve) | 90501-09045 · 90501-09115 |
| 35491C | Straight key (for No. 1 accumulator control valve) | 90282-03003 |
| 35491D | Plunger (for No. 1 accumulator control valve) | 90339-04042 · 90339-05007 |
| 35497 | 3rd-4th gear shift valve | 35497-20020 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-07031 |
| 35497C | Plunger (for 3-4 gear shift valve) | 90339-04006 |
| 35497F | Straight key (for 3-4 gear shift valve) | 90282-03001 |
| 35498 | 3rd-4th gear slide shift valve | 35498-20020 |
| 35498B | Straight key (for 3-4 speed coasting shift valve) | 90282-03001 |
| 35498C | Plunger (for 3-4th gear slide shift valve) | 90339-04006 |
| 35499B | Overdrive sequence valve | 35499-20010 |
| 35499C | Straight key (for overdrive sequence valve) | 90282-03002 |
| 35499D | Plunger (for overdrive sequence valve) | 90339-02003 |
| 35499E | Compression spring (for overdrive sequence valve) | 90501-08039 |
| 35521 | throttle cam | 35521-32010 |
| 35521A | Spring (for throttle cam return) | 90508-11003 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35521C | Bolt (for throttle cam assembly) | 90105-06018 |
| 35522 | Throttle valve cam pin | 35522-22010 |
| 35599 | Manual locking spring cover | 35599-12010 |
| 35844A | No. 1 accumulator back pressure pipe | 35844-12030 |
| 35845A | Direct clutch accumulator tube | 35845-12030 |
| 35846 | brake accumulator pipe | 35846-12040 |
| 35847 | Transmission lubricant supply pipe | 35847-12020 |
| 35848 | Forward clutch accumulator tube | 35848-12030 |
| 35862 | Accumulator fuel supply pipe bracket | 35862-12020 |
| 35899 | Governor pressure oil pipe | 35899-12020 |
