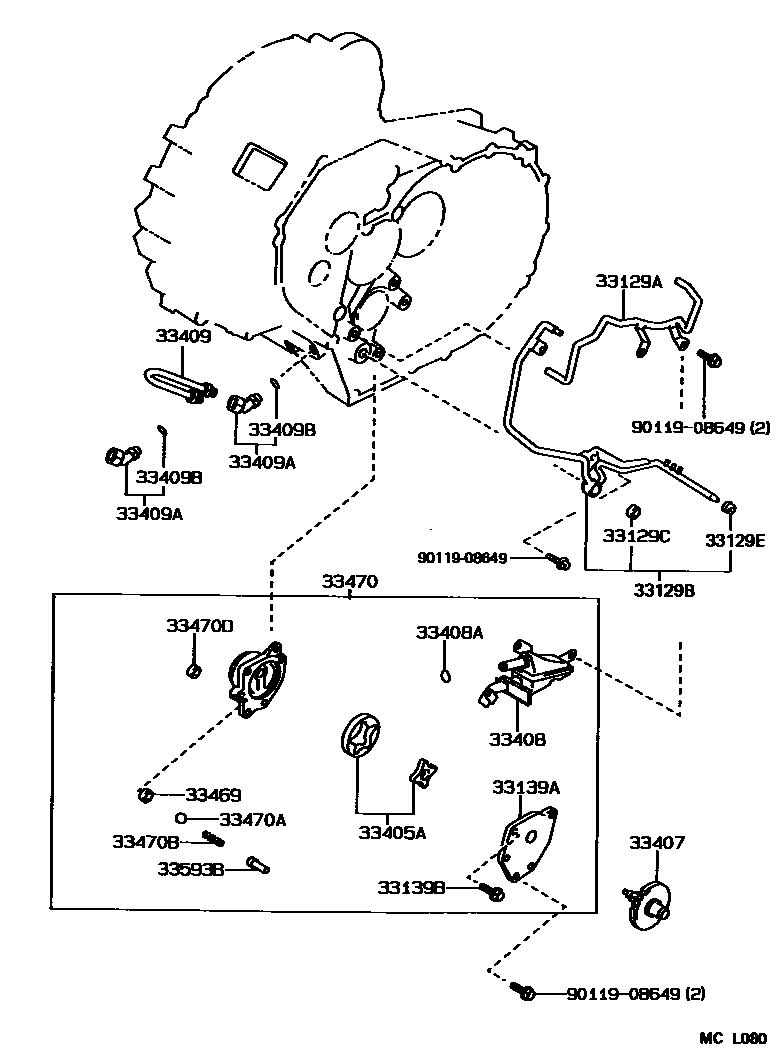

Toyota COROLLA 油泵、油冷却器和配管(MTM) — Figure 3308
Toyota COROLLA EPC diagram 3308, 油泵、油冷却器和配管(MTM), with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33129A | No. 1 manual transmission oil pipe | 33129-12030 |
| 33129B | No. 2 manual transmission oil pipe | 33106-12030 · 33106-12040 |
| 33129C | Gasket (for manual transmission oil pipe) | 90430-09004 |
| 33129E | Bushing (for manual transmission oil pipe) | 90389-05012 |
| 33139A | Oil pump cover (for manual transmission) | 33139-20010 |
| 33139B | Bolt (for manual transmission oil pump cover) | 90119-06199 |
| 33405A | Manual transmission oil pump rotor sub-assembly | 33405-20020 |
| 33407 | Manual transmission oil pump driving gear sub-assembly | 33407-12031 |
| 33408 | Manual transmission oil filter sub-assembly | 33408-20010 |
| 33408A | O-ring (for manual transmission oil filter) | 96721-19012 |
| 33409 | Manual transmission oil cooler pipe sub-assembly | 33409-17010 |
| 33409A | Bend pipe (for manual transmission oil cooler pipe) | 90407-16017 |
| 33409B | O-ring (for manual transmission oil cooler pipe elbow) | 90301-11006 |
| 33469 | Pressure reducing valve seat (for manual transmission oil pump) | 33469-20010 |
| 33470 | Manual transmission oil pump assembly | 33470-12010 |
| 33470A | Steel ball (for manual transmission oil pump) | 90360-10003 |
| 33470B | Compression spring (for manual transmission oil pump) | 90501-08092 |
| 33470D | Gasket (for manual transmission oil pump) | 90430-09004 |
| 33593B | Spring retainer (for manual transmission oil pump) | 33593-20010 |
