Toyota COROLLA Alternator — Figure 1903

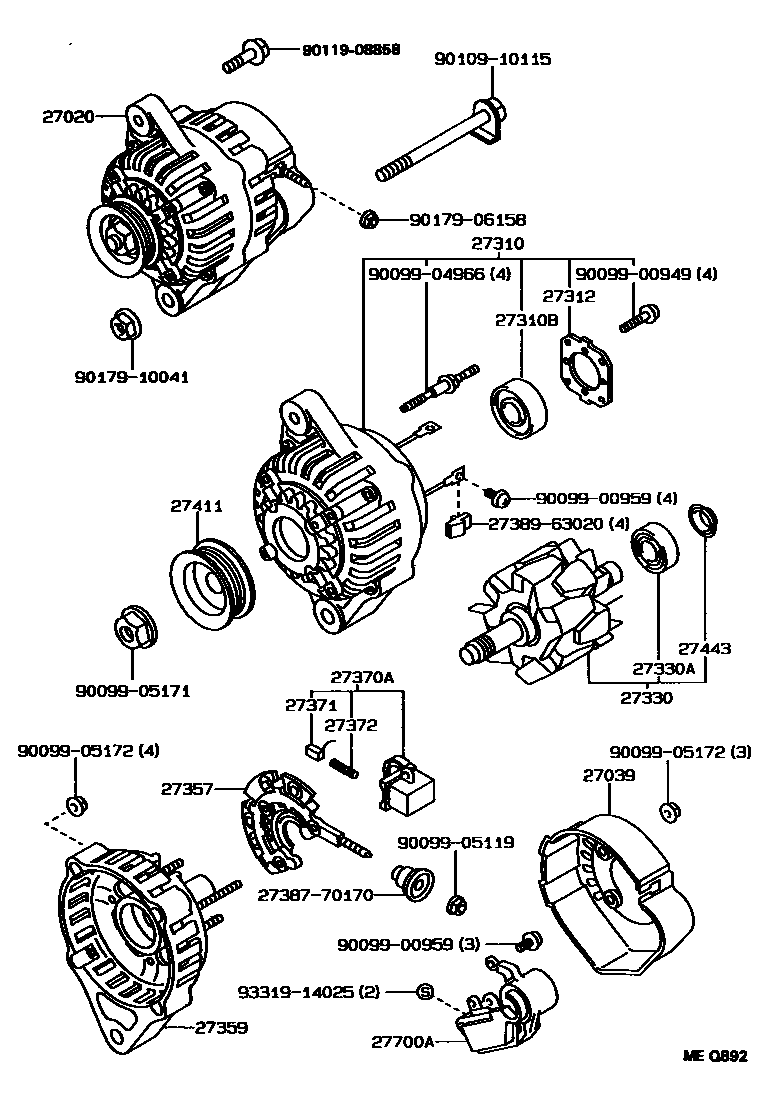

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-16170 |
| 27039 | Alternator Rear End Cover | 27039-15170 · 27039-72010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-16190 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10178 |
| 27312 | Retainer Plate | 27312-70200 |
| 27330 | Alternator Rotor Assembly | 27330-72101 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-63020 |
| 27359 | Generator rectifier end frame | 27359-16151 |
| 27370A | Alternator Brush Holder Assembly | 27370-35060 · 27370-63021 · 27370-70300 |
| 27371 | Generator brushes | 27371-63020 · 27371-70300 |
| 27372 | Generator brush spring | 27372-63020 |
| 27411 | Alternator Pulley | 27411-16180 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-70030 |
