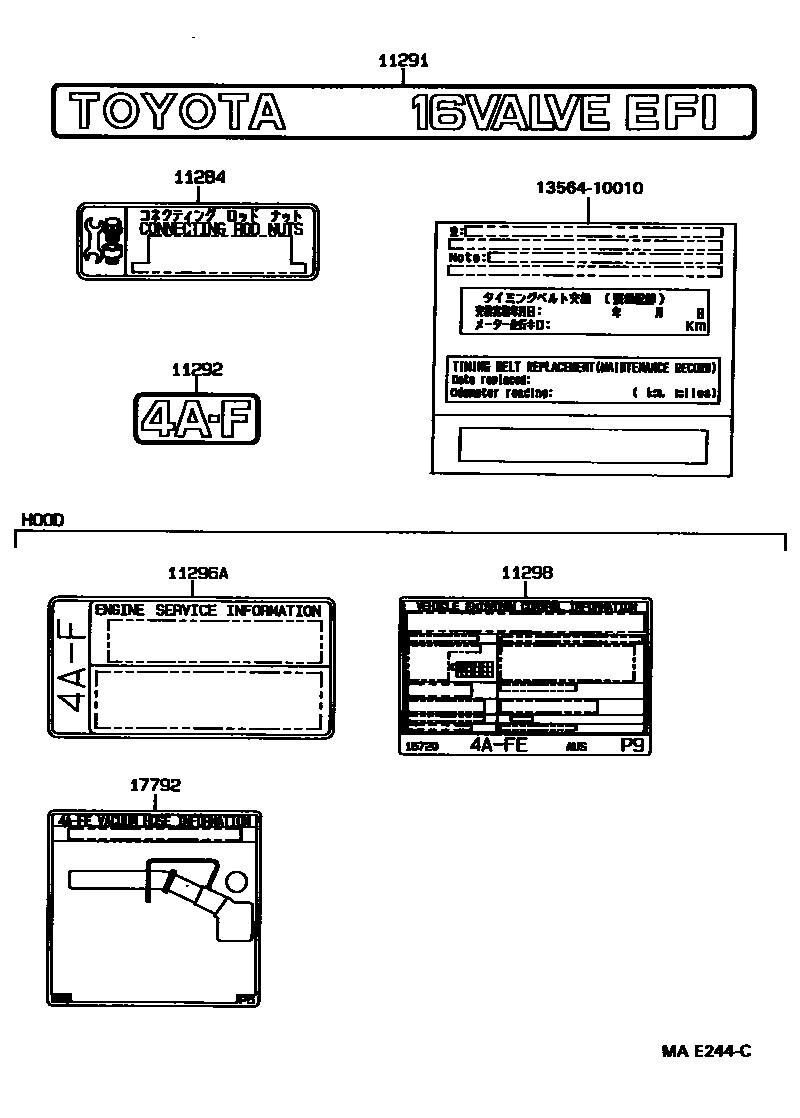

Toyota COROLLA 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota COROLLA EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-15010 |
| 11291 | Engine name plate | 11291-15120 · 11291-15140 |
| 11292 | Engine No. 2 name plate | 11292-16010 |
| 11296A | Engine maintenance information label | 11296-16030 |
| 11298 | Emission control information plate | 11298-16720 |
| 17792 | Engine vacuum hose information plate | 17792-16391 |
