Toyota COROLLA vacuum tube — Figure 1708

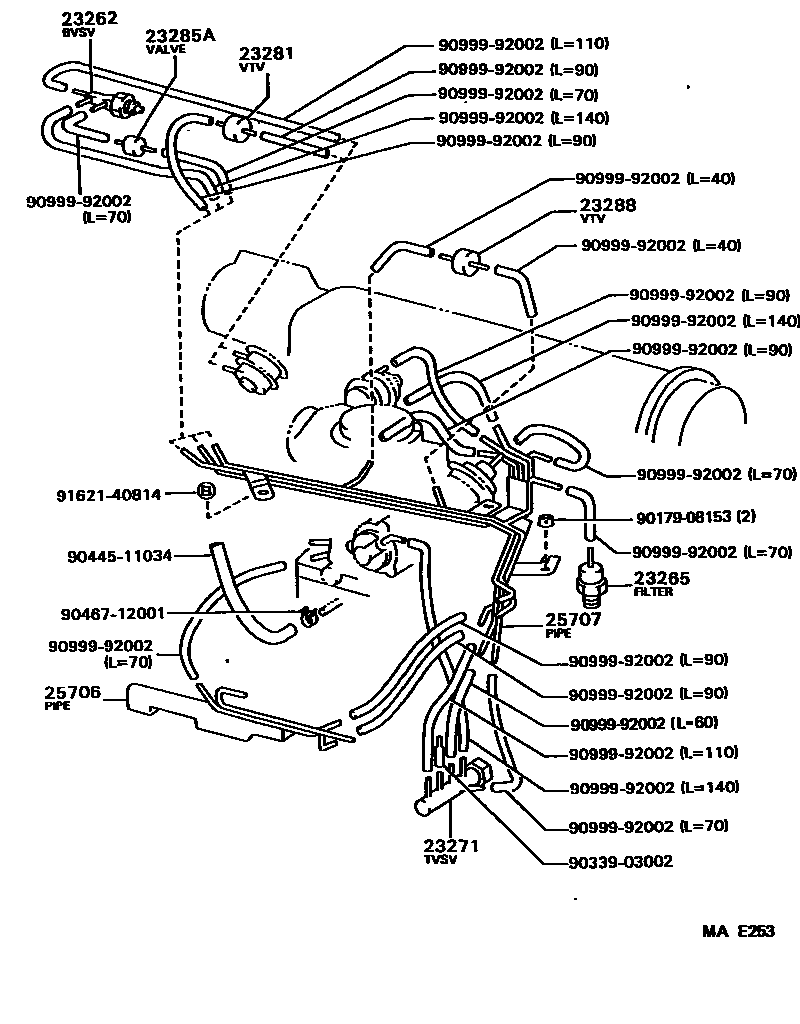

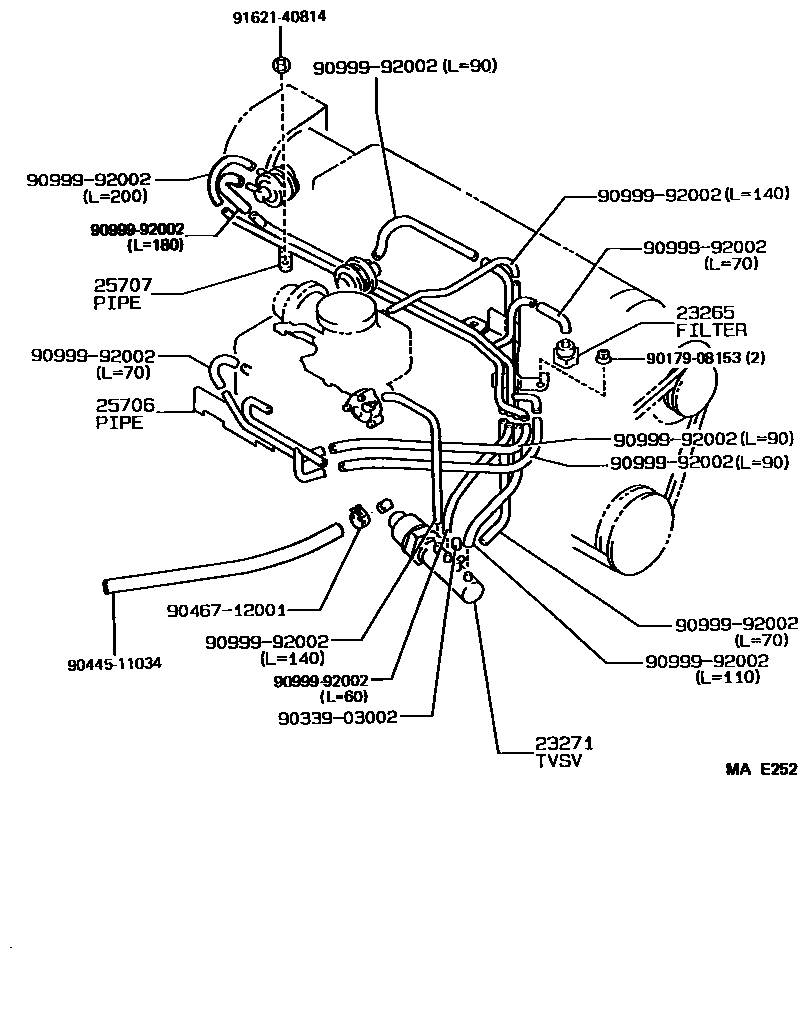

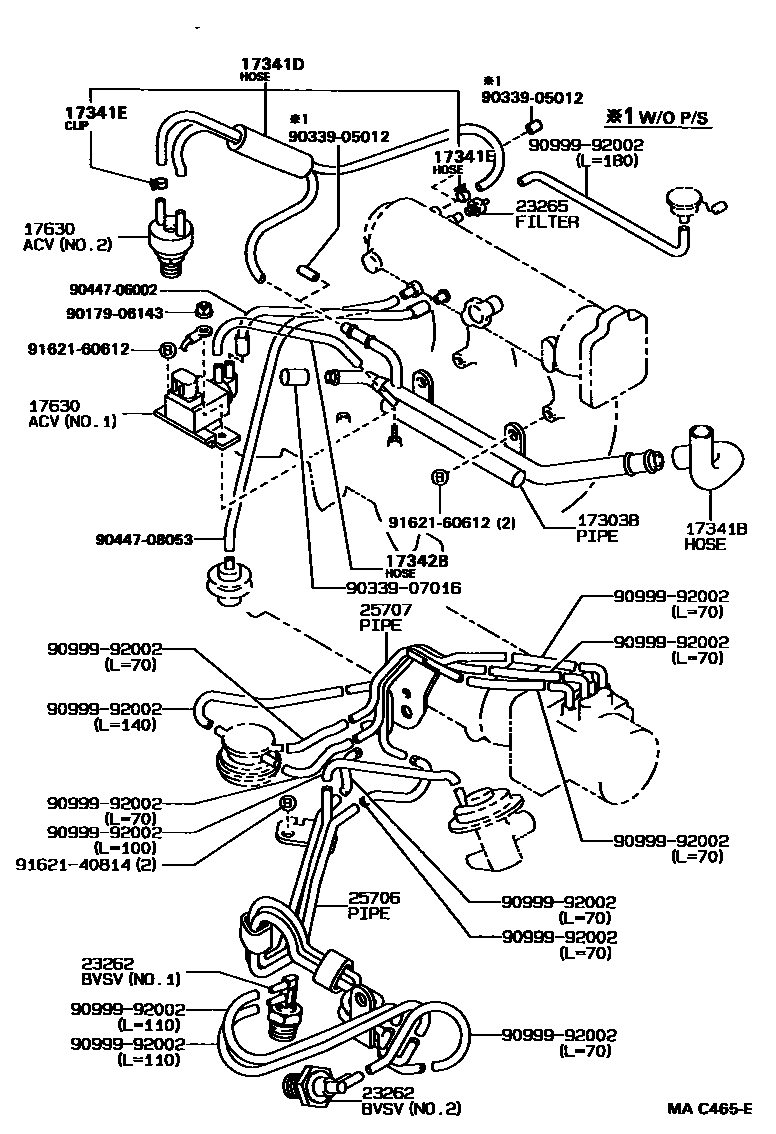

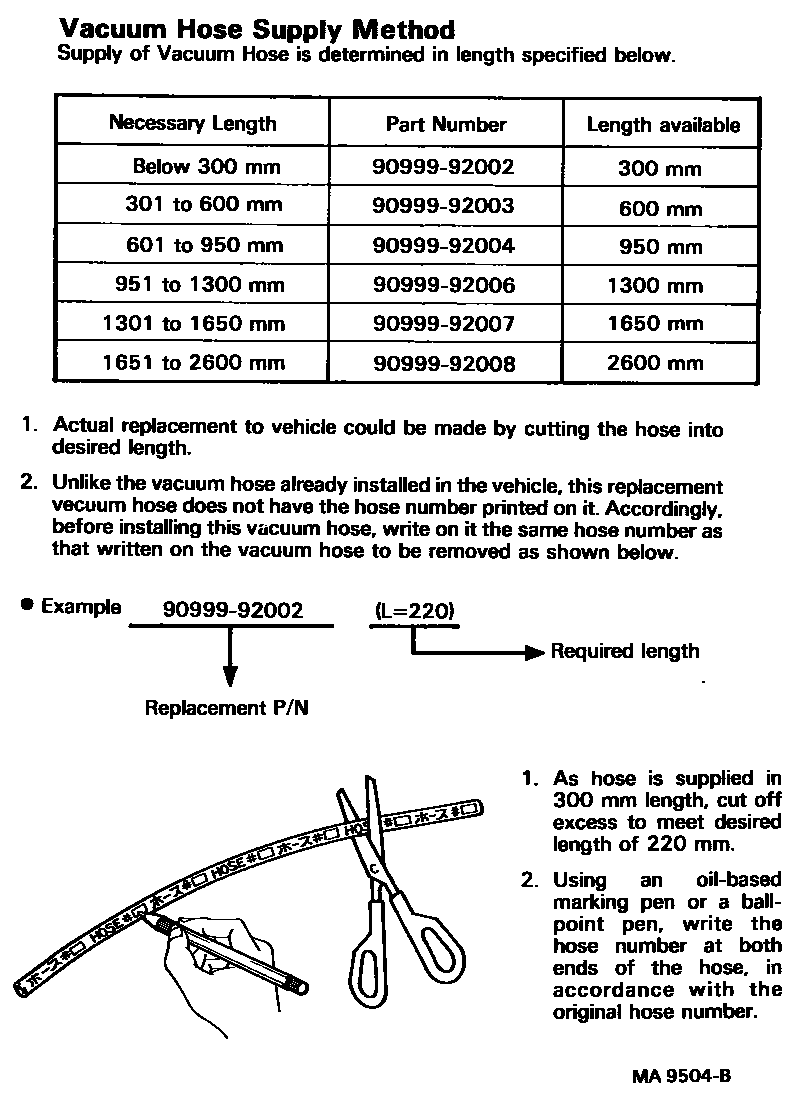

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-16120 |
| 17341B | Hoses No. 1 (for air injection systems) | 17341-15130 |
| 17341D | No. 1 hose (for idle boost) | 17302-16020 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 17342-16090 |
| 17630 | Air control valve assembly | 17630-15060 · 17630-16060 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05068 · 90925-05075 · 90925-05085 |
| 23265 | No. 1 gas filter | 90917-11022 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01095 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-01091 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-16210 · 25706-16300 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-16061 · 25707-16140 · 25707-16160 |
