Toyota COROLLA Engine Mounting — Figure 1107

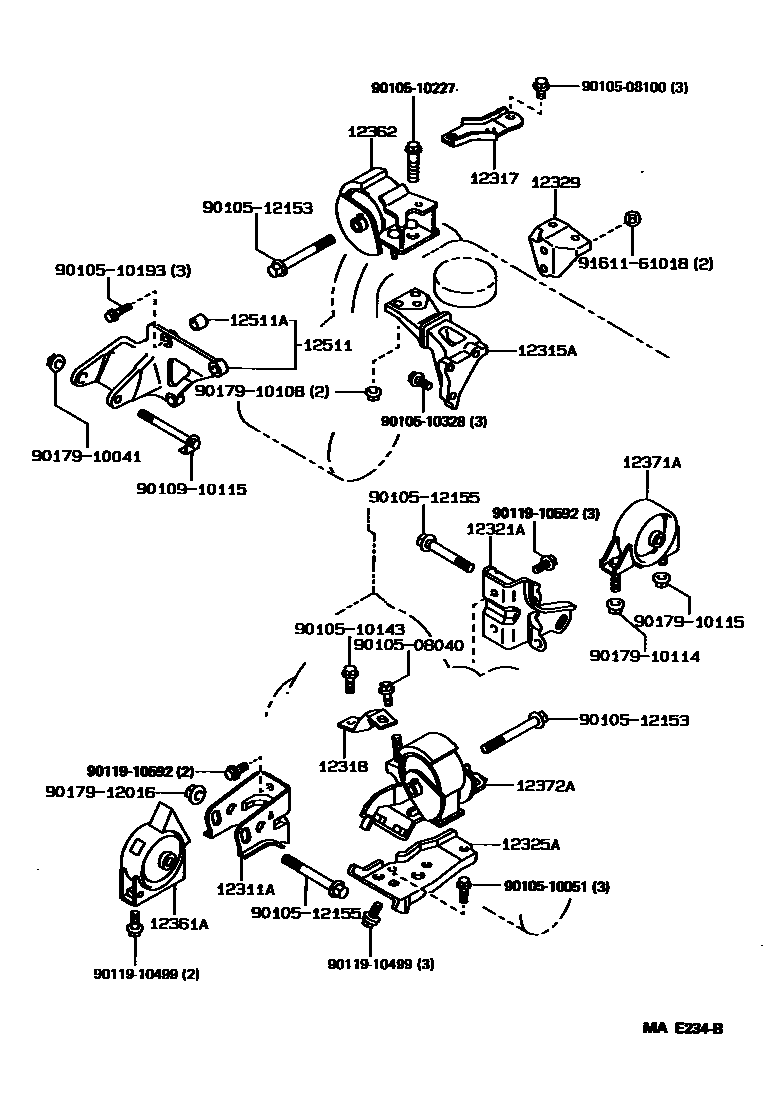

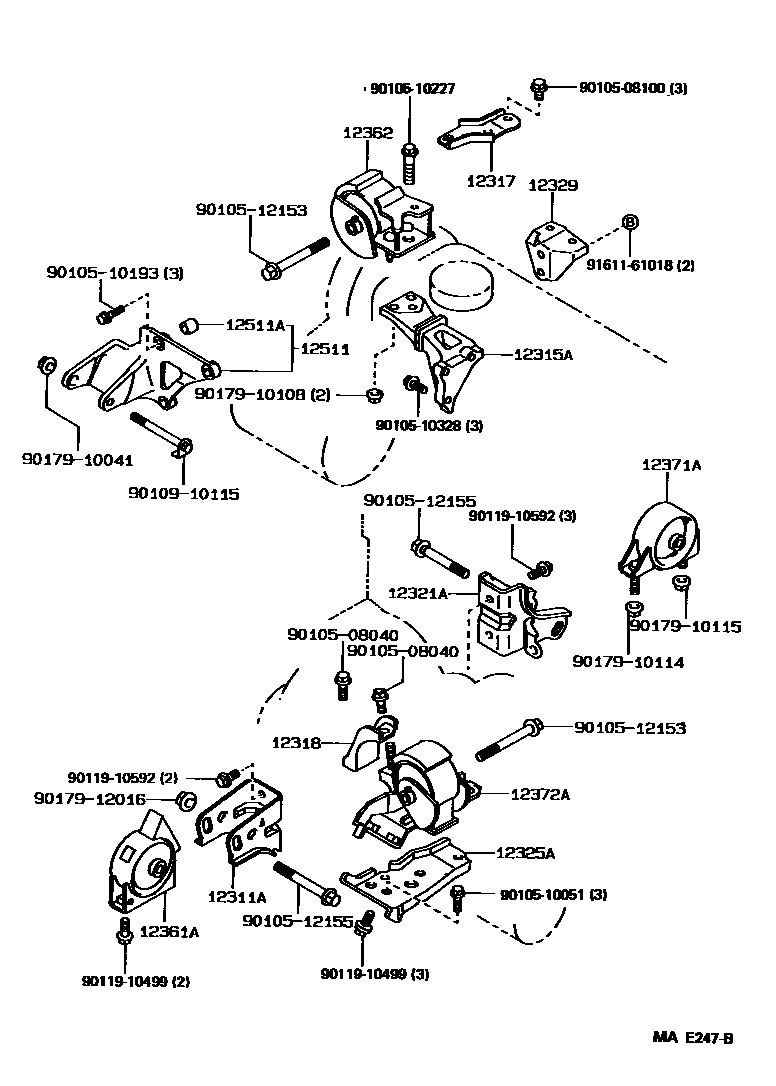

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-16050 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-15070 |
| 12317 | Engine right mounting bracket | 12317-15020 |
| 12318 | Engine left mounting bracket | 12318-16040 · 12318-16070 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-16090 · 12321-16100 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-16080 · 12325-16090 |
| 12329 | Engine mounting bracket | 12329-15010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-16110 · 12361-16120 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-16141 |
| 12371A | Engine rear mount vibration isolation pad | 12371-16120 · 12371-16130 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-16130 · 12372-16150 |
| 12511 | No. 1 generator bracket | 12511-15040 |
| 12511A | Generator bracket bushing | 90387-10013 |
