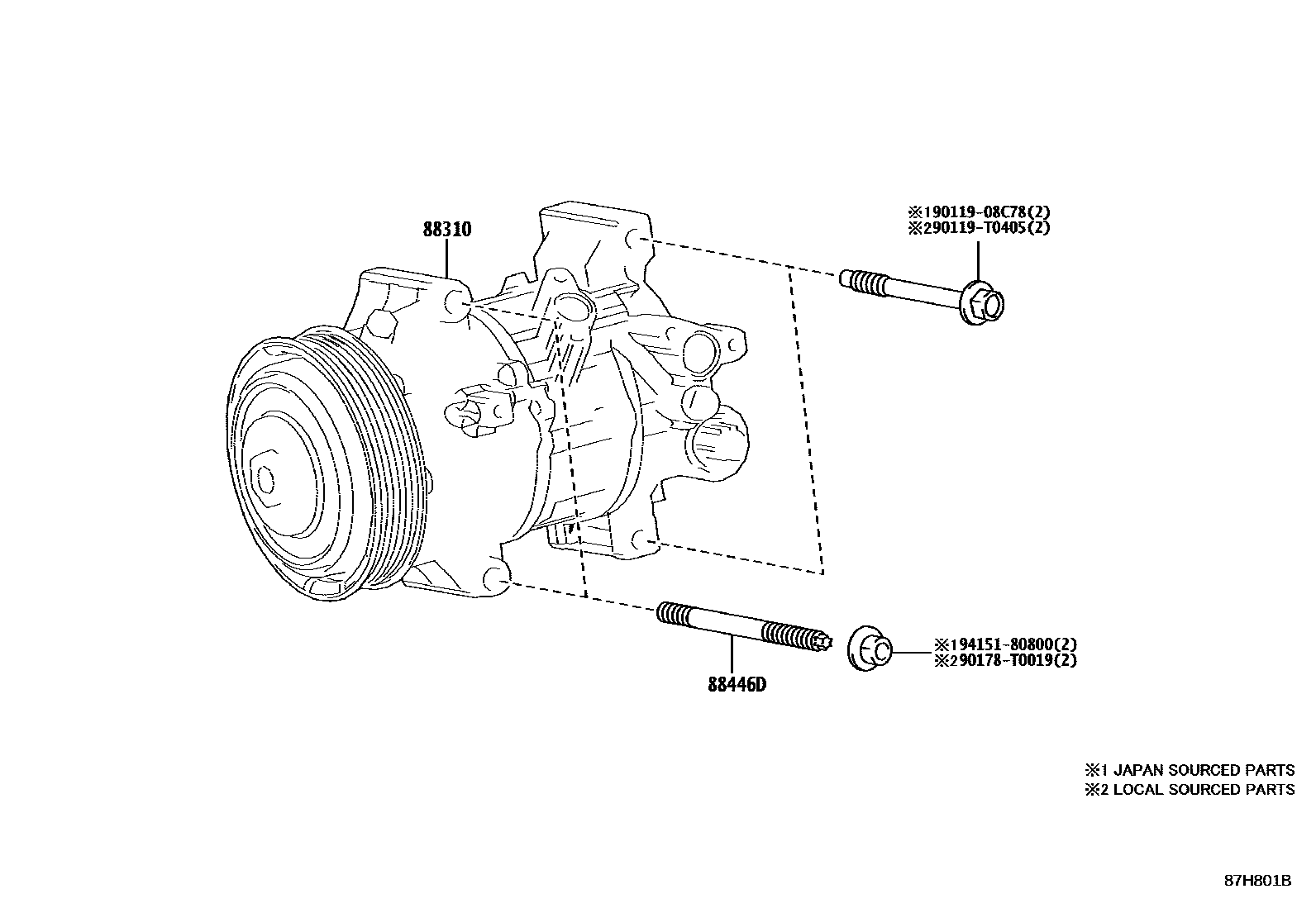

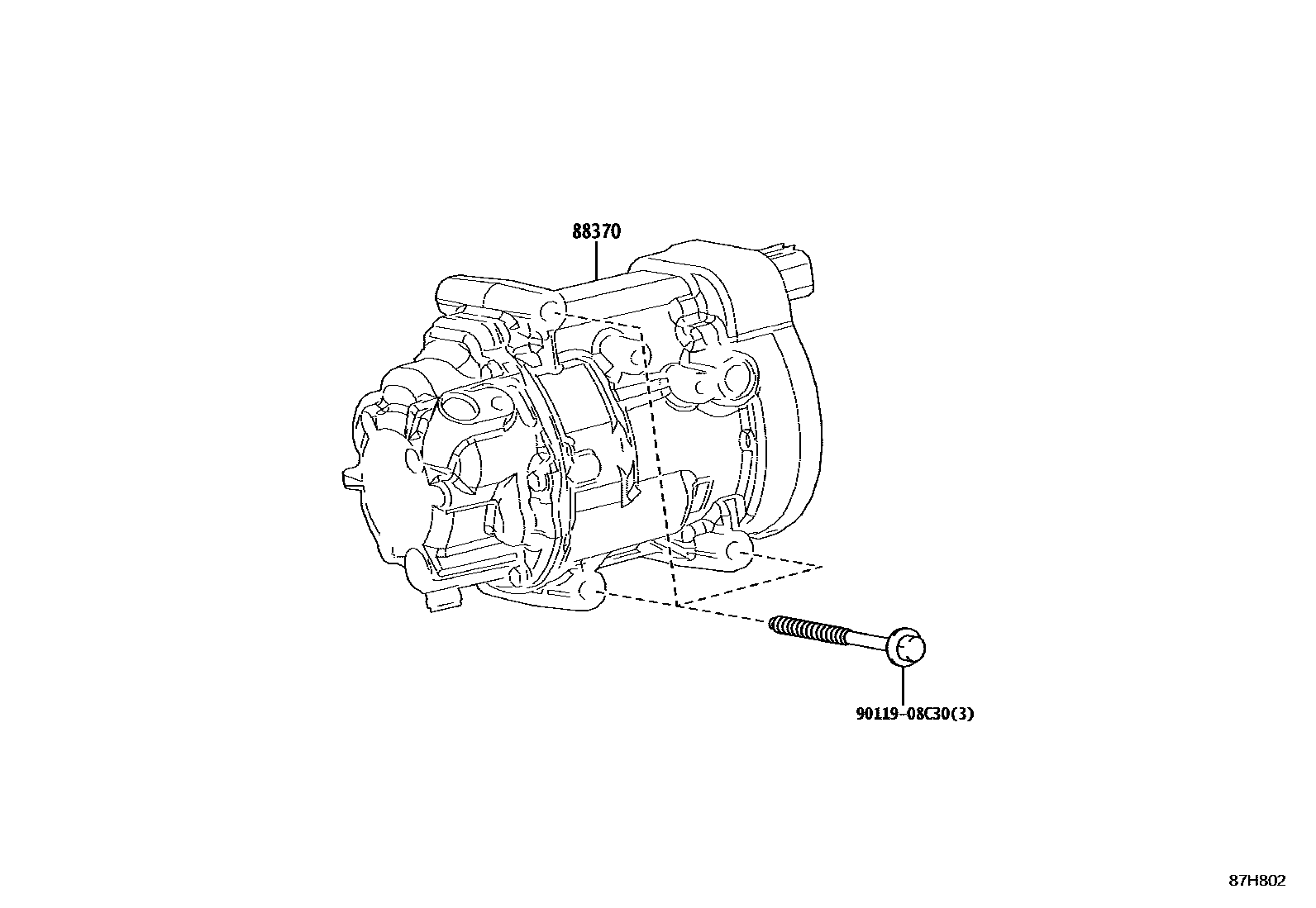

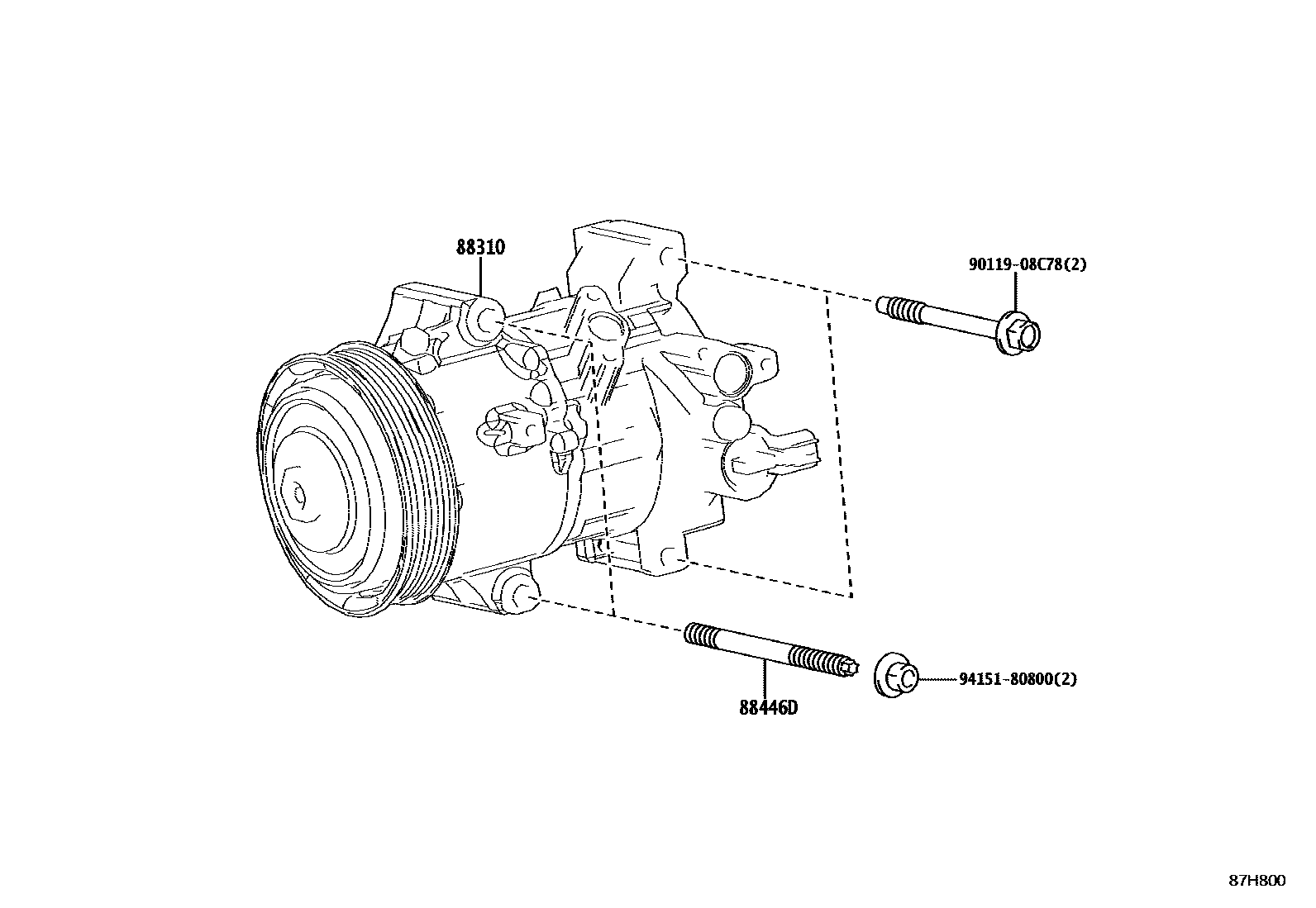

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-02892 · 88310-02A02 · 88310-02C30 · 88310-02C90 |
| 88370 | Compressor assembly with motor | 88370-47092 |
| 88446D | cooler bolt | 88446-02090 · 88446-02100 |
