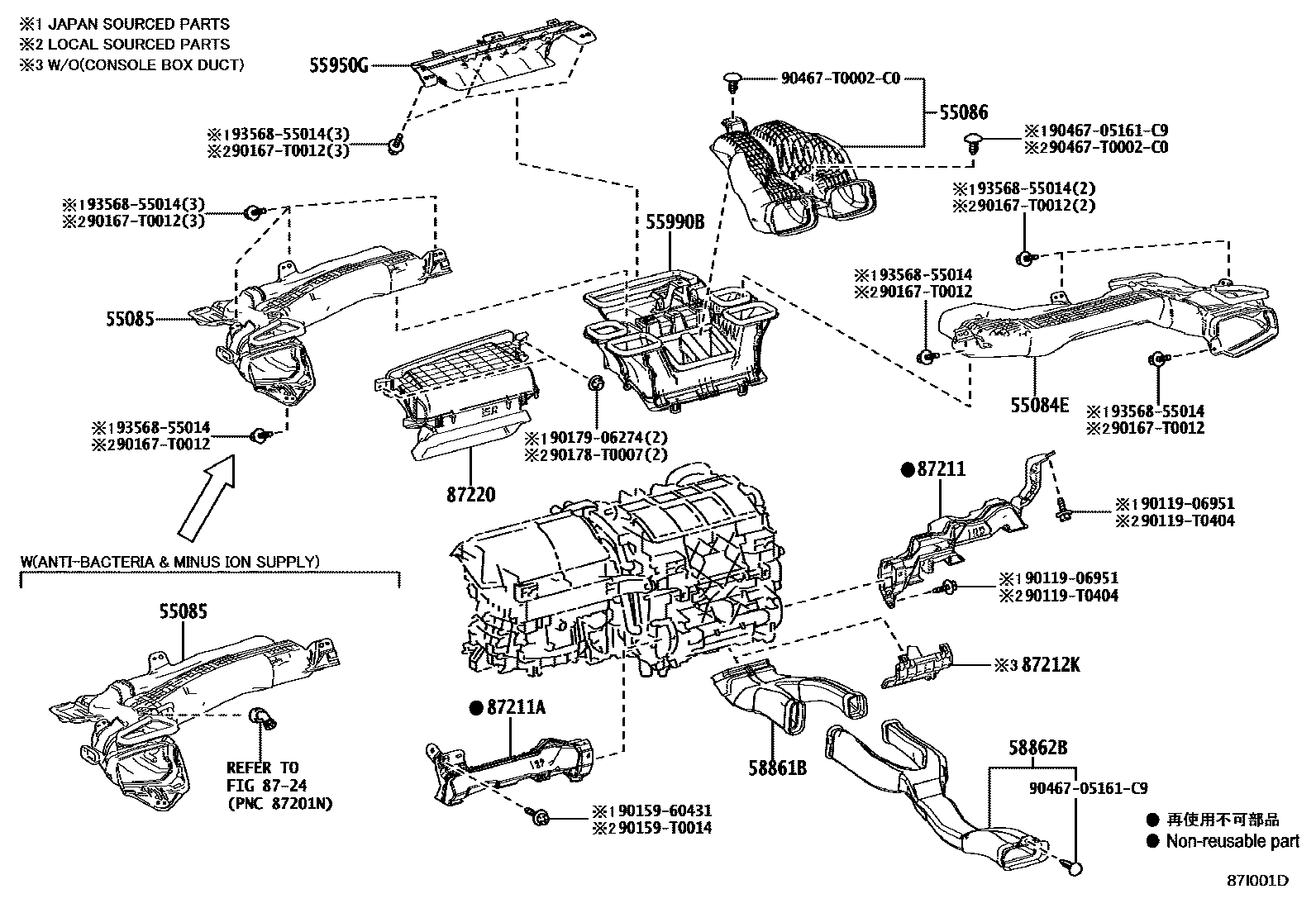

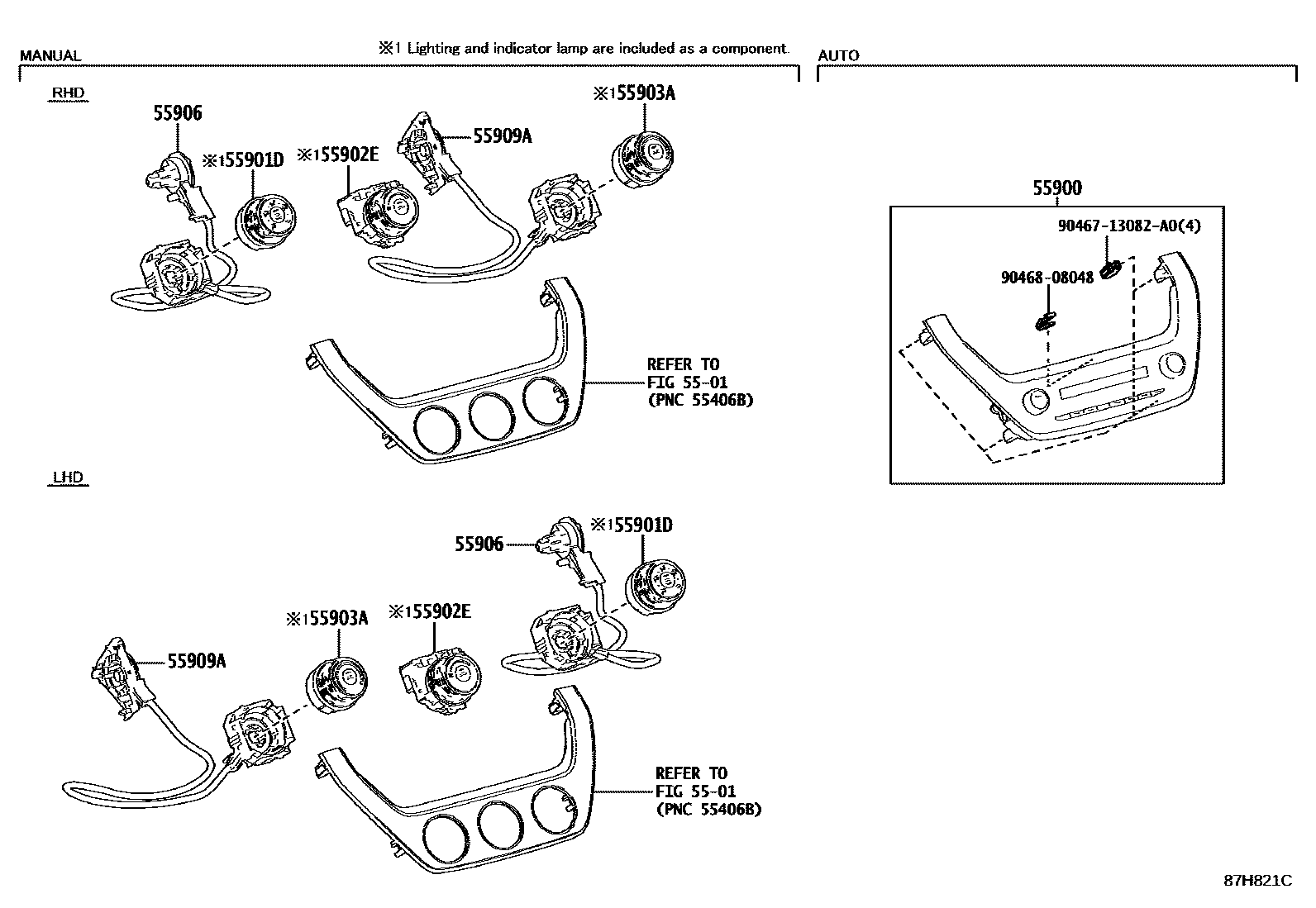

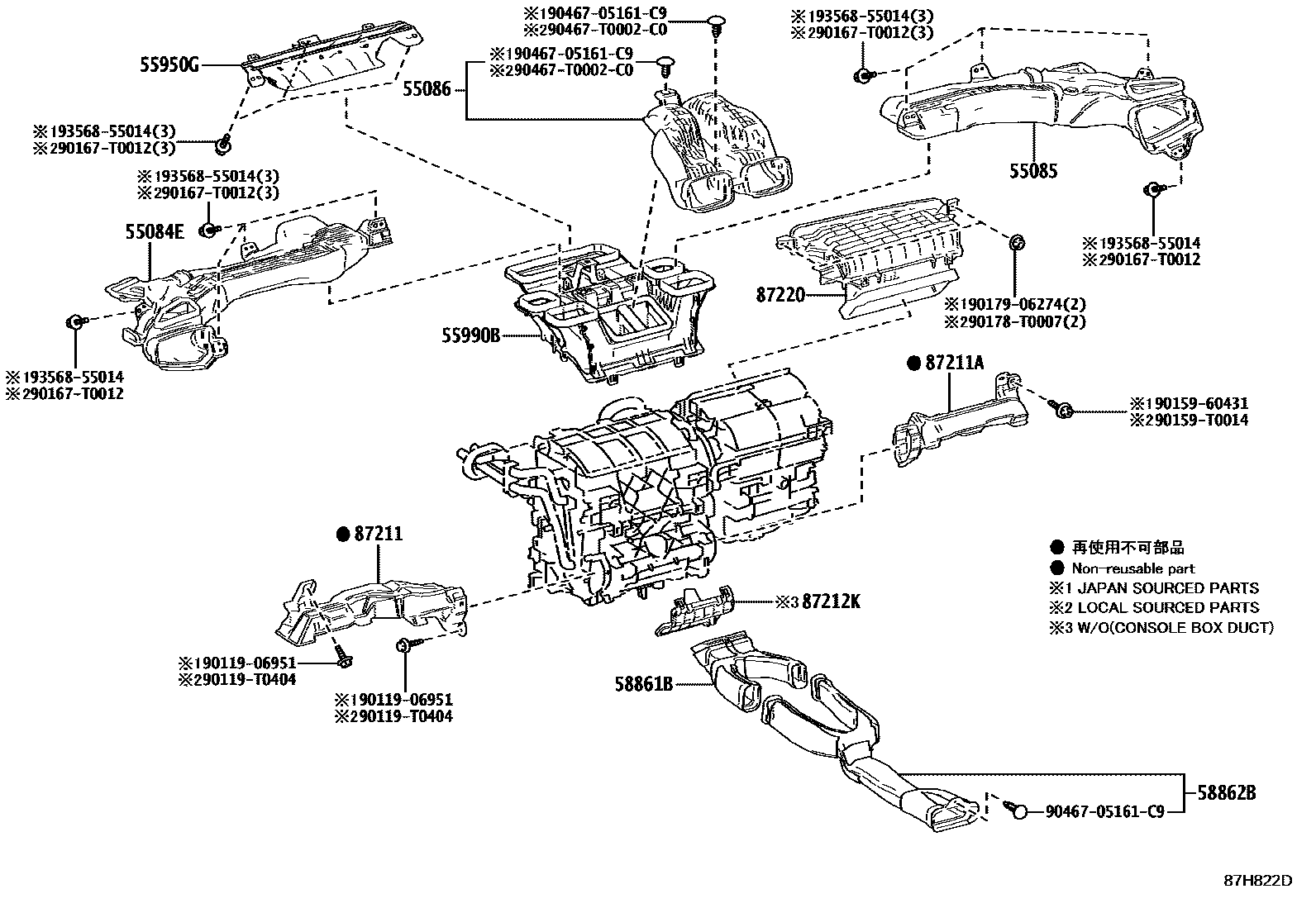

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02410 · 55084-02660 · 55084-02670 · 55084-02680 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-02220 · 55085-02230 · 55085-02240 · 55085-02250 · 55085-02290 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-02630 · 55086-02640 · 55086-02650 |
| 55901D | No. 1 heater control sub-assembly | 55901-02230 · 55901-02250 · 55901-12280 · 55901-12340 |
| 55902E | No. 2 heater control sub-assembly | 55902-02280 · 55902-02320 · 55902-12410 · 55902-26150 |
| 55903A | No. 3 heater control sub-assembly | 55903-02450 · 55903-02470 · 55903-12380 · 55903-12390 · 55903-12400 · 55903-26080 |
| 55906 | Heater control cable sub-assembly | 55906-26080 · 55906-26081 · 55906-26090 · 55906-26091 |
| 55909A | Air mix damper control cable sub-assembly | 55909-26130 · 55909-26131 · 55909-26140 · 55909-26141 |
| 55950G | Defroster nozzle assembly | 55950-02440 · 55950-02450 · 55950-02500 · 55950-02510 |
| 55990B | Lower defroster nozzle assembly | 55990-02330 · 55990-02340 · 55990-02350 |
| 58861B | Air duct No. 1 for armrest box | 58861-02030 · 58861-02050 · 58861-02070 |
| 58862B | Air duct No. 2 for armrest box | 58862-02050 · 58862-02070 · 58862-02090 |
| 82212C | Air conditioner No. 1 wiring harness | 82212-02610 · 82212-02660 · 82212-12150 |
| 87211 | No. 1 air duct | 87211-02630 · 87211-02650 · 87211-02670 |
| 87211A | Duct No. 2 | 87211-02640 · 87211-02660 · 87211-02680 |
| 87212K | No. 6 rear air duct | 87114-F4090 |
| 87220 | Air duct assembly | 87220-02390 · 87220-02391 · 87220-02400 · 87220-02401 · 87220-02410 · 87220-02411 |

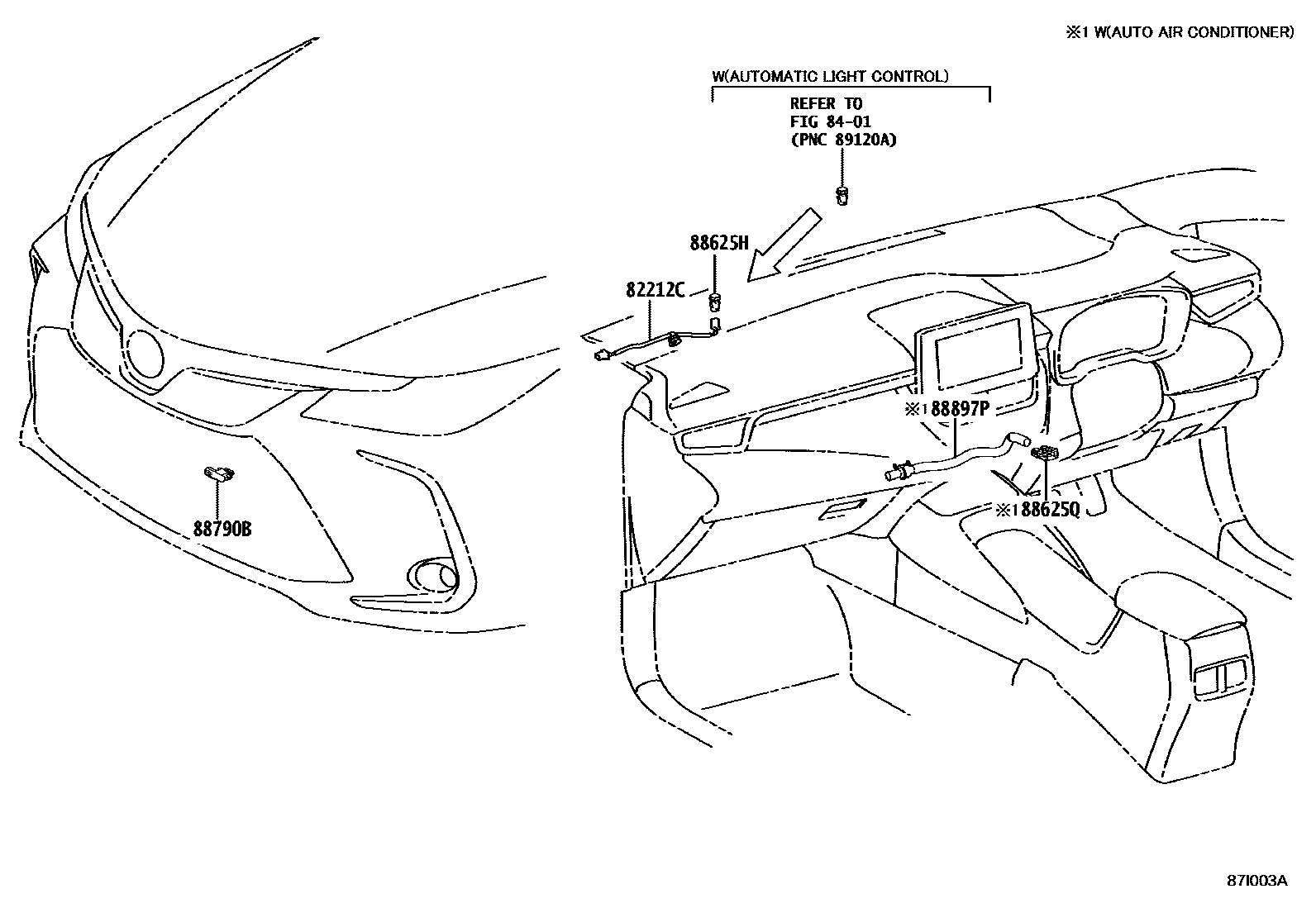

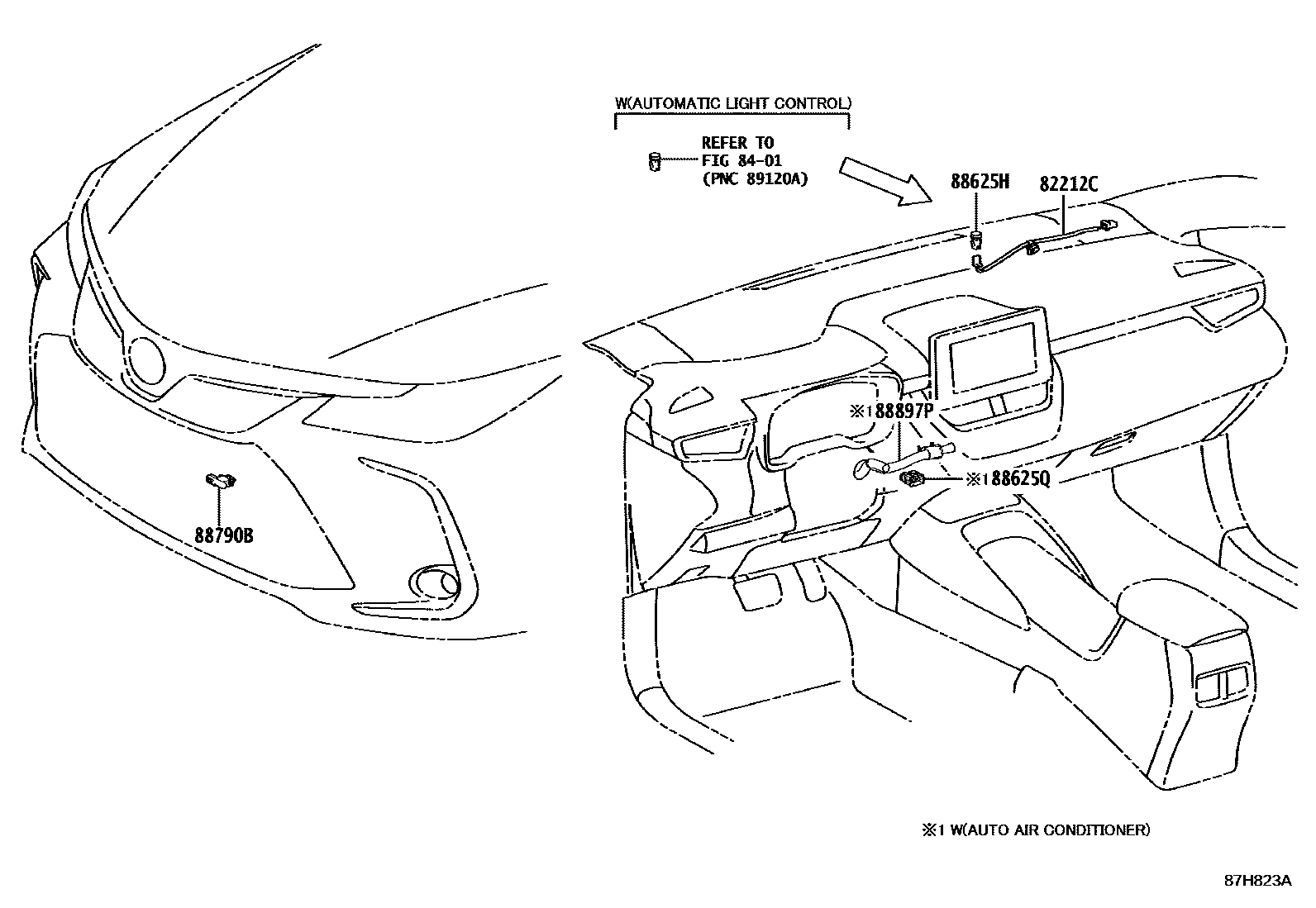

| 88625H | Cooler thermistor (sunlight sensor) | 88625-52130 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-02240 · 88505-02250 · 88505-02260 |
