Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

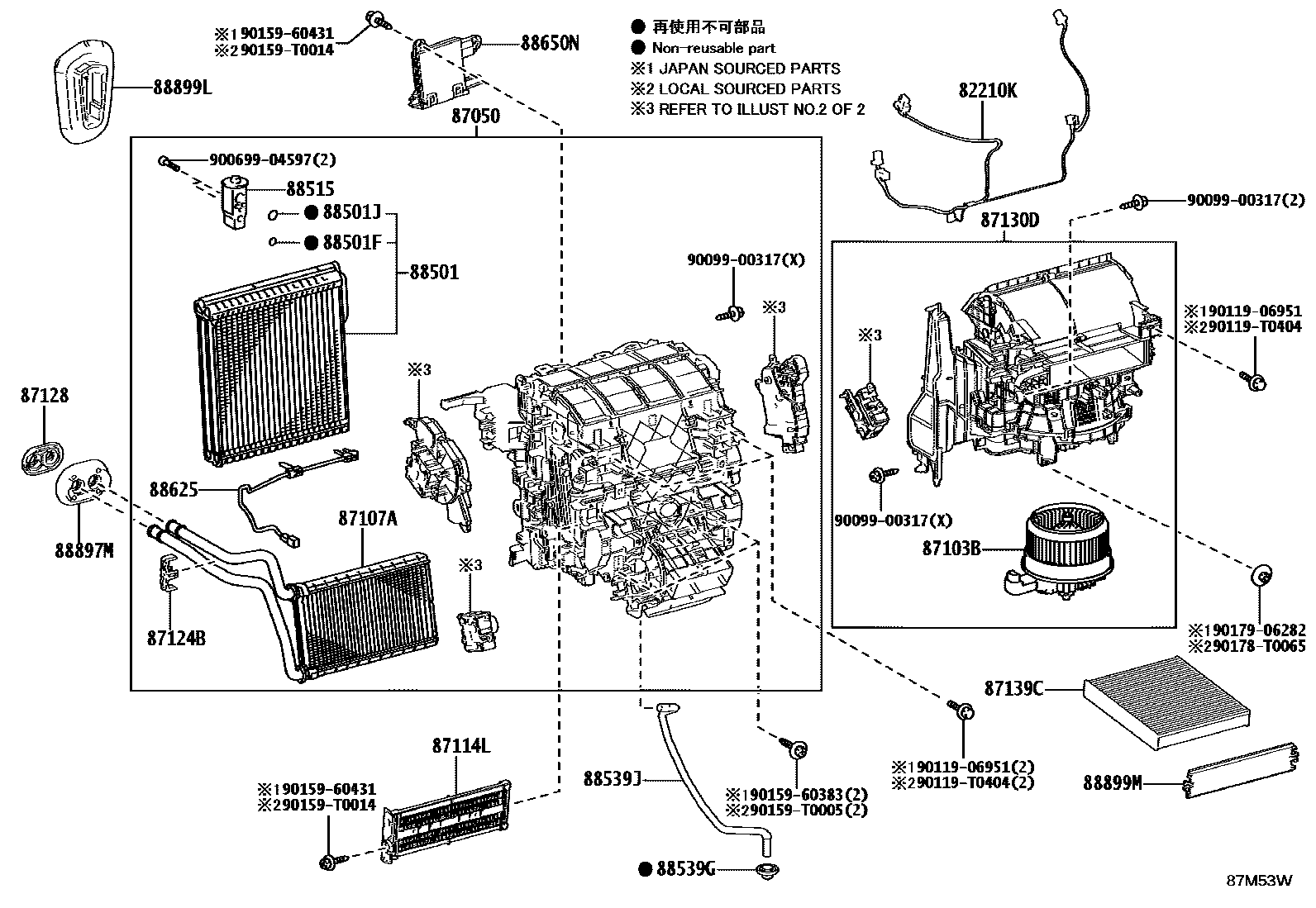

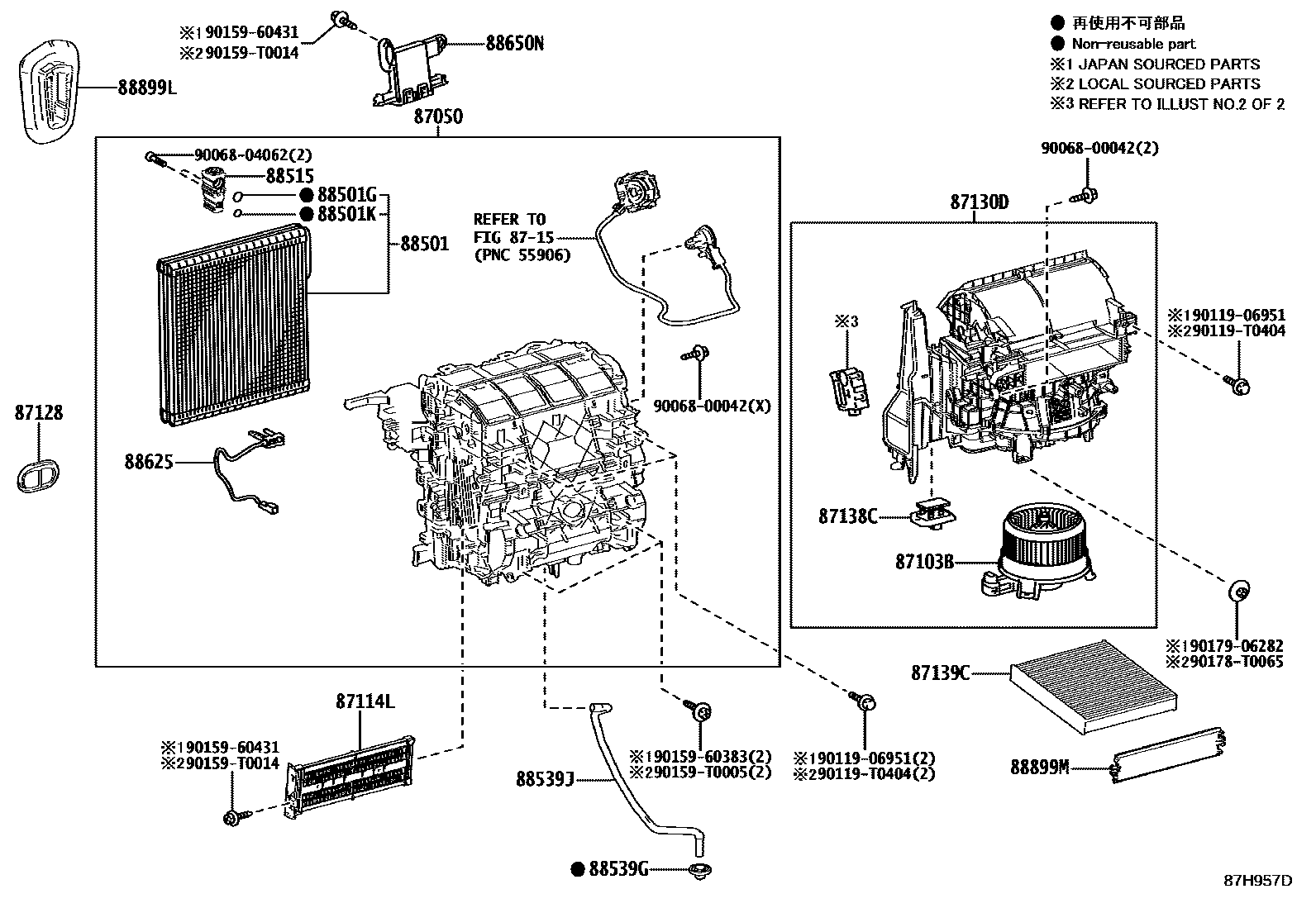

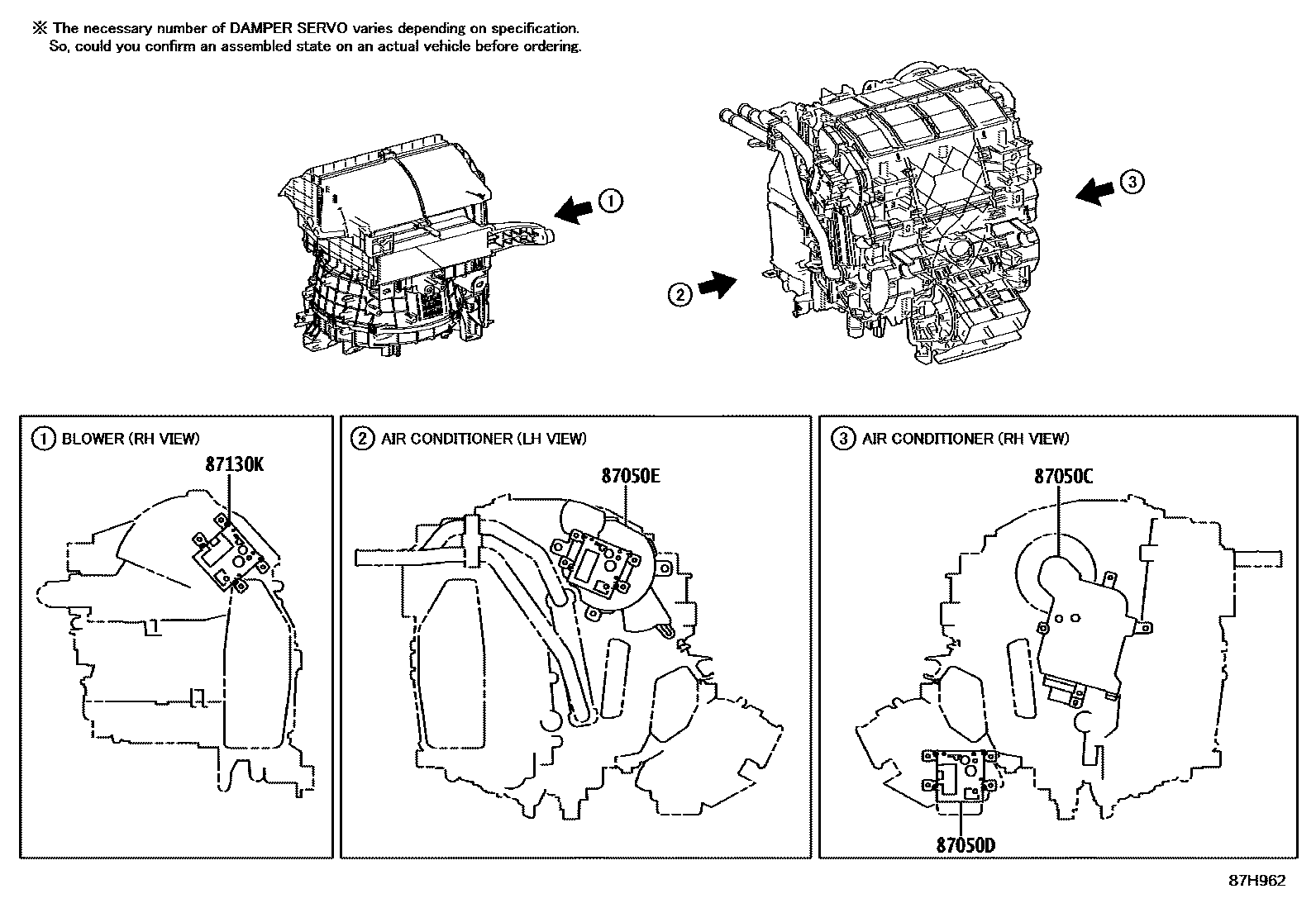

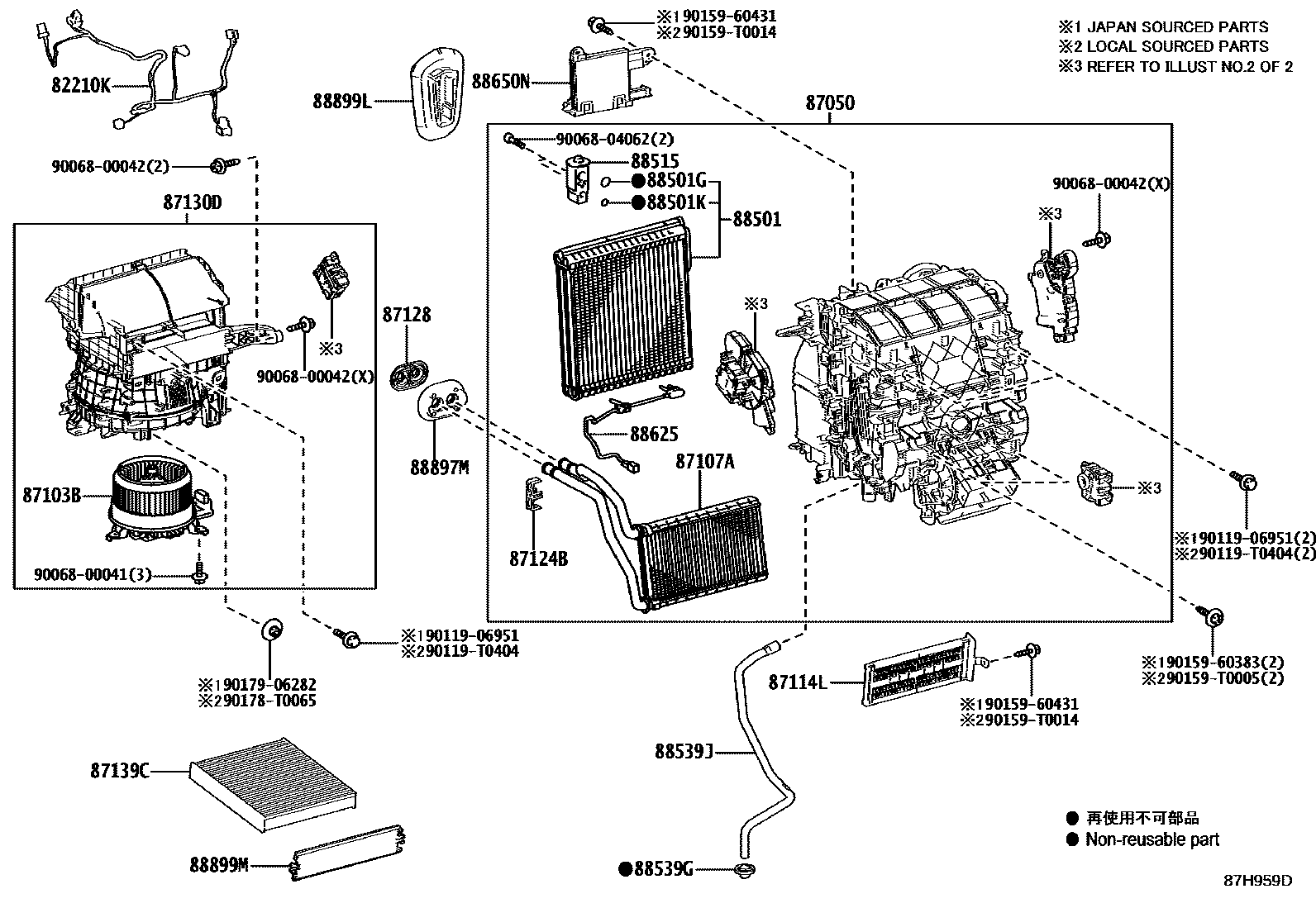

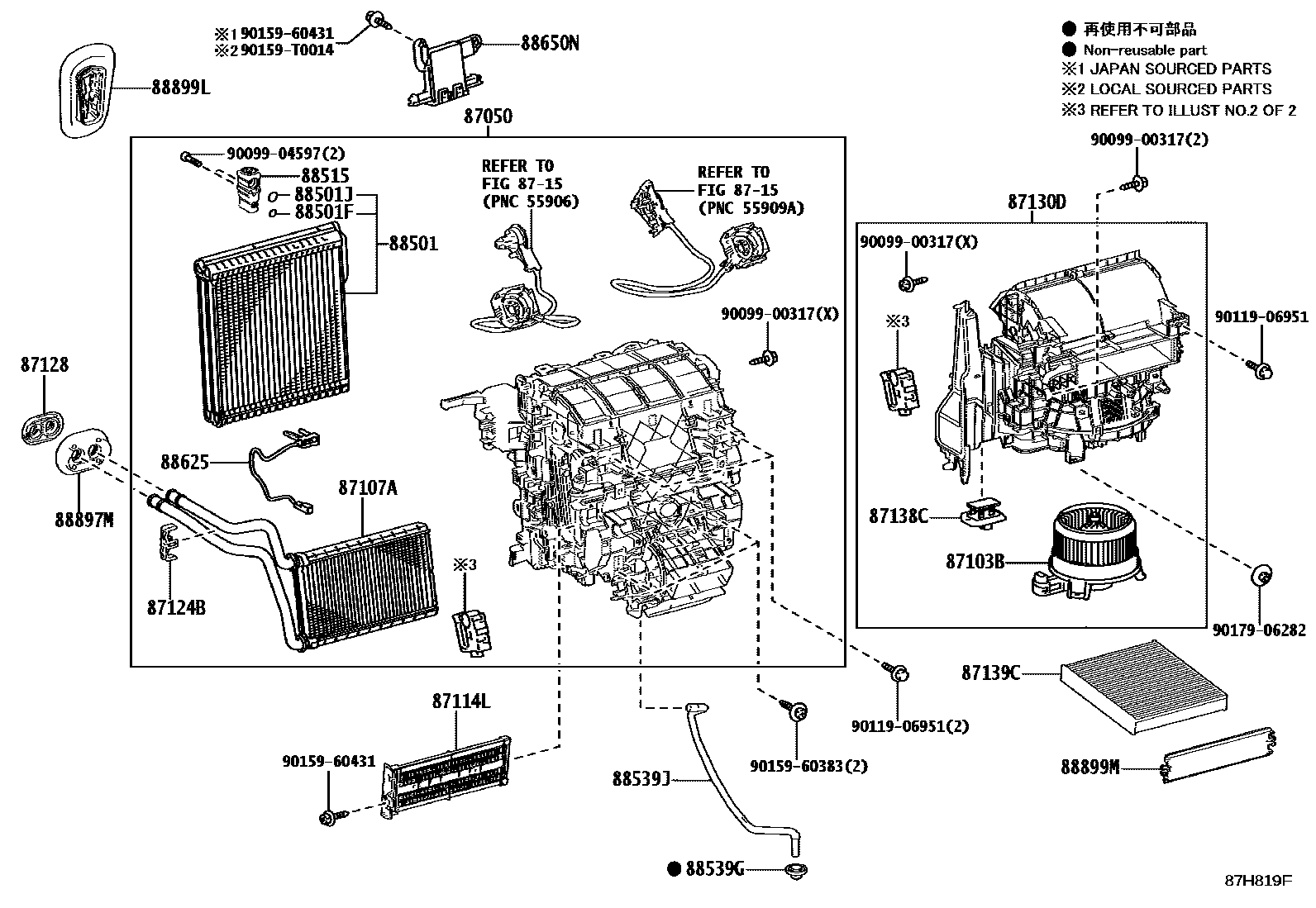

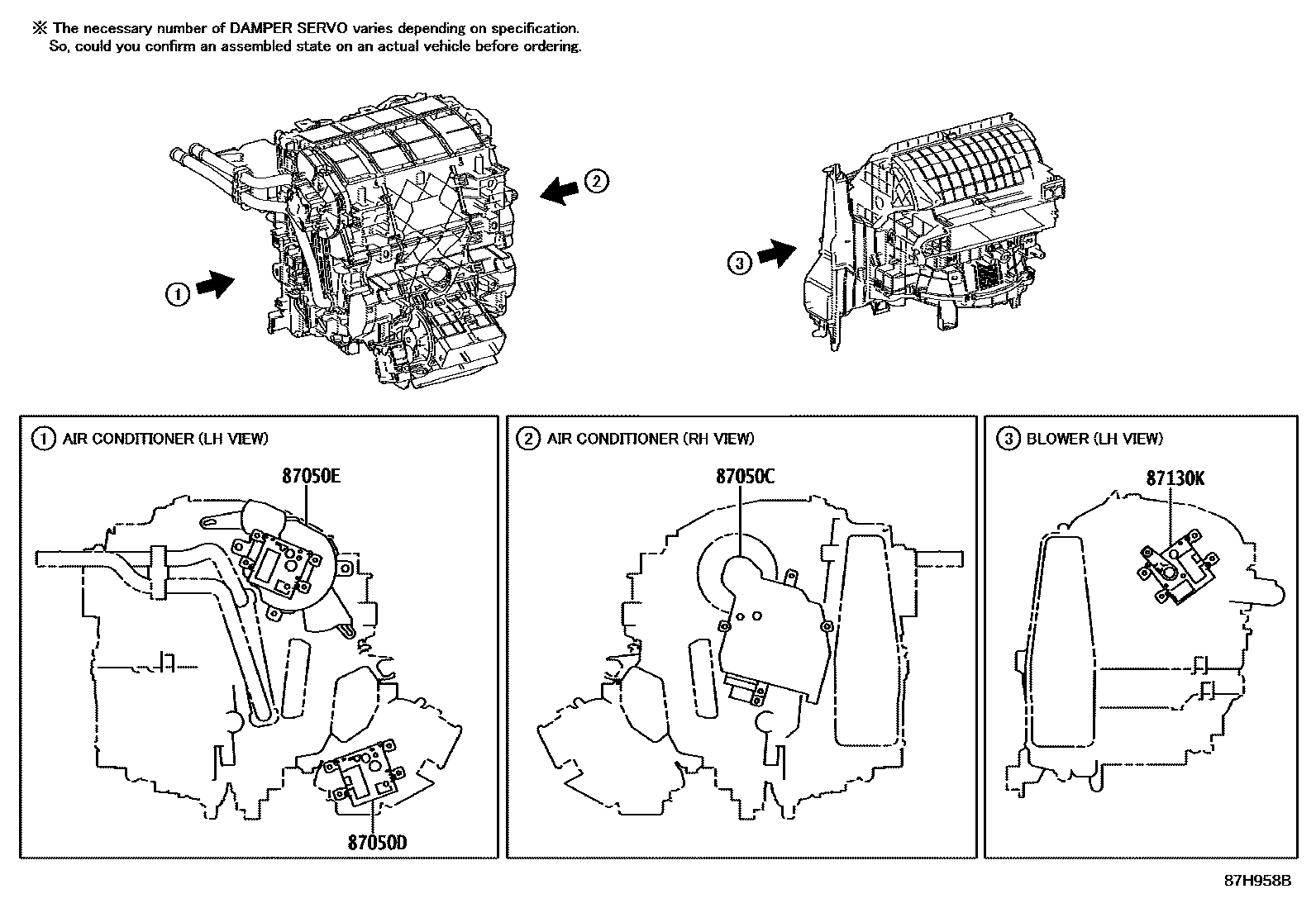

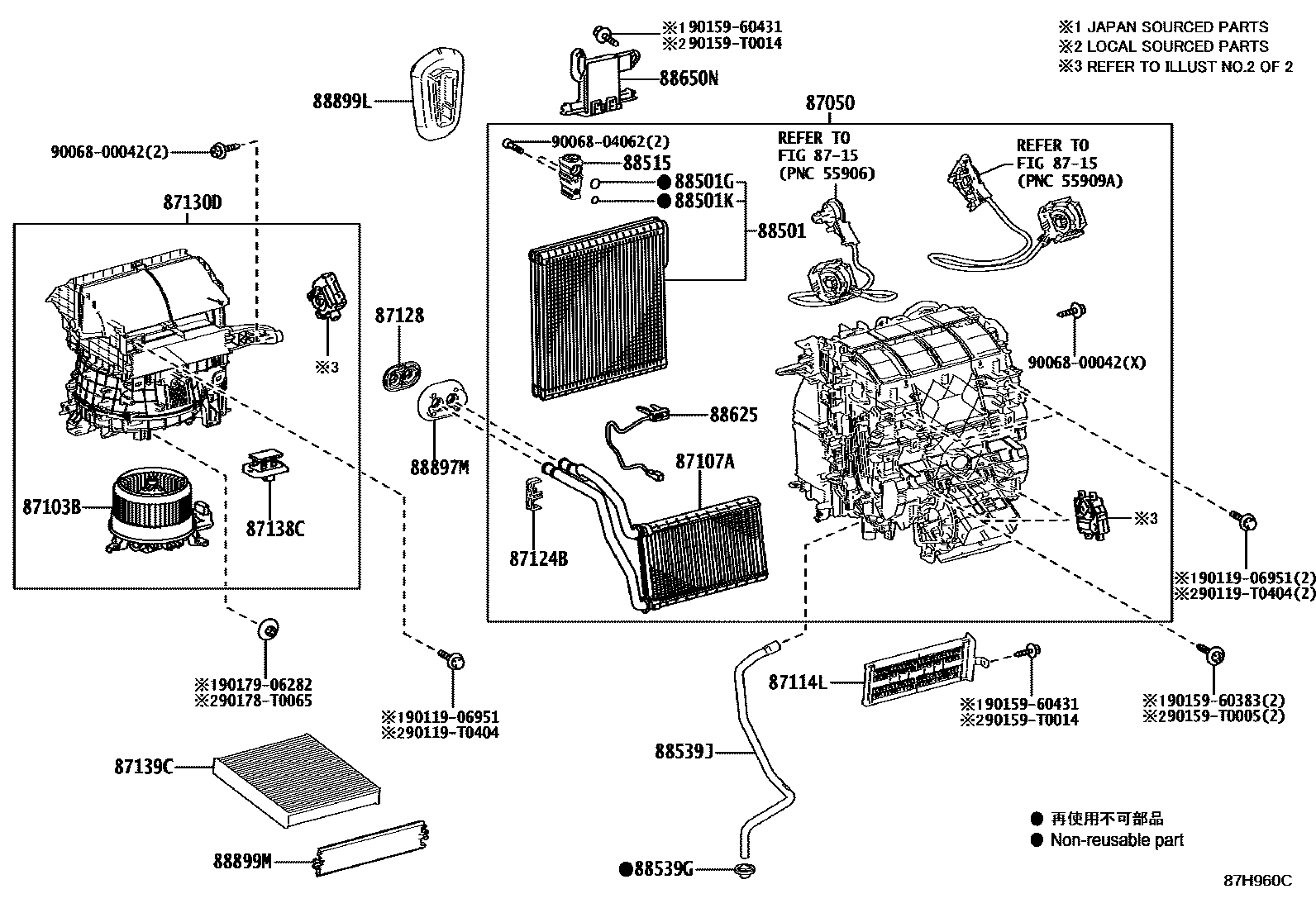

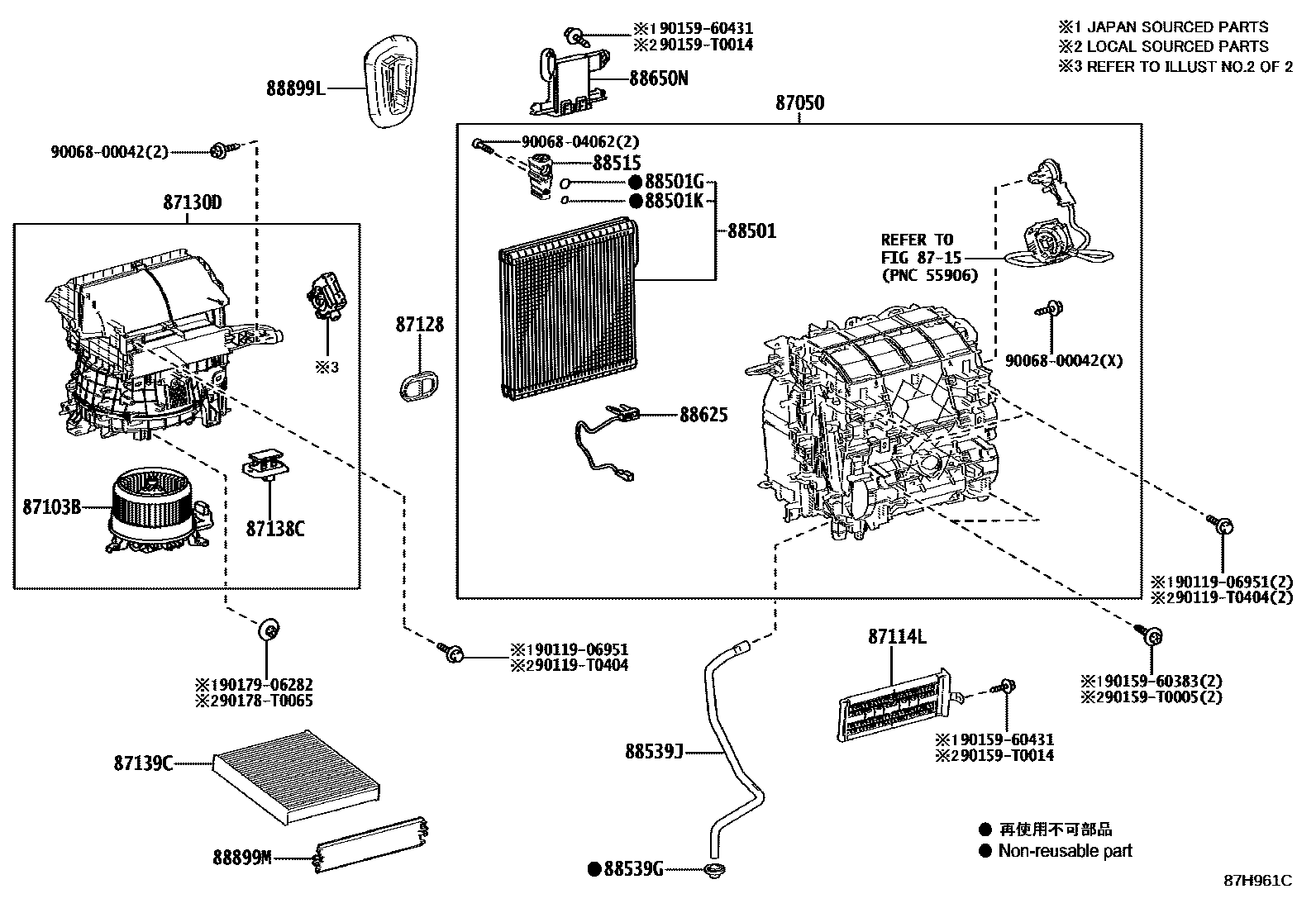

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 9 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02430 · 82212-02440 · 82212-02450 · 82212-02480 · 82212-02490 · 82212-02530 · 82212-02550 |
| 87050 | Air conditioning radiator assembly | 87050-02S50 · 87050-02T80 · 87050-0A190 · 87050-0A200 · 87050-0A220 · 87050-0ZA70 · 87050-0ZA80 · 87050-0ZA90 · 87050-0ZB00 · 87050-0ZB10 · 87050-0ZB20 · 87050-0ZB30 · 87050-0ZB60 · 87050-0ZC80 · 87050-0ZF60 · 87050-0ZF70 · 87050-0ZF80 · 87050-0ZF90 · 87050-0ZK40 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-02790 · 87106-02A50 · 87106-F4060 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-02750 · 87106-02770 · 87106-02800 · 87106-02A90 · 87106-02B00 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-02760 · 87106-02780 · 87106-02860 |
| 87103B | Blower motor sub-assembly with fan | 87103-02580 · 87103-02630 · 87103-02670 · 87103-02680 · 87103-02690 · 87103-0A060 · 87103-0A070 · 87103-0A080 · 87103-0K400 · 87103-F4050 |
| 87107A | Heater radiator device sub-assembly | 87107-02330 · 87107-02340 · 87107-F4030 |
| 87114L | Heater cover No. 2 | 87114-02220 · 87114-F4080 |
| 87124B | heater clip | 87124-06130 · 87124-06140 |
| 87128 | heater seal | 87128-0K170 · 87128-28010 |
| 87130D | Blower assembly | 87130-02B70 · 87130-02B71 · 87130-02C30 · 87130-02C50 · 87130-02D00 · 87130-02D10 · 87130-06430 · 87130-06431 · 87130-F4060 · 87130-F4061 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-02810 · 87106-02A60 · 87106-02A70 · 87106-02A80 · 87106-06450 · 87106-F4070 |
| 87138C | Blower resistor | 87138-02220 · 87138-0K360 |
| 87139C | air purification filter | 87139-02210 · 87139-02220 · 87139-0K060 · 87139-0K070 · 87139-58010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02570 · 88501-02580 · 88501-02590 · 88501-0A050 · 88501-F4080 · 88501-F4090 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90068-14043 |
| 88501J | No. 2 cooler evaporator O-ring (suction) | 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90068-14044 |
| 88515 | Cooler expansion valve | 88515-02690 · 88515-02700 · 88515-02710 · 88515-F4030 |
| 88539G | Seal (for cooler unit drain hose) | 88888-02020 · 88888-47010 |
| 88539J | Cooler drain hose | 88539-02510 · 88539-02520 · 88539-47060 |
| 88625 | Cooler No. 1 Thermistor | 88620-02170 · 88620-02180 · 88620-0K010 · 88620-0K020 |
| 88650N | Air conditioning amplifier assembly | 88650-02E40 · 88650-02P00 · 88650-12D60 · 88650-12K70 |
| 88897M | Seals (for heater tubes) | 87128-02180 · 87128-F4040 |
| 88899L | Cooling unit parts | 88899-02410 · 88899-02460 · 88899-02470 · 88899-F4250 |
| 88899M | cover (for air cleaner) | 88548-02200 · 88548-0K080 |
