Toyota COROLLA 后视镜 — Figure 8701

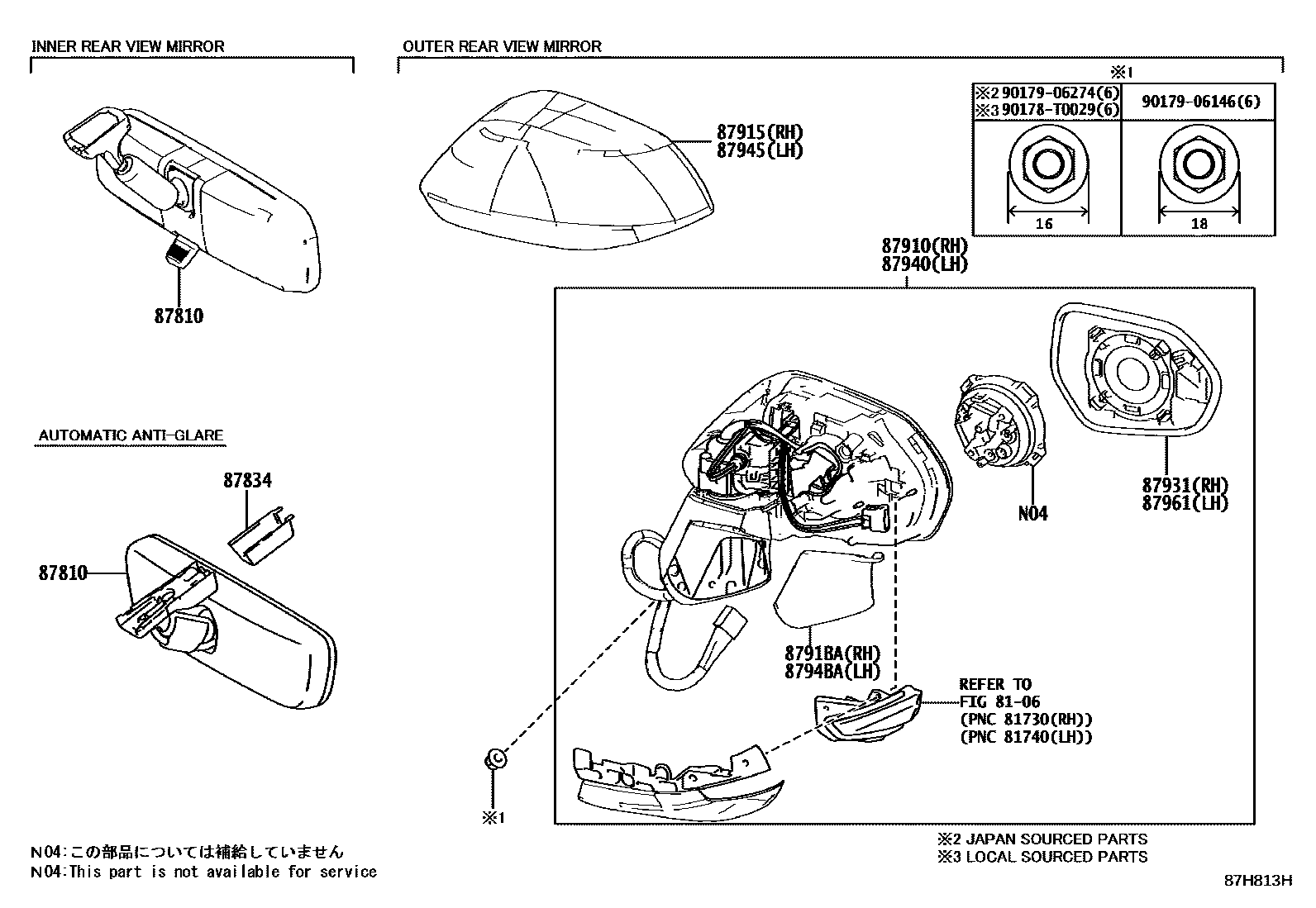

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02260 · 87810-02270 · 87810-0WK10 · 87810-0WS30 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-24010 |
| 87910 | Right exterior rearview mirror assembly | 87910-02921 · 87910-02922 · 87910-02923 · 87910-02924 · 87910-02925 · 87910-02M40 · 87910-02M41 · 87910-02M50 · 87910-02M51 · 87910-02M60 · 87910-02M80 · 87910-02M90 · 87910-02N10 · 87910-02N11 · 87910-02N20 · 87910-02Q00 · 87910-02Q60 · 87910-02Q70 · 87910-02R40 |
| 87915 | Right exterior rearview mirror cover | 87915-02934 · 87915-02937 |
| 8791BA | No. 3 right exterior mirror cover | 8791B-02M41 · 8791B-02N11 |
| 87931 | Right exterior rearview mirror | 87902-02090 · 87902-02100 · 87902-02110 · 87902-02120 · 87902-02130 · 87902-02140 · 87902-02150 |
| 87940 | Left exterior rearview mirror assembly | 87940-02921 · 87940-02922 · 87940-02923 · 87940-02924 · 87940-02925 · 87940-02M30 · 87940-02M31 · 87940-02M40 · 87940-02M41 · 87940-02M50 · 87940-02M70 · 87940-02M80 · 87940-02N00 · 87940-02N01 · 87940-02N10 · 87940-02P90 · 87940-02Q40 · 87940-02Q50 · 87940-02R50 |
| 87945 | Left exterior rearview mirror cap | 87945-02934 · 87945-02937 |
| 8794BA | No. 3 left exterior rearview mirror cap | 8794B-02M31 · 8794B-02N01 |
| 87961 | Left exterior rearview mirror | 87907-02080 · 87907-02090 · 87907-02100 · 87907-02110 · 87907-02120 · 87907-02130 · 87907-02140 |
