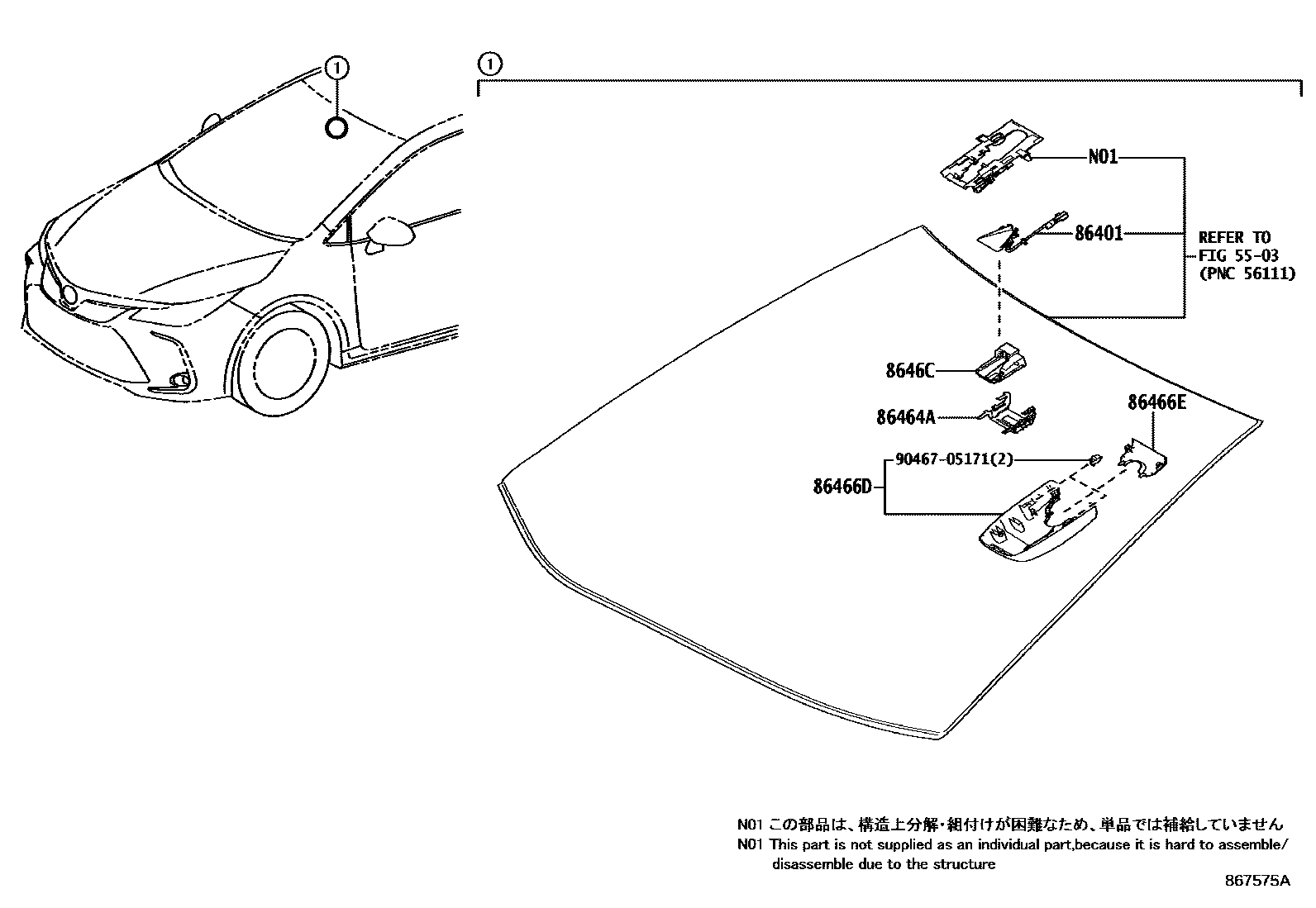

Toyota COROLLA 预碰撞安全系统 — Figure 8617
Toyota COROLLA EPC diagram 8617, 预碰撞安全系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Front identification hood sub-assembly with heater | 86401-12010 · 86401-12011 |
| 86464A | Front identification lock | 86464-26010 |
| 86466D | Front identification cover No. 1 | 86466-12030 |
| 86466E | Front identification cover No. 2 | 86466-12040 |
| 8646C | front recognition camera | 8646C-12010 · 8646C-12020 · 8646C-12090 · 8646C-12092 |
