Toyota COROLLA 喇叭 — Figure 8611

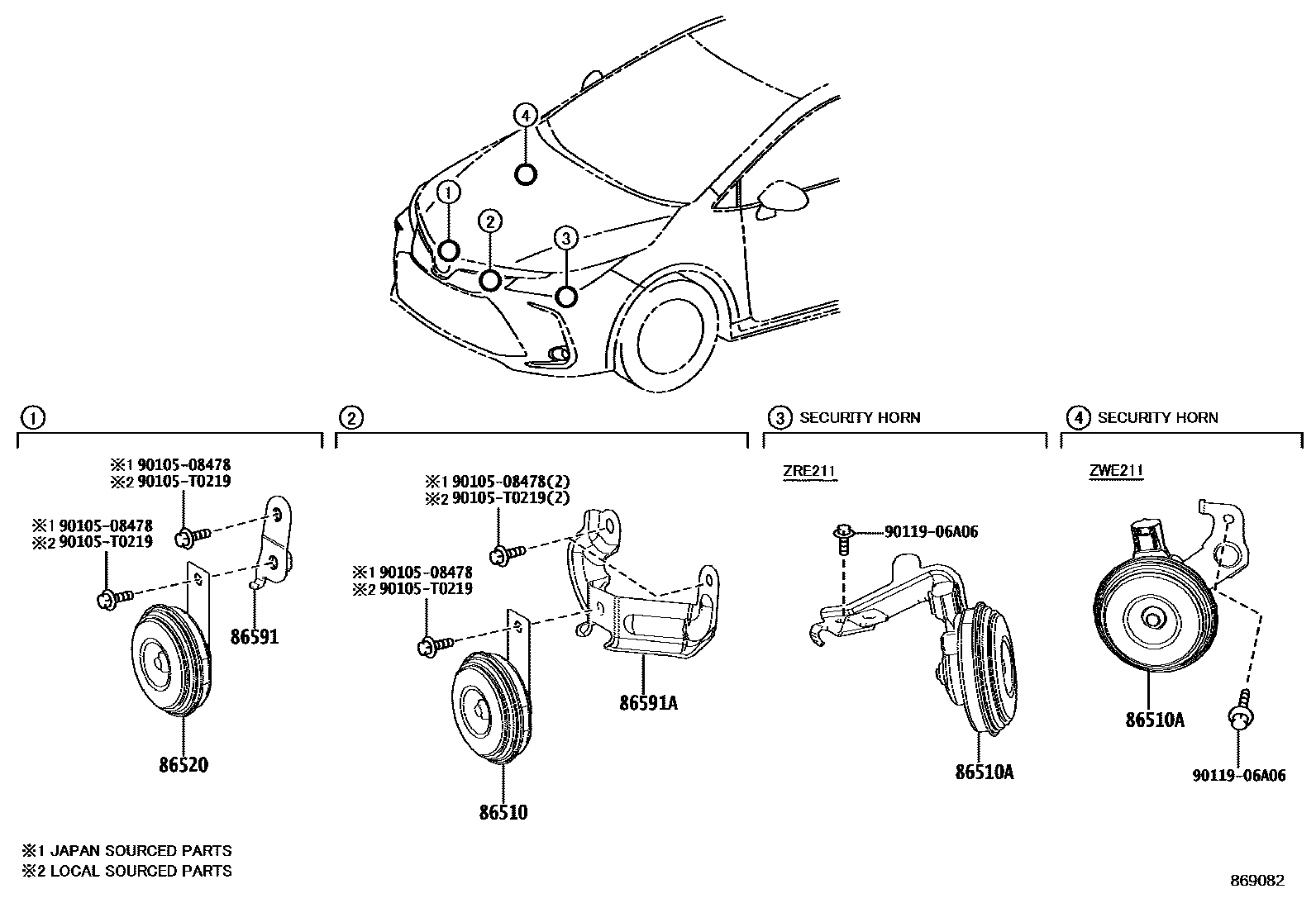

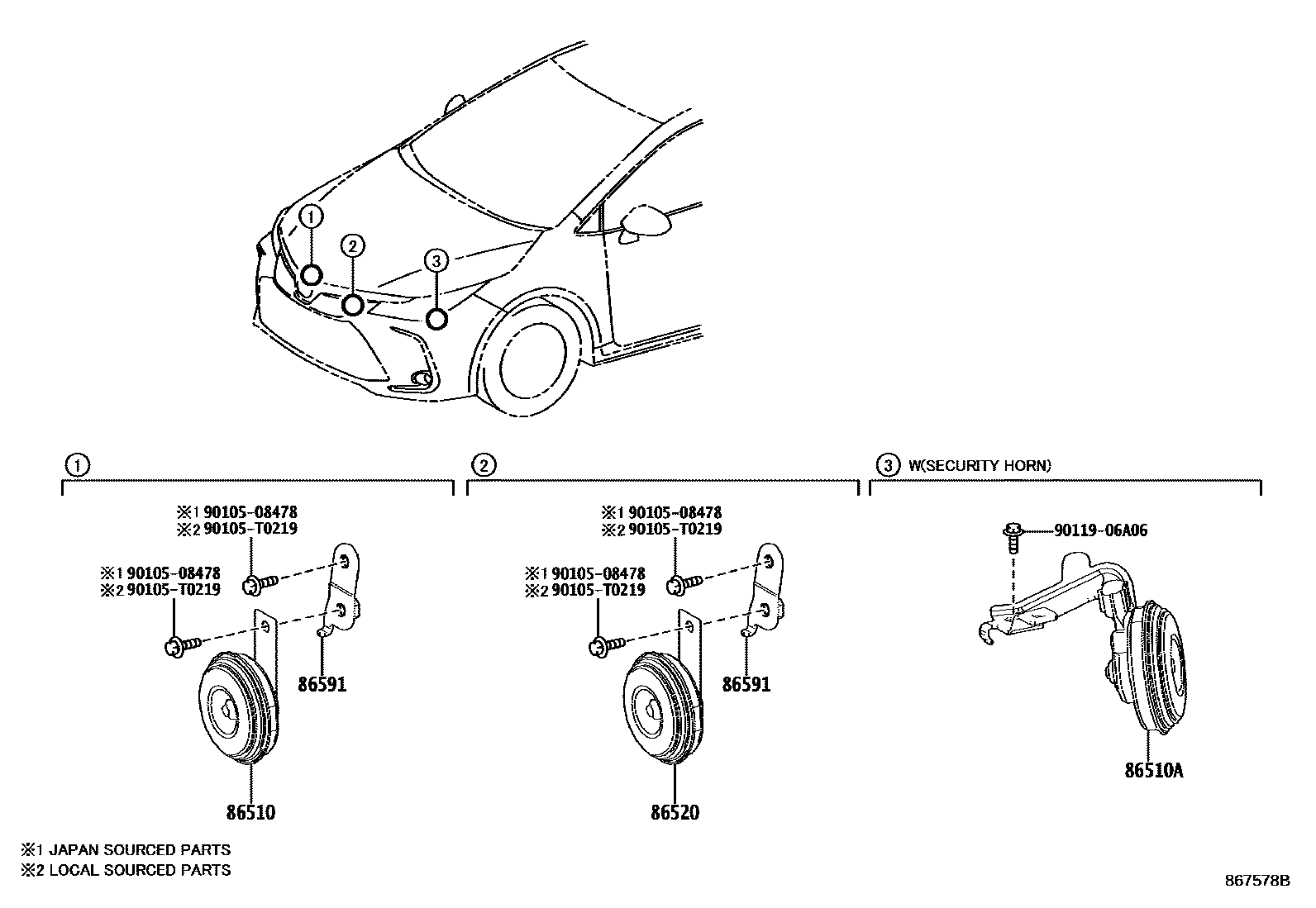

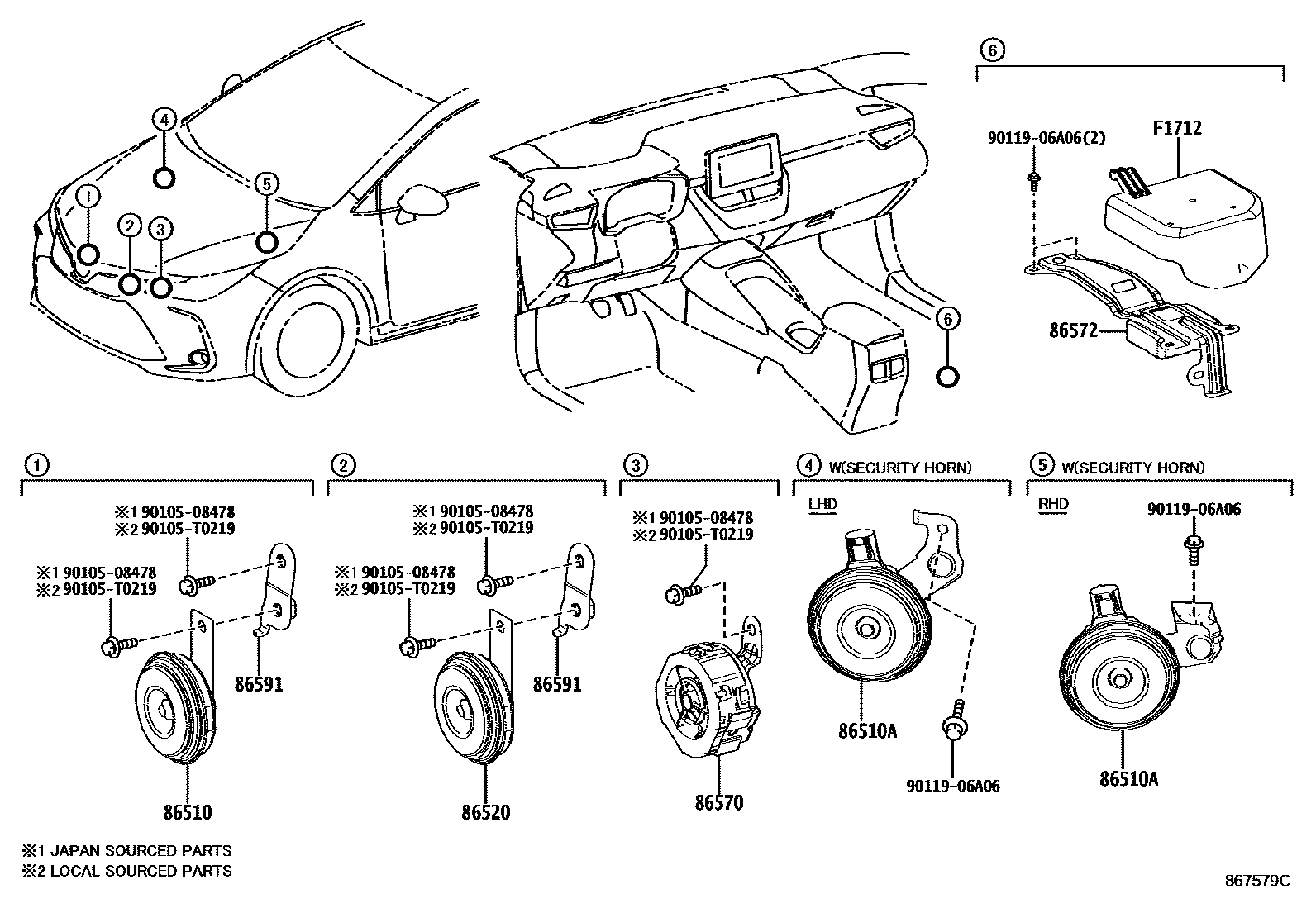

Toyota COROLLA EPC diagram 8611, 喇叭, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-02080 · 86510-0K010 · 86510-26130 · 86510-26131 · 86510-33161 |
| 86510A | Alarm horn assembly | 86560-02160 · 86560-02230 · 86560-10020 · 86560-12090 · 86560-F4080 |
| 86520 | Subwoofer assembly | 86520-02210 · 86520-0K010 · 86520-26200 · 86520-26201 · 86520-33140 |
| 86570 | Vehicle intrusion speaker assembly | 86570-12030 |
| 86572 | vehicle hacking speaker controller | 86572-12090 · 86572-12120 · 86572-12330 |
| 86591 | speaker bracket | 86591-02030 · 86591-02040 |
| 86591A | No. 2 speaker bracket | 86591-02160 |
| F1712 | Vehicle Intrusion Speaker Controller Cover | F1712-12090 |
