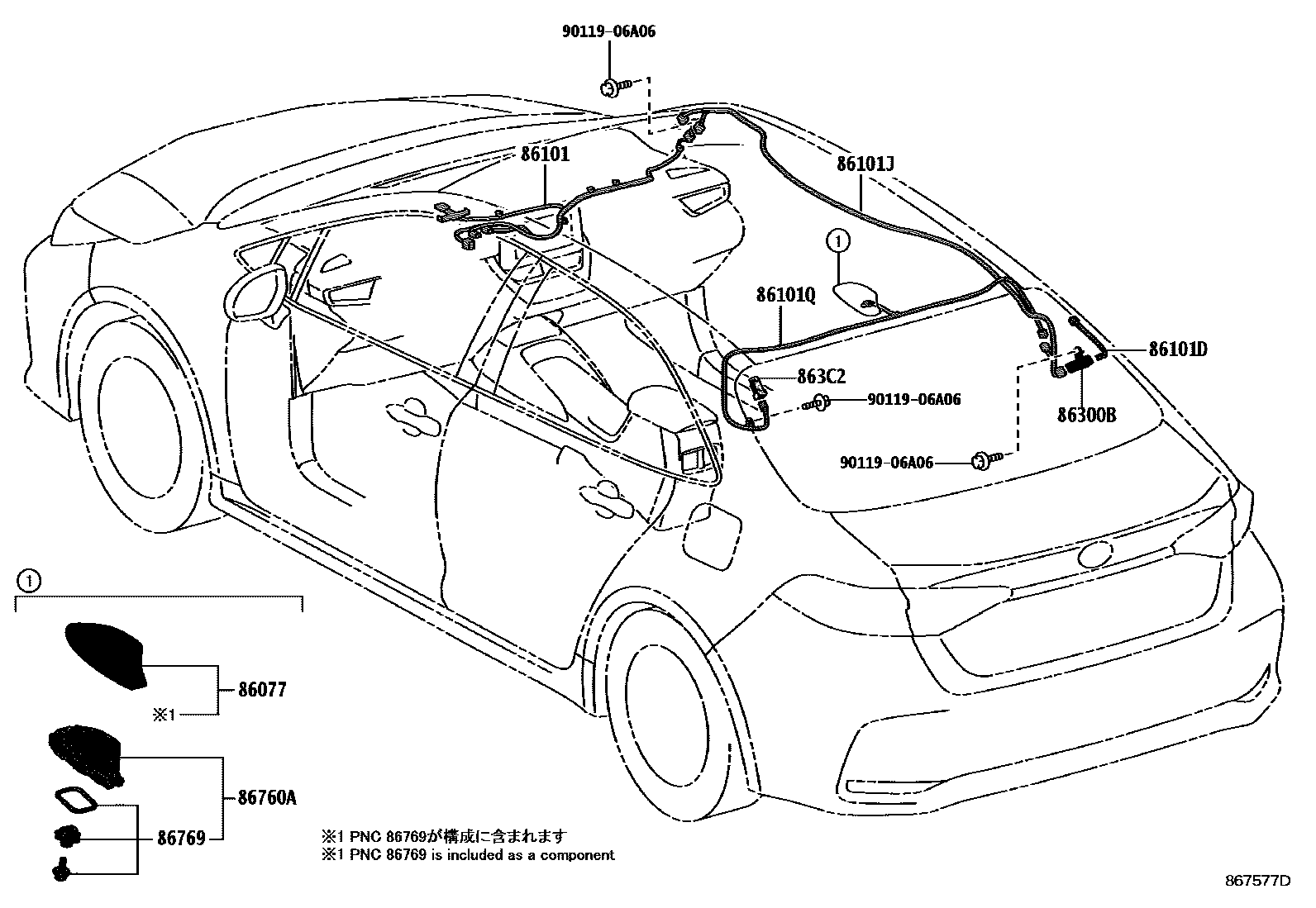

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02D80 · 86101-02D90 · 86101-02P60 · 86101-02Q00 · 86101-0Z040 · 86101-0Z070 · 86101-12B40 · 86101-12C30 · 86101-12E40 · 86101-12F10 · 86101-12F50 · 86101-12N80 · 86101-12P10 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-02D50 · 86101-12A80 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-02D60 · 86101-02Q10 · 86101-0Z030 · 86101-0Z080 · 86101-12B10 · 86101-12N40 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-02M60 · 86101-0Z210 |
| 86300B | No. 1 amplifier antenna assembly | 86300-02590 · 86300-12B50 |
| 863C2 | Digital audio broadcasting receiver antenna base | 863C2-60010 |
| 86760A | Telephone antenna assembly | 86760-12080 |
| 86769 | roof radome | 86769-48020 |
