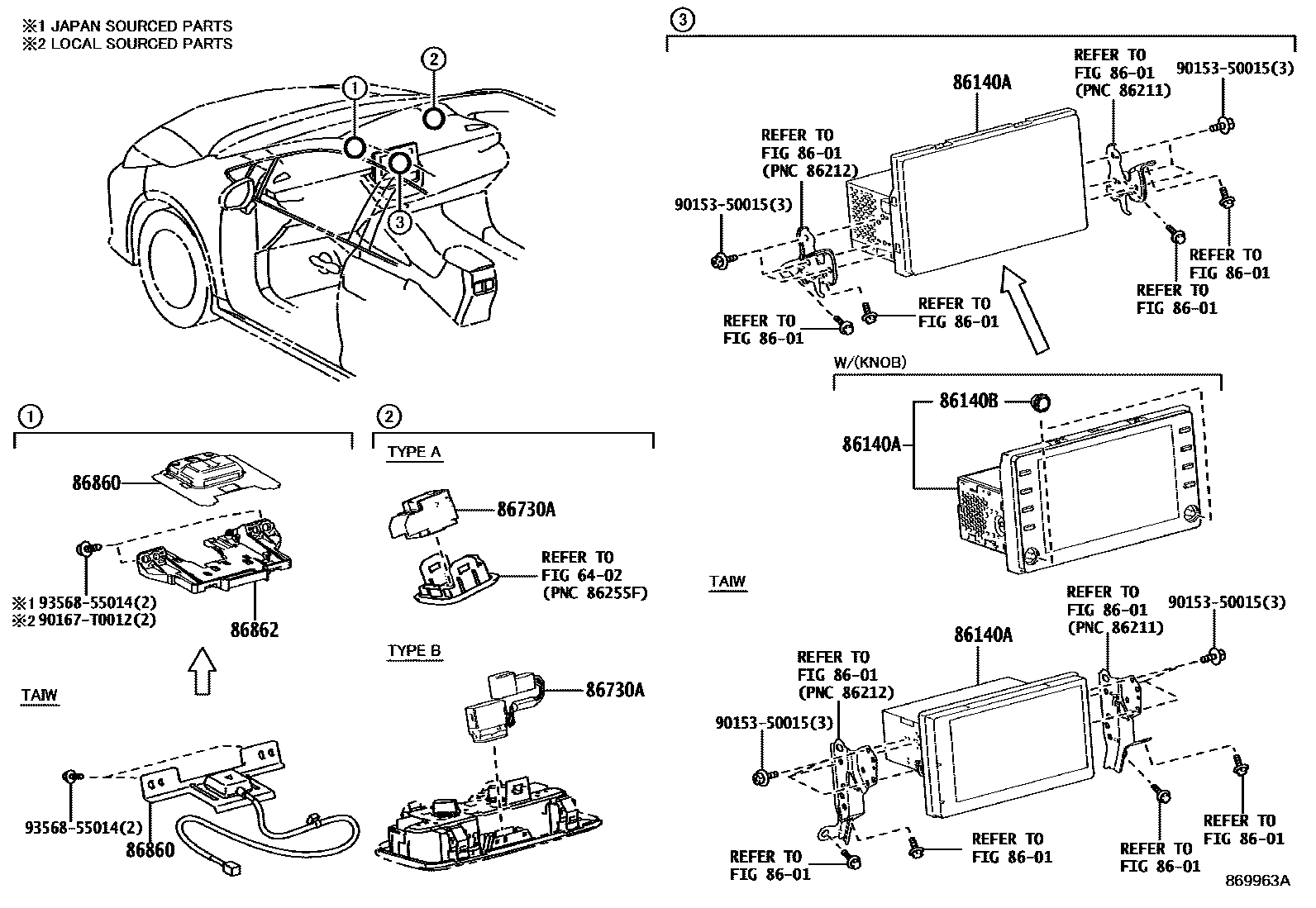

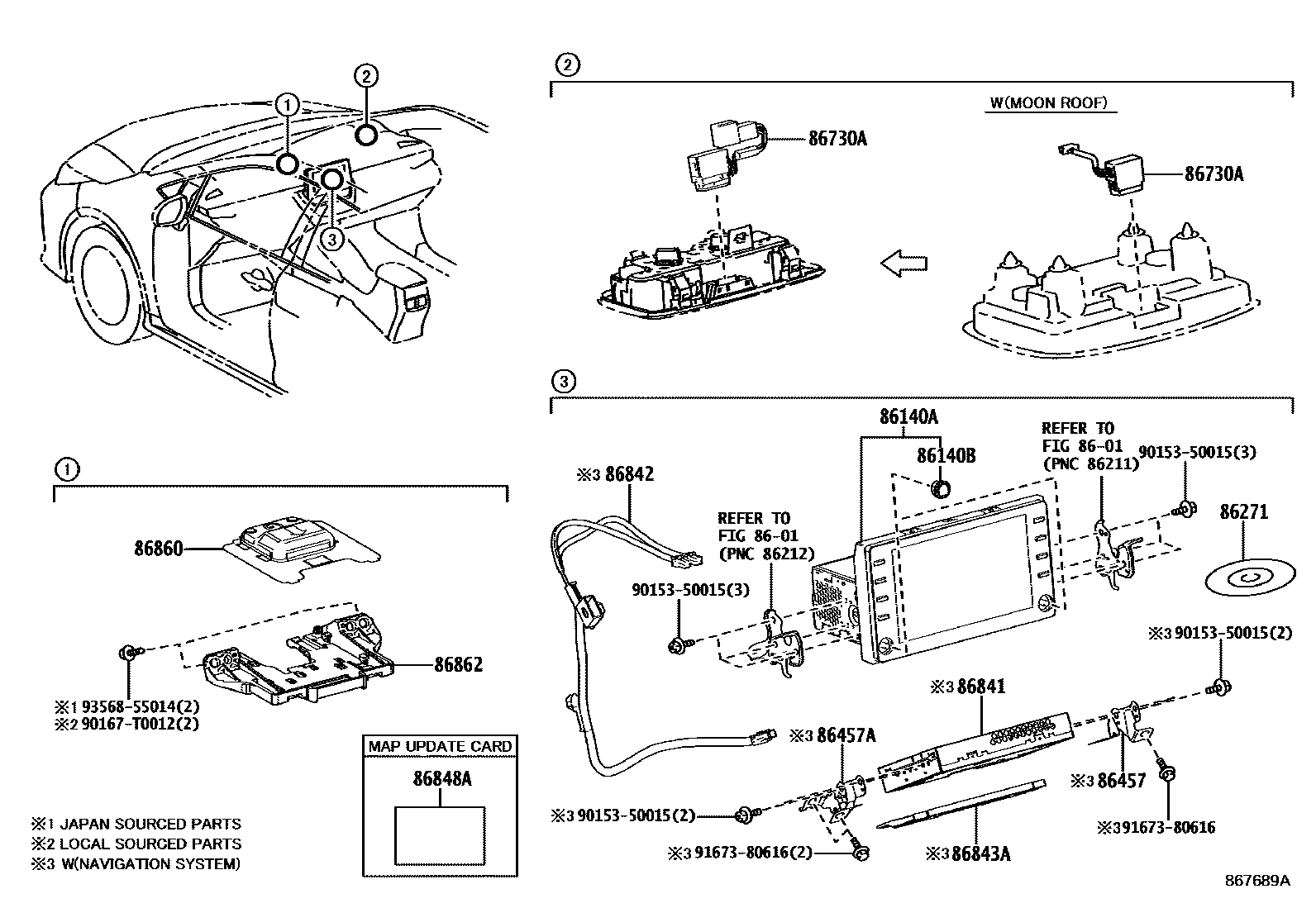

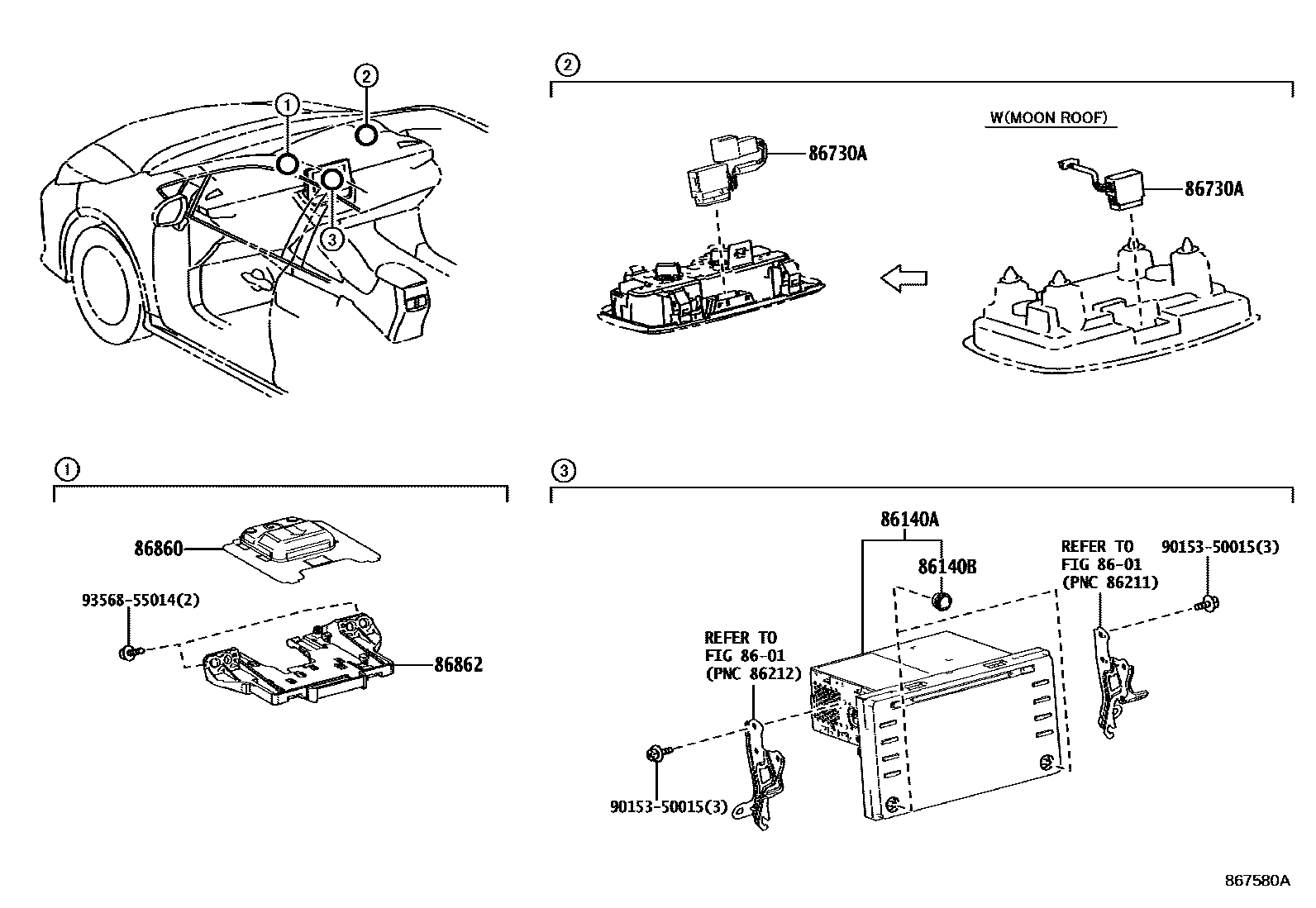

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-02860 · 86140-02870 · 86140-02871 · 86140-02C30 · 86140-02K70 · 86140-02K90 · 86140-02K91 · 86140-02L00 · 86140-02L01 · 86140-02L10 · 86140-02L11 · 86140-02M70 · 86140-02M71 · 86140-12390 · 86140-12391 · 86140-YY030 · 86140-YY031 · 86140-YY180 · 86140-YY370 · 86140-YY371 · 86140-YY400 · 86140-YY410 · 86140-YY490 |
| 86140B | Radio and display receiver switch button | 90010-22129 · 90010-23060 · 90011-25321 |
| 86271 | CD | 86807-11013 · 86807-11014 · 86807-11015 |
| 86457 | Multimedia module bracket No. 1 | 86457-12010 |
| 86457A | Multimedia module bracket No. 2 | 86457-12020 |
| 86730A | Telephone amplifier assembly | 86730-16010 · 86730-47040 · 86730-52010 · 86730-52020 |
| 86841 | Navigation ECU | 86840-02060 · 86840-02061 · 86840-02062 · 86840-02063 |
| 86842 | Navigation harness No. 1 | 86842-12020 |
| 86843A | Navigation ECU cover | 86843-12010 |
| 86848A | Map serial number update card | 86848-33070 |
| 86860 | Navigation antenna assembly | 86860-02070 · 86860-78010 · 86860-YY050 · 86880-42010 · 86880-42030 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-58020 |
