Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

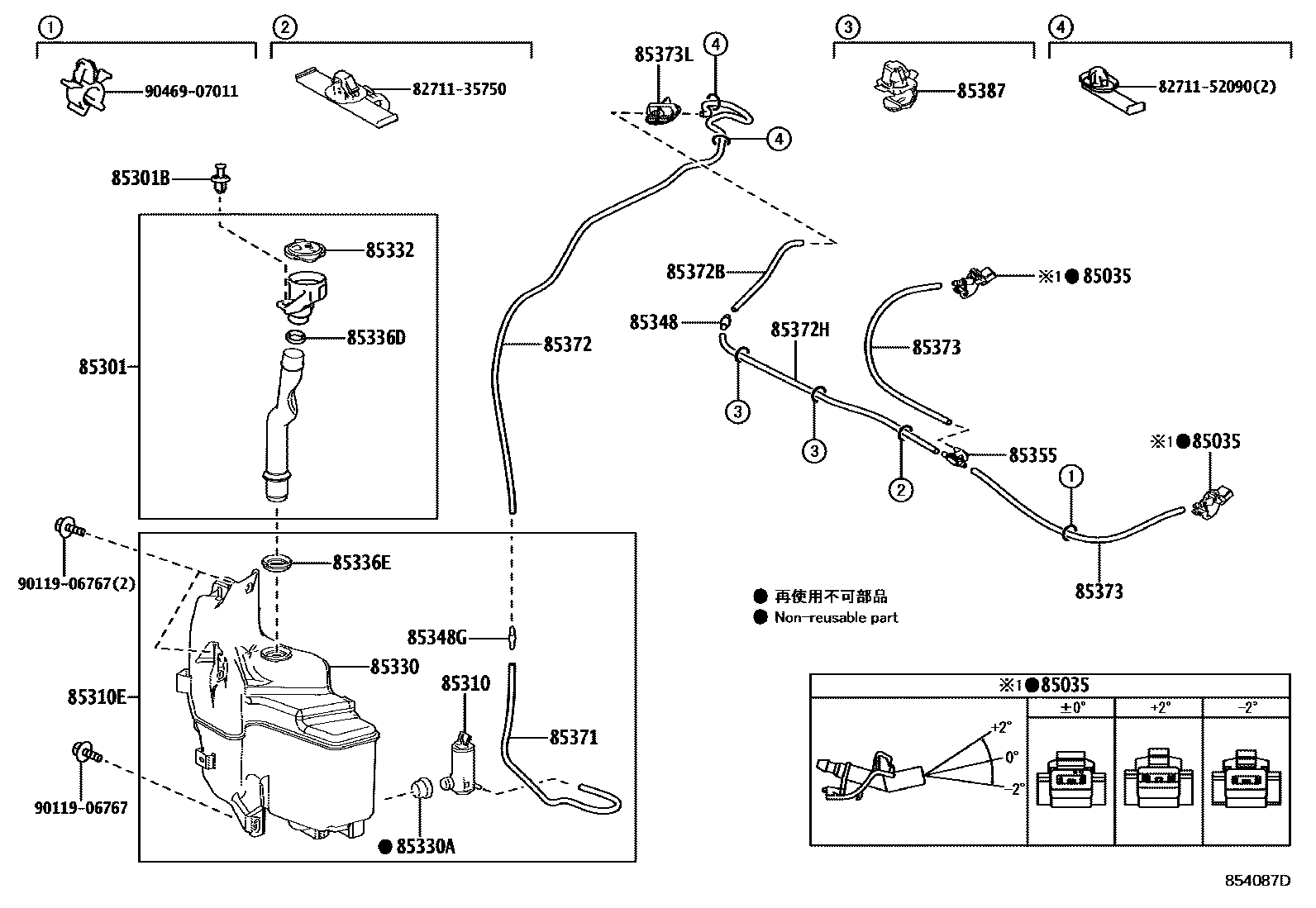

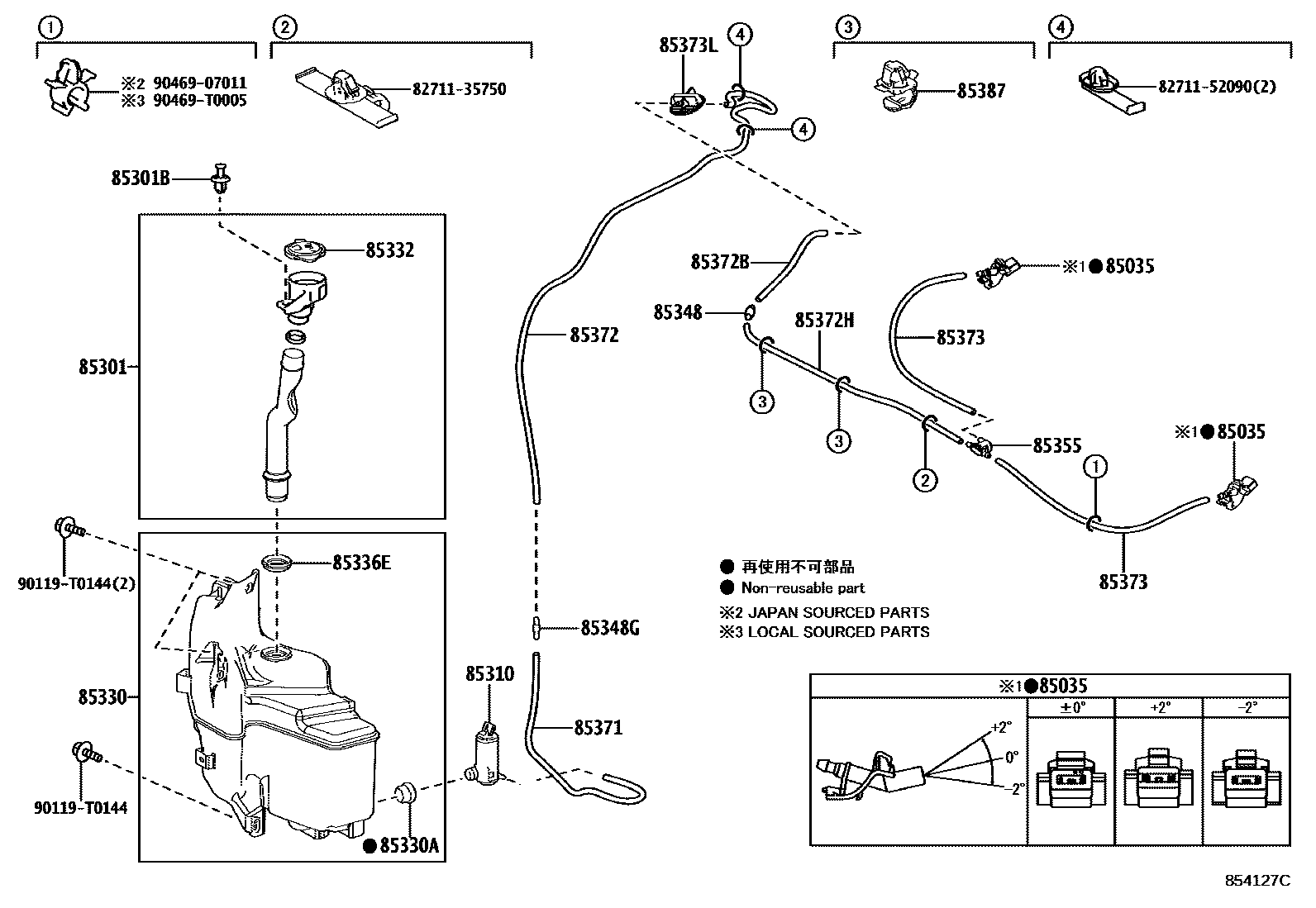

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12360 · 85381-12440 · 85381-33080 |
| 85301 | Cleaner water inlet sub-assembly | 85301-02230 · 85301-02240 |
| 85301B | Cleaner clip | 90467-07214 · 90467-T0039 |
| 85310 | Windshield washer motor and pump assembly | 85330-0K021 · 85330-33070 |
| 85310E | Cleaning fluid tank and motor assembly | 85310-02750 |
| 85330 | Windshield washer fluid tank assembly | 85315-02740 · 85315-02750 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85386-60050 |
| 85336D | Windshield washer fluid tank seal | 85336-42320 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85348 | Windshield washer hose connector No. 1 | 85375-06101 · 85375-10260 |
| 85348G | Windshield washer hose connector No. 2 | 85375-06101 · 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-0A010 · 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33352 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33356 · 90099-62176 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33251 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-33369 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33370 |
| 85373L | Cleaner seal | 85373-12050 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-0K020 · 85371-12040 |
