Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 14 PNC and OE references.

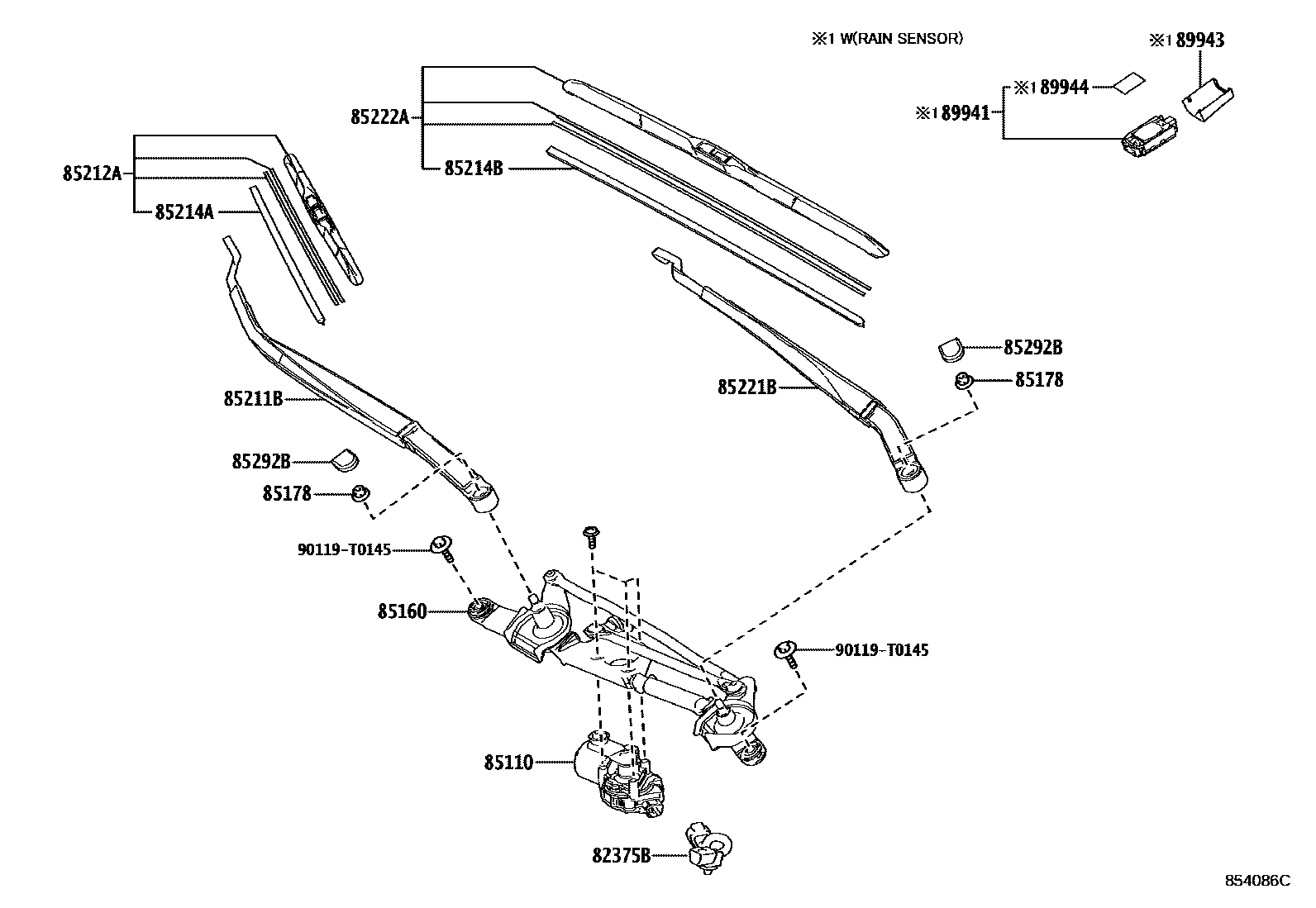

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 854086C
挡风玻璃刮水器 — 854086C (201904 – 999999)

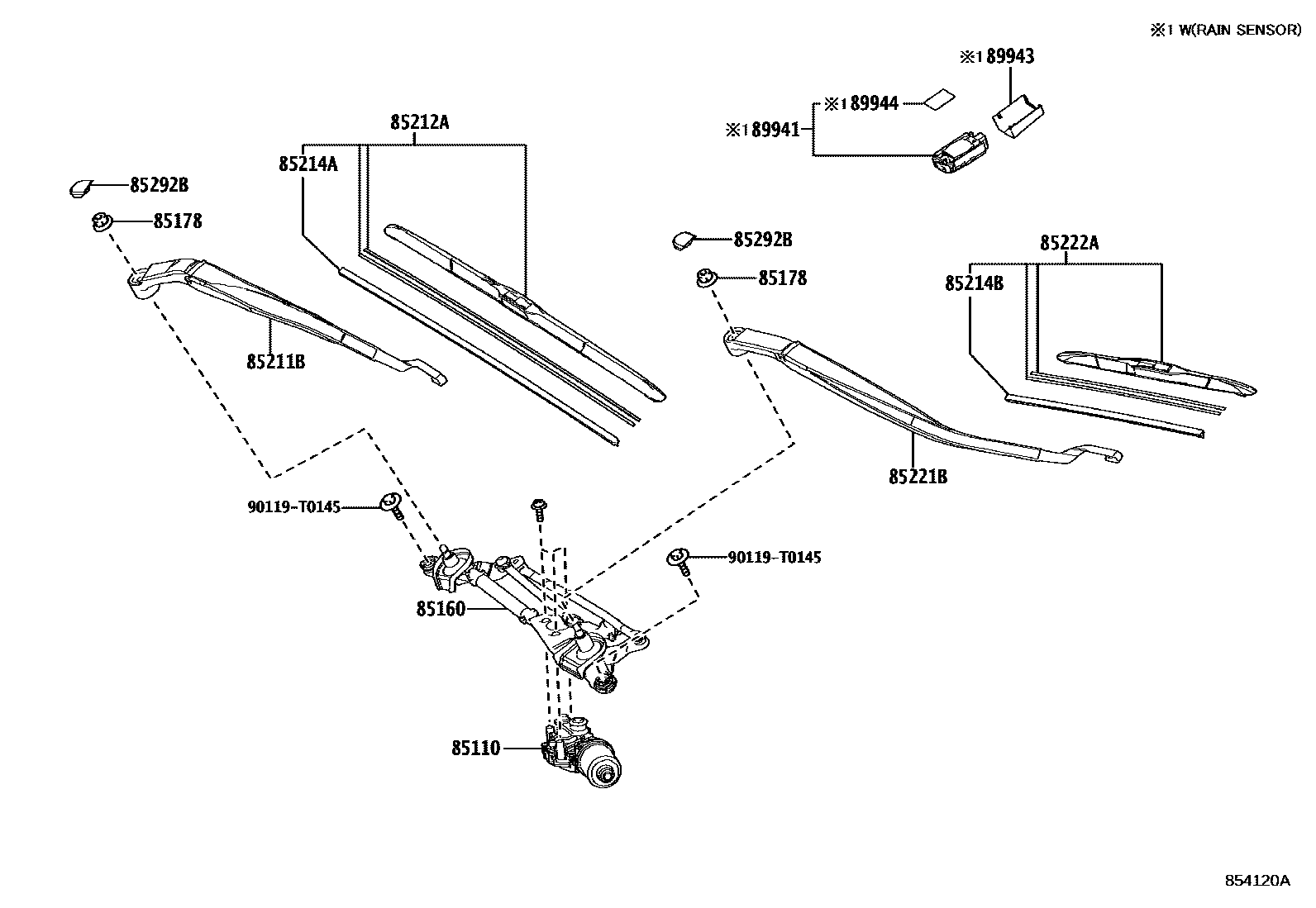

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 854120A
挡风玻璃刮水器 — 854120A (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
82375BWiper motor wiring harness82375-12330
85110Windshield wiper motor assembly85110-02490 · 85110-02500
85160Windshield wiper connecting rod assembly85150-02450 · 85150-02460
85178Nut (for securing front wiper arm)90182-10006 · 90182-T0029
85211BRight front wiper arm85211-02450 · 85211-02460 · 85211-02461
85212ARight front wiper blade85212-52220 · 85212-52240
85214ARight wiper rubber strip85214-28080 · 85214-68030
85214BLeft wiper rubber strip85214-28080 · 85214-68030
85221BLeft front wiper arm85221-02460 · 85221-02461 · 85221-02470
85222ALeft front wiper blade85222-52220 · 85222-52270
85292BFront wiper arm cap85292-0D030
89941rain sensor89941-30040
89943Rain sensor cover89943-12040
89944Rain sensor tape89944-42020
