Toyota COROLLA HEV 控制ECU — Figure 8433

Toyota COROLLA EPC diagram 8433, HEV 控制ECU, with 2 images and 1 PNC and OE references.

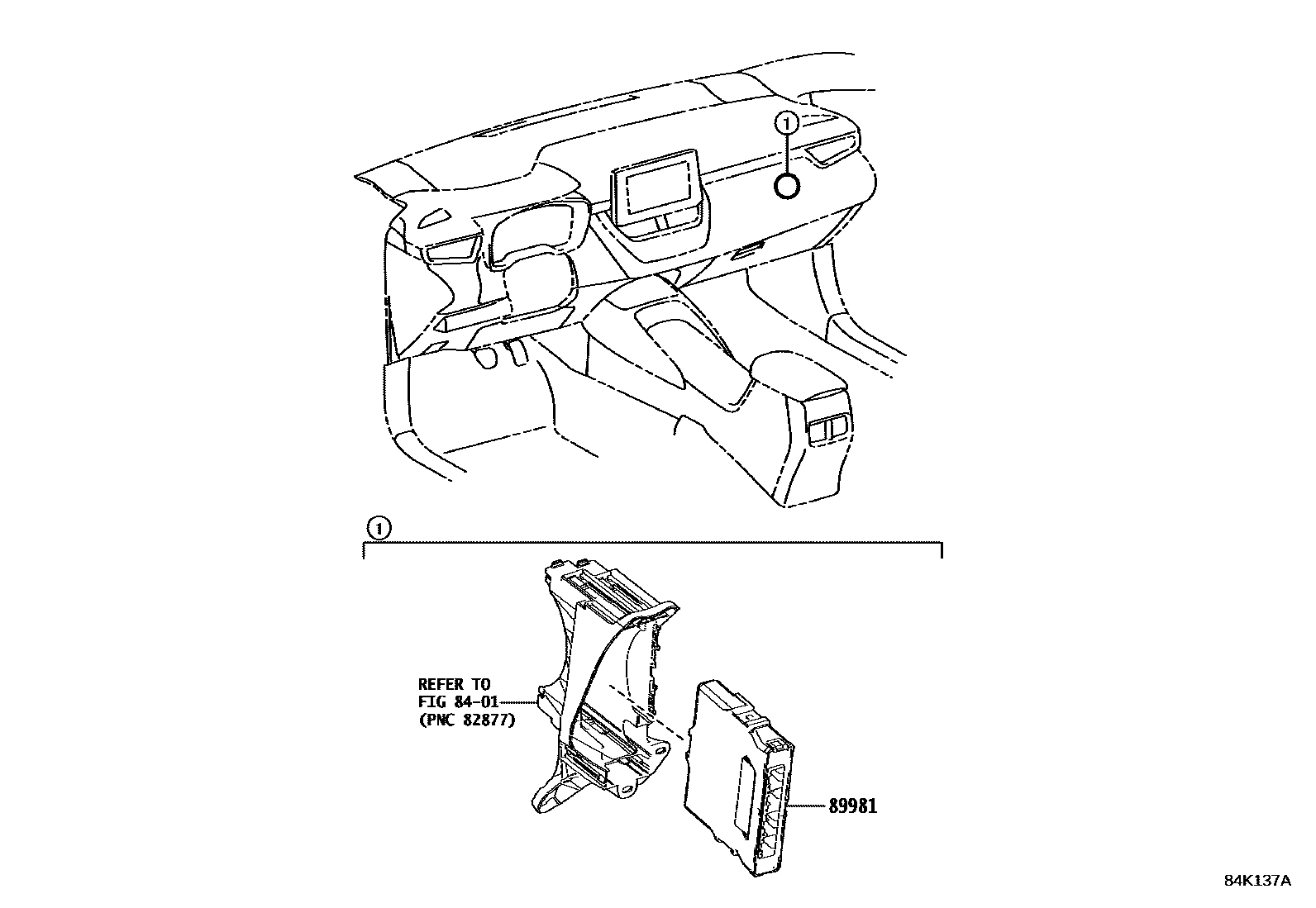

Toyota COROLLA HEV 控制ECU EPC diagram — 84K137A
HEV 控制ECU — 84K137A (201904 – 999999)

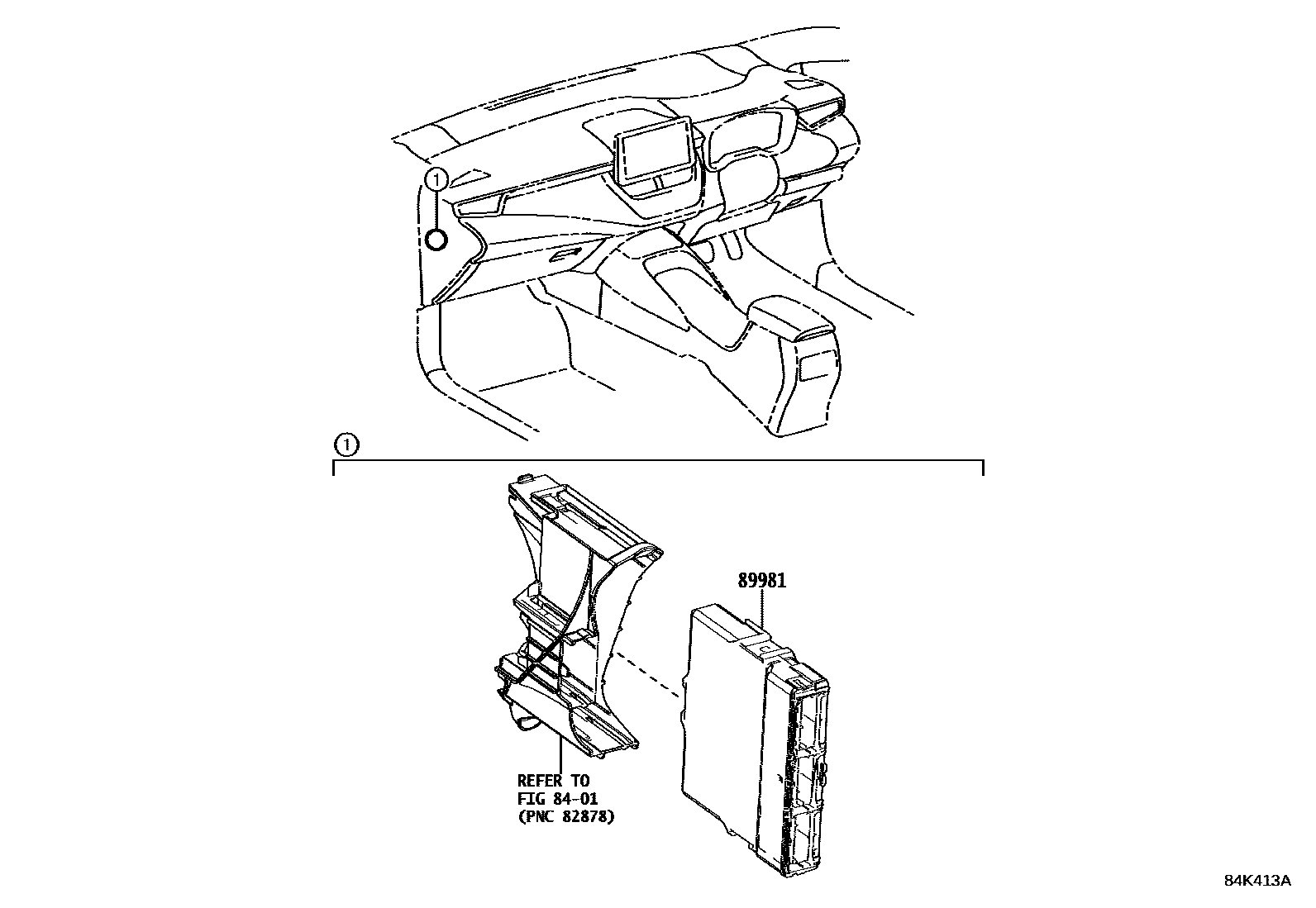

Toyota COROLLA HEV 控制ECU EPC diagram — 84K413A
HEV 控制ECU — 84K413A (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
89981Hybrid vehicle control ECU89981-12030 · 89981-12140 · 89981-12150 · 89981-12290 · 89981-12340 · 89981-12480 · 89981-12490
