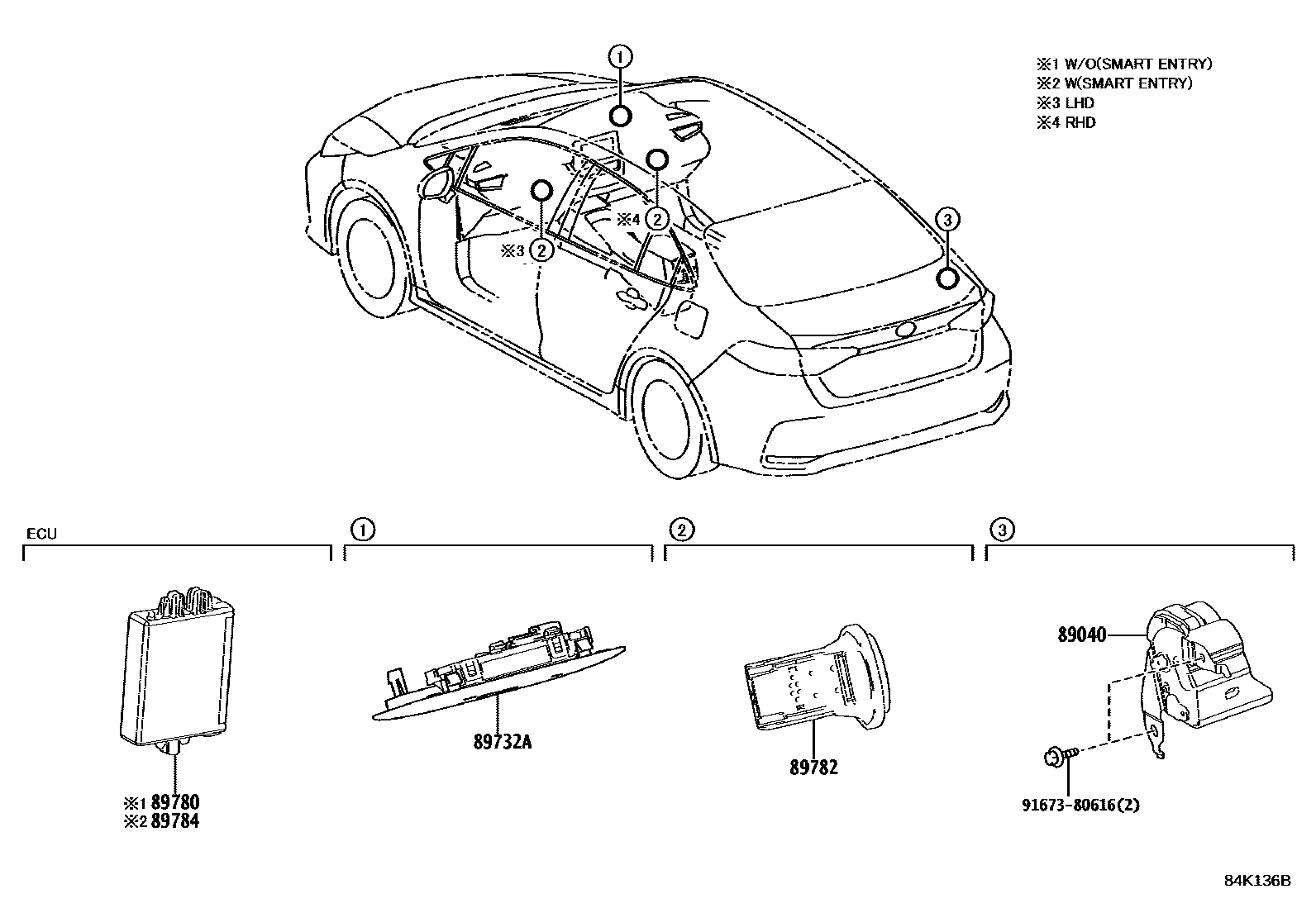

Toyota COROLLA 防盗装置 — Figure 8424
Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89040 | Anti-theft alarm assembly | 89040-02070 |
| 89780 | Transceiver key ECU assembly | 897H0-02040 · 897H0-26010 · 897H0-V3010 |
| 89782 | transceiver key coil | 89782-02130 · 89782-12060 |
| 89784 | Shutdown code system ECU | 89784-02140 · 89784-02200 · 89784-12040 · 89784-42060 |
