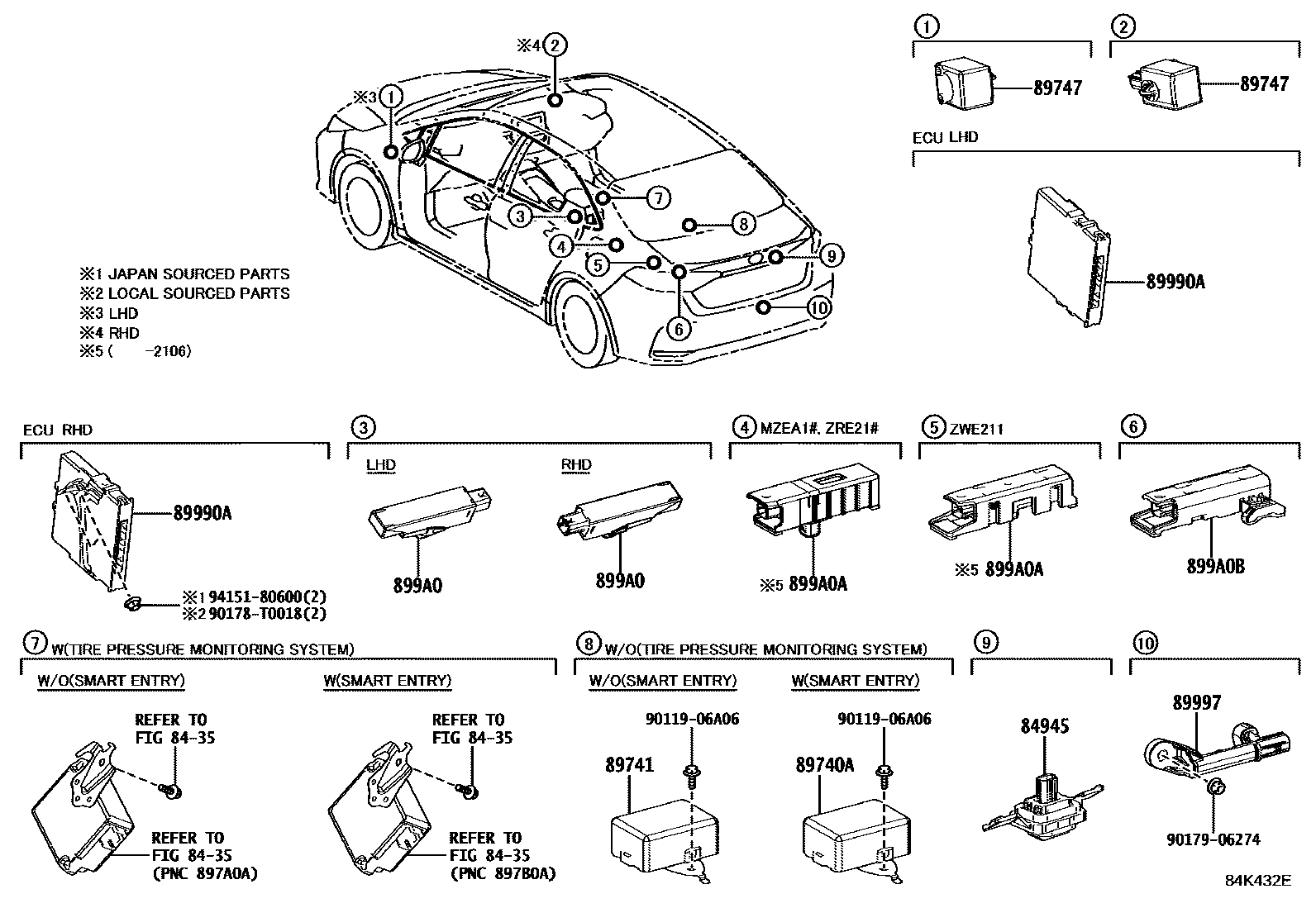

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-12100 |
| 89740A | Smart door control receiver assembly | 89740-02250 |
| 89741 | door control receiver | 89741-02450 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-12120 · 899H0-12121 · 899H0-12122 · 899H0-12130 · 899H0-12131 · 899H0-12132 · 899H0-12140 · 899H0-12141 · 899H0-12150 · 899H0-12151 · 899H0-12240 · 899H0-12241 · 899H0-12242 · 899H0-12243 · 899H0-12250 · 899H0-12251 · 899H0-12252 · 899H0-12253 · 899H0-12254 · 899H0-12261 · 899H0-12262 · 899H0-12271 · 899H0-12272 · 899H0-12282 · 899H0-12291 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02260 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02270 · 899A0-02290 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-02280 |
