Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 5 PNC and OE references.

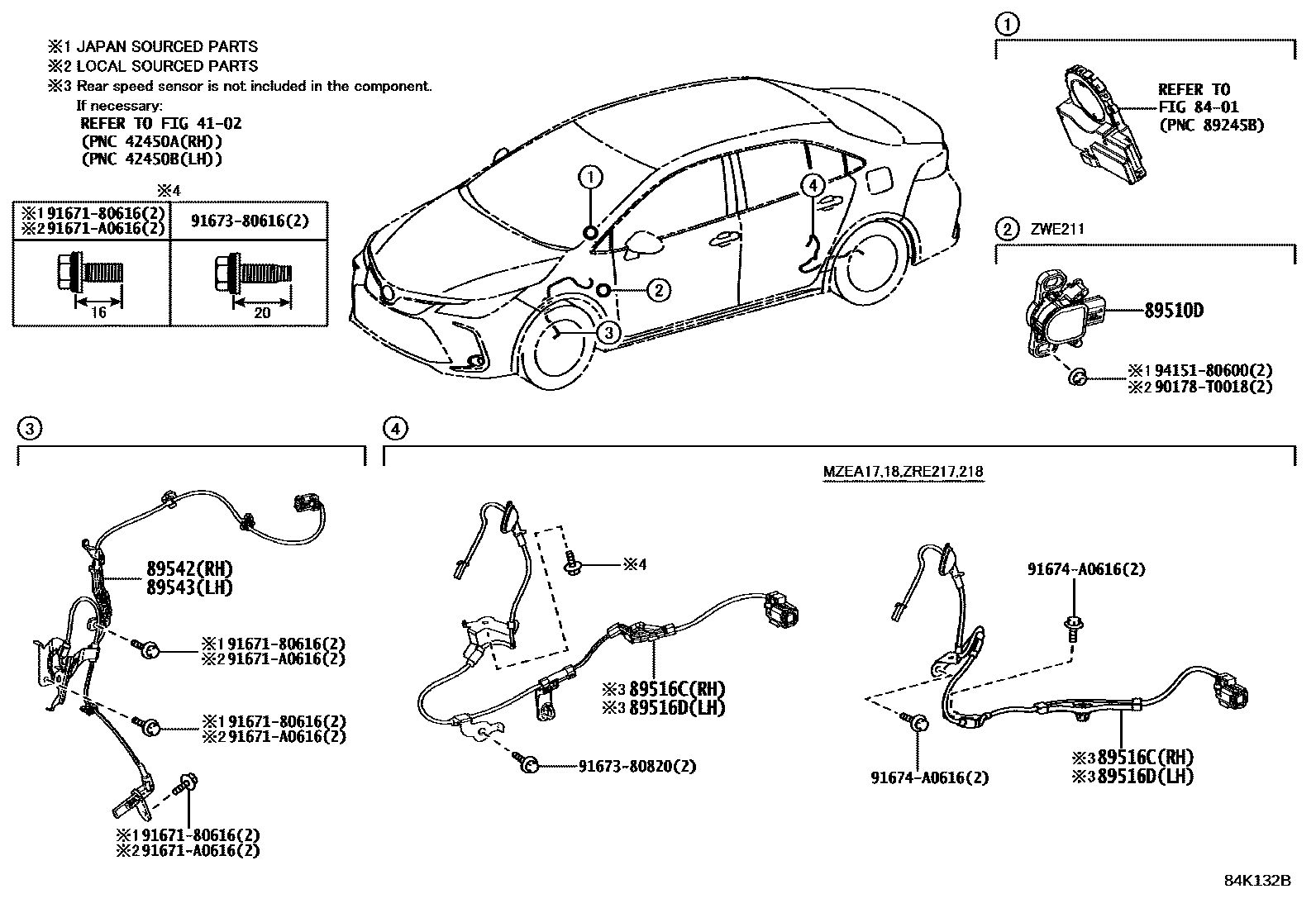

Toyota COROLLA ABS 和 VSC EPC diagram — 84K132B
ABS 和 VSC — 84K132B (201904 – 999999)

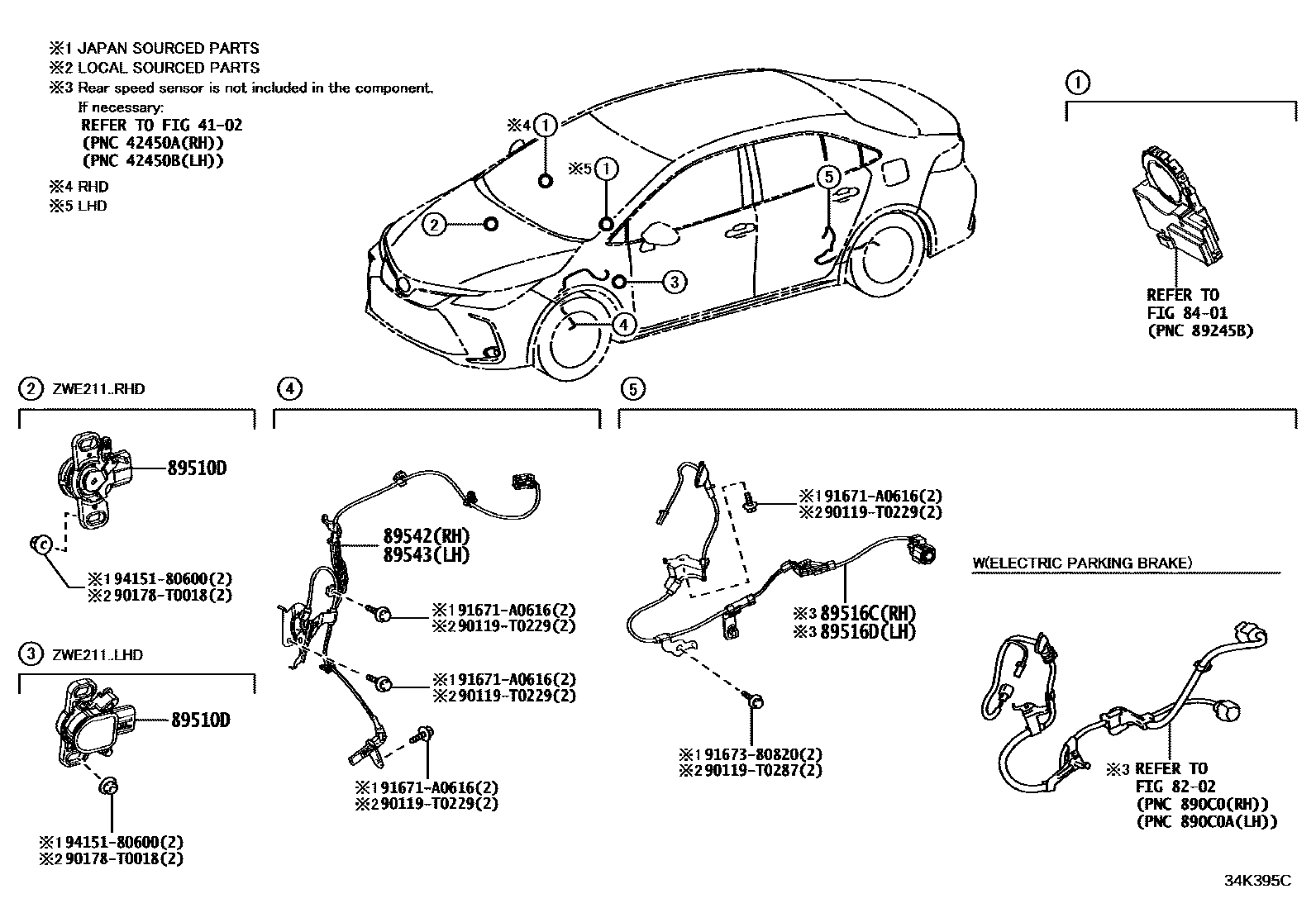

Toyota COROLLA ABS 和 VSC EPC diagram — 84K395C
ABS 和 VSC — 84K395C (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-47030 · 89510-47040
89516CRight anti-skid control sensor harness89516-02310 · 89516-12210 · 89516-47110
89516DLeft anti-skid control sensor wiring harness89516-02320 · 89516-12220 · 89516-47120
89542Right front wheel speed sensor89542-02190
89543Left front wheel speed sensor89543-02190
