Toyota COROLLA 开关和继电器和ECU — Figure 8401

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 16 images and 123 PNC and OE references.

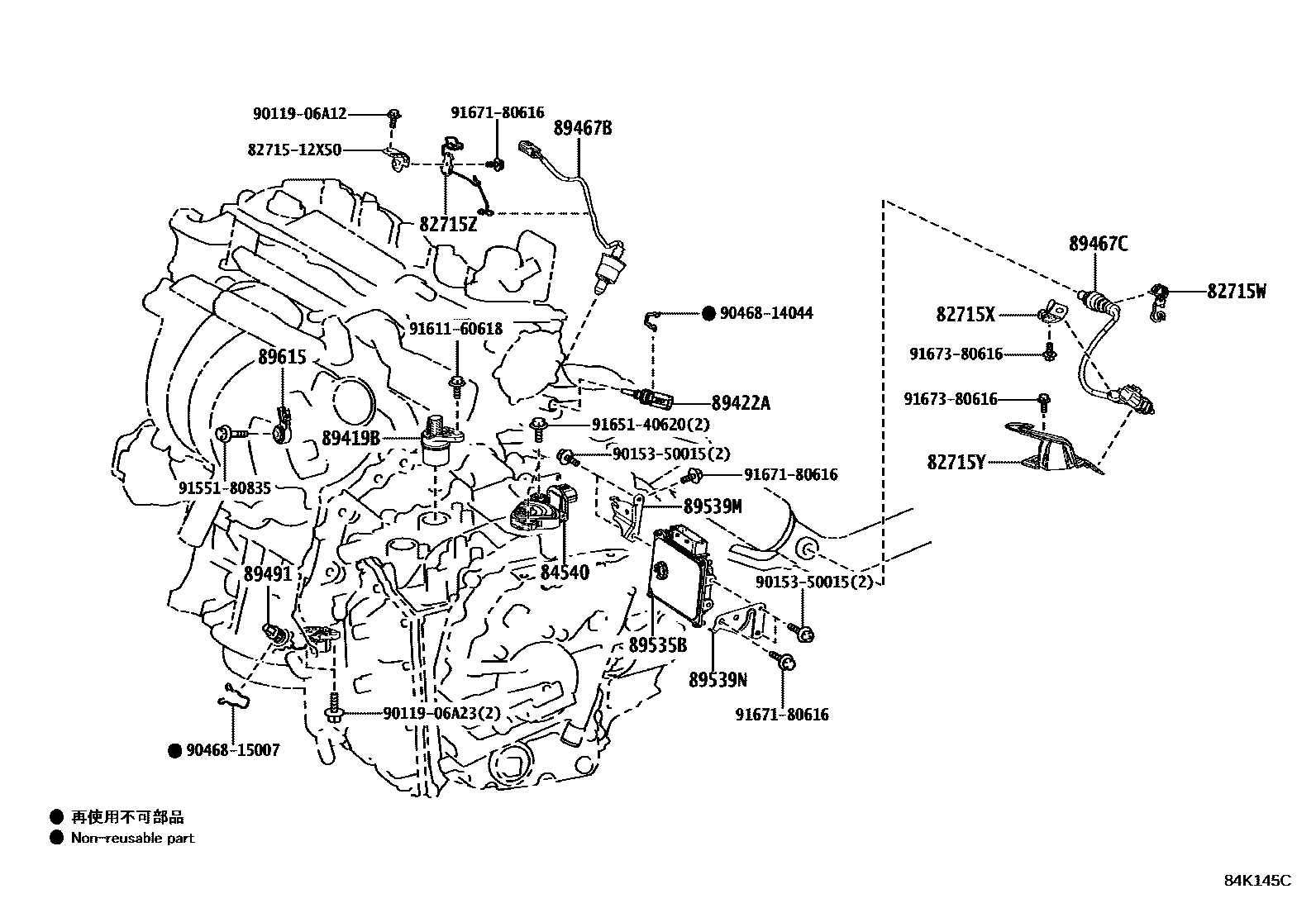

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K145C
开关和继电器和ECU — 84K145C (201904 – 999999)

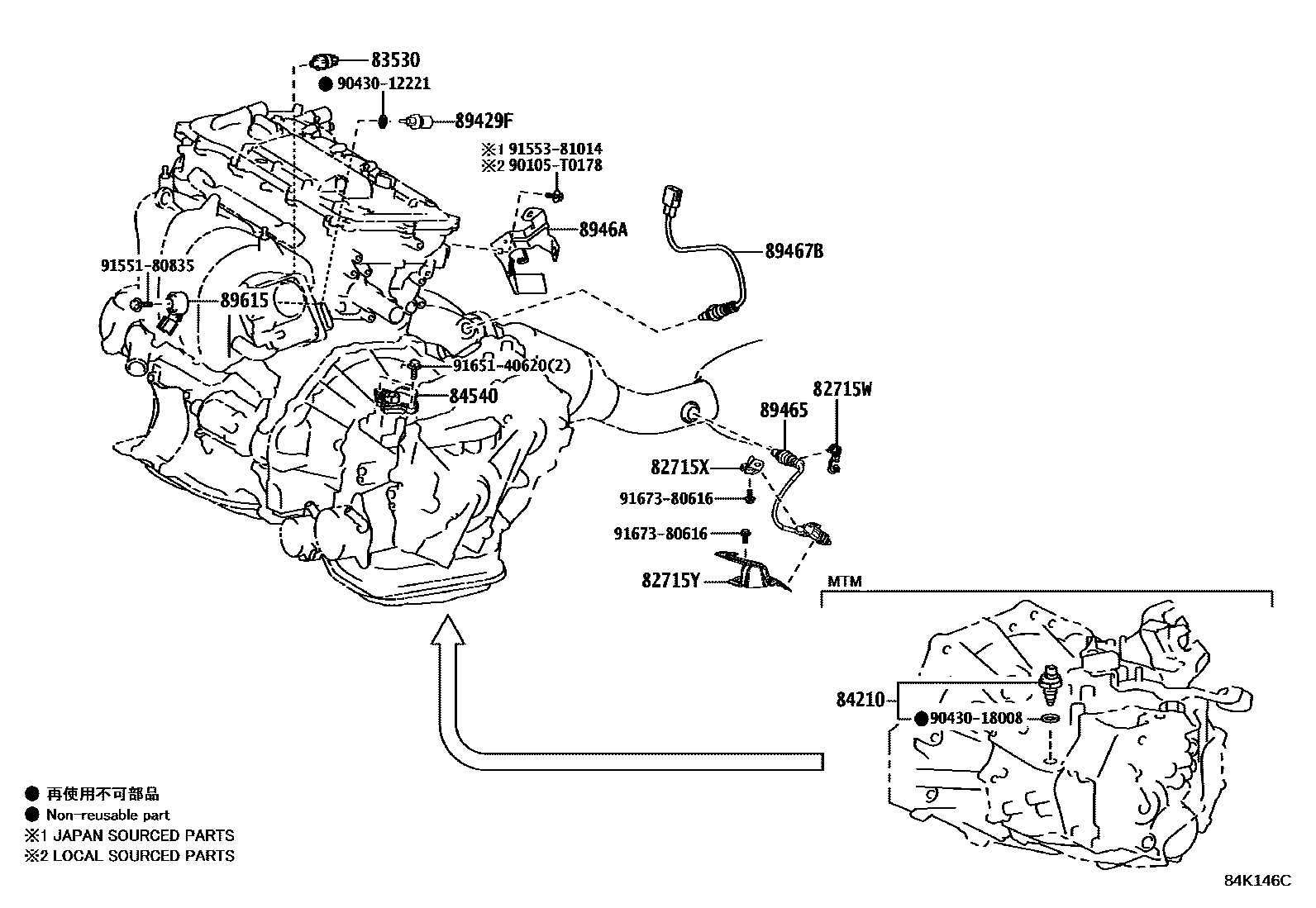

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K146C
开关和继电器和ECU — 84K146C (201904 – 999999)

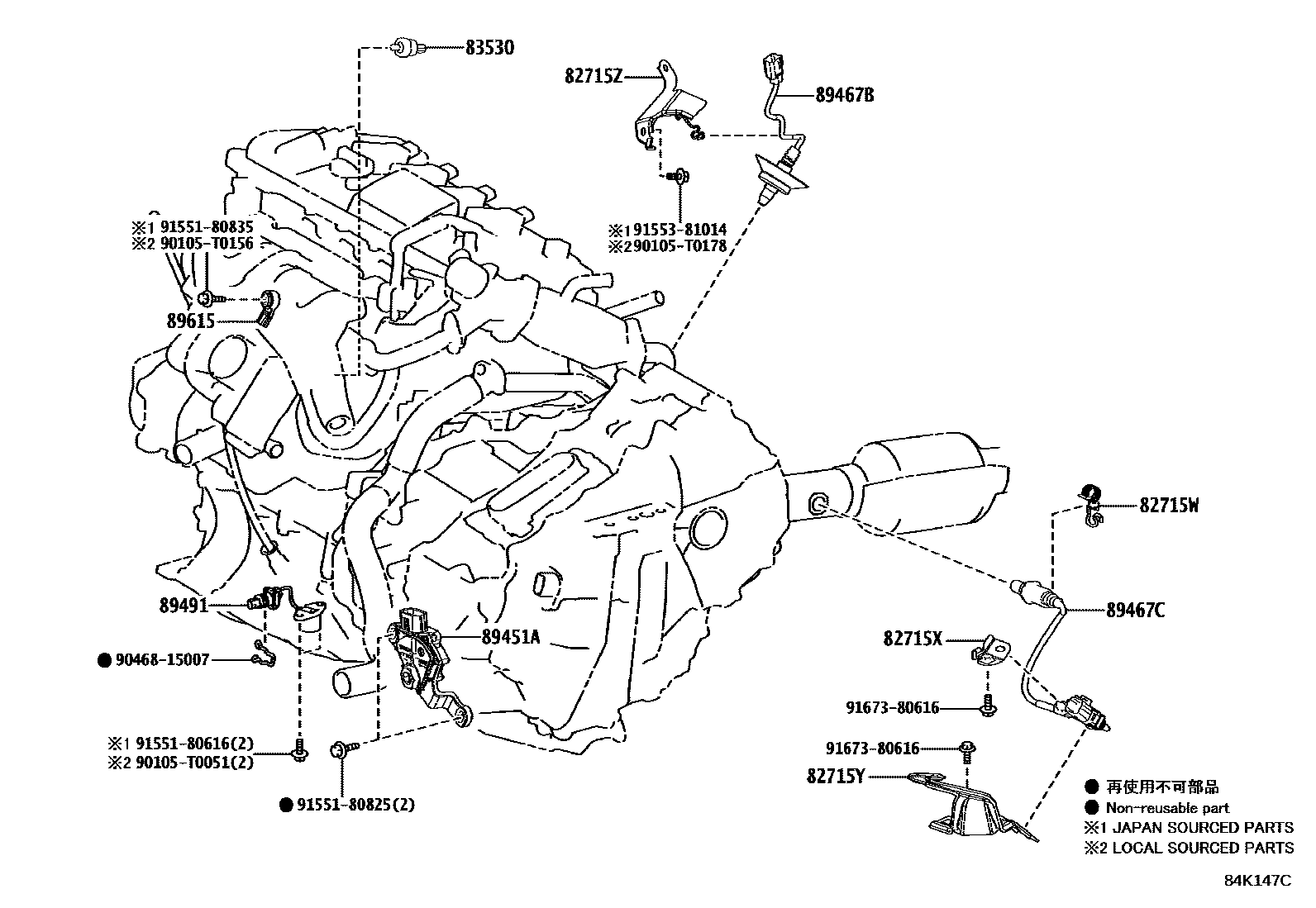

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K147C
开关和继电器和ECU — 84K147C (201904 – 999999)

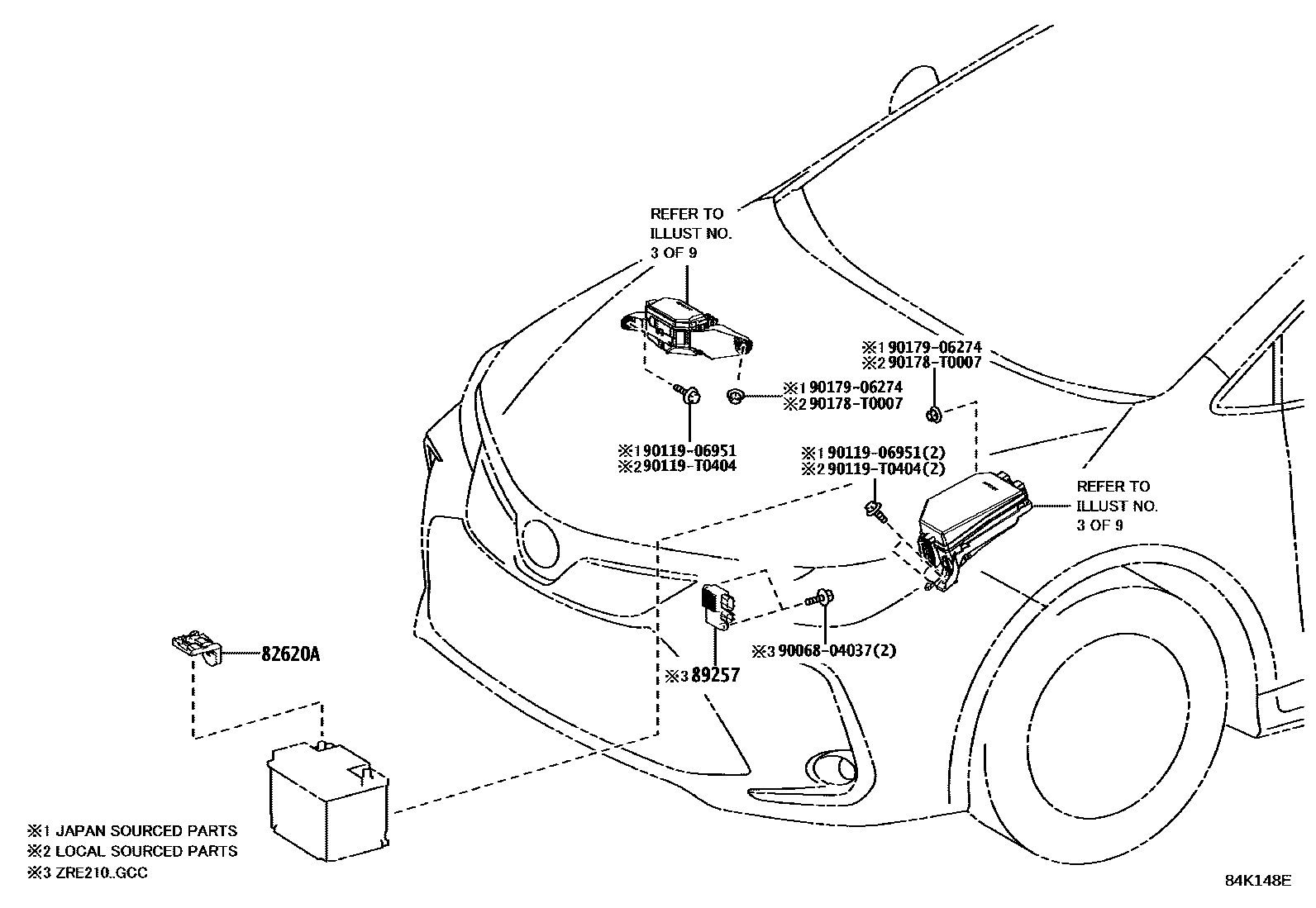

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K148E
开关和继电器和ECU — 84K148E (201904 – 999999)

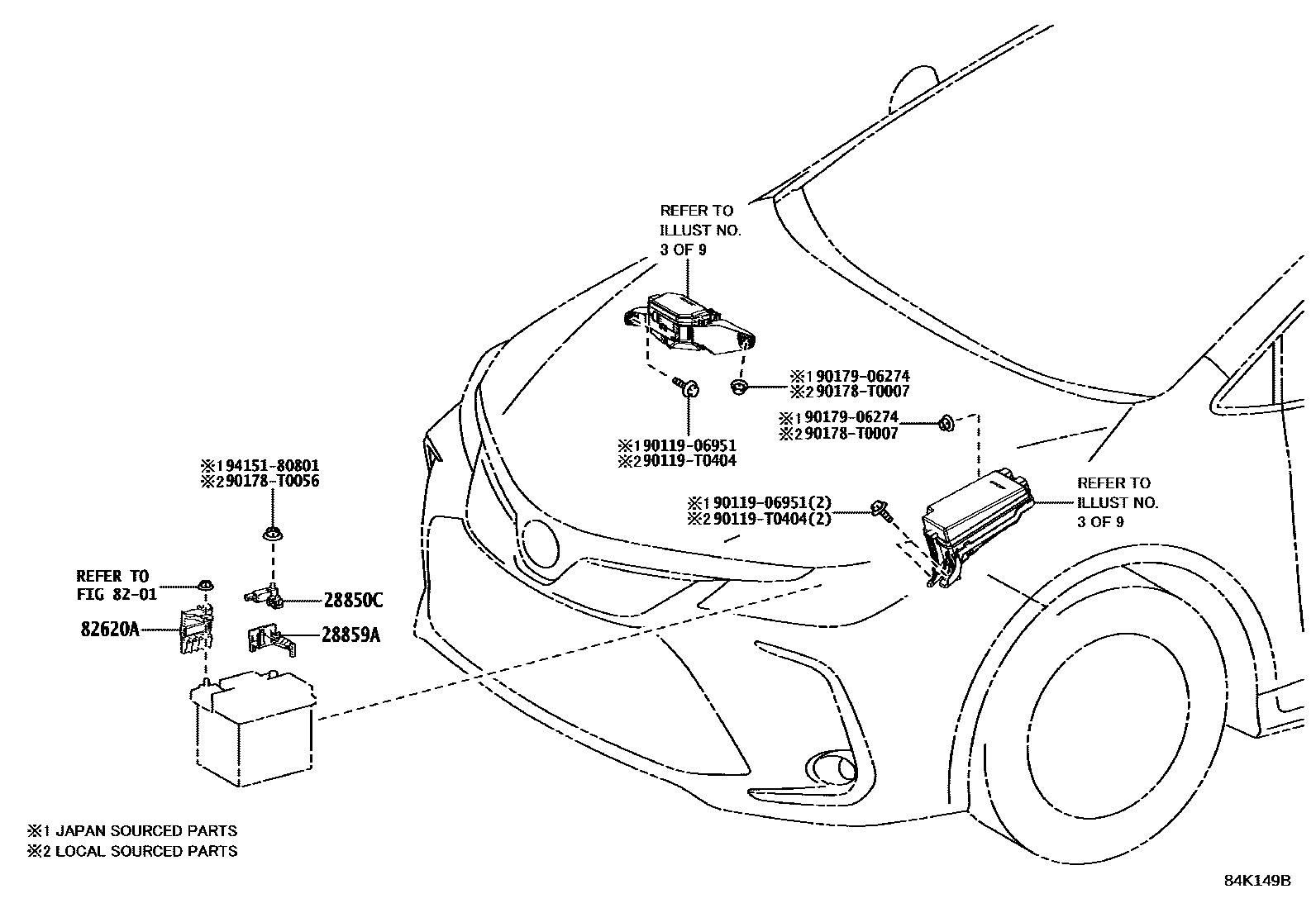

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K149B
开关和继电器和ECU — 84K149B (201904 – 999999)

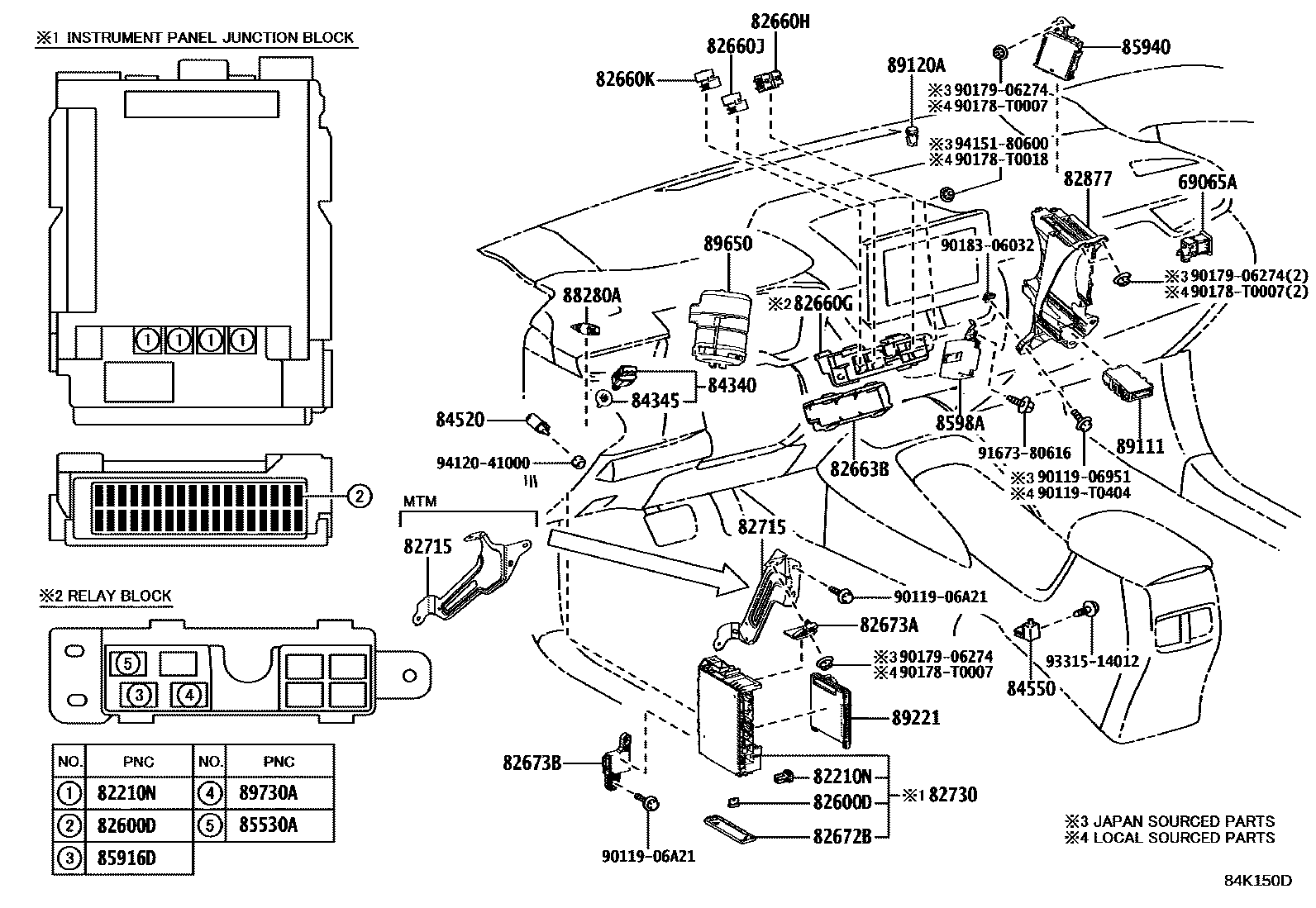

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K150D
开关和继电器和ECU — 84K150D (201904 – 999999)

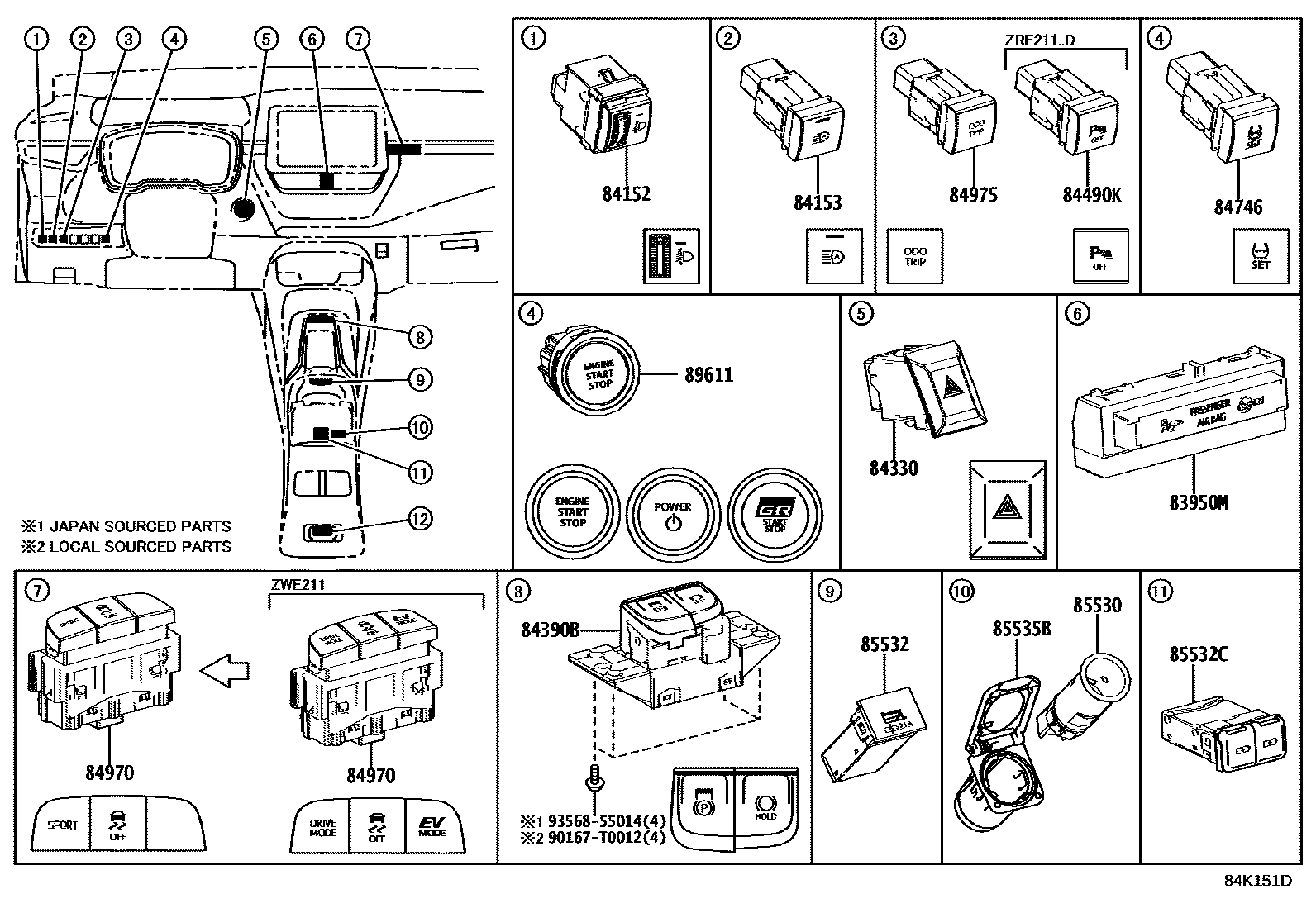

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K151D
开关和继电器和ECU — 84K151D (201904 – 999999)

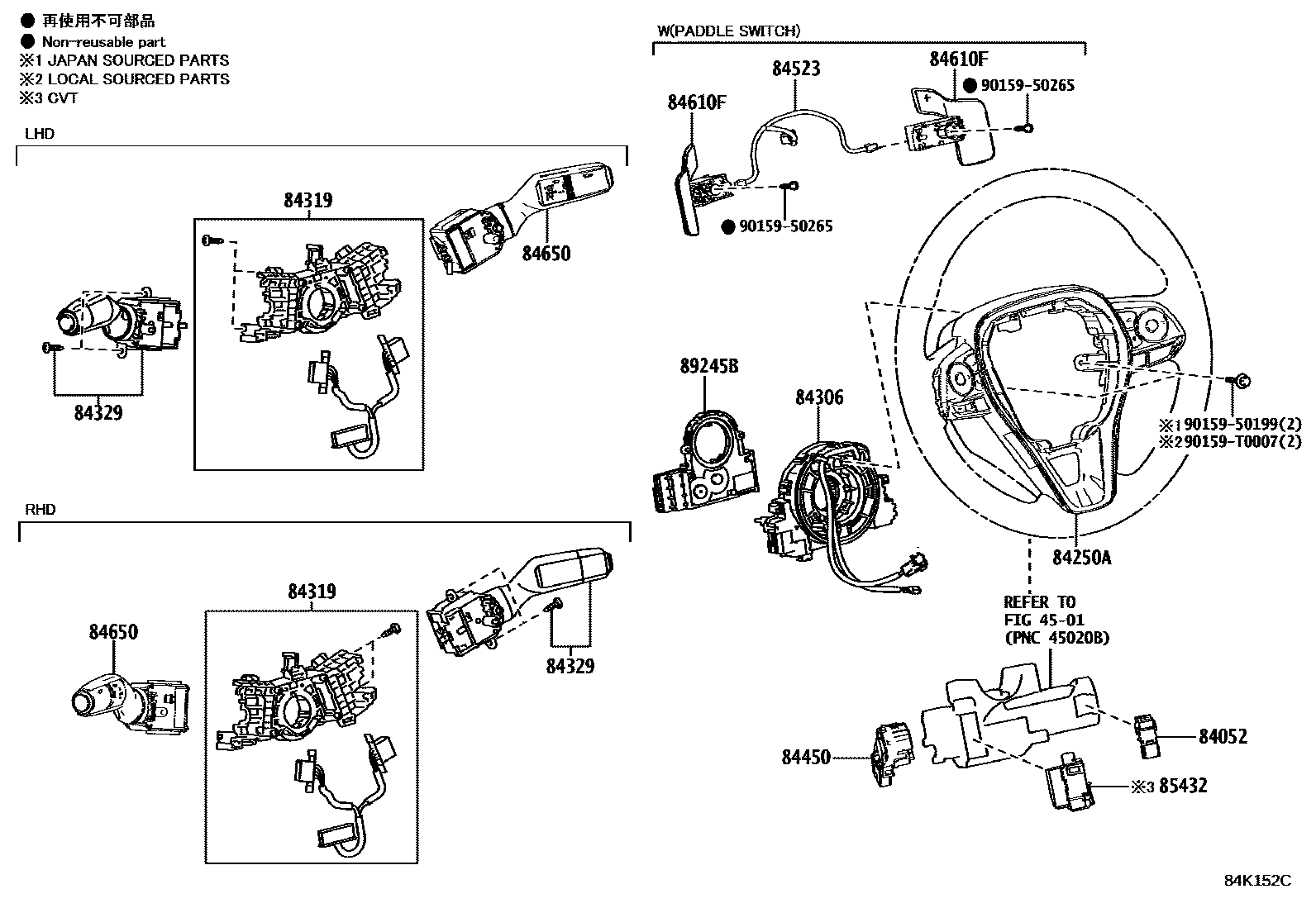

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K152C
开关和继电器和ECU — 84K152C (201904 – 999999)

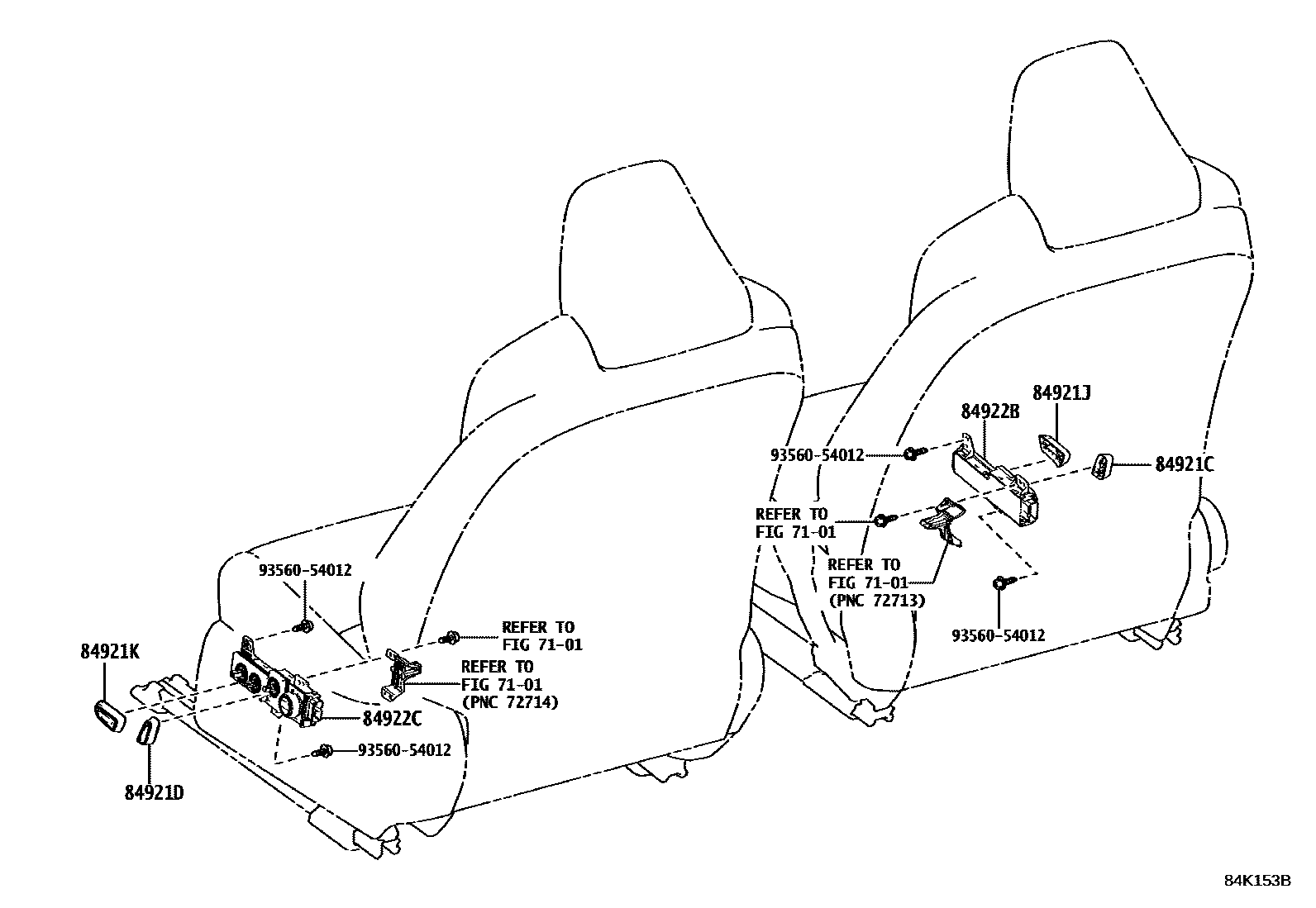

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K153B
开关和继电器和ECU — 84K153B (201904 – 999999)

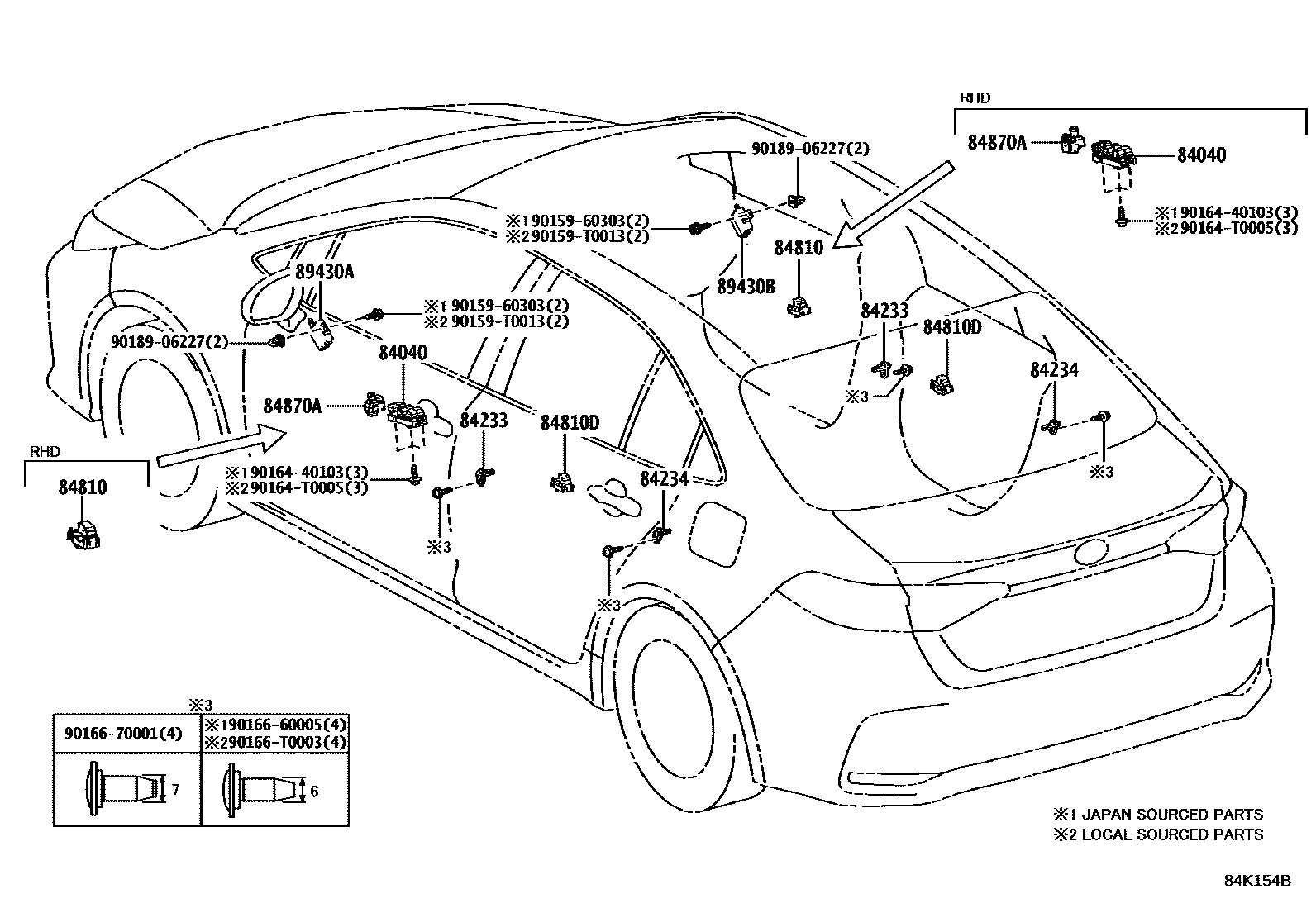

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K154B
开关和继电器和ECU — 84K154B (201904 – 999999)

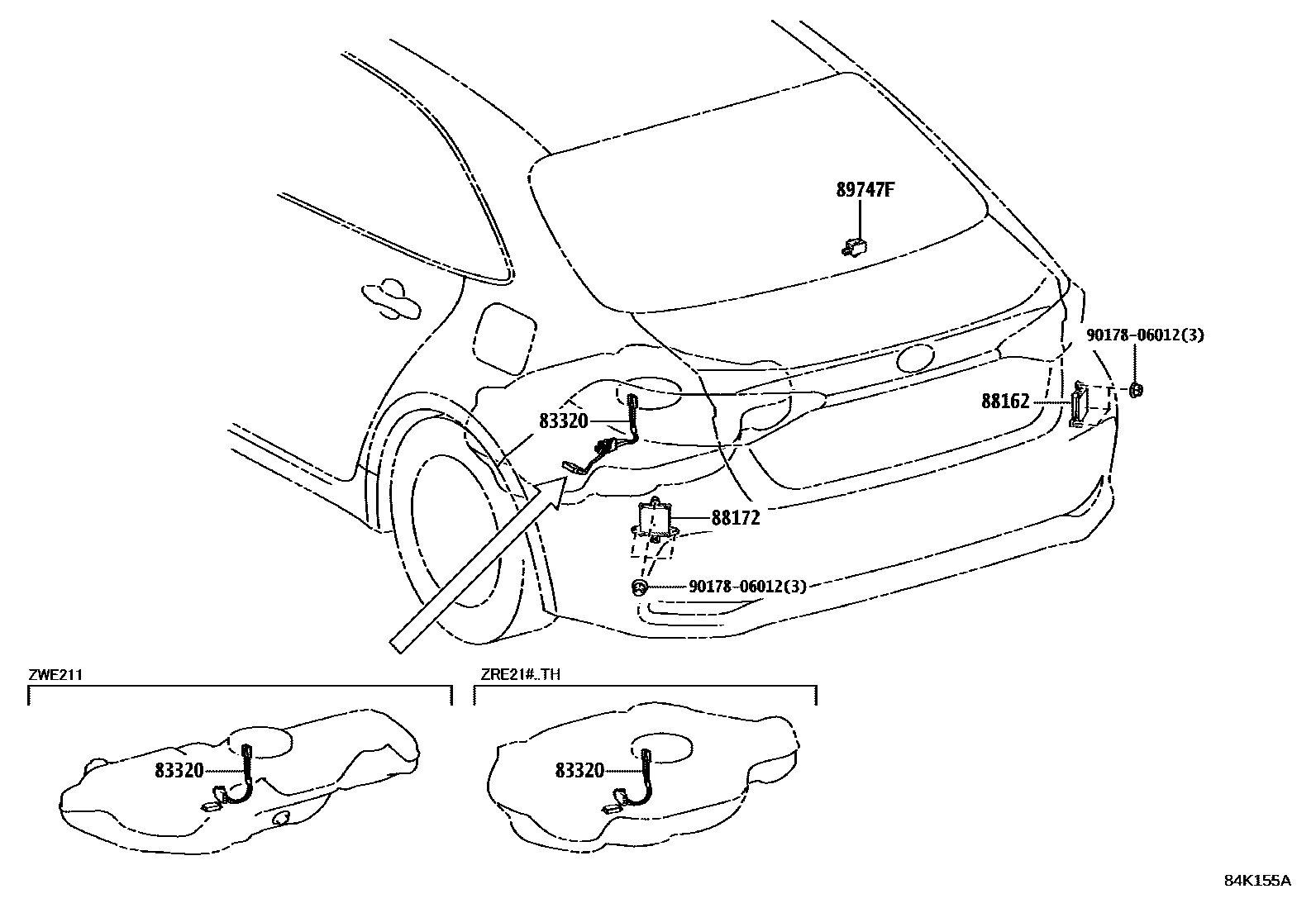

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K155A
开关和继电器和ECU — 84K155A (201904 – 999999)

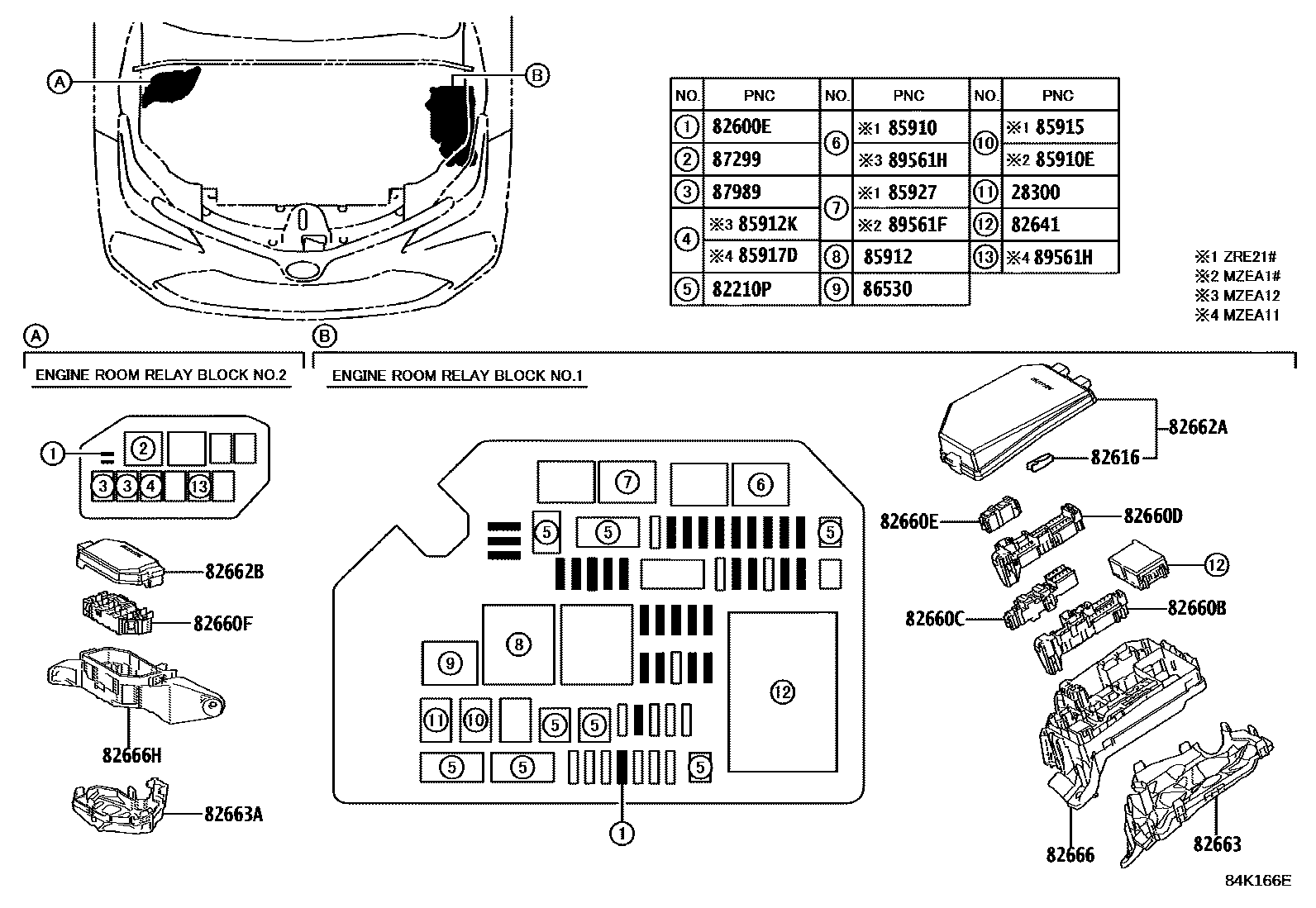

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K166E
开关和继电器和ECU — 84K166E (201904 – 999999)

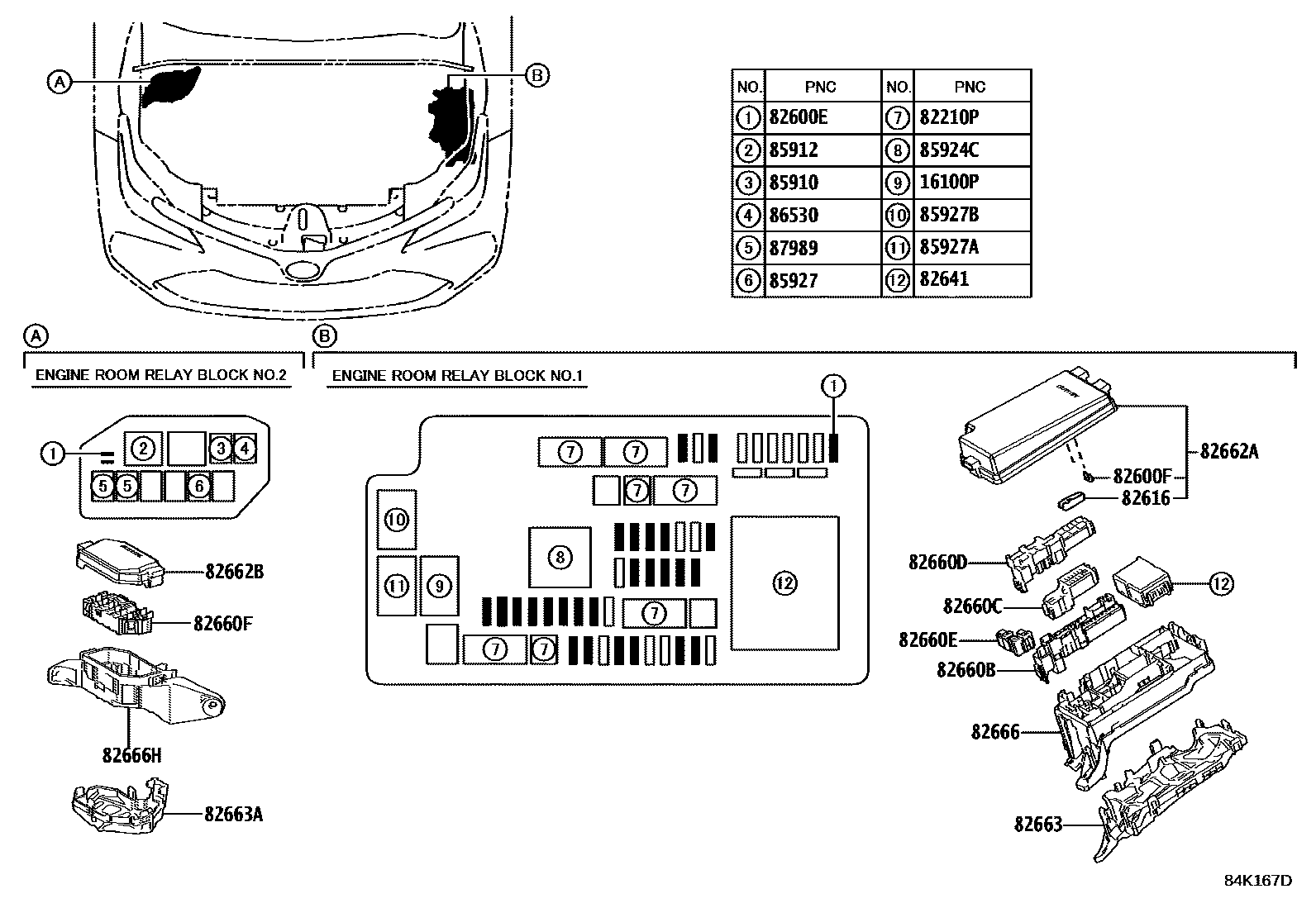

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K167D
开关和继电器和ECU — 84K167D (201904 – 999999)

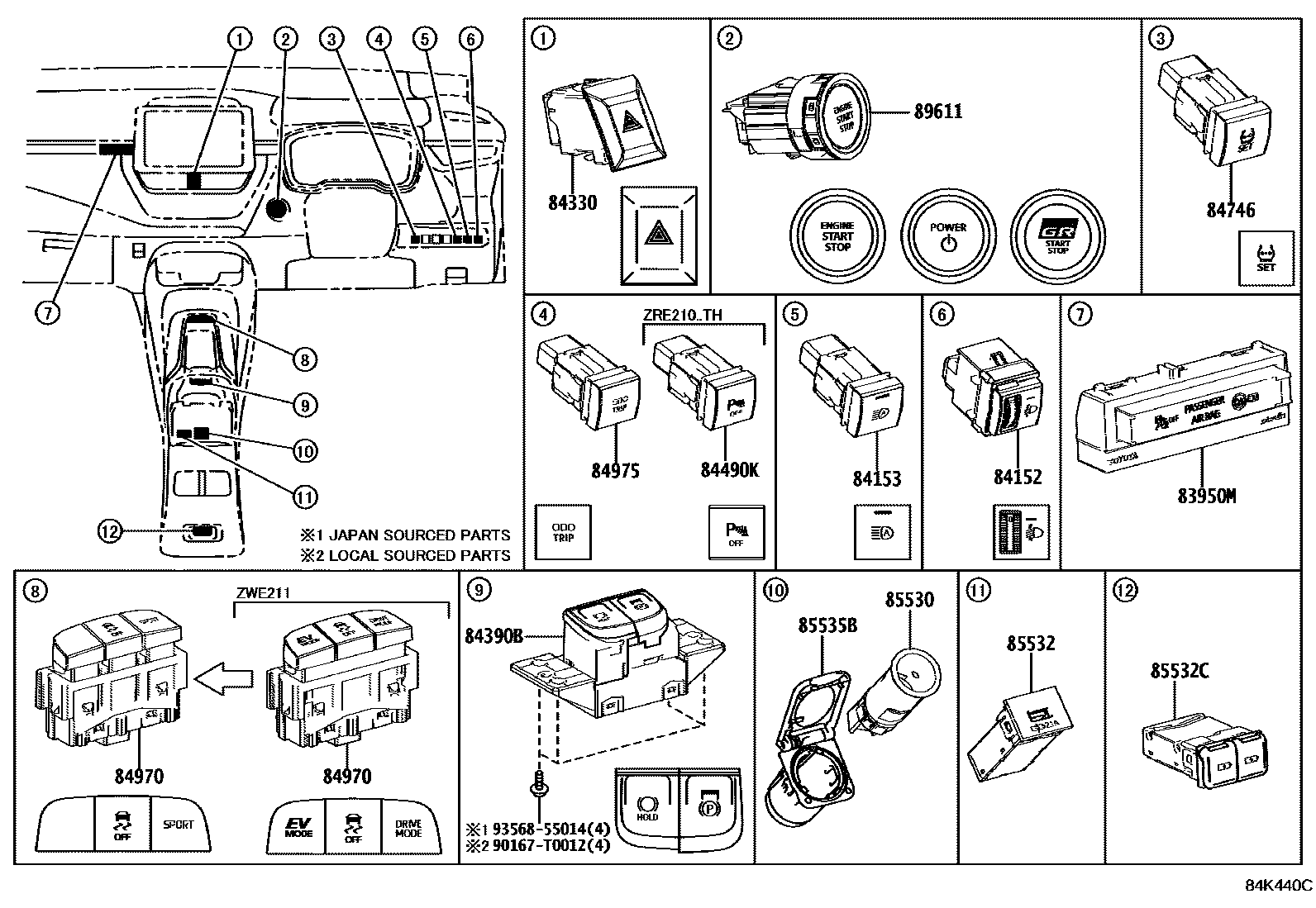

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K440C
开关和继电器和ECU — 84K440C (201908 – 999999)

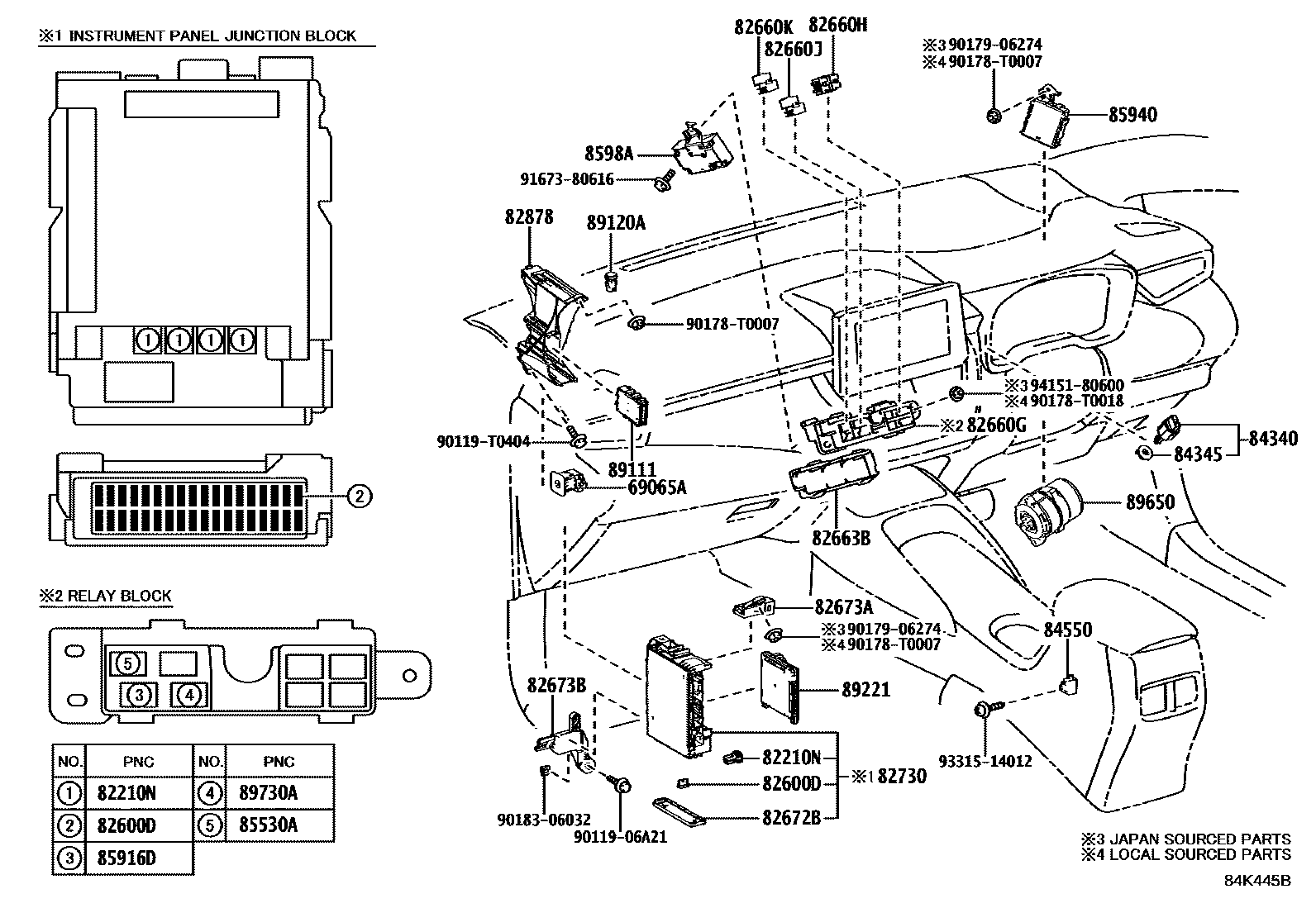

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84K445B
开关和继电器和ECU — 84K445B (201908 – 999999)

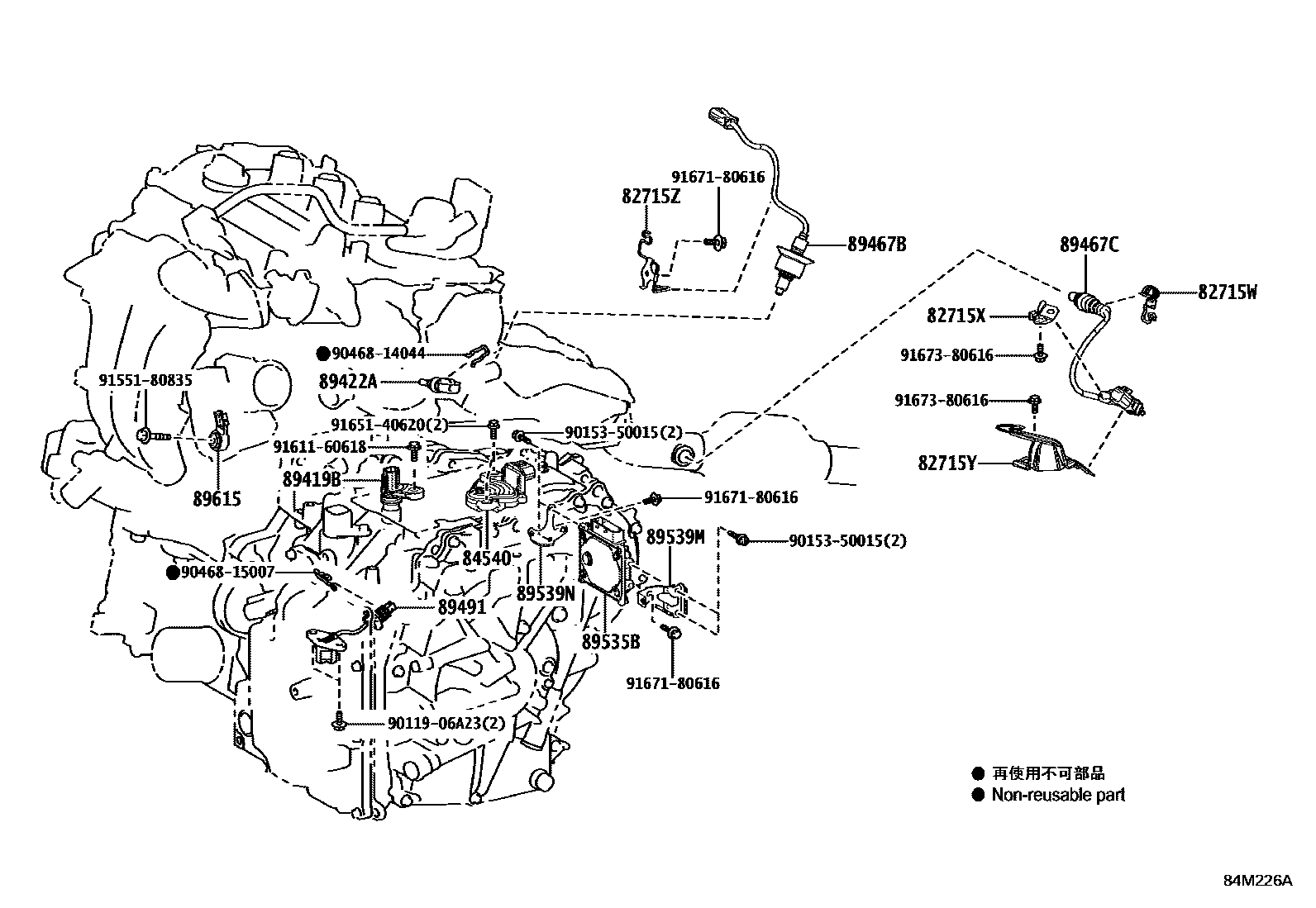

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84M226A
开关和继电器和ECU — 84M226A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Pwater pump relay90987-02027 · 90987-T2001
28300Starter relay assembly28300-0L011
28850CBattery status sensor assembly28850-25010
28859ABattery current sensor mount28859-37040
69065AAir bag cut-off switch lock cylinder sub-assembly69065-12460
82210NInstrument panel fuse90982-08306
82210PEngine room fuse90982-08294 · 90982-08295 · 90982-08296 · 90982-08300 · 90982-08305 · 90982-08308
82600DDashboard fuse90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023
82600EEngine room fuse90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025
82600FSpare fuse90982-09021 · 90982-09023 · 90982-09025
82616fuse puller82616-58010
82620AFuse box assembly82620-12310 · 82620-47090
82641Integrated relay No. 182641-47050
82660BRelay assembly82660-12390 · 82660-12420
82660CRelay assembly82660-12400 · 82660-47090
82660DRelay assembly82660-12360 · 82660-47070
82660ERelay assembly82660-12430 · 82660-12470
82660FRelay assembly82660-12410
82660GRelay assembly82660-12460
82660HRelay assembly82660-08020
82660JRelay assembly82660-0C110
82660KRelay assembly82660-52010
82662ANo. 1 relay box upper cover82662-02A60 · 82662-02A61 · 82662-02A62 · 82662-02D60 · 82662-02D61 · 82662-02D62 · 82662-02D70 · 82662-02D71 · 82662-02D72 · 82662-02G30 · 82662-02G31 · 82662-02G32 · 82662-02G60 · 82662-02G61 · 82662-02G62 · 82662-02G70 · 82662-02G71 · 82662-02G72 · 82662-02G73 · 82662-02G80 · 82662-02G81 · 82662-02G82 · 82662-02G83 · 82662-02G90 · 82662-02G91 · 82662-02G92 · 82662-02J00 · 82662-02J01 · 82662-02J02
82662BNo. 2 relay box upper cover82662-02D80 · 82662-02D90 · 82662-02J10 · 82662-02J20 · 82662-02J21
82663Relay box lower cover82663-12160 · 82663-47070
82663ANo. 2 relay box lower cover82663-47090
82663BNo. 3 relay box lower cover82663-12150
82666Connector holder82666-12650 · 82666-12660
82666HConnector holder No. 282666-47620
82672BJunction box cover82672-02150
82673AJunction box bracket82673-02280 · 82673-F4090
82673BJunction box bracket82673-02290 · 82673-F4100
82715Wire harness clamp bracket82715-12W60 · 82715-12X60
82715WWire harness clamp bracket82715-44510 · 82729-20040
82715XNo. 2 wire harness clip bracket82715-0Z190 · 82715-F4300
82715YNo. 3 wire harness clip bracket82715-0Z170 · 82715-0Z180
82715ZWire harness clamp bracket82715-10310 · 82715-12V90 · 82715-K0030
82730Instrument panel junction box assembly82730-0Z090 · 82730-0Z160
82877Right ECU integrated box82877-02060 · 82877-02070
82878Left ECU integrated box82878-F4020
83320Fuel gauge sensor assembly83320-10250 · 83320-10260 · 83320-10270 · 83320-16320 · 83320-76010
83530Oil pressure switch assembly (for engine)83530-12060
83950MWarning light assembly83950-02580 · 83950-02600
84040Multi-channel network main switch assembly84040-02200 · 84040-02210 · 84040-02220 · 84040-02230 · 84040-02350 · 84040-02570 · 84040-02580 · 84040-02590 · 84040-02600 · 84040-02610 · 84040-02620
84052Unlock warning switch assembly84052-0K020 · 84052-71010
84152Headlight beam height adjustment switch84152-02150 · 84152-12100 · 84152-16040 · 84152-VT030
84153Automatic high beam switch84153-06040 · 84153-16010 · 84153-33040 · 84153-VT030
84210Reversing light switch assembly84210-52050
84233Door control light switch assembly (for front door)84231-02040 · 84231-02070
84234Door control light switch assembly (for rear door)84231-02080 · 84231-02090
84250ASteering wheel decorative cover switch assembly84250-02D60 · 84250-02D70 · 84250-02D80 · 84250-02D90 · 84250-02E00 · 84250-02F20 · 84250-02F30 · 84250-02F40 · 84250-02J30 · 84250-02J40 · 84250-02L00 · 84250-02L10 · 84250-02L20 · 84250-02L30 · 84250-02M20 · 84250-02M30 · 84250-02M70
84306Spiral cable sub-assembly84308-02140 · 84308-02190 · 84308-06030 · 84308-06070
84319Steering wheel switch housing84319-02040 · 84319-06050 · 84319-06060 · 84319-33030
84329turn signal switch84329-02100 · 84329-02110 · 84329-02120 · 84329-02130 · 84329-02140 · 84329-02150 · 84329-02160 · 84329-02170 · 84329-02180 · 84329-06090 · 84329-06100 · 84329-06110 · 84329-06120 · 84329-33100
84330Hazard warning signal switch assembly84332-02410 · 84332-12600
84340brake light switch assembly84340-09380 · 84340-09530
84345Brake light switch base adjuster84345-0K010
84390BElectric parking brake switch assembly84390-02110 · 84390-02120 · 84390-02130 · 84390-02210 · 84390-02220 · 84390-02230
84450Ignition or starter switch assembly84450-33040
84490KReversing radar switch assembly84490-02110
84520Clutch start switch assembly88280-70010
84523No. 1 switch harness84523-11010
84540Neutral start switch assembly84540-12240 · 84540-52070 · 84540-K0010
84550Parking brake switch assembly84550-02030 · 84550-02040 · 84550-16060 · 84550-33010
84610FTransmission shift switch assembly84610-33011 · 84610-33021
84650Windshield wiper switch assembly84652-02B10 · 84652-02B20 · 84652-02B30 · 84652-02B40 · 84652-02B70 · 84652-06420 · 84652-06430 · 84652-06440
84746tire pressure warning switch84746-02050 · 84746-0A020
84810Electric window lift switch assembly84810-02200 · 84810-02210 · 84810-02300 · 84810-02310
84810DRear electric window lift switch assembly84810-02200 · 84810-02210 · 84810-02300 · 84810-02310
84870AExterior rearview mirror switch assembly84872-02400 · 84872-02560 · 84872-02570 · 84872-02580 · 84872-02590 · 84872-02620 · 84872-02630 · 84872-02640 · 84872-02650 · 84872-02660 · 84872-02720 · 84872-02770 · 84872-02800 · 84872-02860 · 84872-02880 · 84872-02890 · 84872-02A00 · 84872-02A10 · 84872-02A20 · 84872-02A30 · 84872-02A40 · 84872-02A50 · 84872-02A60 · 84872-02A70 · 84872-02B50 · 84872-02B60 · 84872-0A060 · 84872-0A090
84970Combination switch assembly84970-02450 · 84970-02460 · 84970-02470 · 84970-02480 · 84970-02490 · 84970-02510 · 84970-02520 · 84970-02570 · 84970-02670 · 84970-02680 · 84970-02690 · 84970-02700 · 84970-02710 · 84970-02720 · 84970-02730 · 84970-02740
84975trip odometer switch84975-02030
85432Key interlock solenoid valve85432-06040
85530No. 1 power socket assembly85530-0D030 · 85530-42010
85530Apower outlet relay90987-02027 · 90987-T2001
85532USB charging socket85532-02020 · 85532-12020 · 85532-60010 · 85532-60060
85532CUSB charging socket No. 285532-78010
85535BNo. 1 power outlet cover85535-02190 · 85535-12080 · 85535-F4010
85910Circuit breaking relay assembly90987-02027 · 90987-T2001
85910EInjector relay90987-02027
85912defogger relay90987-04010 · 90987-T2003
85912KVVT relay90987-02027
85915main relay90987-02027 · 90987-T2001
85916Dfog light relay90987-T2001
85917DHeater relay (for air-fuel ratio sensor)90987-02027
85924CIGCT relay90987-02025 · 90987-T2002
85927cooling fan relay90987-02027 · 90987-T2001
85927ACooling fan relay No. 290987-02027 · 90987-T2001
85927BCooling fan relay No. 390080-87009 · 90987-04004
85940Windshield wiper relay assembly85940-12230 · 85940-12240
8598Adoor control battery8598A-02020 · 8598A-02030 · 8598A-02040 · 8598A-02050
86530Speaker relay assembly90987-02027 · 90987-T2001
87299heater relay90987-04010 · 90987-T2003
87989Rearview mirror control relay90080-87009 · 90987-04004
88162Blind spot monitor right sensor88162-02050 · 88162-12050
88172Blind spot monitor left sensor88162-02050 · 88162-12050
88280AClutch switch assembly88280-42010
89111Network gateway ECU89111-02070 · 89111-02080 · 89111-0A110 · 89111-0A120 · 89111-12040 · 89111-12042 · 89111-12050 · 89111-16010
89120AAutomatic light control sensor89121-30020
89221Multi-channel network body ECU89220-02890 · 89220-0Z010 · 89220-0Z520 · 89220-0Z550 · 89220-0Z560 · 89220-0Z570 · 89220-0Z580 · 89220-0Z590 · 89220-0Z600 · 89220-0Z610 · 89220-0Z620 · 89220-0Z630 · 89220-0Z640 · 89220-0Z650 · 89220-0Z660 · 89220-0Z670 · 89220-0Z680 · 89220-0Z690 · 89220-0Z700 · 89220-0Z720 · 89220-0Z730 · 89220-0Z790 · 89220-0Z800 · 89220-0Z810 · 89220-0ZA10 · 89220-0ZA30 · 89220-0ZA40 · 89220-0ZA50 · 89220-0ZA60 · 89220-0ZA70 · 89220-0ZA80 · 89220-0ZA90 · 89220-0ZB00 · 89220-0ZB10 · 89220-0ZB20 · 89220-0ZB30 · 89220-0ZB40 · 89220-F2E60 · 89220-F2E70 · 89220-F2E90 · 89220-F2F00 · 89220-F2F10 · 89220-F2F20 · 89220-F2F30 · 89220-F2F40 · 89220-F2F50 · 89220-F2F60 · 89220-F2F70 · 89220-F2F80 · 89220-F2F90 · 89220-F2G00 · 89220-F2G10 · 89220-F2G20 · 89220-F2G30 · 89220-F2G40 · 89220-F2G50 · 89220-F2G60 · 89220-F2G70
89245Bsteering sensor8924B-02110 · 8924B-02120
89257Cooling fan ECU89257-12020 · 89257-K0020
89419Bgear shift sensor89419-12011 · 89419-K2010
89422Awater temperature sensor89422-33040
89429Ftemperature sensor89429-12010
89430ALeft exterior rearview mirror control ECU assembly89430-12010
89430BRight exterior mirror control ECU assembly89430-12020
89451Ashift lever position sensor89451-10010
89465oxygen sensor89465-47090
89467Bair fuel ratio sensor89467-12260 · 89467-12280 · 89467-47030 · 89467-K0020
89467CNo. 2 air-fuel ratio sensor89465-47090 · 89467-12290 · 89467-12350
8946AExhaust sensor clip bracket8946A-12010
89491Engine oil level sensor89491-28090 · 89491-28091 · 89491-33051 · 89491-33052 · 89491-47011 · 89491-50081 · 89491-50082
89535BTransmission control ECU89535-12150 · 89535-12180 · 89535-12190 · 89535-12400 · 89535-12410
89539MNo. 1 transmission control ECU bracket89539-12070 · 89539-K0010
89539NNo. 2 transmission control ECU bracket89539-12080 · 89539-K0020
89561FElectronic fuel injection No. 1 main relay90987-02027
89561HElectronic fuel injection No. 3 main relay90987-02027 · 90987-02033
89611One-button start switch89611-02230 · 89611-02270 · 89611-02290 · 89611-02300 · 89611-12010 · 89611-12020 · 89611-16010 · 89611-16020 · 89611-52050 · 89611-52090
89615knock control sensor89615-20090
89650Power steering ECU assembly89650-02D50 · 89650-02D60 · 89650-02D70 · 89650-12K80 · 89650-12M30 · 89650-12R30 · 89650-12S60 · 89650-12S70 · 89650-12S80 · 89650-12S90 · 89650-12T00
89730ARelay (for safety warnings)90987-02027 · 90987-T2001
89747FBlind spot monitor buzzer89747-52010
