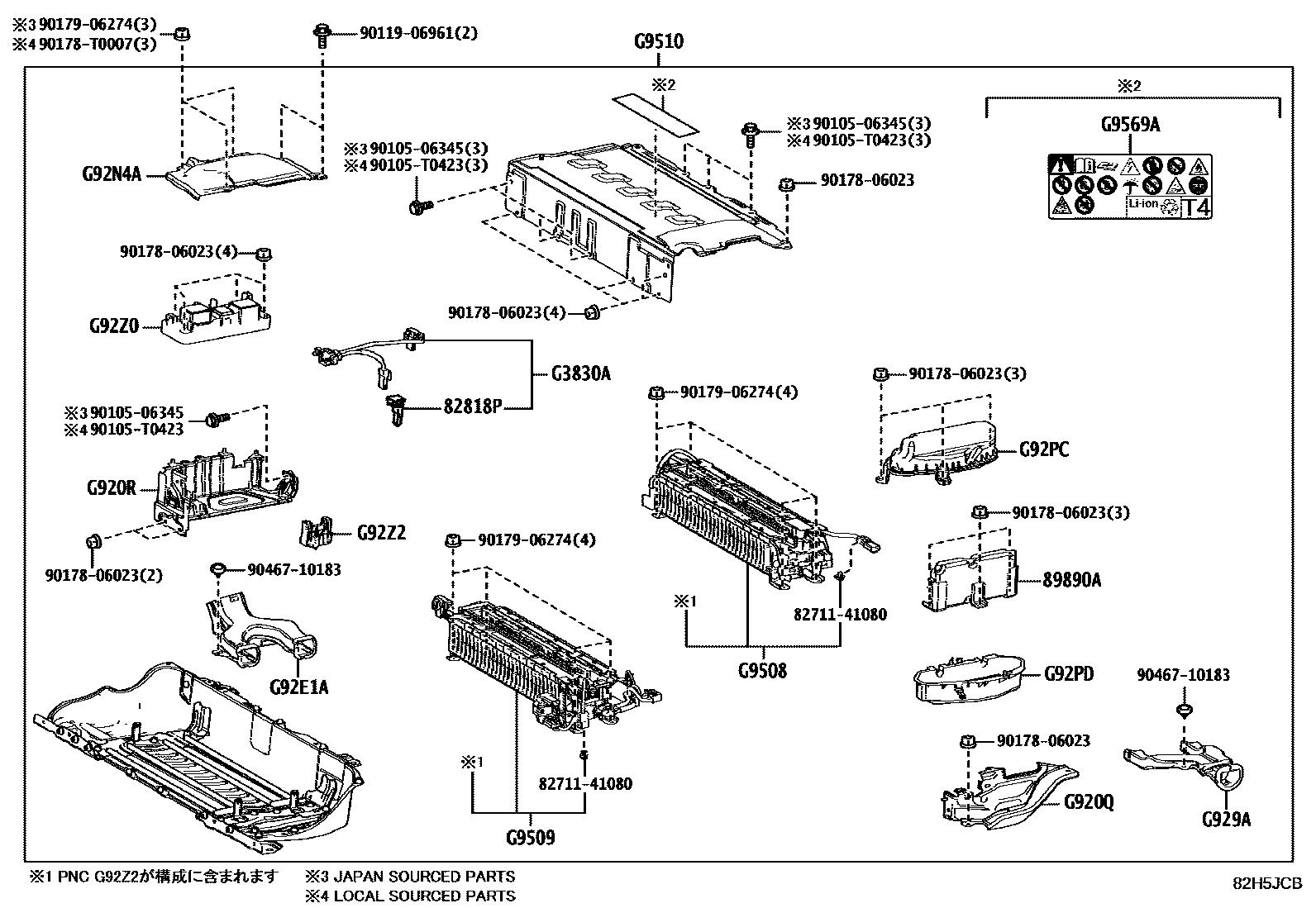

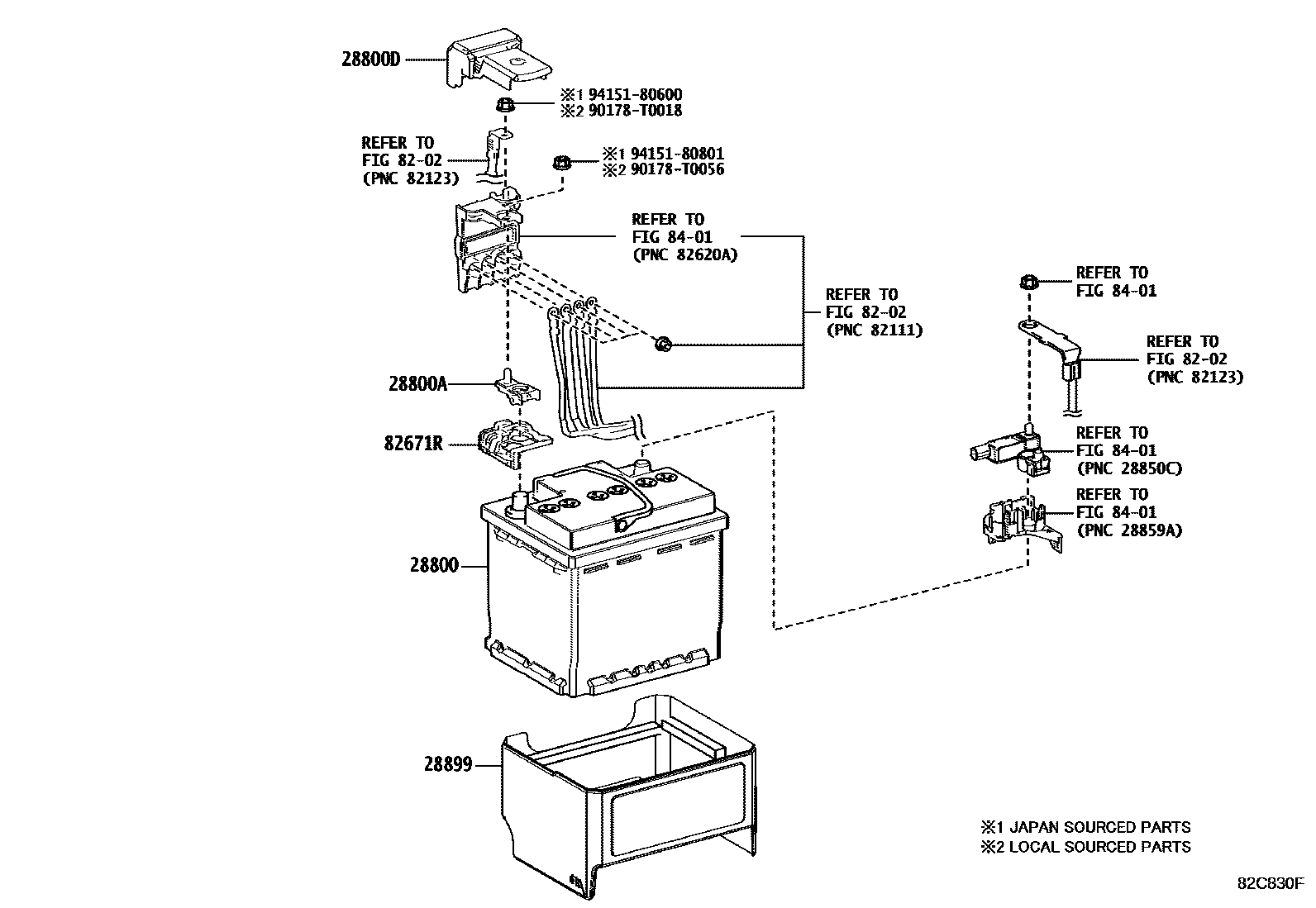

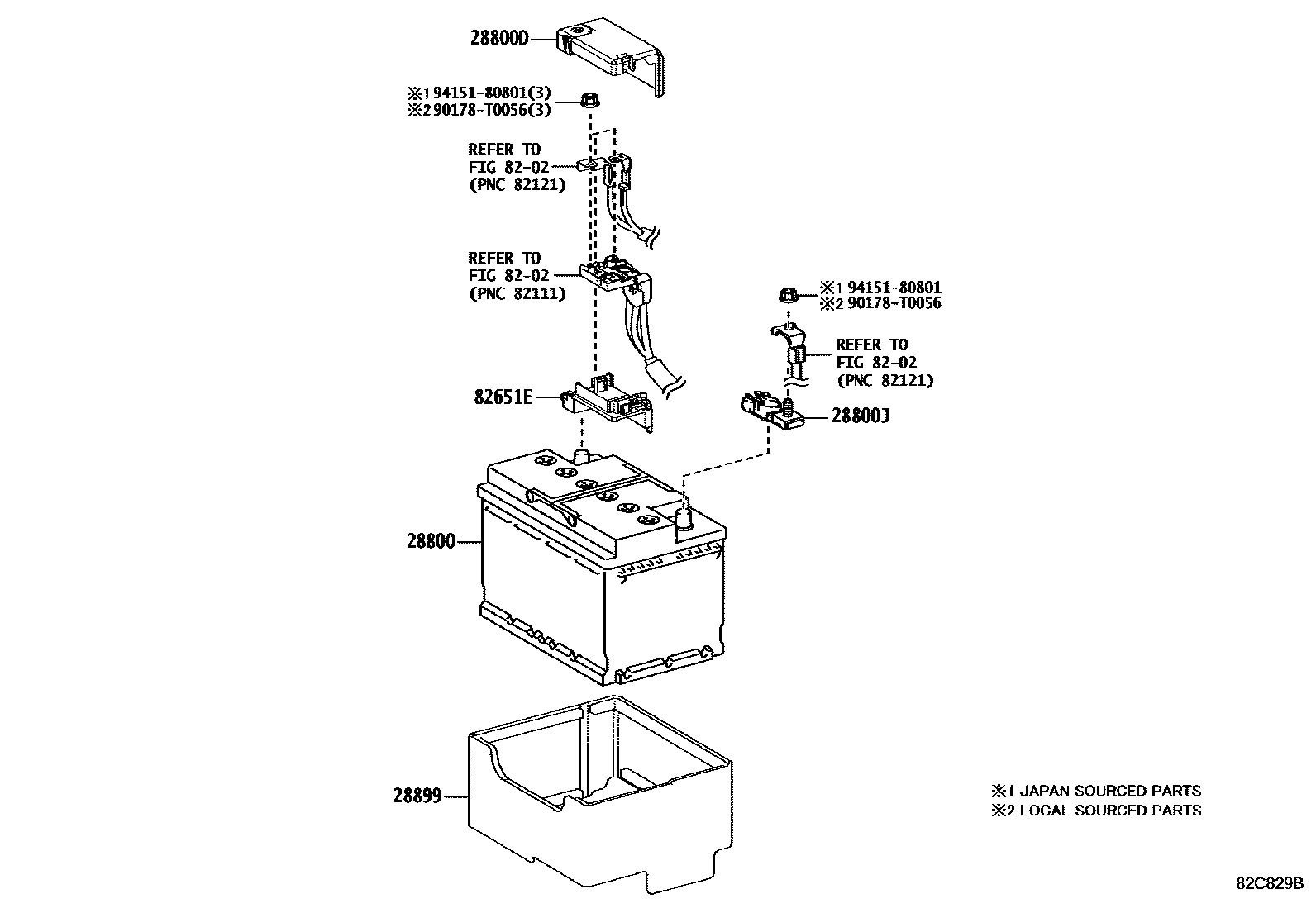

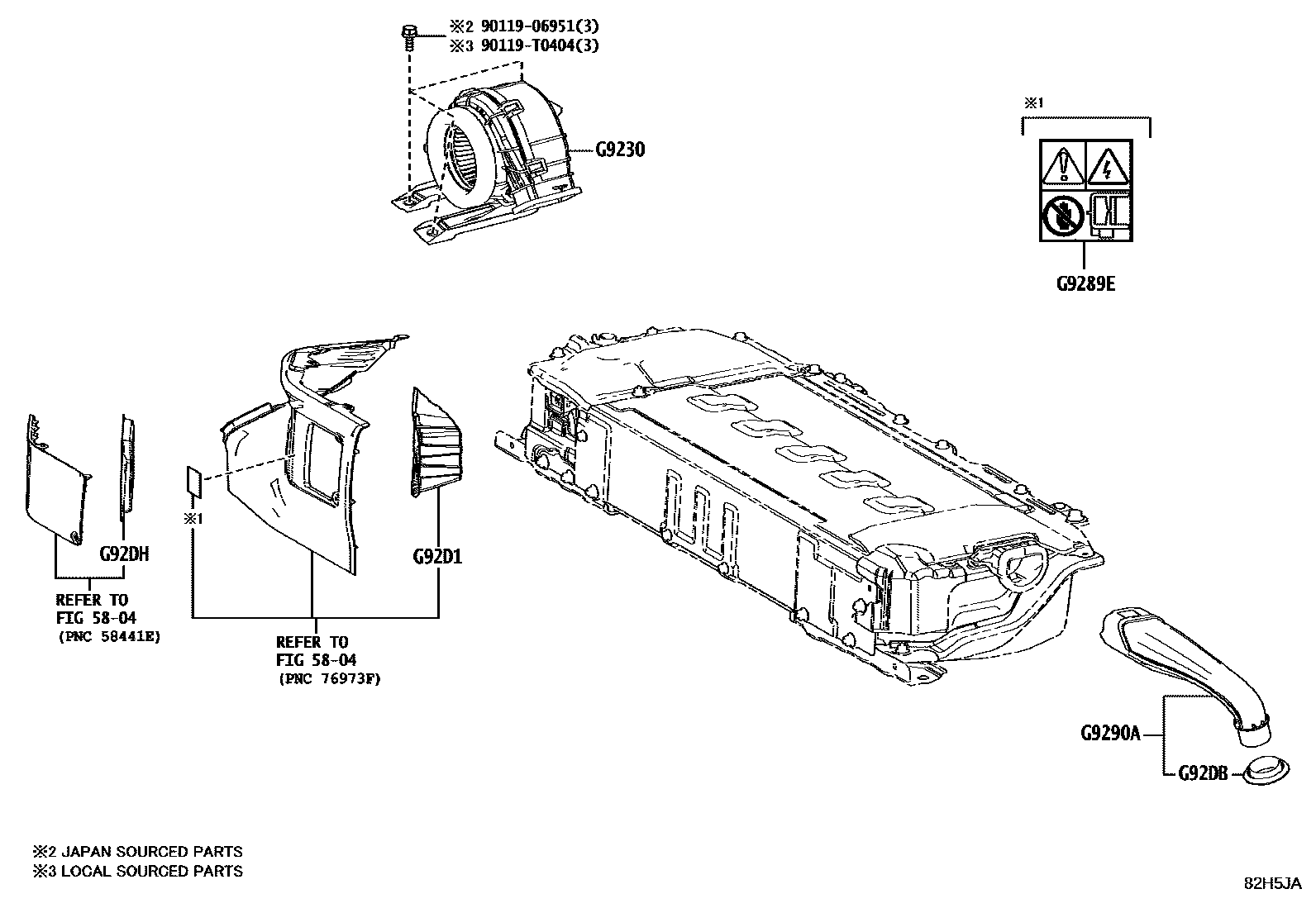

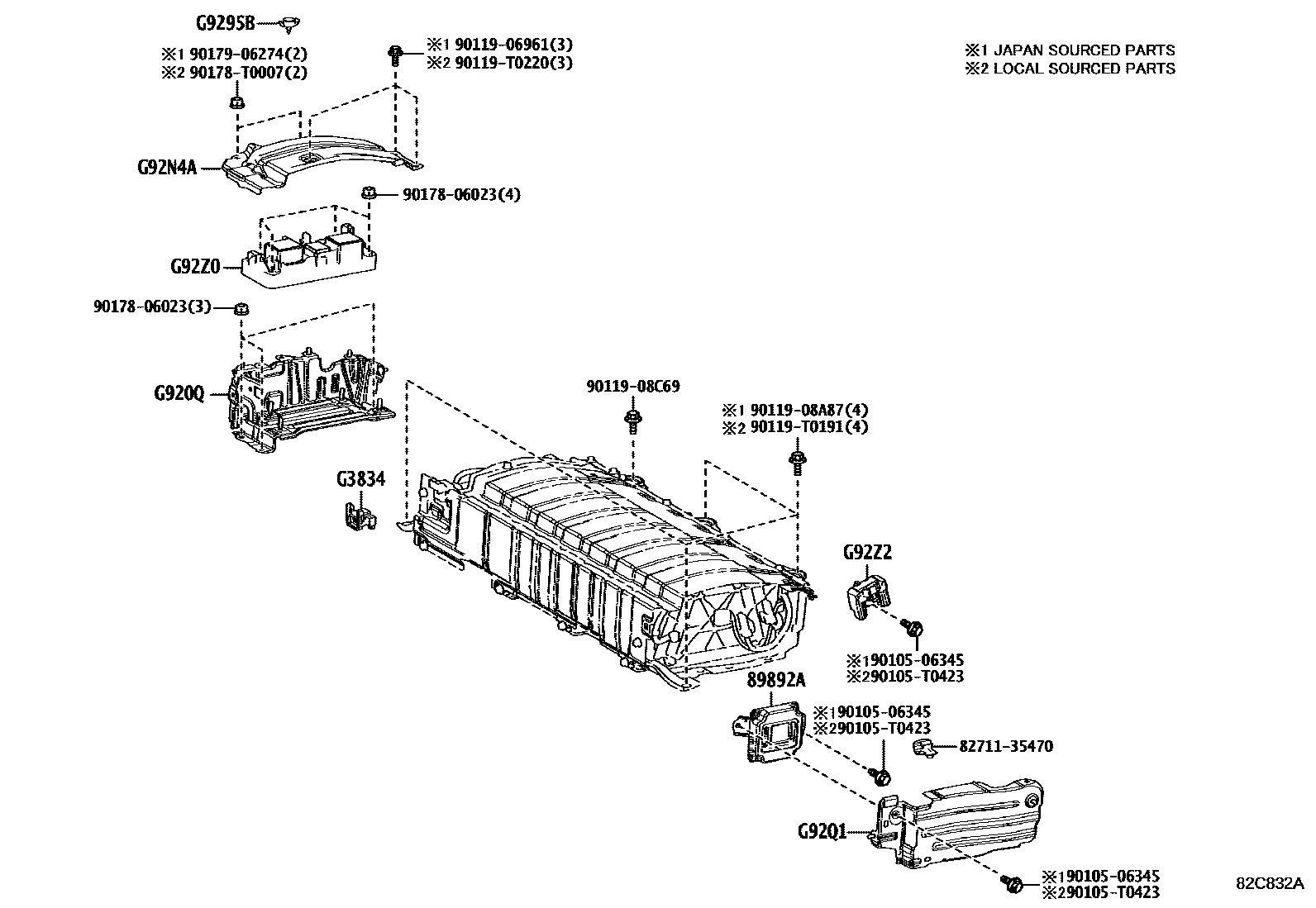

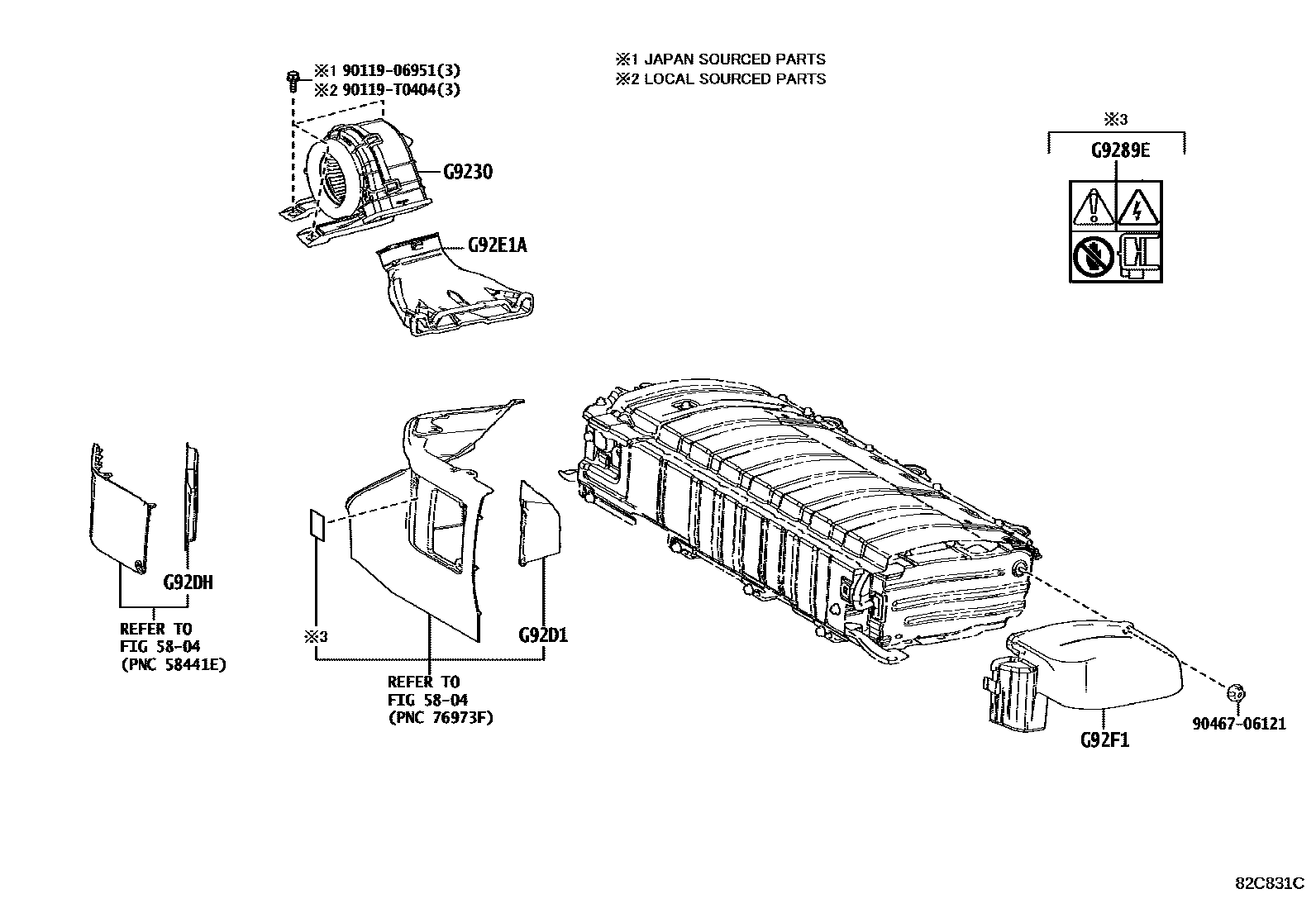

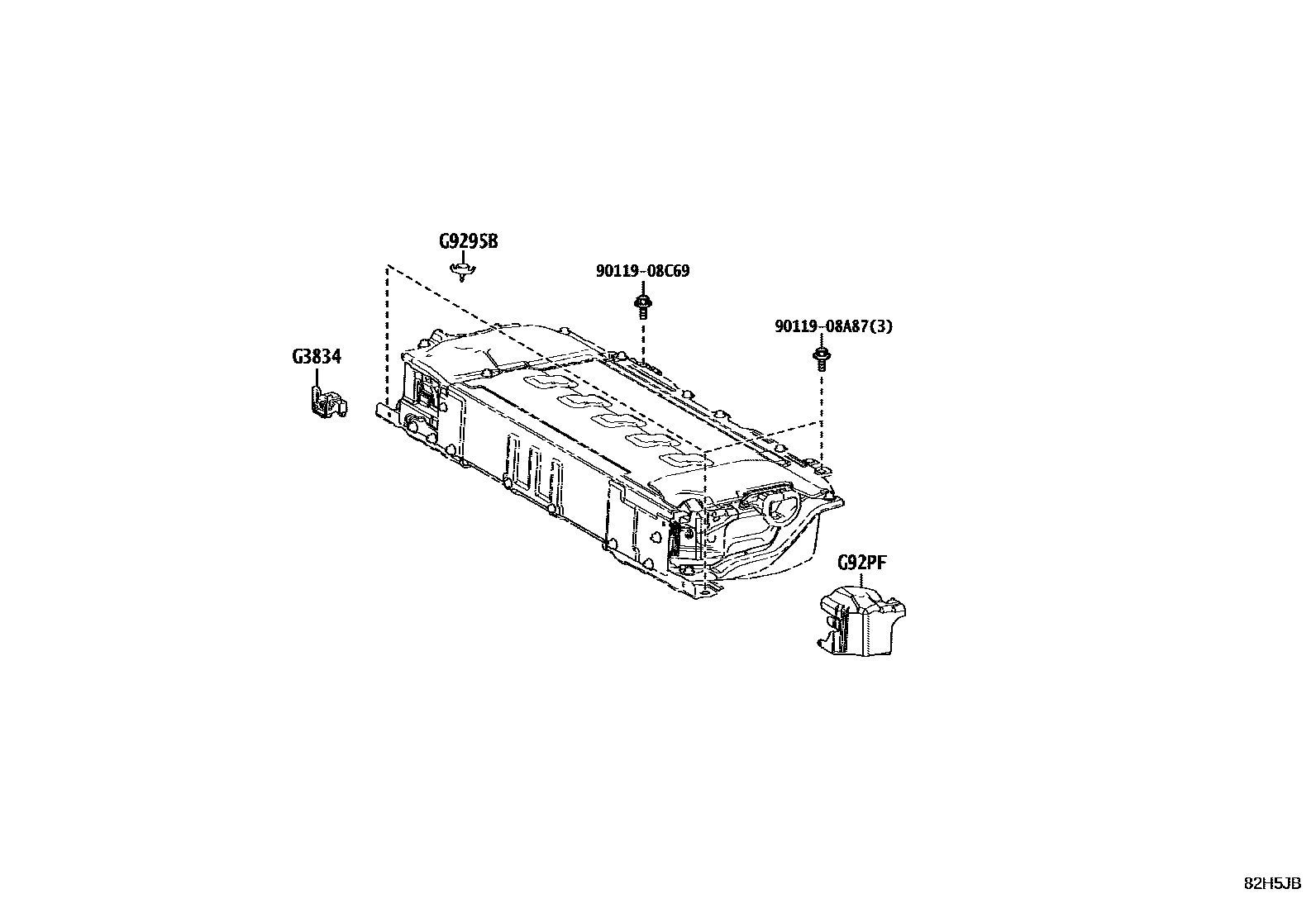

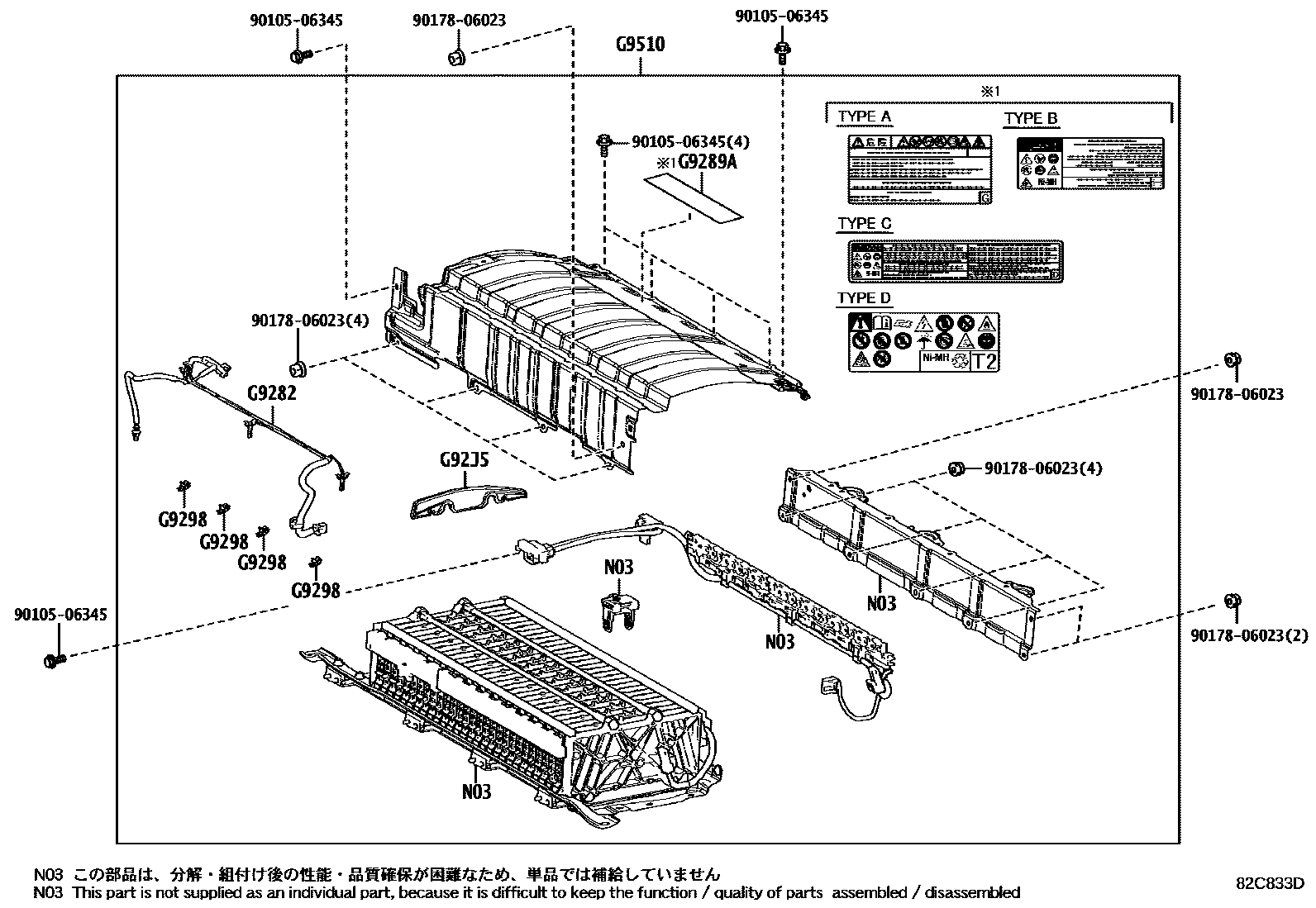

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 8 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0C210 · 28800-0C211 · 28800-0T131 · 28800-0T132 · 28800-0T160 · 28800-0T161 · 28800-0T180 · 28800-0T181 · 28800-0T240 · 28800-0T241 · 28800-0T250 · 28800-0T251 · 28800-0T340 · 28800-0T341 |
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82621-10010 · 82621-47020 |
| 28800J | battery negative terminal | 90982-06070 |
| 28899 | Battery insulation cover | 28899-0T020 · 28899-0T040 · 28899-0T070 · 28899-0T100 · 28899-0T120 · 28899-0T140 · 28899-0T150 |
| 82651E | Terminal box | 82651-10010 |
| 82671R | battery terminal block | 82671-47040 |
| 82818P | Harness protection device | G92SK-K0020 |
| 89890A | Battery ECU assembly | 89890-47131 |
| 89892A | battery voltage sensor | 89892-47050 |
| G3830A | Electric vehicle battery plug assembly | G3830-47120 |
| G3834 | Service plug handle | G3834-47050 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-47041 · G920Q-47050 · G920Q-F4010 · G920Q-F4011 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-47020 |
| G9230 | Battery cooling blower assembly | G9230-16010 · G9230-47080 |
| G9282 | HV battery thermistor | G9282-47050 |
| G9289A | battery warning label | G9288-33010 · G9288-48040 · G9288-48080 · G9288-76030 · G9288-F4010 |
| G9289E | AA battery warning label | 82685-47110 · 82685-47111 |
| G9290A | HV battery hose assembly | G9290-47030 |
| G9295B | Battery cover lock | G9295-30020 |
| G9298 | HV battery clip | G928E-47010 |
| G929A | HV battery hose No. 1 | G929A-47030 |
| G92D1 | No. 1 HV battery air inlet | G92D1-12030 |
| G92DB | No. 1 HV battery seal | G92DB-47030 |
| G92DH | No. 1 HV battery air intake filter | G92DH-12050 |
| G92E1A | No. 1 HV battery left air inlet | G92E1-47040 · G92E1-47051 · G92E1-F4020 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-47050 · G92F1-F4010 |
| G92J5 | No. 1 HV battery seal | G92J5-47030 · G92J5-F4010 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-47050 · G92N4-47060 · G92N4-F4020 |
| G92PC | No. 1 HV battery protective cover | G92PC-47010 |
| G92PD | No. 2 HV battery protective cover | G92PD-47010 |
| G92PF | No. 4 HV battery protective cover | G92PF-47010 |
| G92Q1 | HV battery No. 1 shielding plate | G92Q1-47050 · G92Q1-F4020 |
| G92Z0 | HV battery junction box assembly | G92Z0-06010 · G92Z0-47100 · G92Z0-47110 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9508 | No. 1 HV power supply battery assembly | G9508-47170 |
| G9509 | No. 2 HV power supply battery assembly | G9509-47040 |
| G9510 | HV power supply battery assembly | G9510-47130 · G9510-47170 · G9510-F4010 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-48020 |
