Toyota COROLLA 后组合灯 — Figure 8111

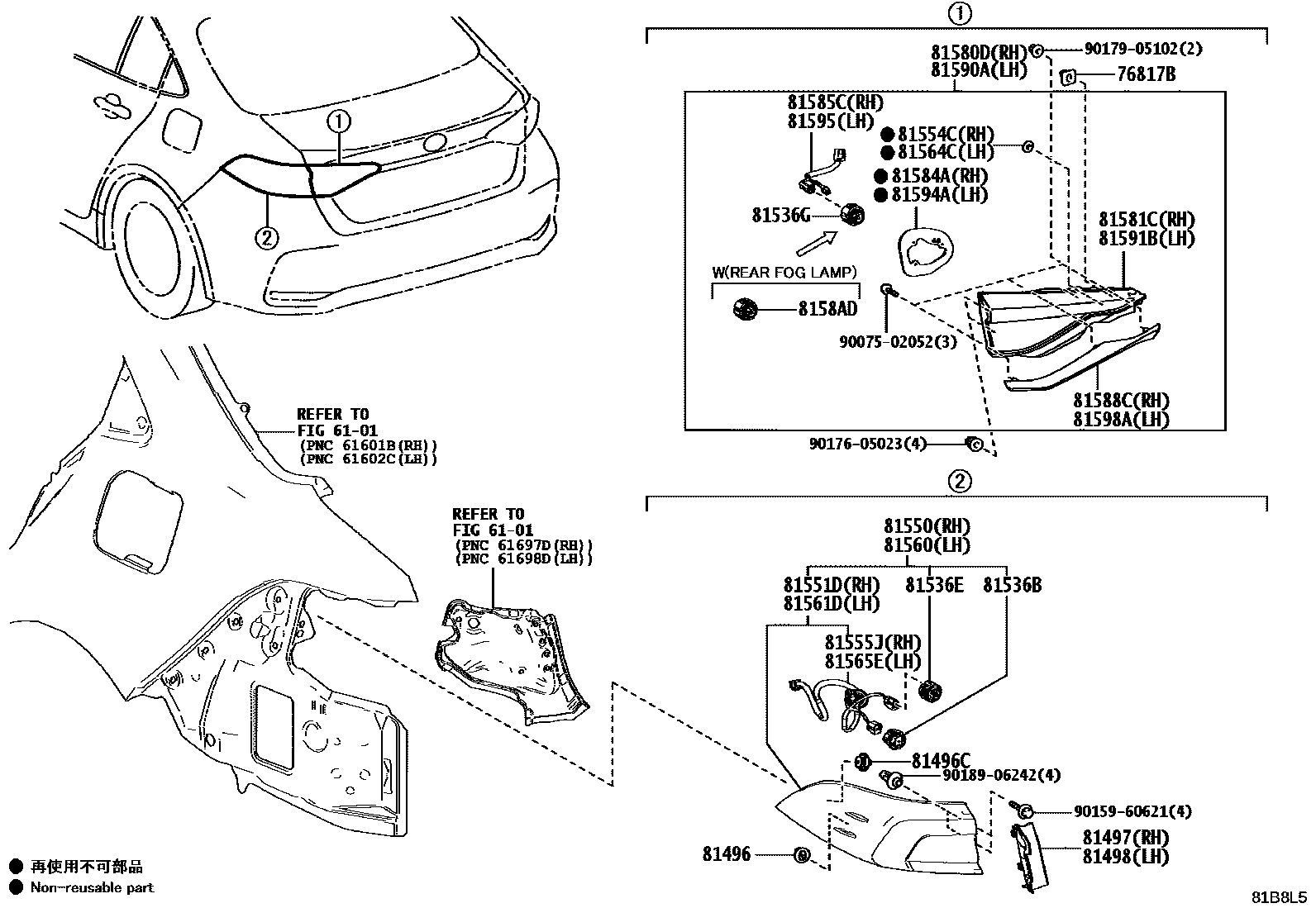

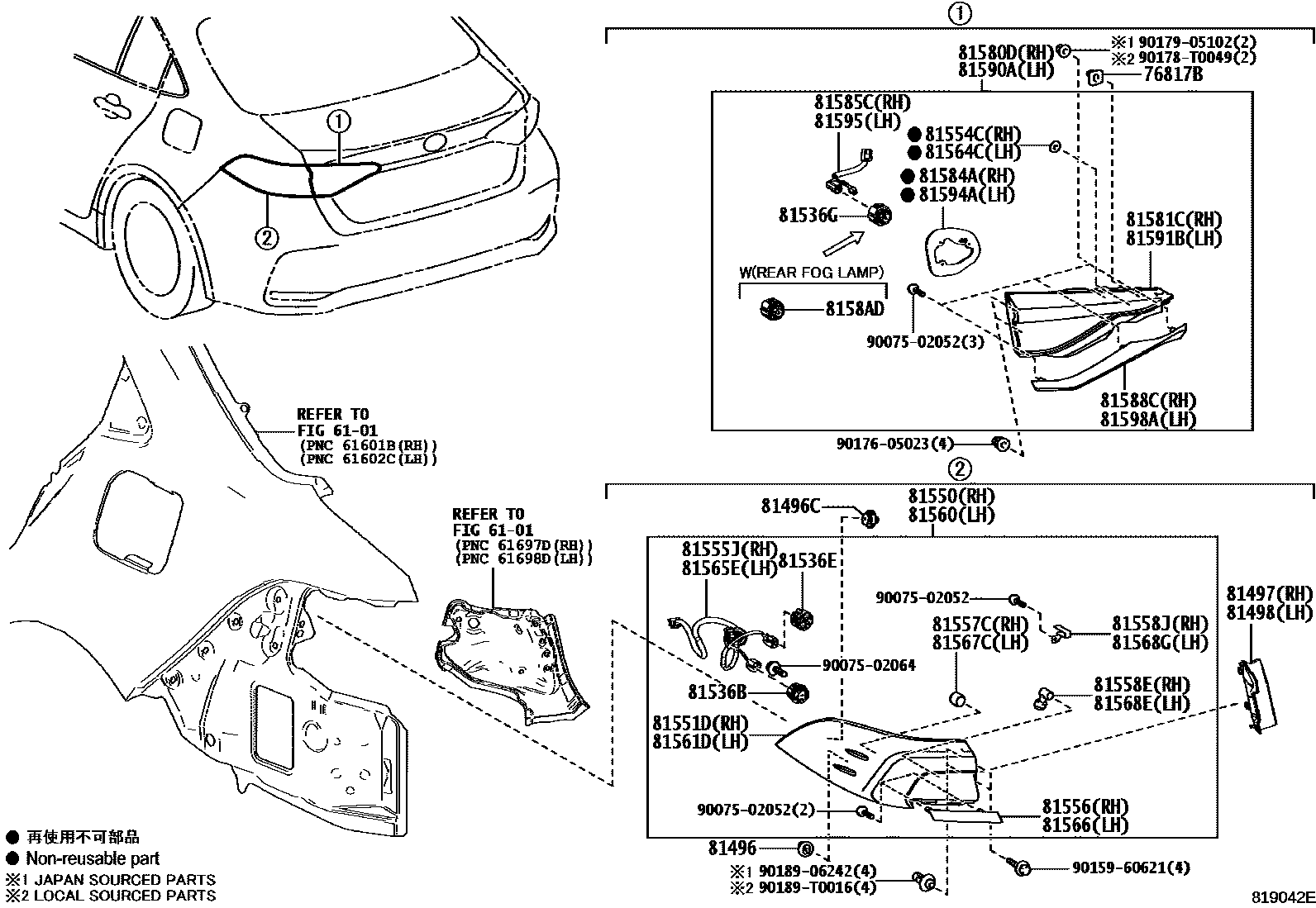

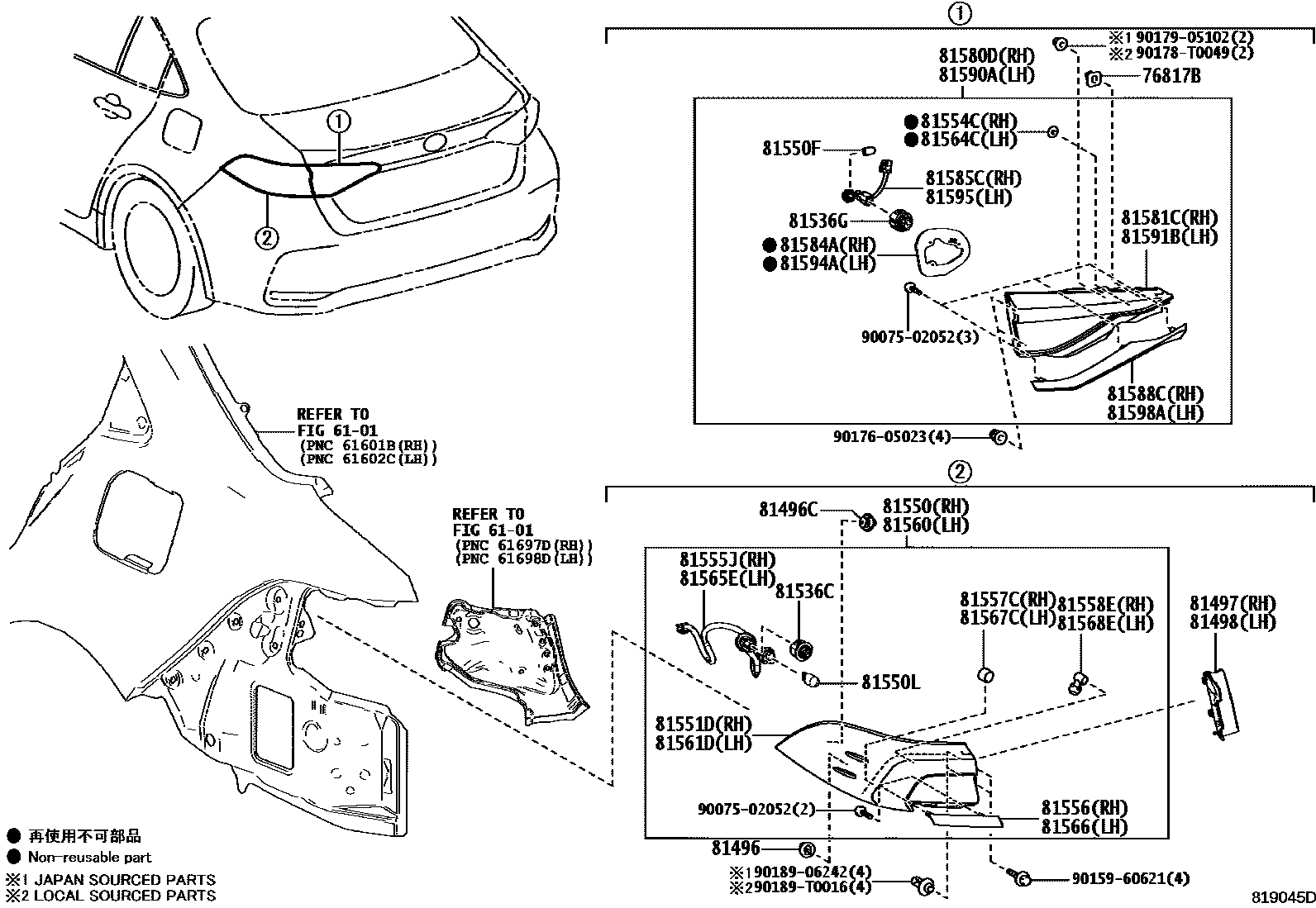

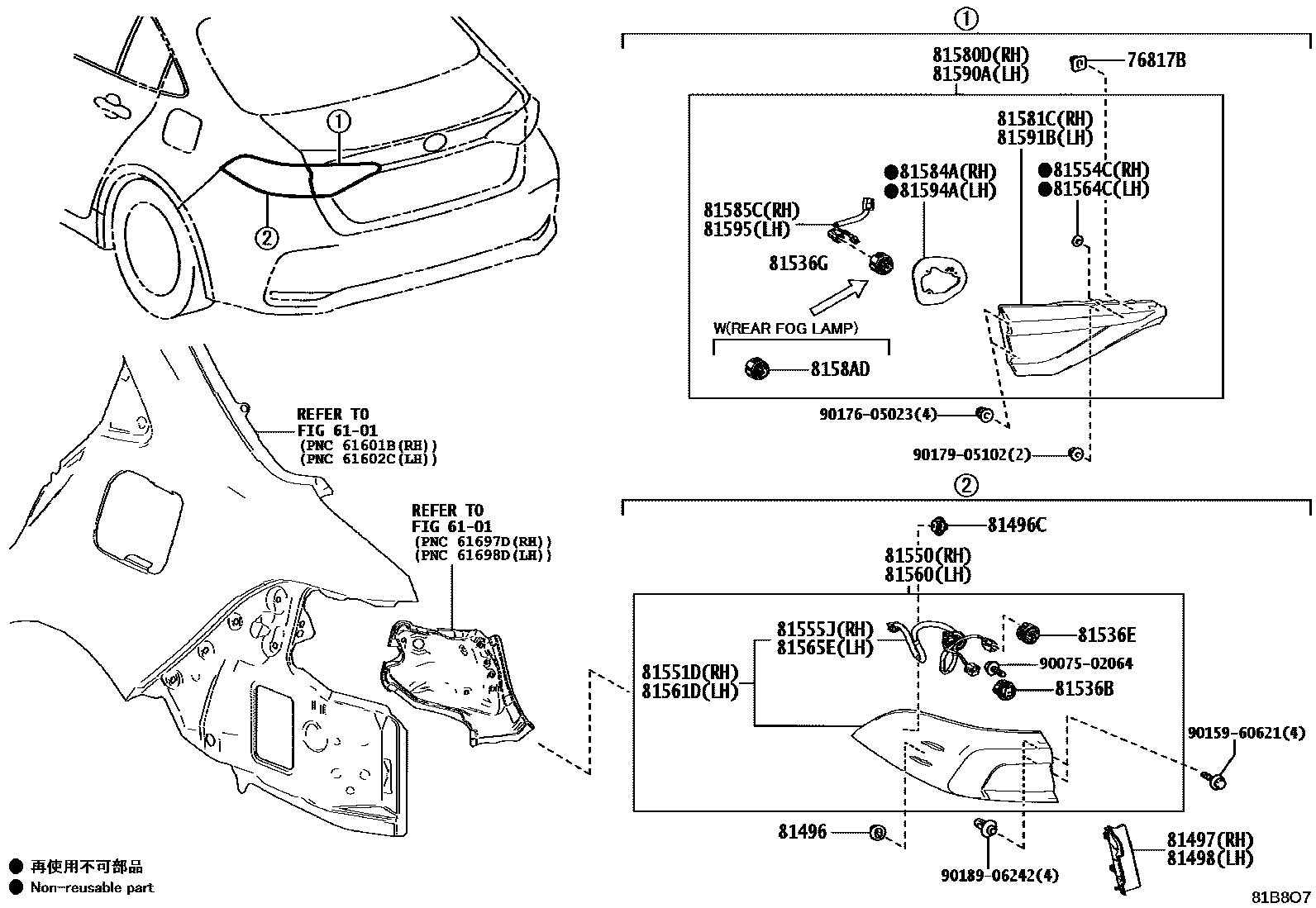

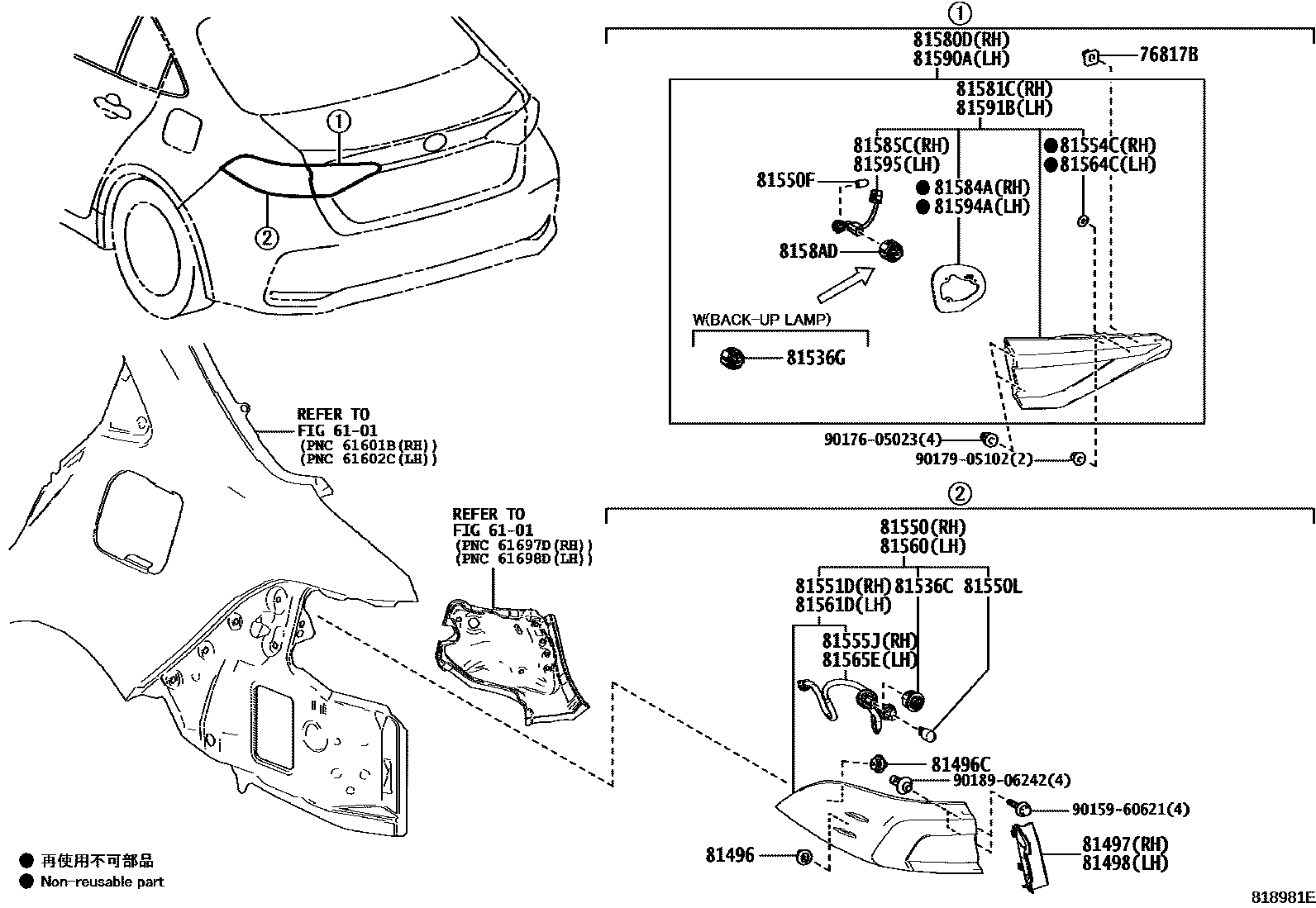

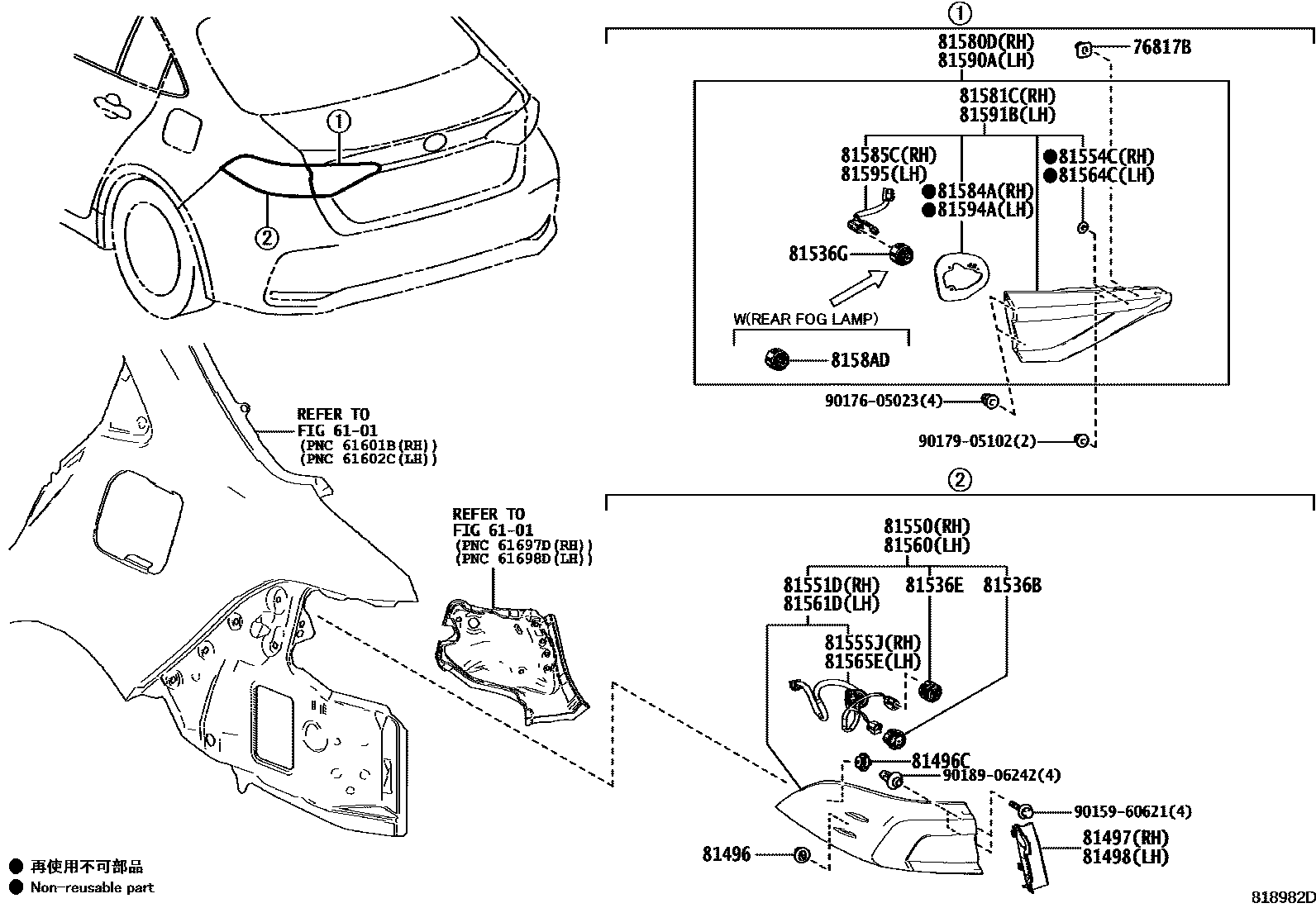

Toyota COROLLA EPC diagram 8111, 后组合灯, with 6 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76817B | Rear light clip | 76817-26040 |
| 81496 | Rear combination light guide block | 81496-0D040 · 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81497 | Right rear combination lamp cover | 81497-02070 · 81497-02090 |
| 81498 | Left rear combination lamp cover | 81498-02070 · 81498-02090 |
| 81536B | LED rear turn signal light | 81536-02A20 · 81536-12D20 |
| 81536C | LED tail lights and brake lights | 81536-02E50 · 81536-15120 · 81965-70010 |
| 81536E | LED brake light | 8158A-02C90 · 8158A-0D610 |
| 81536G | LED reversing light | 8158A-02C90 · 8158A-02E00 · 8158A-12260 |
| 81550 | Right rear combination light assembly | 81550-02A20 · 81550-02A21 · 81550-02B90 · 81550-02D40 · 81550-02E40 · 81550-02E50 · 81550-02E51 · 81550-02F80 · 81550-02F90 |
| 81550F | tail light bulb | 90981-11069 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02A20 · 81551-02A21 · 81551-02B90 · 81551-02D40 · 81551-02E40 · 81551-02E50 · 81551-02E51 · 81551-02F80 · 81551-02F90 |
| 81554C | Right rear combination lamp lamp body seal | 81554-12A00 |
| 81555J | Right rear combination lamp holder and wiring harness | 81555-02A20 · 81555-02D40 · 81555-02E40 · 81555-02E50 |
| 81556 | Right rear combination light frame | 81556-02E40 · 81556-YZB10 |
| 81557C | Right rear combination lamp cover | 90075-15512 |
| 81558E | Right rear combination lamp cover | 90075-15513 |
| 81558J | Right rear combination light circuit board | 81558-02D40 |
| 81560 | Left rear combination light assembly | 81560-02A20 · 81560-02A21 · 81560-02B90 · 81560-02D50 · 81560-02E40 · 81560-02E50 · 81560-02E51 · 81560-02F80 · 81560-02F90 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02A20 · 81561-02A21 · 81561-02B90 · 81561-02D50 · 81561-02E40 · 81561-02E50 · 81561-02E51 · 81561-02F80 · 81561-02F90 |
| 81564C | Left rear combination lamp body seal | 81554-12A00 |
| 81565E | Left rear combination lamp holder and wiring harness | 81555-02A20 · 81555-02D40 · 81555-02E50 · 81565-02D50 · 81565-02E40 |
| 81566 | Left rear combination light frame | 81566-02E40 · 81566-YZB10 |
| 81567C | Left rear combination lamp cover | 90075-15512 |
| 81568E | Left rear combination lamp cover | 90075-15513 |
| 81568G | Left rear combination light circuit board | 81568-02D50 |
| 81580D | Right rear light assembly | 81580-02270 · 81580-02C80 · 81580-02C90 · 81580-02E00 · 81580-02E01 · 81580-02E20 · 81580-02E21 · 81580-02E30 · 81580-02F40 · 81580-02F50 · 81580-02F60 |
| 81581C | Right rear light lampshade and lamp body | 81581-02270 · 81581-02C80 · 81581-02C90 · 81581-02E00 · 81581-02E01 · 81581-02E20 · 81581-02E21 · 81581-02E30 · 81581-02F50 · 81581-02F60 |
| 81584A | Right rear light gasket | 81584-02E00 · 81584-02E30 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02C80 · 81585-02C90 · 81585-02E00 · 81585-02E20 · 81585-02E30 |
| 81588C | Right rear light frame | 81588-02E30 · 81588-YZB06 |
| 8158AD | Rear LED fog lights | 8158A-02C90 · 8158A-02E00 · 8158A-0D610 |
| 81590A | Left rear light assembly | 81590-02600 · 81590-02C80 · 81590-02C90 · 81590-02C91 · 81590-02D90 · 81590-02E00 · 81590-02E01 · 81590-02F40 · 81590-02F50 |
| 81591B | Left rear light shade and body | 81591-02600 · 81591-02C80 · 81591-02C90 · 81591-02C91 · 81591-02D90 · 81591-02E00 · 81591-02E01 · 81591-02F40 · 81591-02F50 |
| 81594A | Left rear light gasket | 81594-02C90 · 81594-02D90 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-02C80 · 81585-02E30 · 81595-02C90 · 81595-02E00 |
| 81598A | Left rear light frame | 81598-02D90 · 81598-YZB06 |
