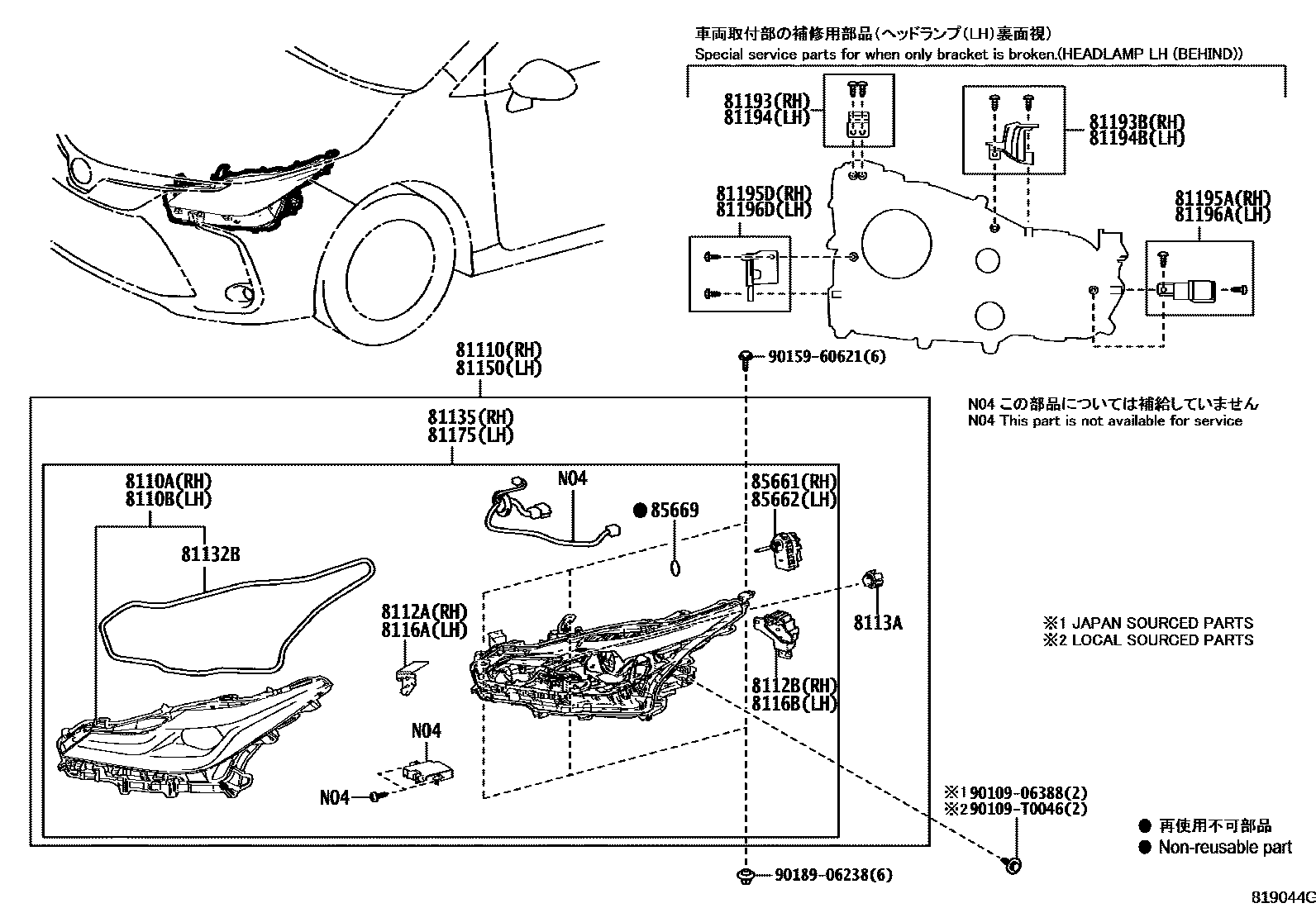

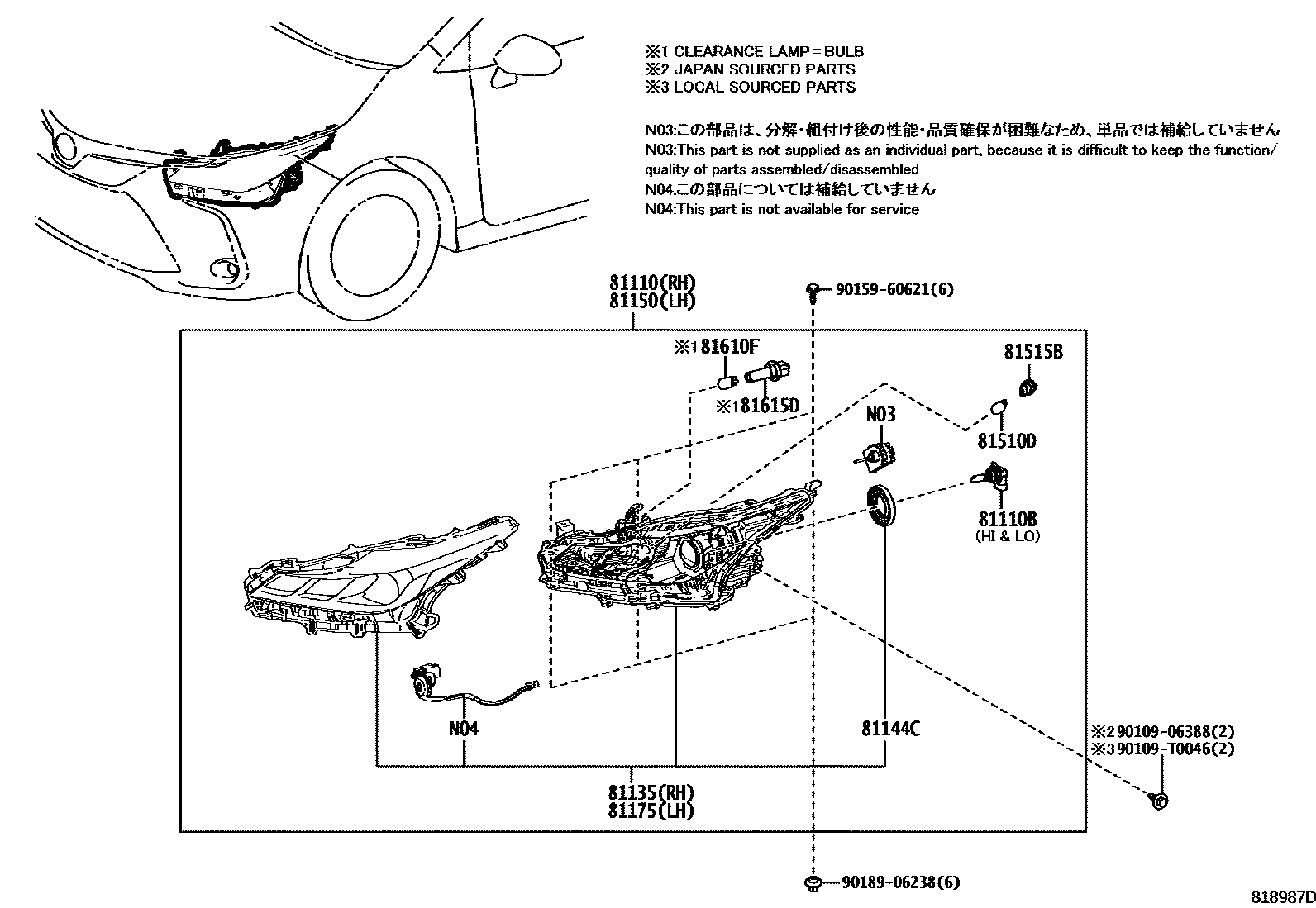

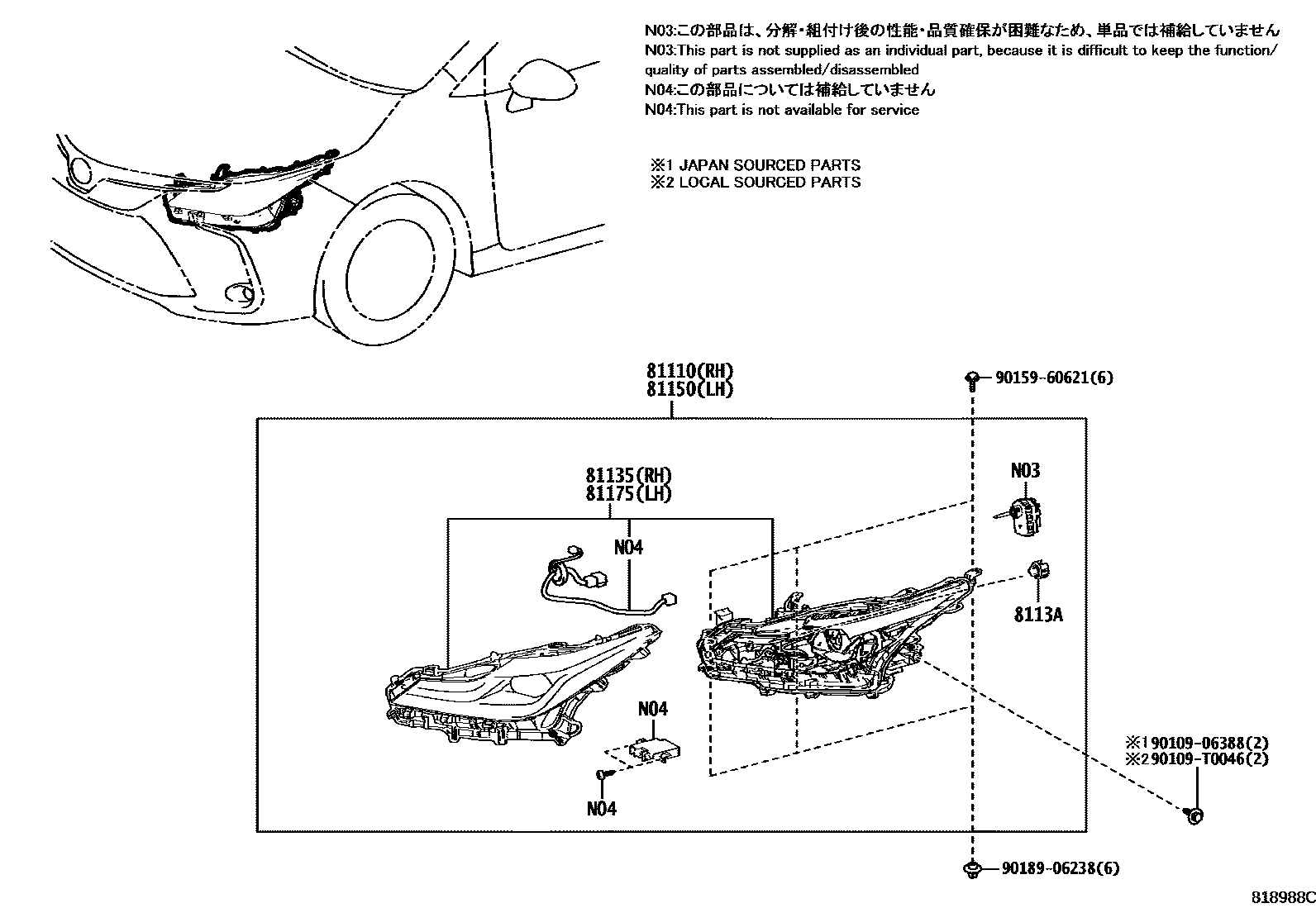

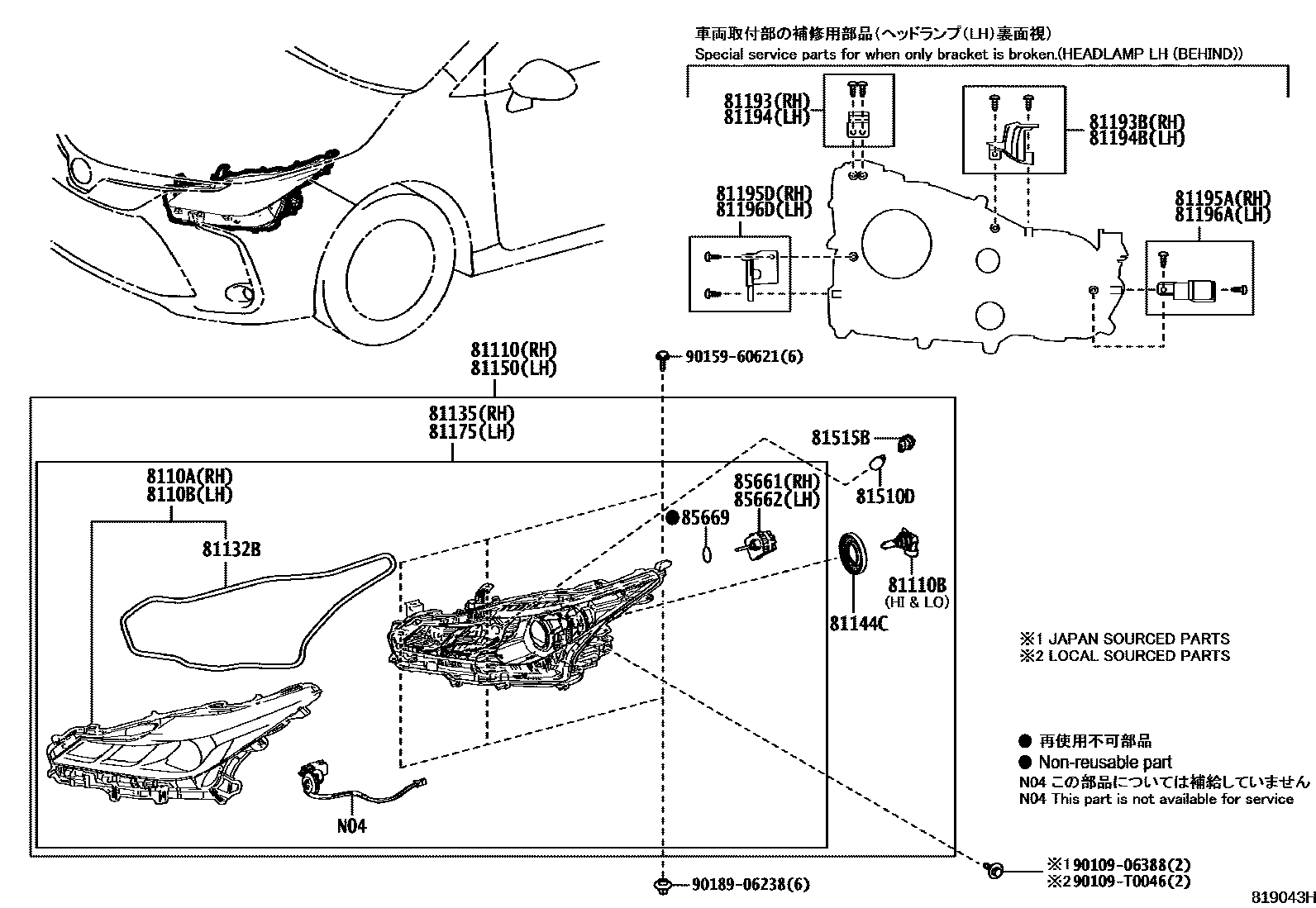

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-02U10 · 8110A-02U30 |
| 8110B | Left headlight cover sub-assembly | 8110B-02U00 · 8110B-02U20 |
| 81110 | Right headlight assembly | 81110-02M40 · 81110-02M50 · 81110-02M60 · 81110-02T90 · 81110-02U10 · 81110-02U20 · 81110-02U30 · 81110-02U50 · 81110-02U60 · 81110-02W00 · 81110-02W10 · 81110-02W30 · 81110-02W40 · 81110-02W50 · 81110-02X50 |
| 81110B | Bulb (for headlight No. 1) | 90981-13091 |
| 8112A | Right No. 1 headlight width indicator LED assembly | 8112A-02U30 |
| 8112B | Right No. 2 headlight width LED assembly | 8112B-02U30 |
| 81132B | Headlight cover gasket | 81132-50680 |
| 81135 | Right headlight assembly assembly | 81130-02M60 · 81130-02T90 · 81130-02U10 · 81130-02U50 · 81130-02W00 · 81130-02W10 · 81130-02W30 · 81130-02W40 · 81130-02X50 · 81140-02M40 · 81140-02M50 · 81140-02U20 · 81140-02U30 · 81145-02U60 · 81145-02W50 |
| 8113A | Headlight turn signal LED | 81536-12D30 |
| 81144C | Headlight lamp holder cover | 90075-65006 |
| 81150 | Left headlight assembly | 81150-02L10 · 81150-02L30 · 81150-02M30 · 81150-02M40 · 81150-02M50 · 81150-02M60 · 81150-02T80 · 81150-02U00 · 81150-02U10 · 81150-02U20 · 81150-02U40 · 81150-02U50 · 81150-02W00 · 81150-02W10 · 81150-02W30 |
| 8116A | Left No. 1 headlight width indicator LED assembly | 8116A-02U20 |
| 8116B | Left No. 2 headlight width indicator LED assembly | 8116B-02U20 |
| 81175 | Left headlight assembly assembly | 81070-02L30 · 81070-02M30 · 81070-02U10 · 81070-02U20 · 81170-02L10 · 81170-02M40 · 81170-02M50 · 81170-02T80 · 81170-02U00 · 81170-02U40 · 81170-02W00 · 81170-02W10 · 81170-02W30 · 81185-02M60 · 81185-02U50 |
| 81193 | Right headlight upper protective ring | 81193-02310 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-02330 |
| 81194 | Left headlight upper protective ring | 81194-02310 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-02330 |
| 81195A | Right headlight lower protection ring | 81193-02320 |
| 81195D | Right No. 2 headlight lower protection ring | 81193-02300 |
| 81196A | Left headlight lower protection ring | 81194-02320 |
| 81196D | No. 2 left headlight lower protection ring | 81194-02300 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-0D020 |
| 85662 | Left headlight beam height adjustment motor | 85661-0D020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
