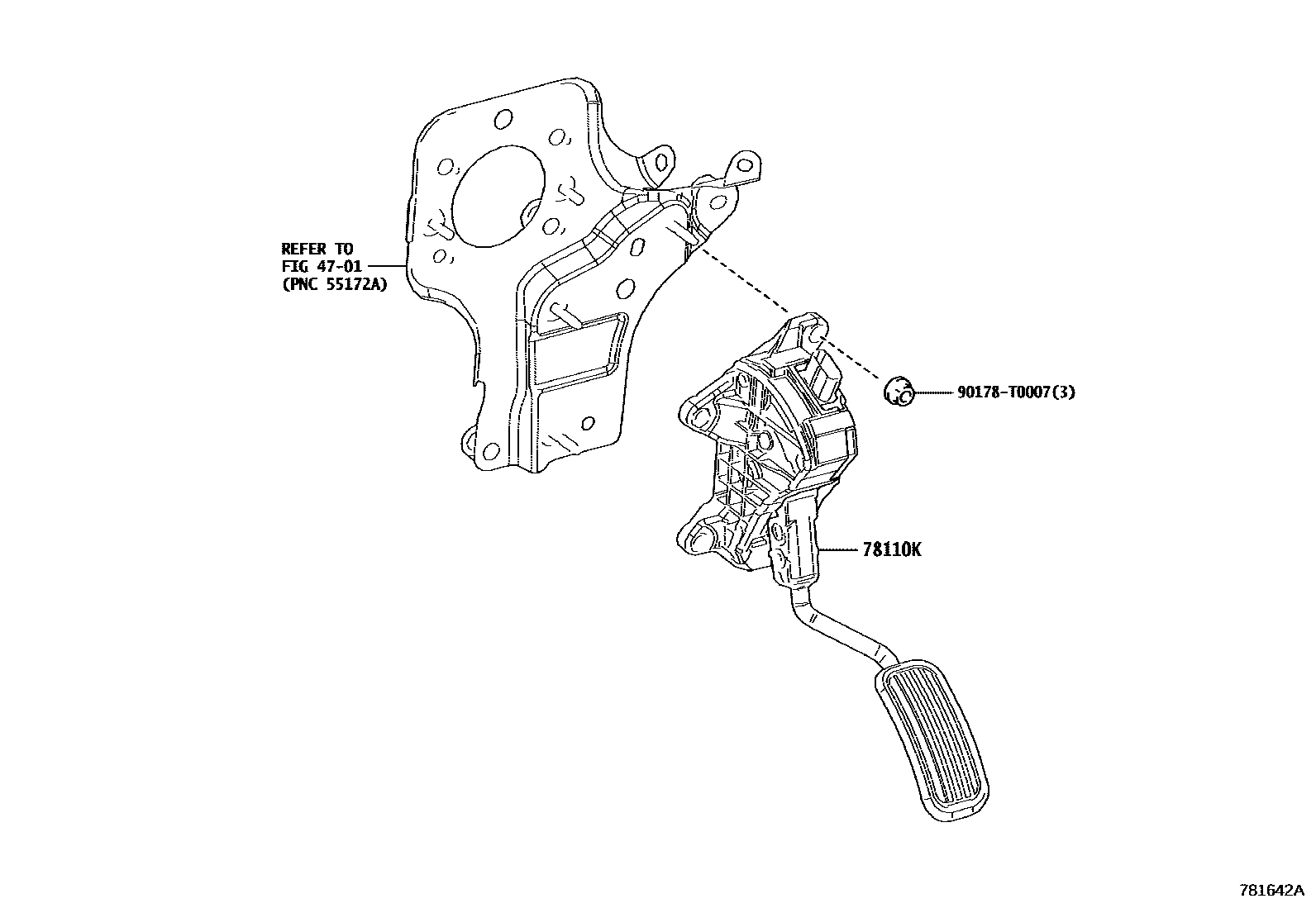

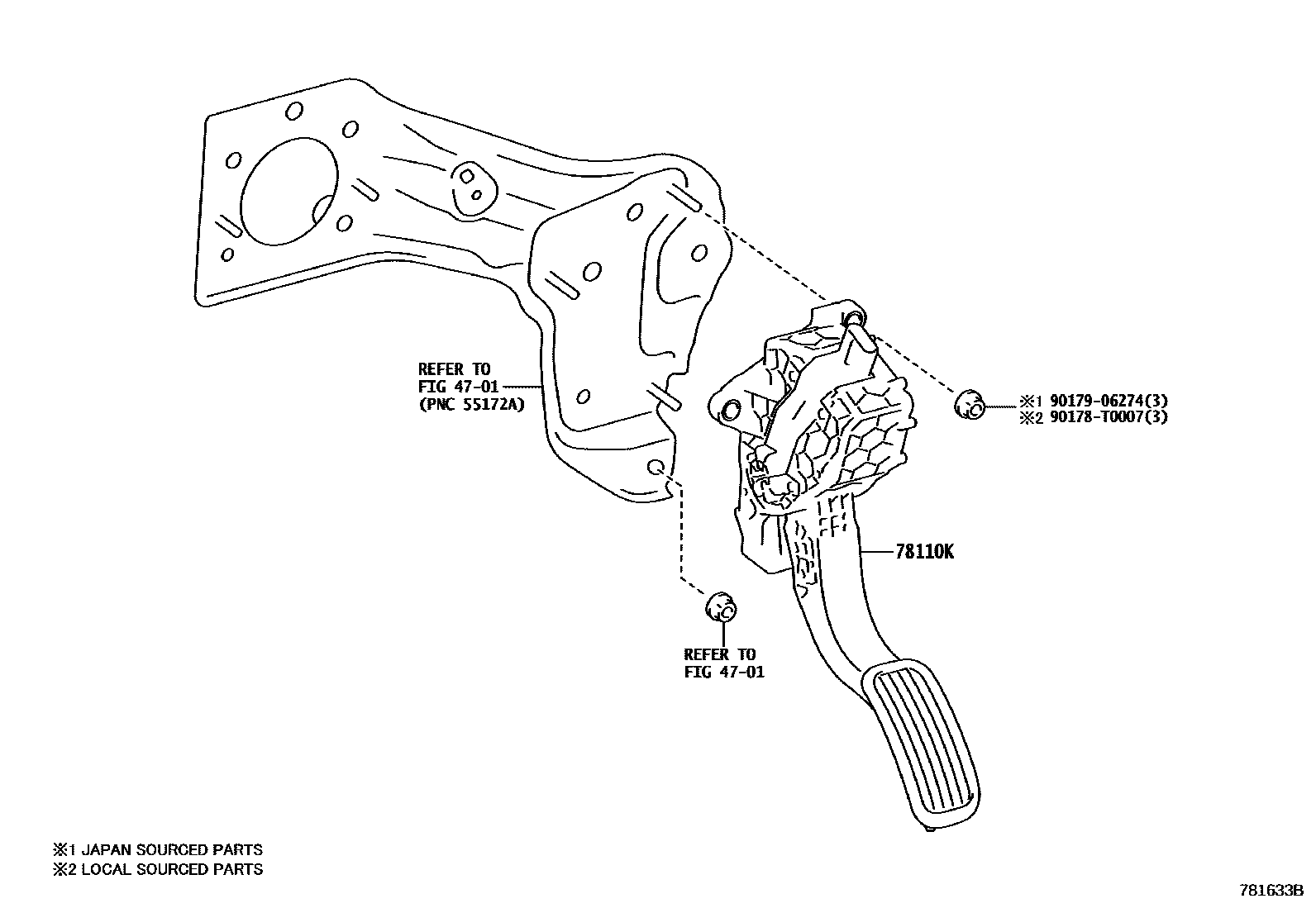

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-02230 · 78110-02231 · 78110-02232 · 78110-02240 · 78110-02241 · 78110-02242 · 78110-12100 · 78110-12101 |
