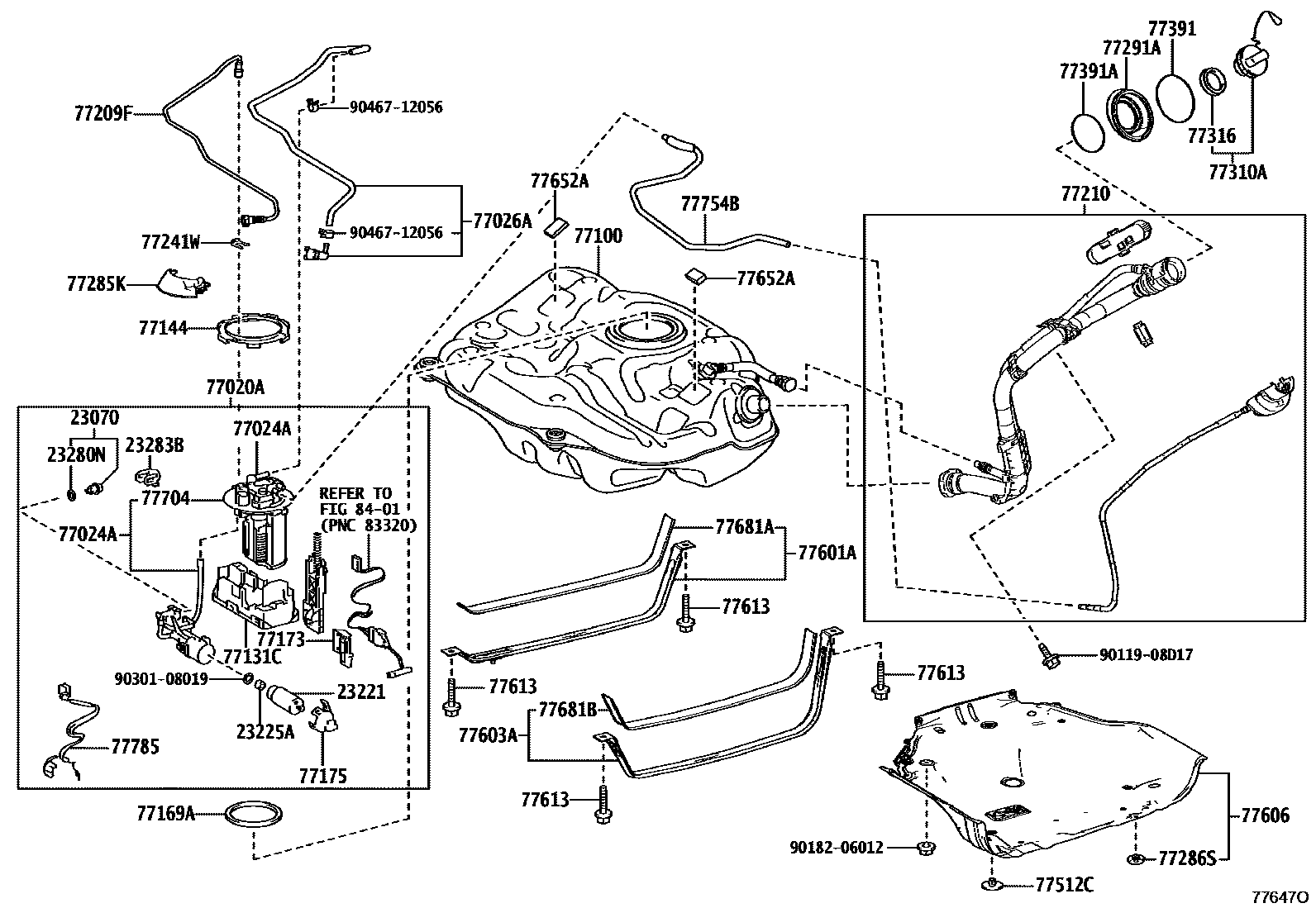

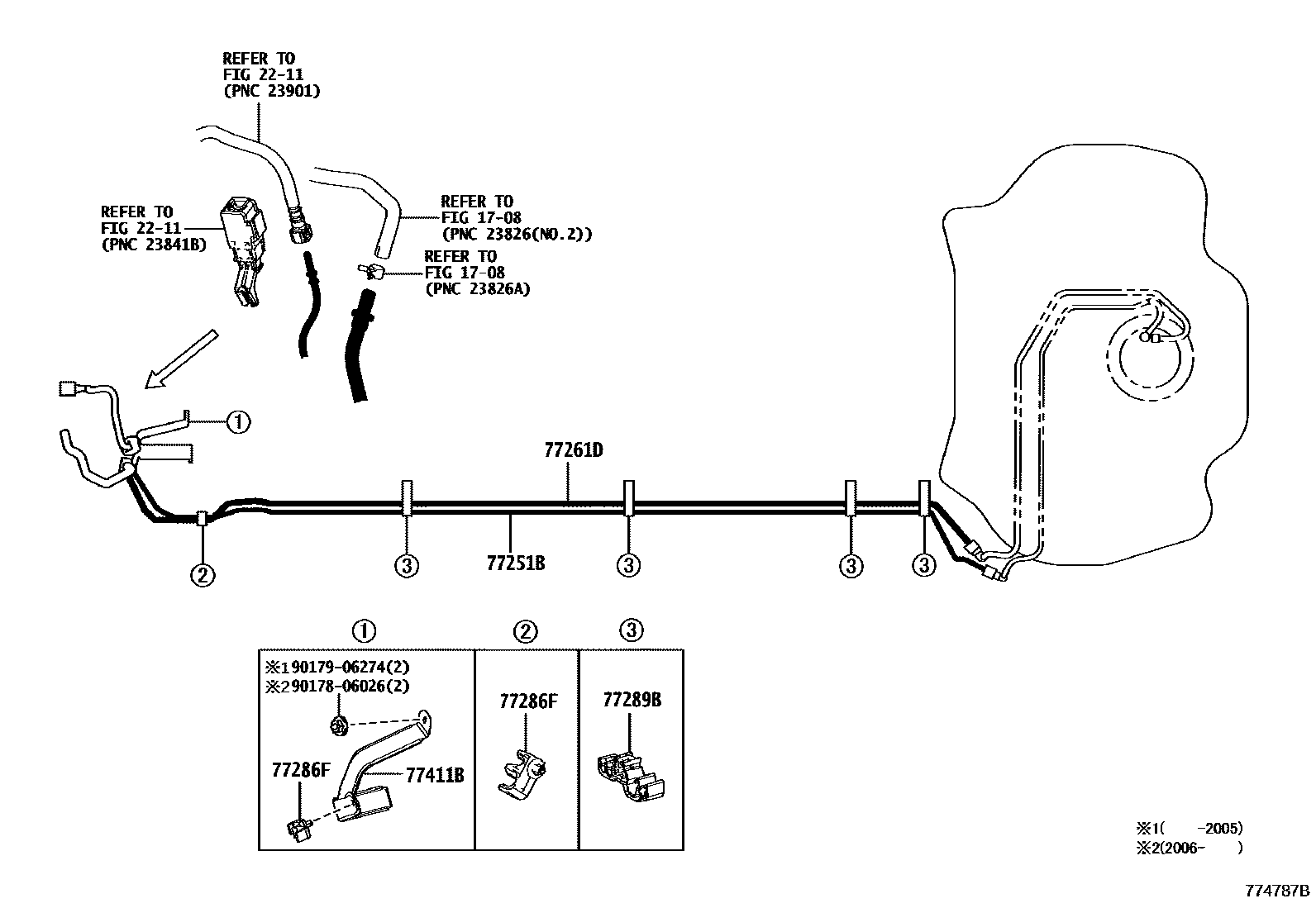

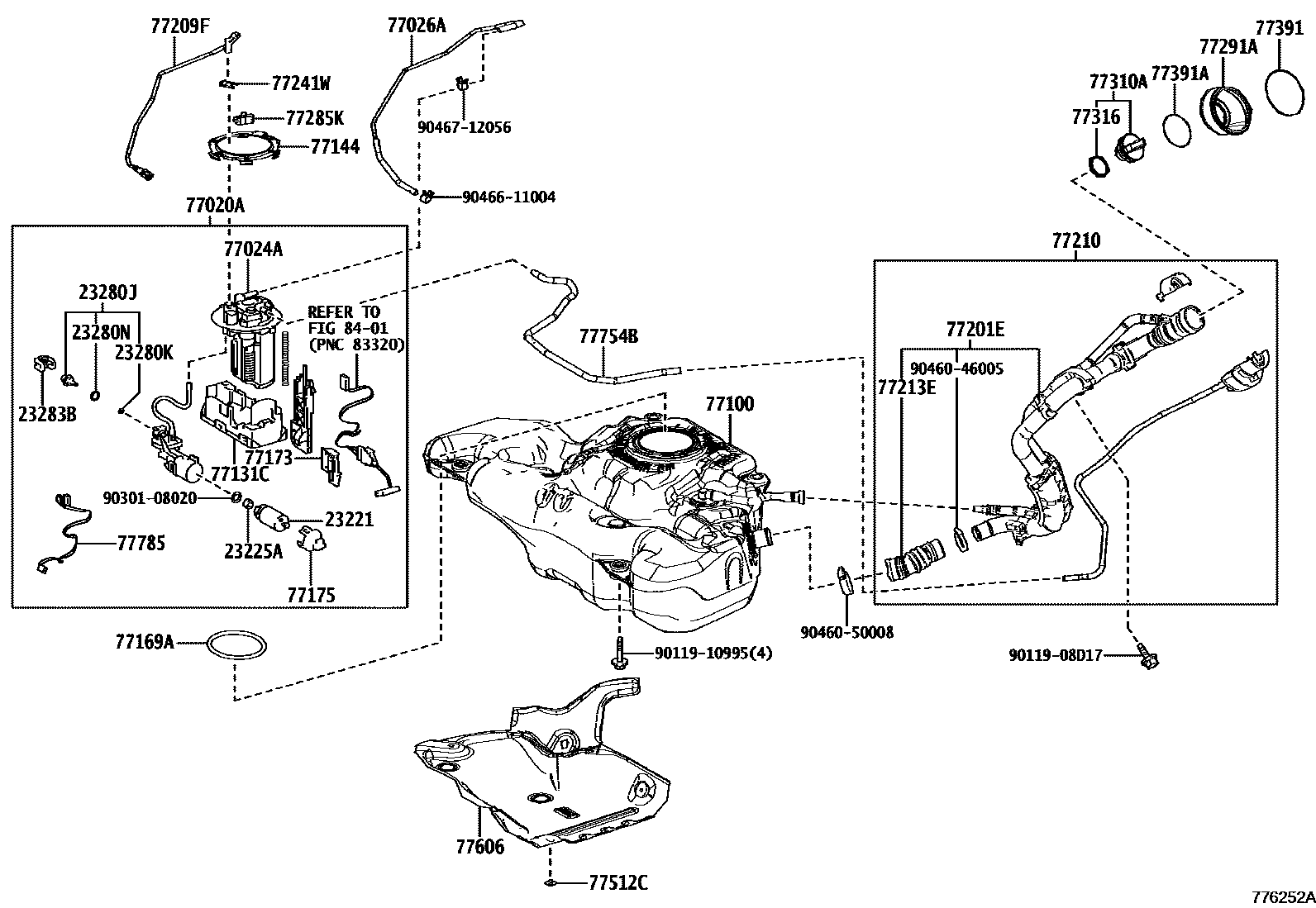

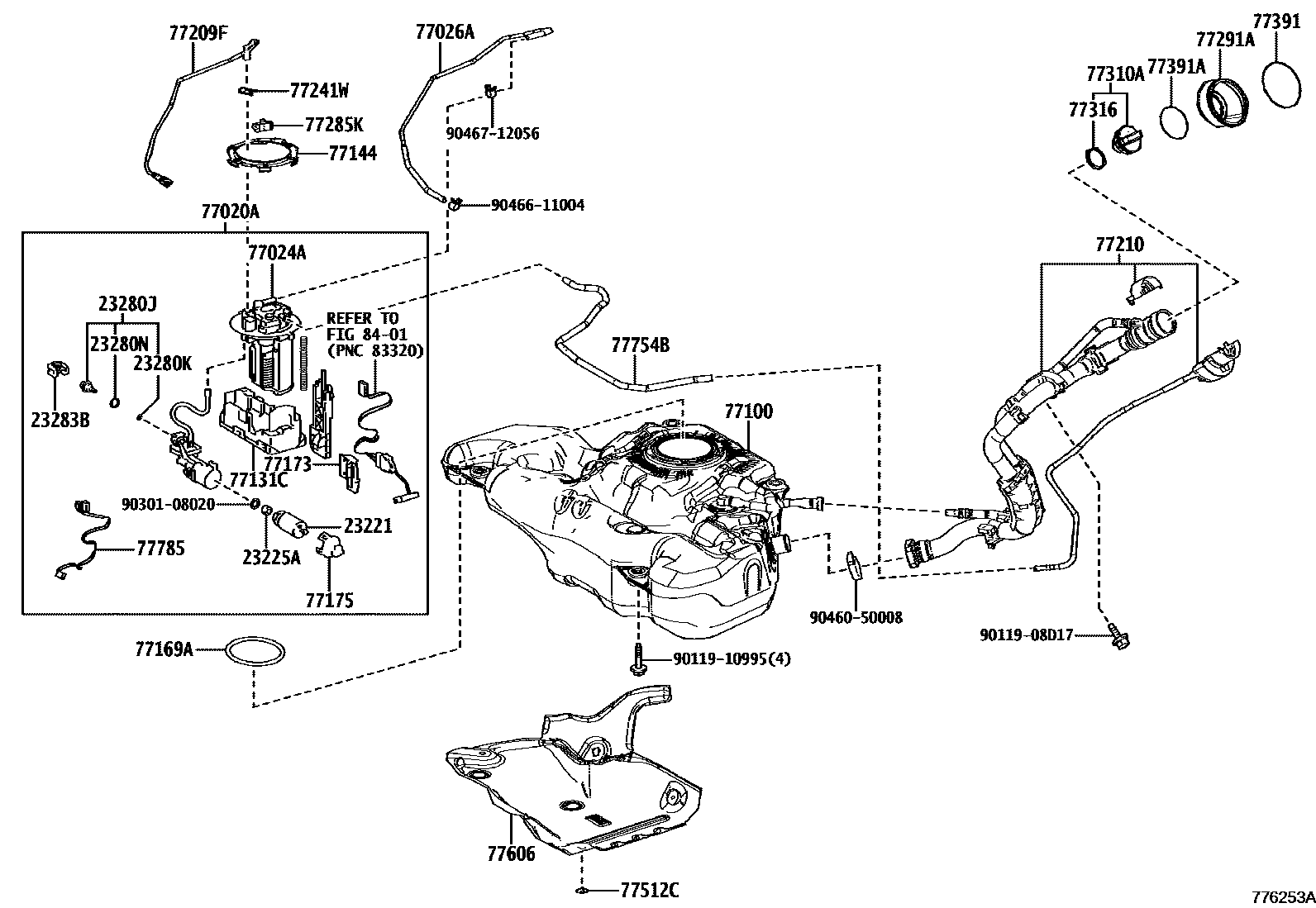

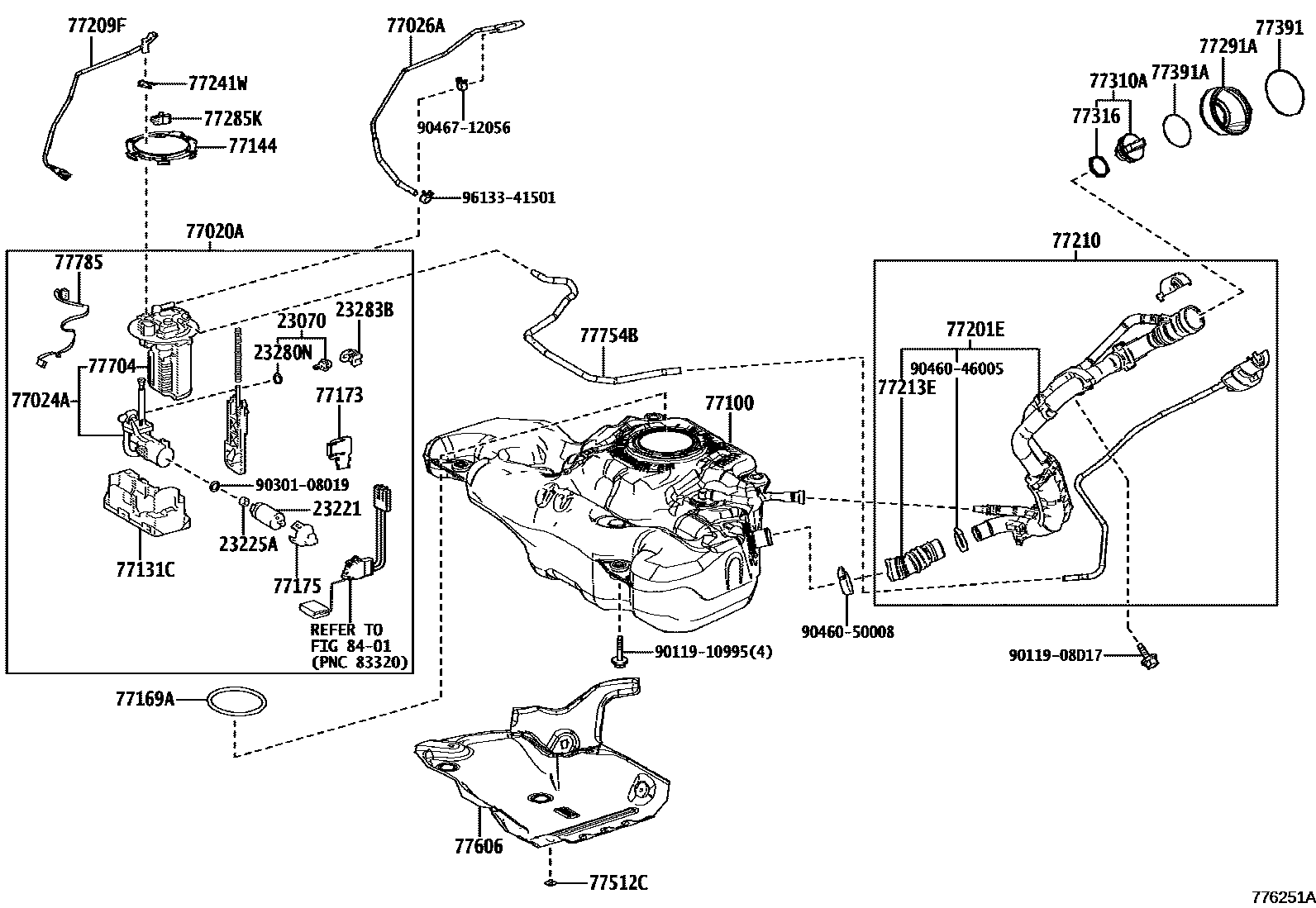

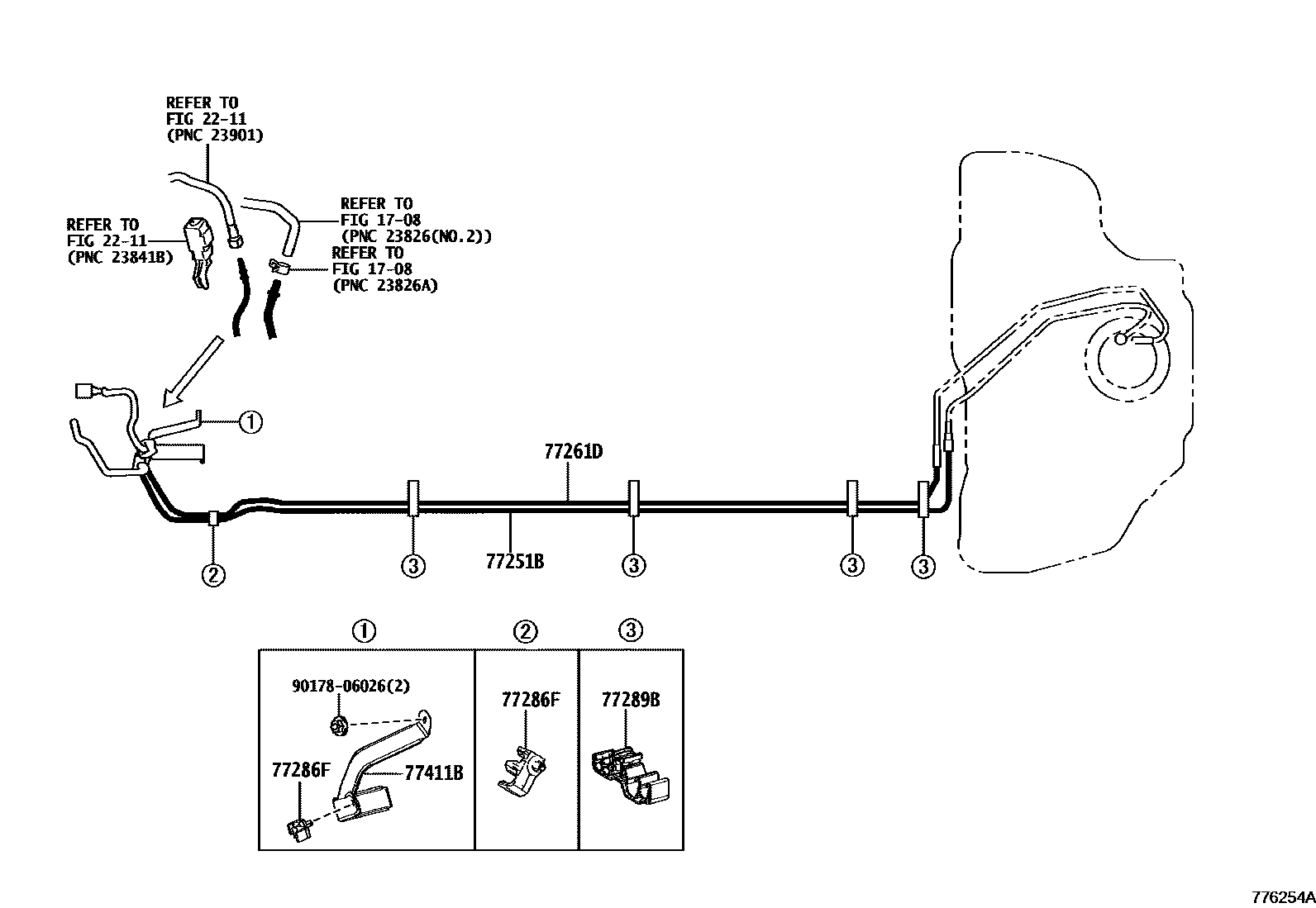

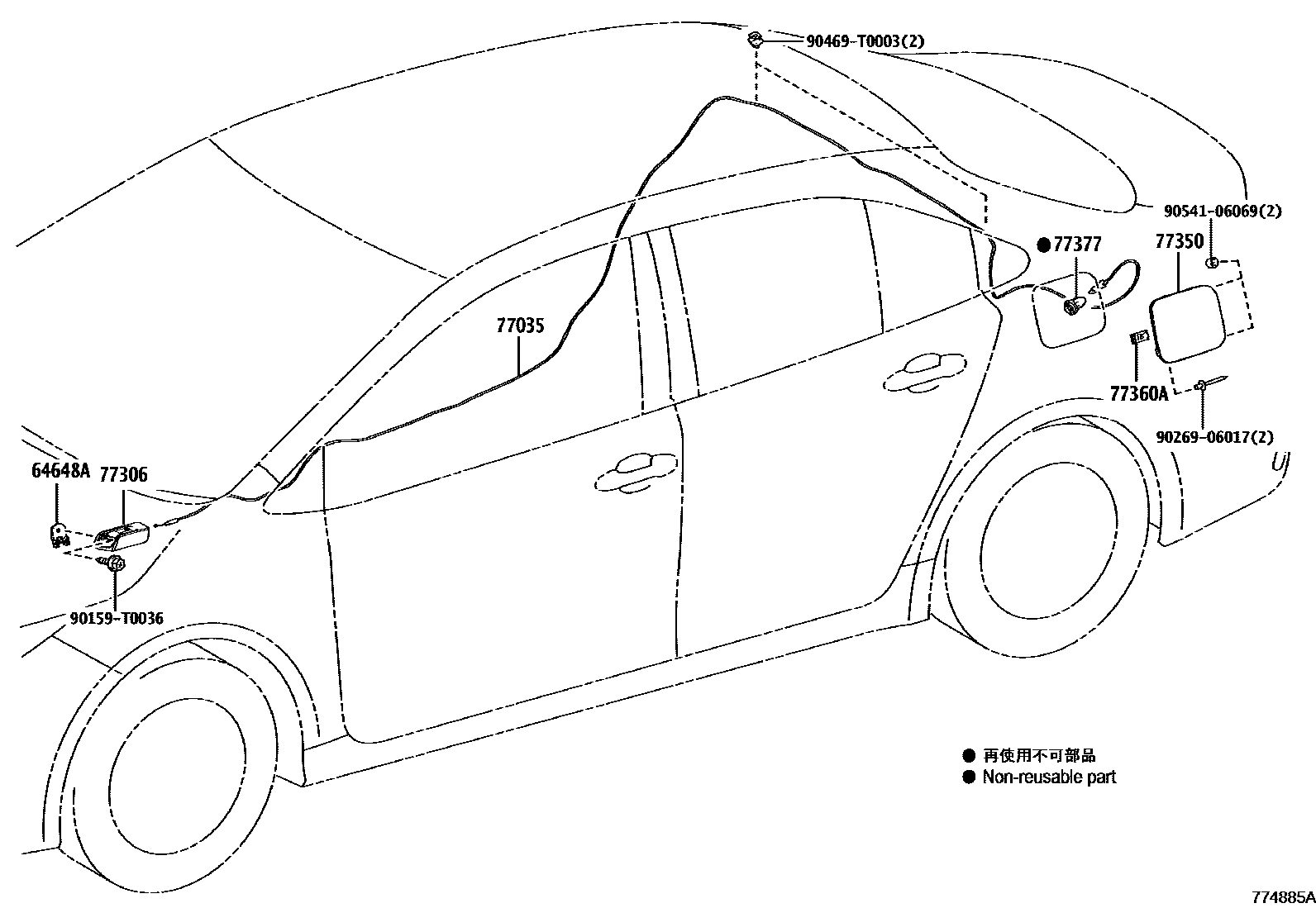

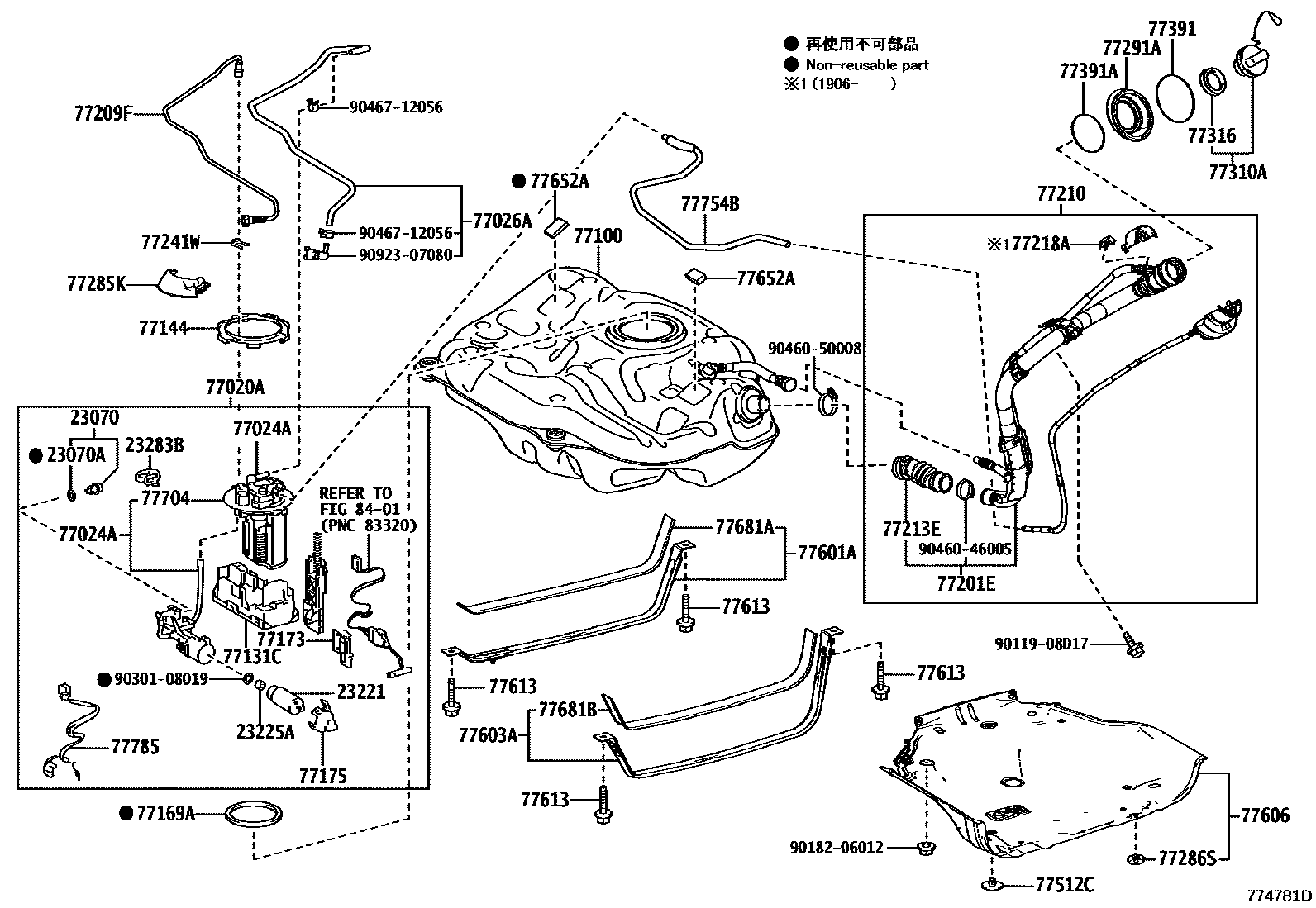

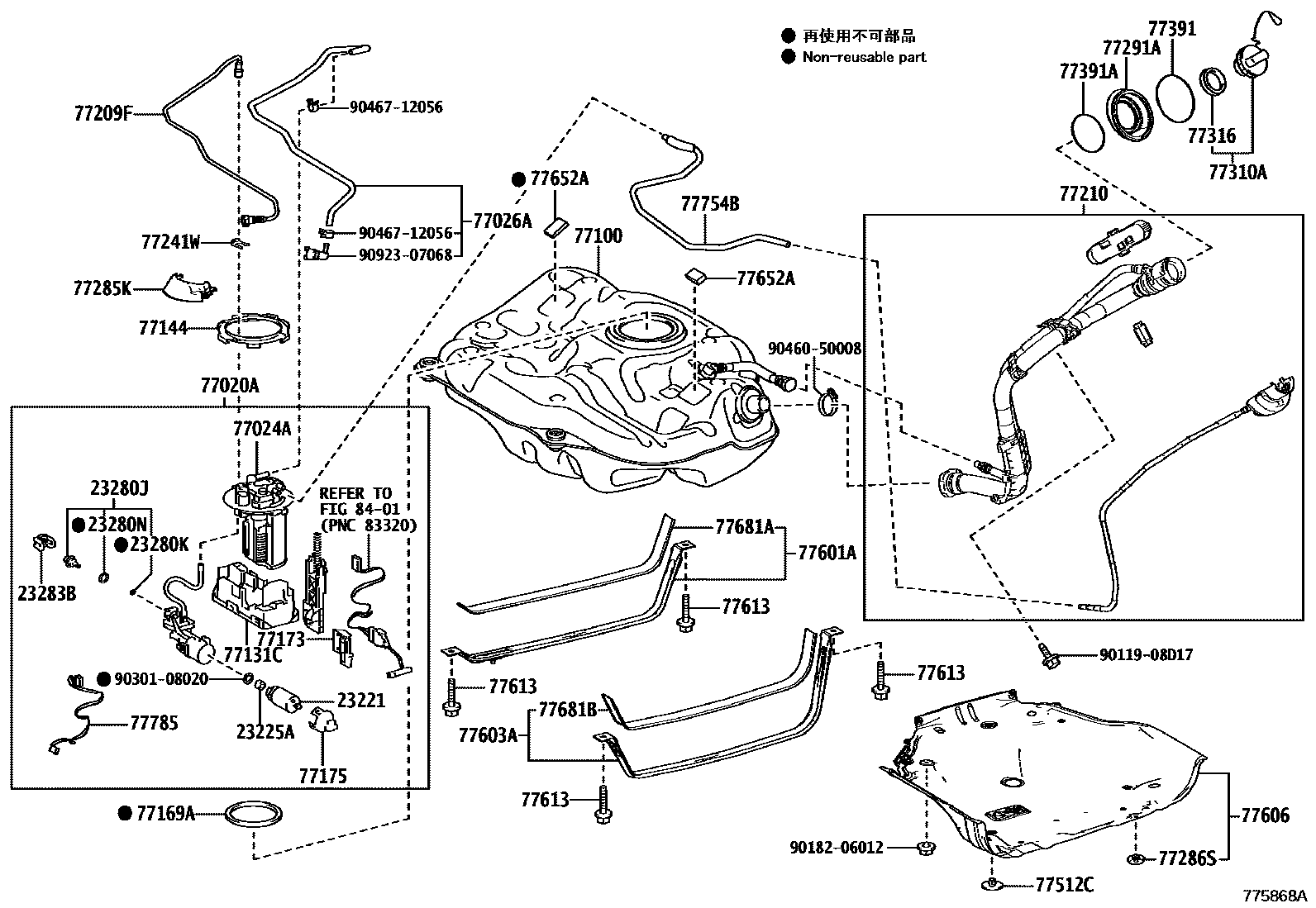

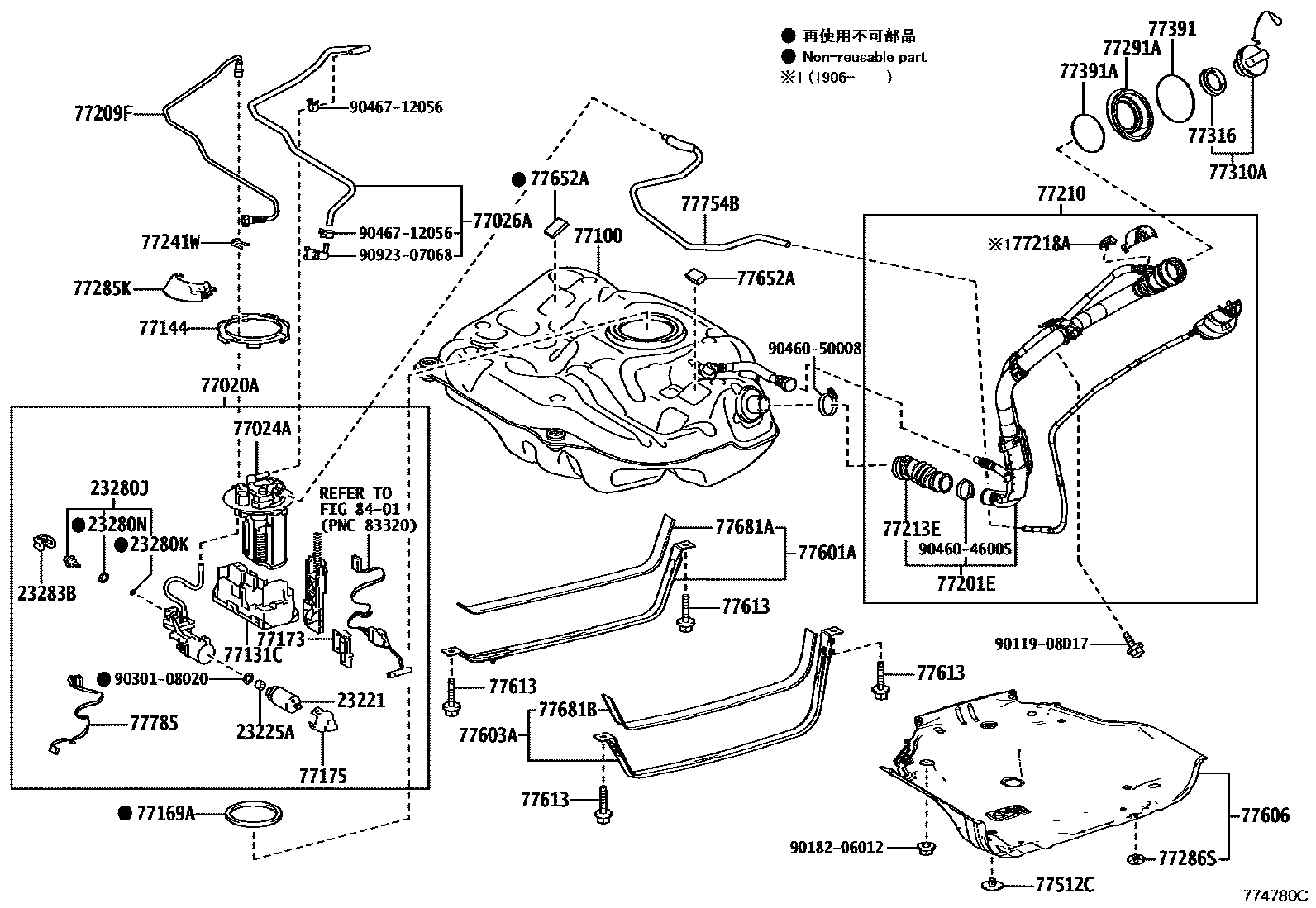

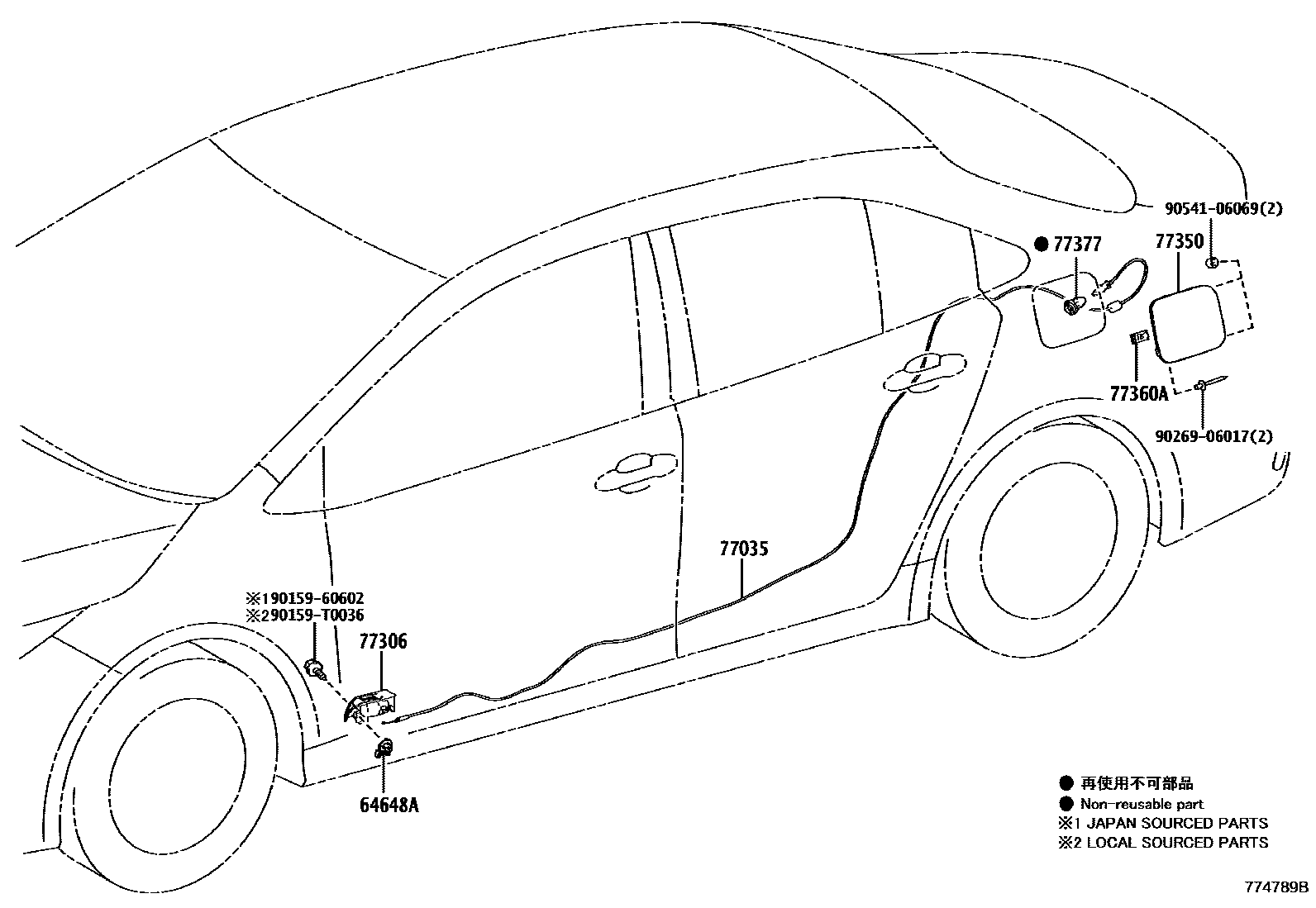

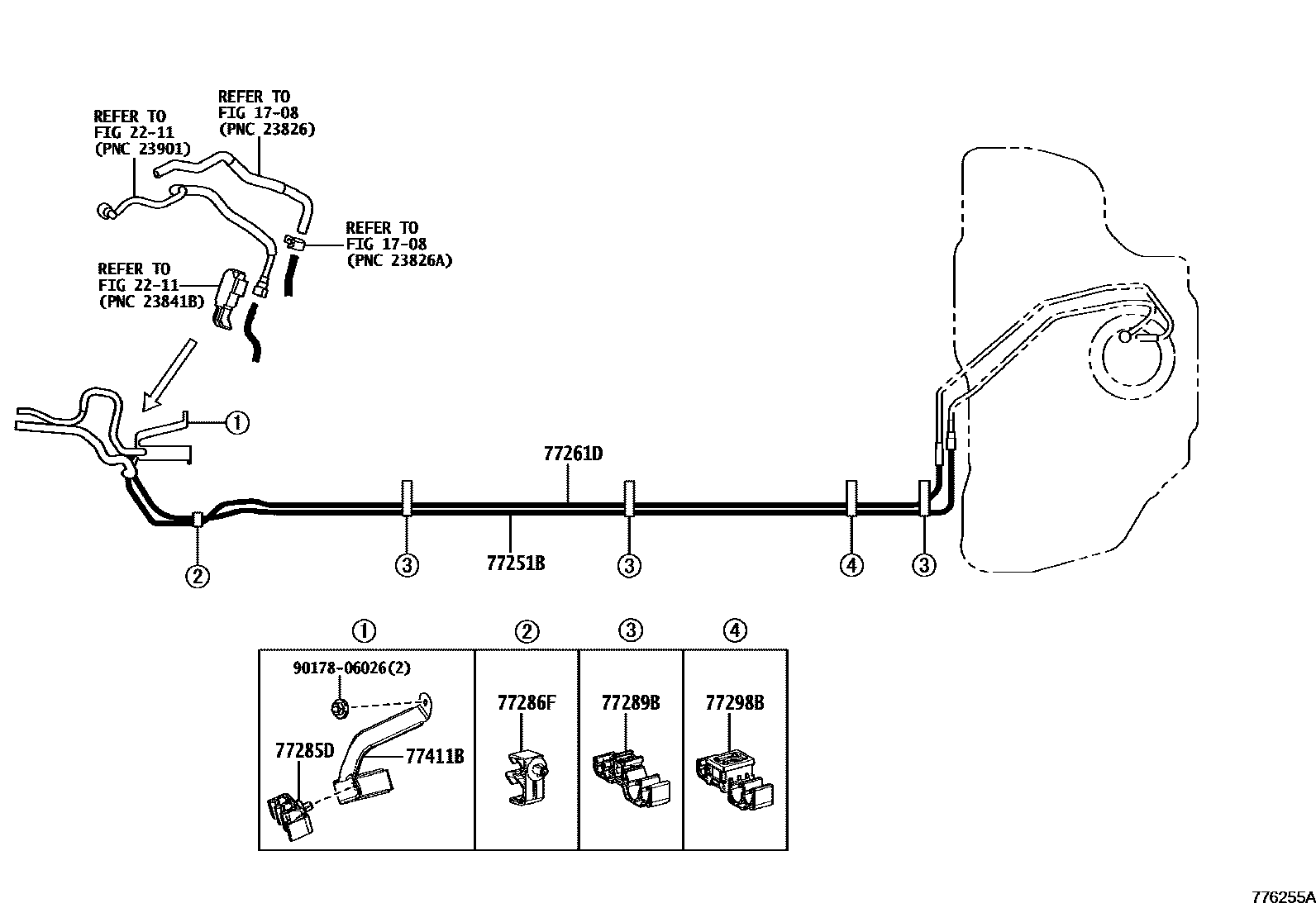

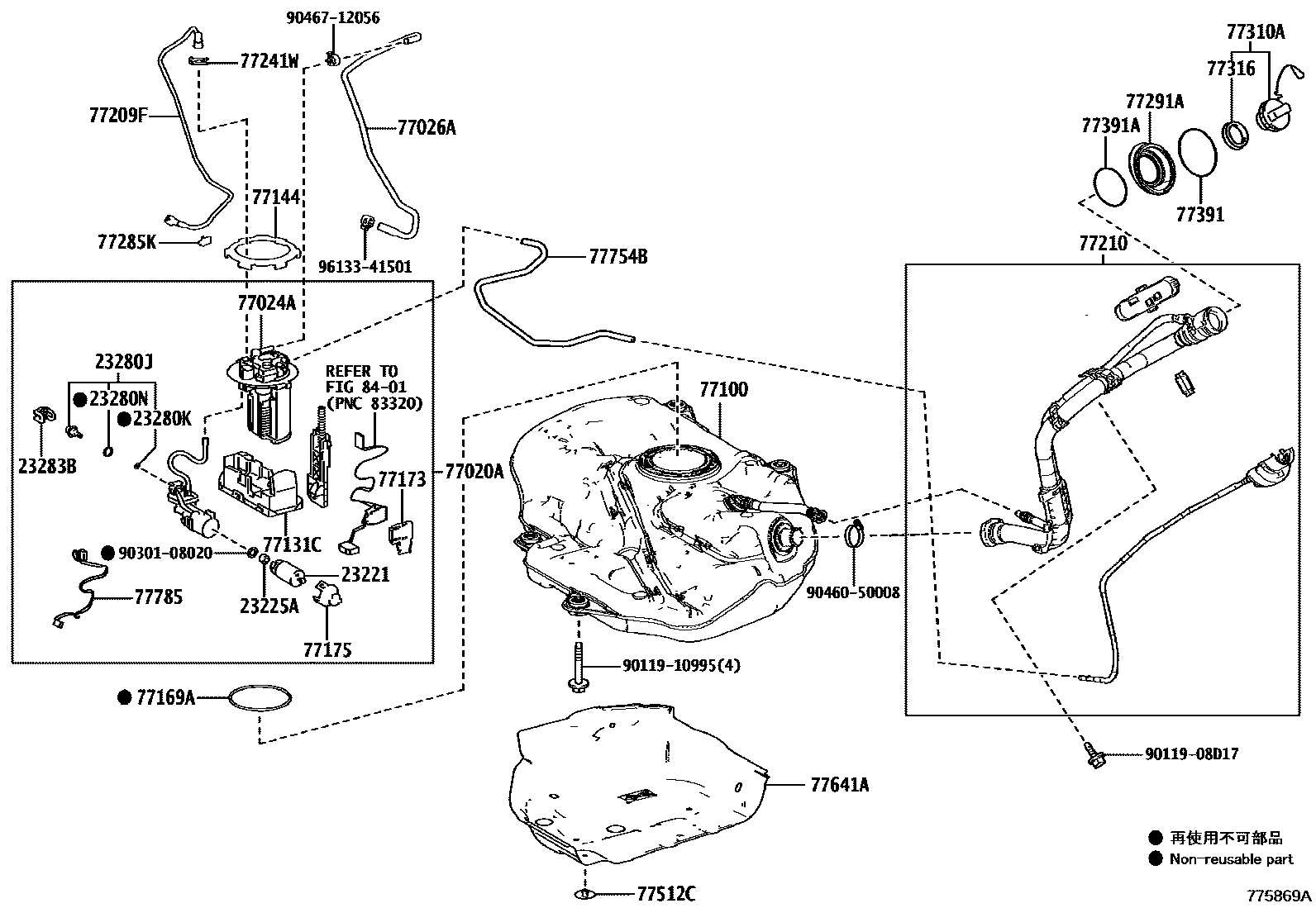

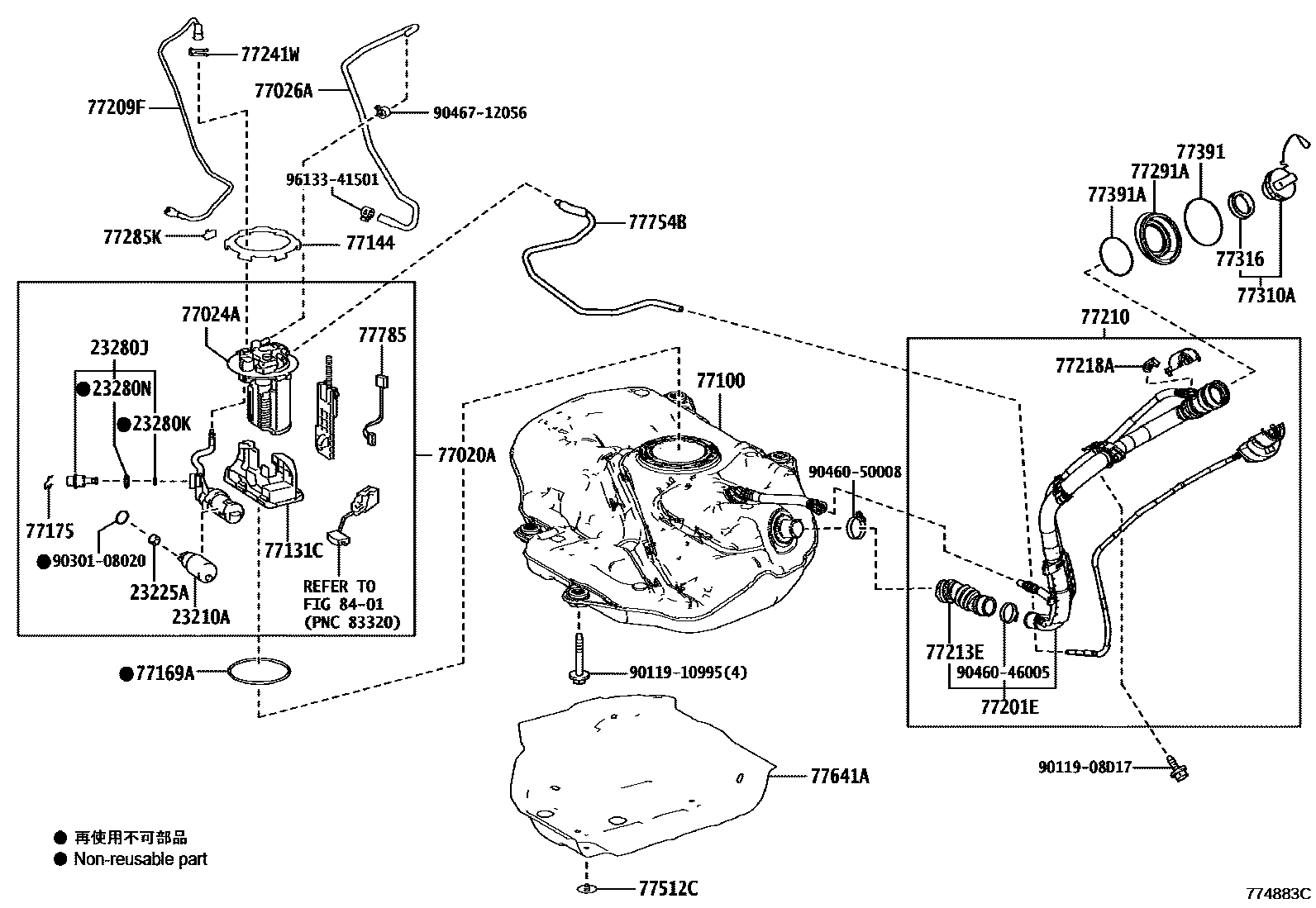

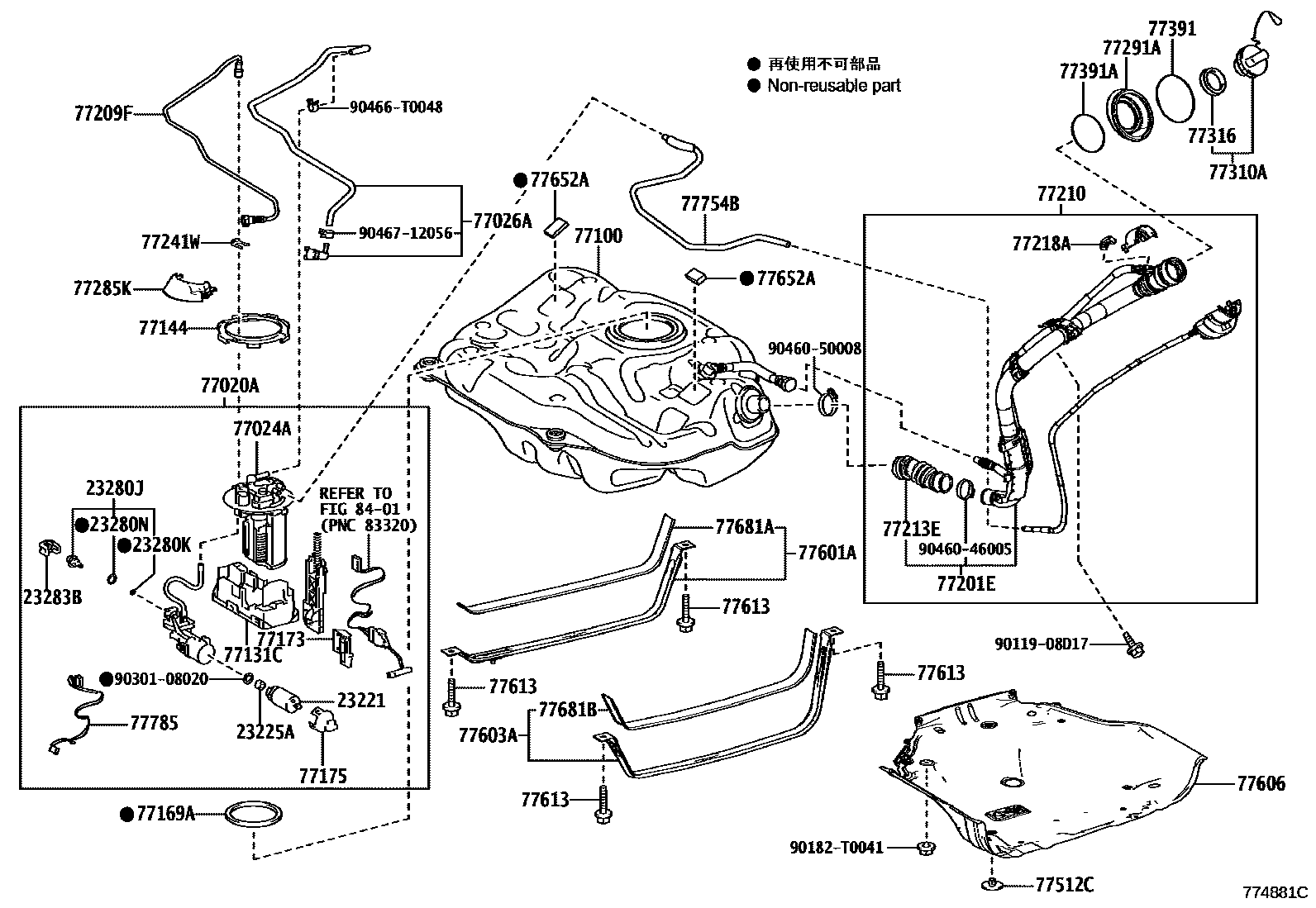

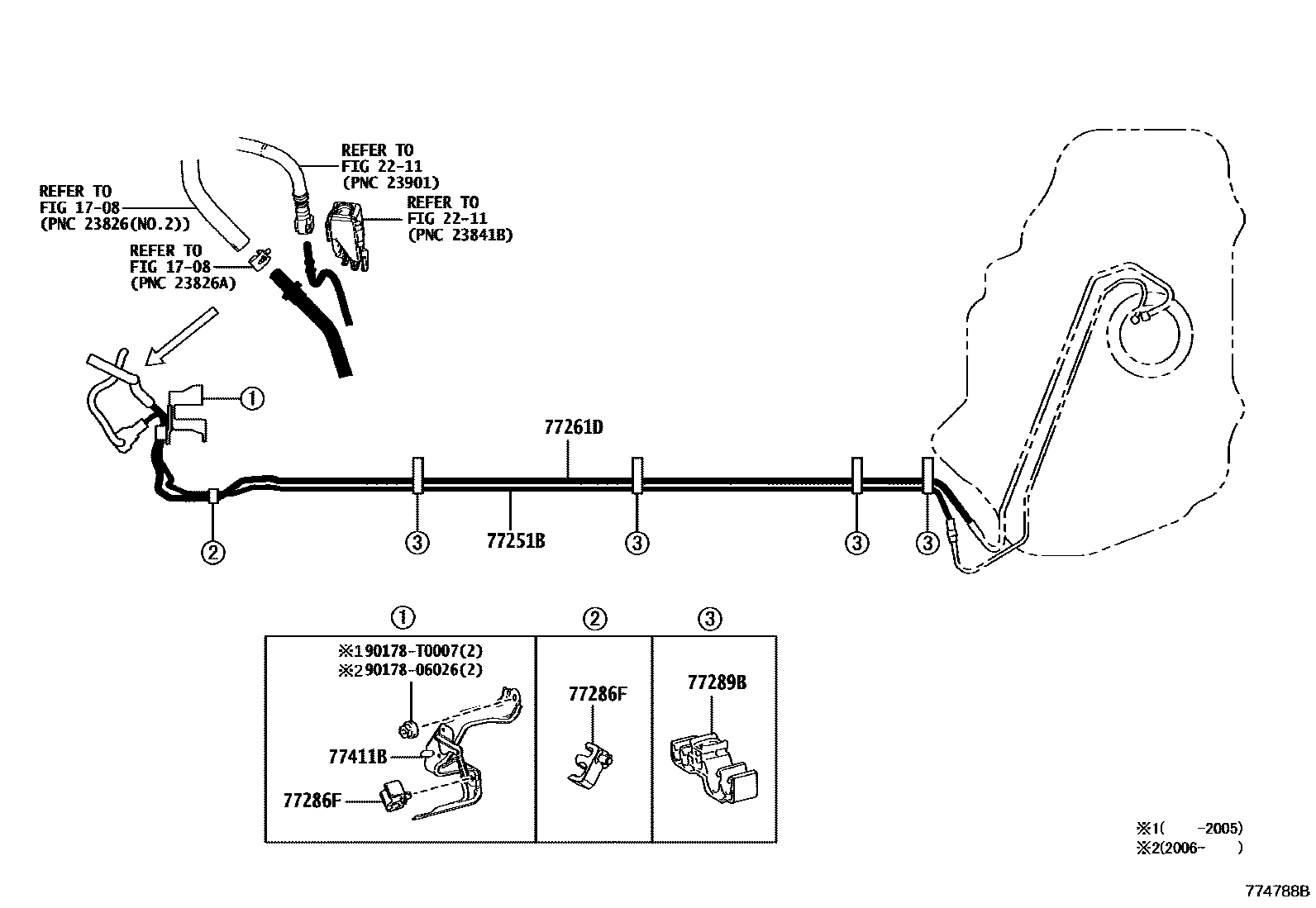

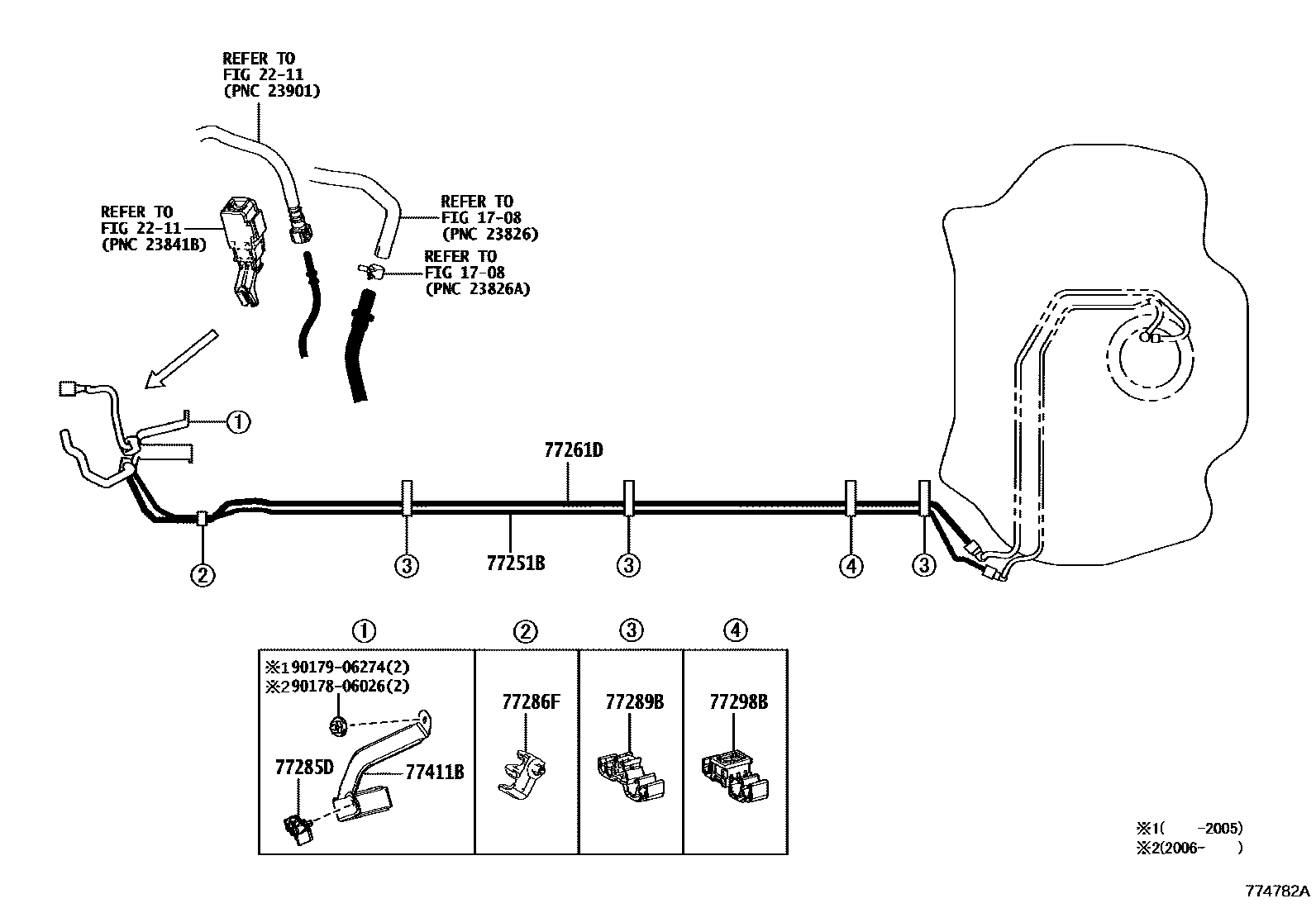

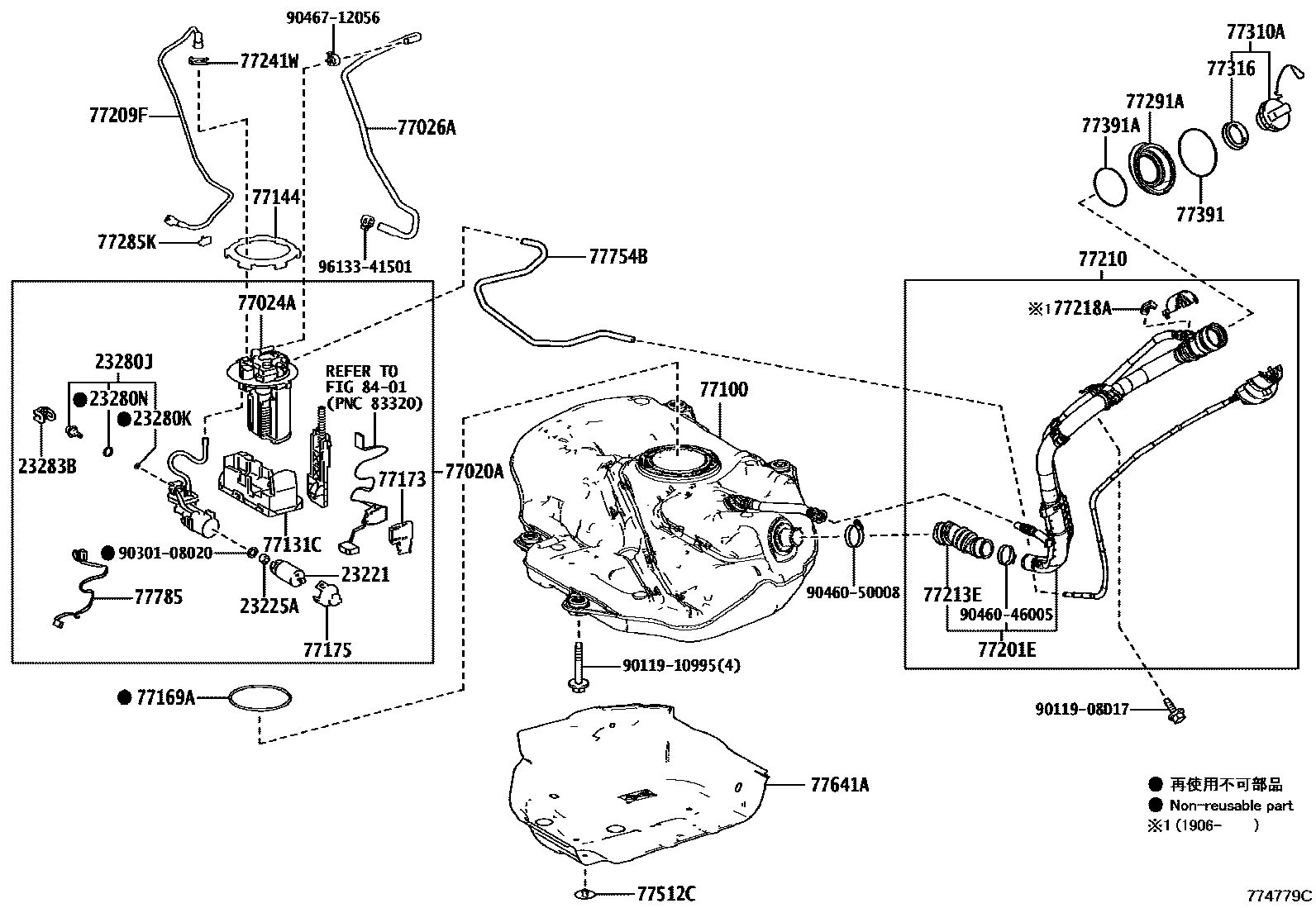

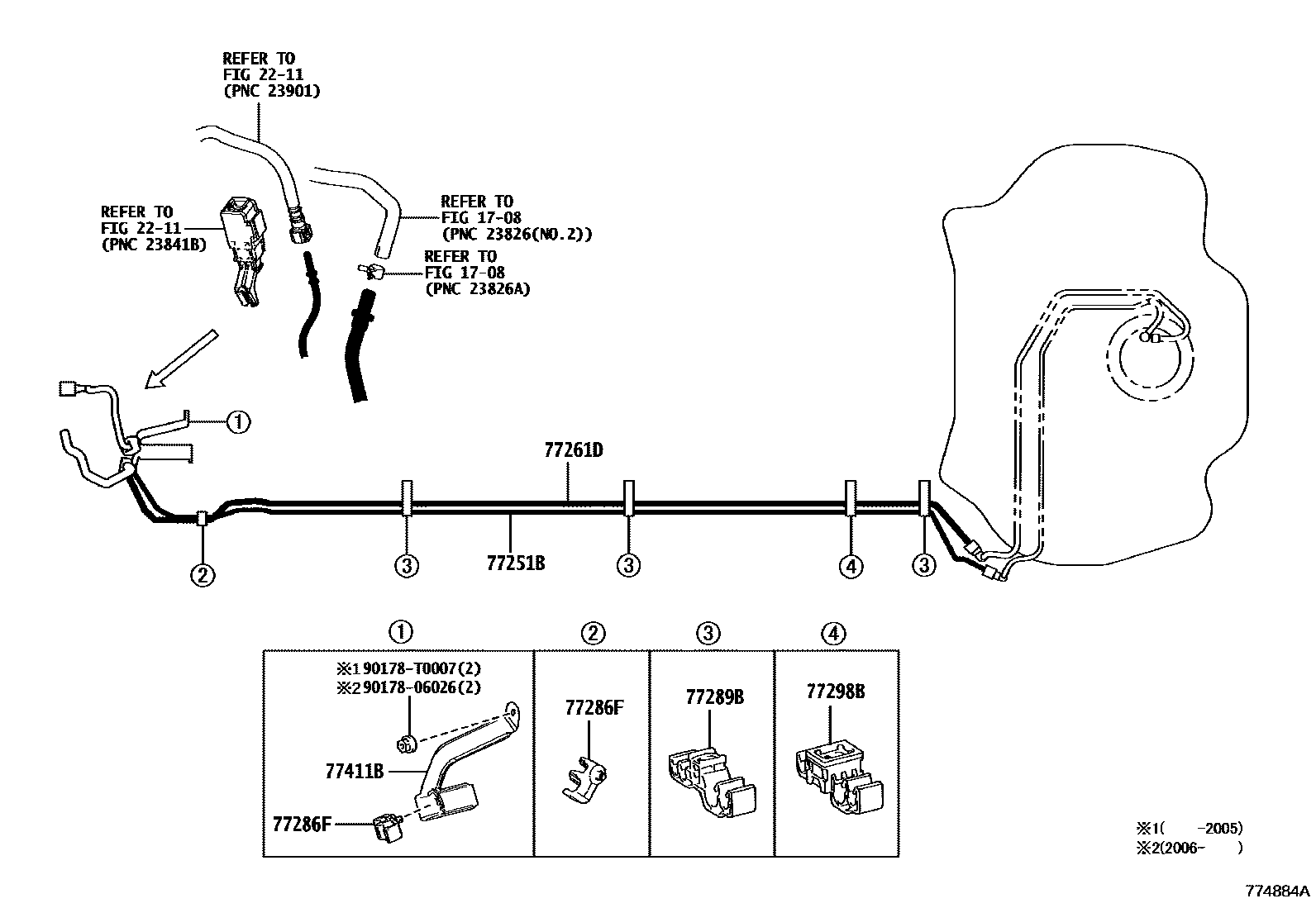

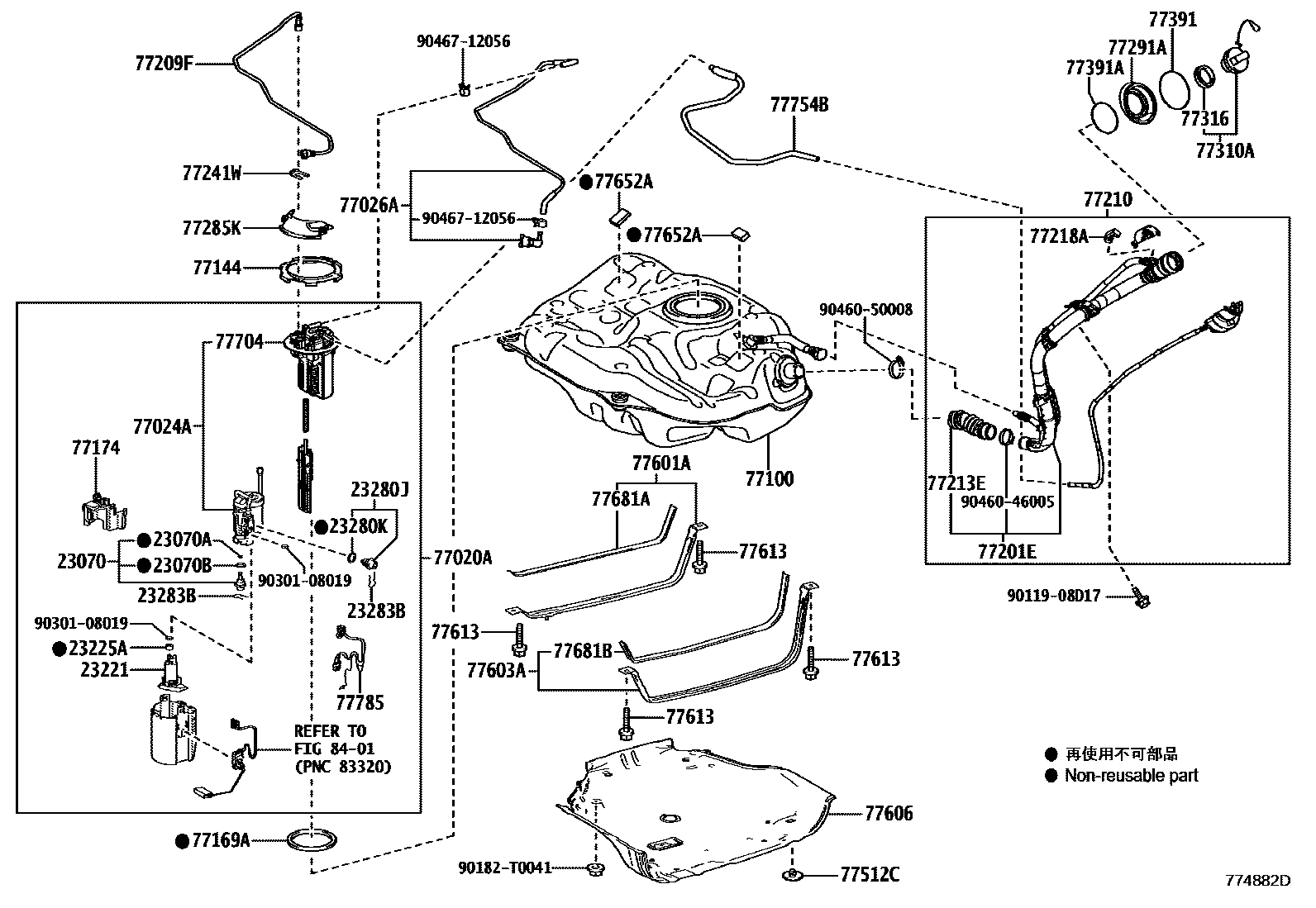

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 20 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 · 23070-31050 |
| 23070A | No. 1 O-ring (for main fuel valve) | 90301-04017 · 90301-15024 |
| 23070B | No. 2 O-ring (for main fuel valve) | 90301-15026 |
| 23210A | Water pump assembly with motor and bracket | 23210-37020 · 23210-37030 |
| 23221 | fuel pump | 23220-25010 · 23221-25030 · 23221-37040 · 23221-47031 |
| 23225A | fuel pump septum | 23225-21020 · 23225-31020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-37020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15026 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15024 |
| 23283B | Fuel pressure regulator mount | 23283-24010 · 23283-36010 · 23283-37010 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02A70 · 77020-02A80 · 77020-02A90 · 77020-02B00 · 77020-0A070 · 77020-10100 · 77020-12A60 · 77020-12B00 · 77020-12B10 · 77020-12B20 · 77020-16190 · 77020-F4060 |
| 77024A | Fuel absorber sub-assembly | 77024-10020 · 77024-12390 · 77024-12400 · 77024-16010 · 77024-16030 · 77024-F4060 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-0A040 · 77026-10040 · 77026-12050 · 77026-12070 · 77026-47040 · 77026-F4050 · 77026-F4060 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02570 · 77035-02580 · 77035-02590 |
| 77100 | fuel tank assembly | 77001-02A10 · 77001-02A60 · 77001-02A70 · 77001-02B90 · 77001-02D00 · 77001-0A070 · 77001-0A190 · 77001-F4050 · 77001-F4060 |
| 77131C | No. 1 auxiliary fuel tank | 77103-10030 · 77103-12130 · 77103-12150 · 77103-12160 · 77103-12190 · 77103-78010 |
| 77144 | Fuel pump instrument fixture | 77144-02160 · 77144-0K040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 · 77169-47030 · 77169-47040 |
| 77173 | Fuel gauge bracket | 77173-12010 · 77173-12020 |
| 77174 | No. 1 oil suction pipe bracket | 77174-33060 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12030 · 77175-12040 · 77175-78010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02660 · 77201-02810 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0A040 · 77209-0A190 · 77209-10130 · 77209-12330 · 77209-12360 · 77209-12370 · 77209-12390 · 77209-12400 · 77209-47100 · 77209-76050 · 77209-F4060 · 77209-F4070 |
| 77210 | Fuel tank filler pipe assembly | 77210-02740 · 77210-02742 · 77210-02890 · 77210-02A20 · 77210-12890 |
| 77213E | Fuel tank to filler pipe hose | 77213-02160 · 77213-0A030 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02140 |
| 77241W | Pipe joint clip | 77241-0K010 · 77241-33011 |
| 77251B | main fuel pipe | 77251-02B70 · 77251-02B80 · 77251-02B90 · 77251-02C00 · 77251-02C10 · 77251-02E20 · 77251-02E30 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02630 · 77261-02850 · 77261-02860 · 77261-02870 · 77261-02880 · 77261-02C30 · 77261-02C40 |
| 77285D | No. 1 fuel pipe clamp | 77285-78010 |
| 77285K | No. 1 fuel pipe clamp | 77285-02240 · 77285-02250 · 77285-06570 · 77285-10060 · 77285-30350 |
| 77286F | No. 2 fuel pipe clamp | 77286-48100 · 77286-75010 · 77286-78040 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77289B | No. 3 fuel pipe clamp | 77298-10050 · 77298-10070 · 77298-10090 |
| 77291A | Fuel tank filler pipe cover | 77291-02291 · 77291-02301 |
| 77298B | No. 4 fuel pipe clamp | 77298-10080 · 77298-10100 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02240 · 64606-02250 · 64606-02260 |
| 77310A | Fuel tank cap assembly | 77300-0K010 · 77300-12020 · 77300-48020 |
| 77316 | fuel tank cap gasket | 77316-0K020 · 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-02250 · 77350-02260 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 · 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-02140 · 77377-02150 |
| 77391 | fuel inlet ring | 77391-02110 |
| 77391A | fuel inlet ring | 77391-02020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-02080 · 77411-02090 · 77411-02100 · 77411-02110 · 77411-F4050 · 77411-F4060 |
| 77512C | fuel tank bracket | 77512-35140 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-02220 · 77601-F4030 |
| 77603A | No. 2 fuel tank strap sub-assembly | 77602-02210 · 77602-F4030 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-02170 · 77606-0A060 · 77606-F4040 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77641A | No. 1 fuel tank protective shell | 77641-02320 · 77641-F4050 |
| 77652A | No. 2 fuel tank liner | 77652-02130 · 77652-F4010 |
| 77681A | Fuel tank strap seat | 77681-02080 · 77681-47020 |
| 77681B | Fuel tank strap seat | 77682-02090 · 77682-47020 |
| 77704 | Carbon canister sub-assembly | 77704-10190 |
| 77754B | Carbon canister outlet hose | 77754-02230 · 77754-02240 · 77754-0A040 · 77754-F4040 · 77754-F4050 |
| 77785 | fuel pump wiring harness | 77785-12010 · 77785-12040 · 77785-12050 · 77785-12060 · 77785-33140 |
