Toyota COROLLA 后防护条 — Figure 7504

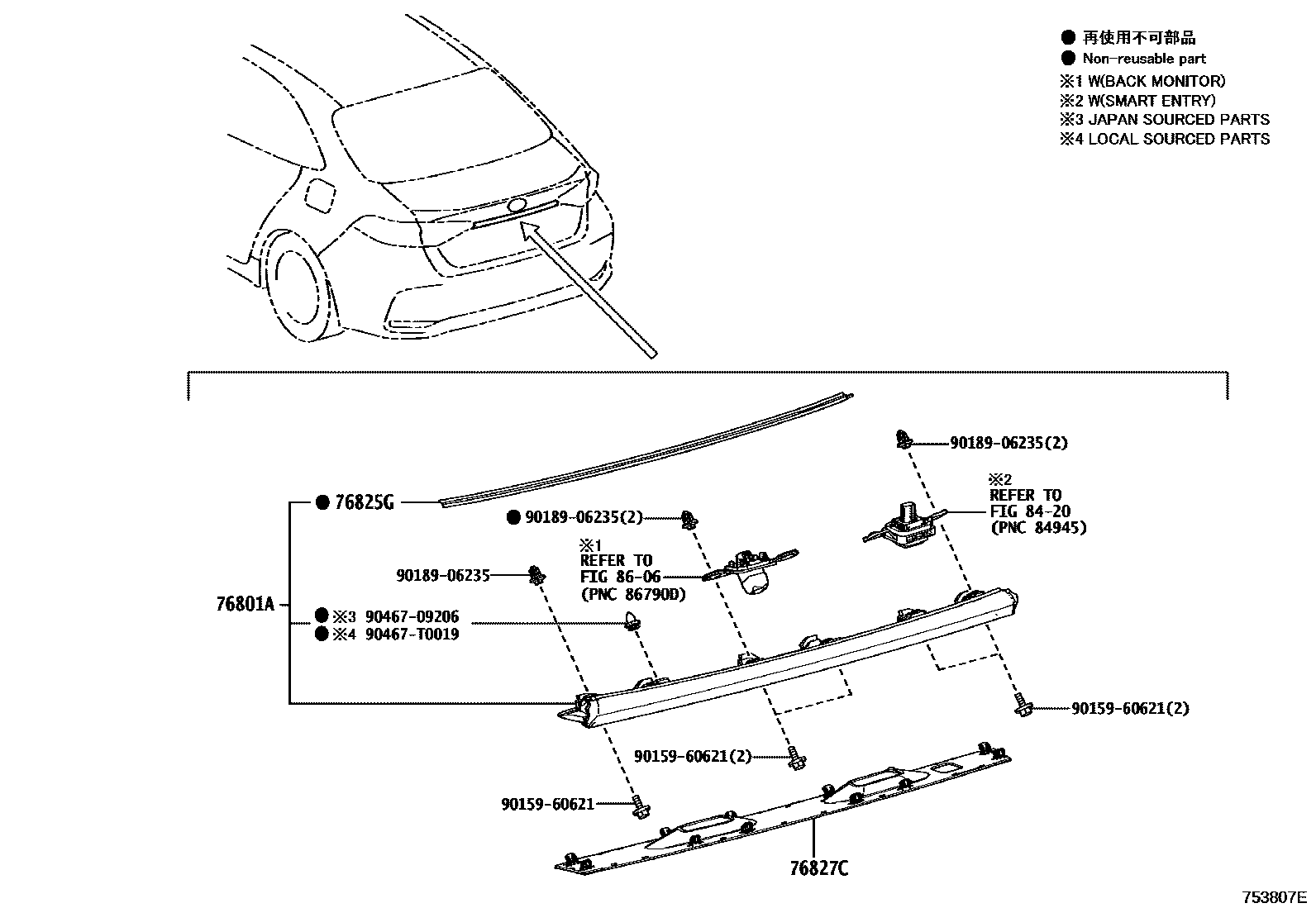

Toyota COROLLA EPC diagram 7504, 后防护条, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02L10 · 76801-02L40 · 76801-02P60 · 76801-02P70 |
| 76825G | No. 2 protective cover for luggage compartment door decorative strip | 76825-02370 · 76825-02380 |
| 76827C | Trunk door trim strip fixing No. 2 | 76827-02160 · 76827-02170 · 76827-02180 · 76827-02190 · 76827-02200 · 76827-02210 · 76827-02260 · 76827-02300 |
