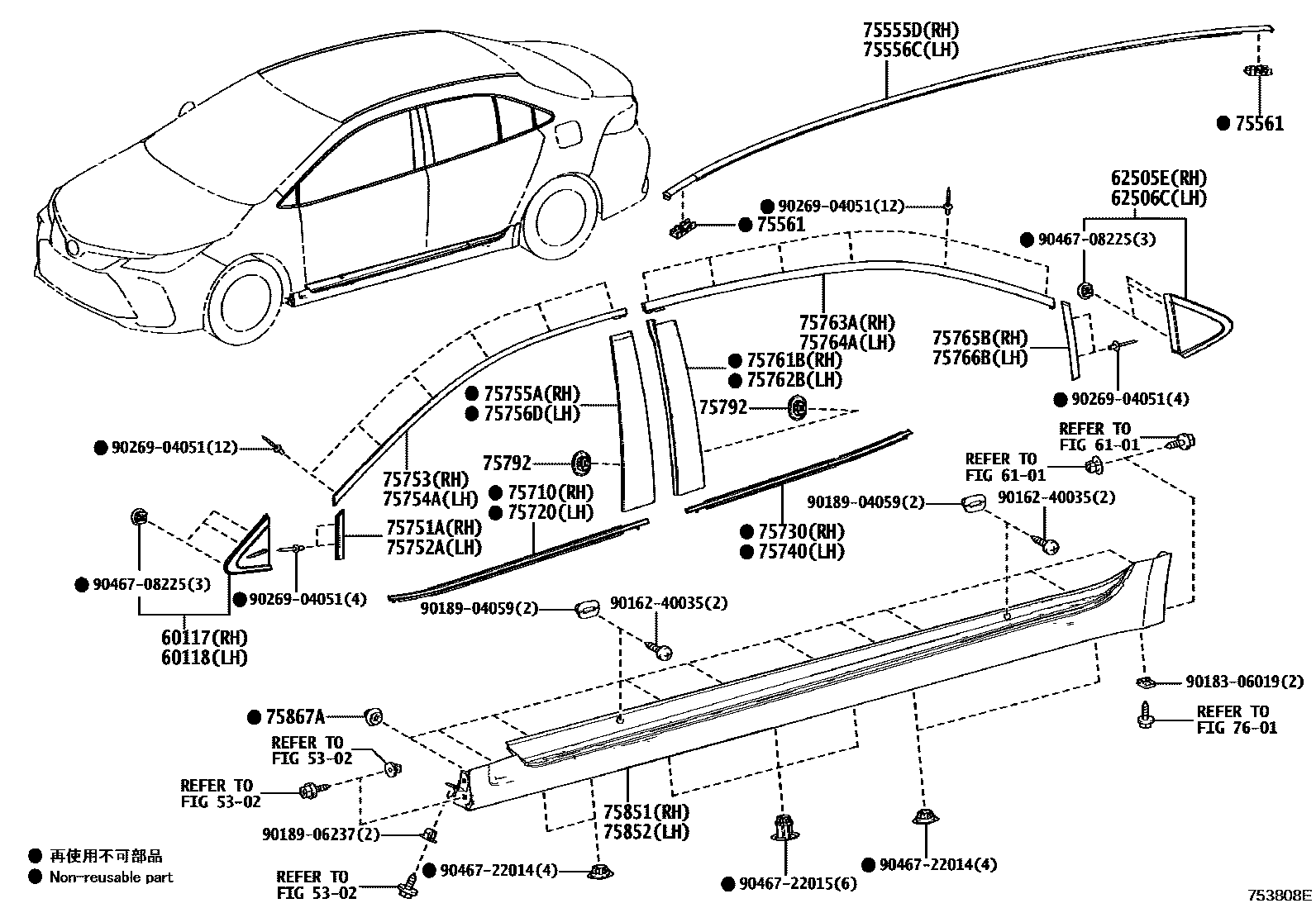

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-02290 · 60117-02310 · 60117-02390 · 60117-02400 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-02290 · 60118-02310 · 60118-02390 · 60118-02400 |
| 62505E | Right corner window pillar cover sub-assembly | 62505-02070 · 62505-02090 · 62505-02170 · 62505-02180 |
| 62506C | Left corner window pillar cover sub-assembly | 62506-02070 · 62506-02090 · 62506-02170 · 62506-02180 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02330 · 75555-02340 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02310 · 75556-02320 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-02530 · 75710-02550 |
| 75720 | Left front door waistline protection strip assembly | 75720-02530 · 75720-02550 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02530 · 75730-02550 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02530 · 75740-02550 |
| 75751A | Front door window frame protection strip (right front pillar) | 75751-02040 · 75751-02060 |
| 75752A | Front door window frame protection strip (left front pillar) | 75752-02040 · 75752-02060 |
| 75753 | Protective strip on right front door window frame | 75753-02070 · 75753-02080 · 75753-02090 · 75753-02160 |
| 75754A | Protective strip on left front door window frame | 75754-02070 · 75754-02080 · 75754-02090 · 75754-02160 |
| 75755A | Front door window frame protection strip (right center pillar) | 75755-02150 · 75755-02160 |
| 75756D | Front door window frame protection strip (left center pillar) | 75756-02150 · 75756-02160 |
| 75761B | Rear door window frame protection strip (right center pillar) | 75761-02160 · 75761-02170 |
| 75762B | Rear door window frame protection strip (left center pillar) | 75762-02160 · 75762-02170 |
| 75763A | Protective strip on right rear door window frame | 75763-02090 · 75763-02100 · 75763-02110 · 75763-02180 |
| 75764A | Protective strip on left rear door window frame | 75764-02090 · 75764-02100 · 75764-02110 · 75764-02180 |
| 75765B | Rear door window frame protection strip (right rear pillar) | 75765-02050 · 75765-02070 |
| 75766B | Rear door window frame protection strip (left rear pillar) | 75766-02050 · 75766-02070 |
| 75792 | Car door window frame protective strip clip | 75792-0D020 · 75792-47010 |
| 75851 | Right side door sill panel protective strip | 75851-02907 · 75851-02908 · 75851-02914 |
| 75852 | Left side door sill panel protective strip | 75852-02907 · 75852-02908 · 75852-02914 |
| 75867A | Door sill panel protective strip clip | 75867-52020 |
