Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.

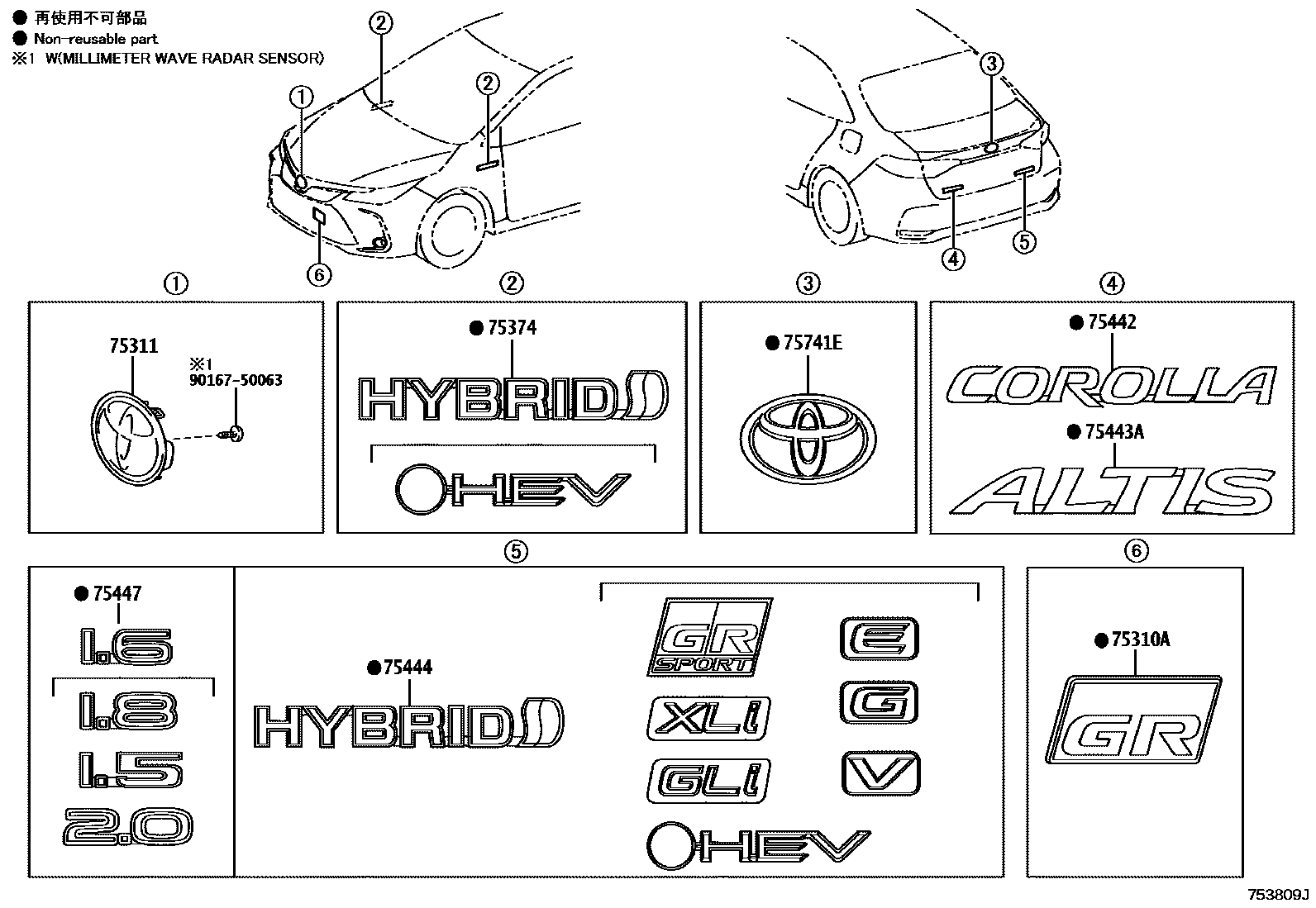

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 753809J
丰田徽标和铭牌(车外和车内) — 753809J (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly75310-52090
75311Radiator grille (or front panel) plate75301-02210 · 75301-02220 · 75301-02230 · 75301-02240 · 90975-02124 · 90975-02136 · 90975-T2028 · 90975-T2029
75374side panel sign75374-02090 · 75374-02100 · 75374-02110 · 75374-02120 · 75440-BZ060
75442Trunk door number plate No. 275442-02510 · 75442-02520 · 75442-02540 · 75442-02550 · 75442-02660
75443ATrunk door No. 3 nameplate75442-02530 · 75442-02560 · 75442-02670
75444Trunk door No. 4 nameplate75440-02030 · 75441-02480 · 75443-12B90 · 75444-02E10 · 75444-02E20 · 75444-02E30 · 75444-02E60 · 75444-02E70
75447Trunk door No. 7 nameplate75447-02380 · 75447-02460 · 75447-02470 · 75447-02480 · 75447-02490
75741Elogo75403-02090 · 75403-02100 · 90975-02138 · 90975-T2007 · 90975-T2015
