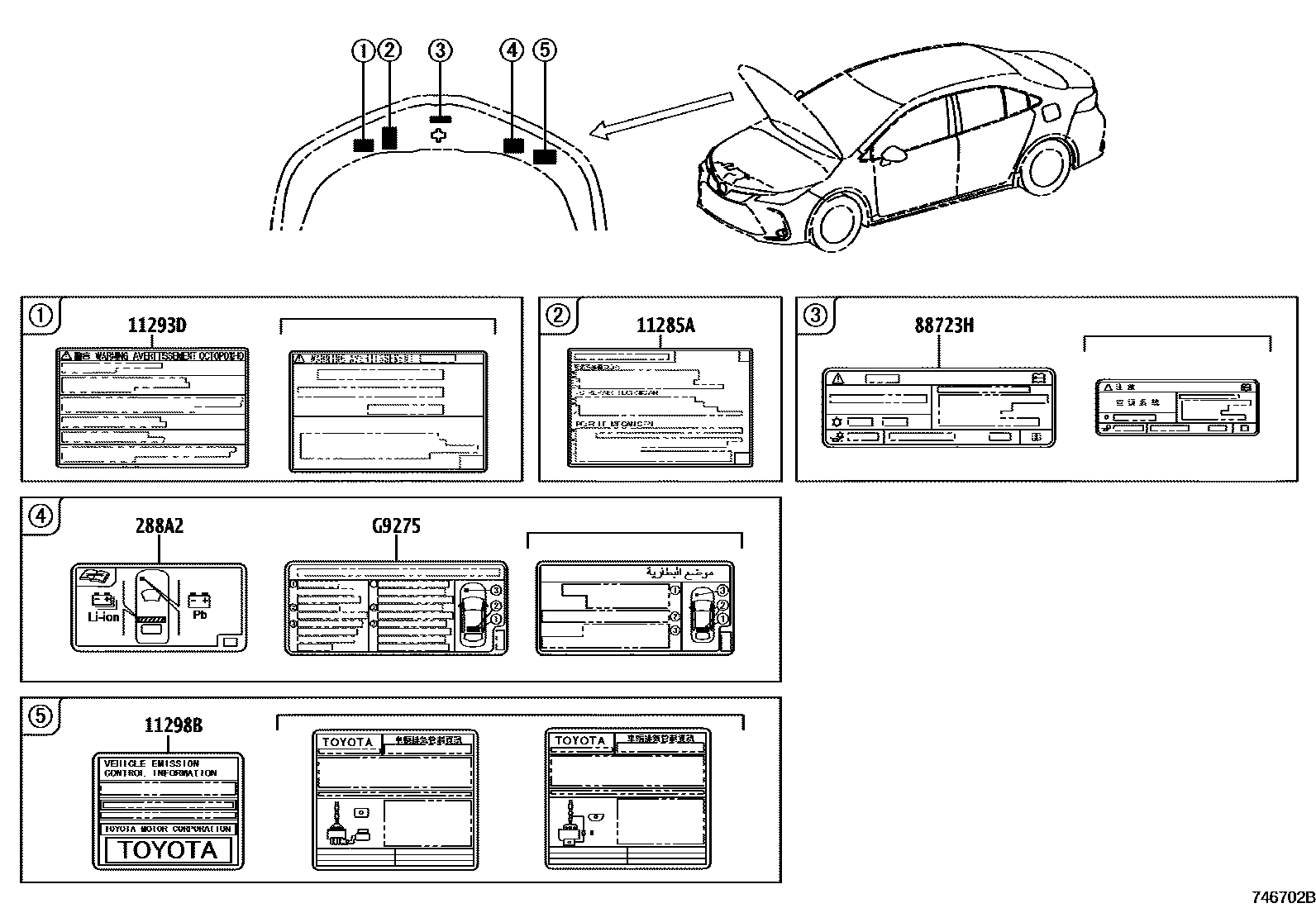

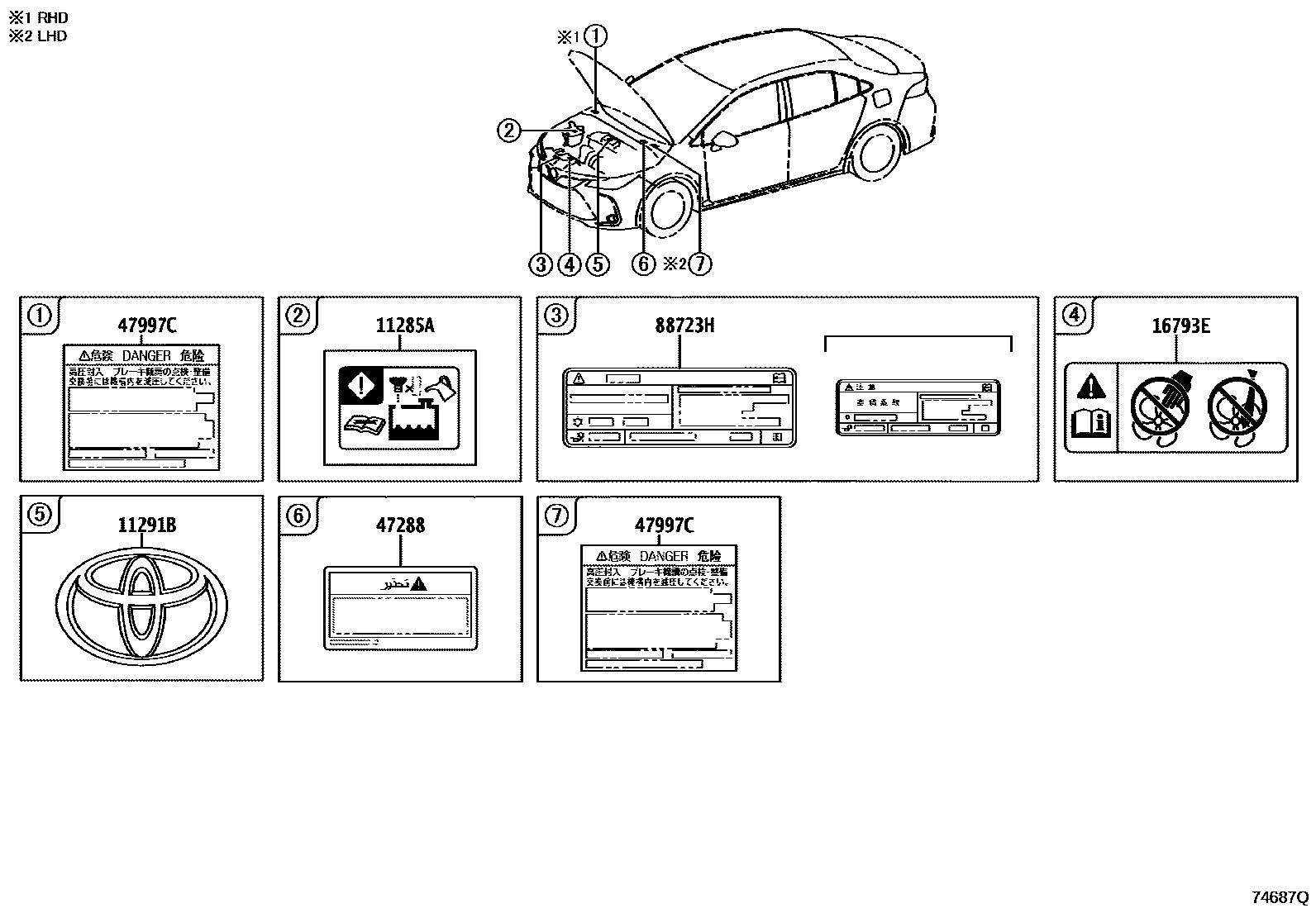

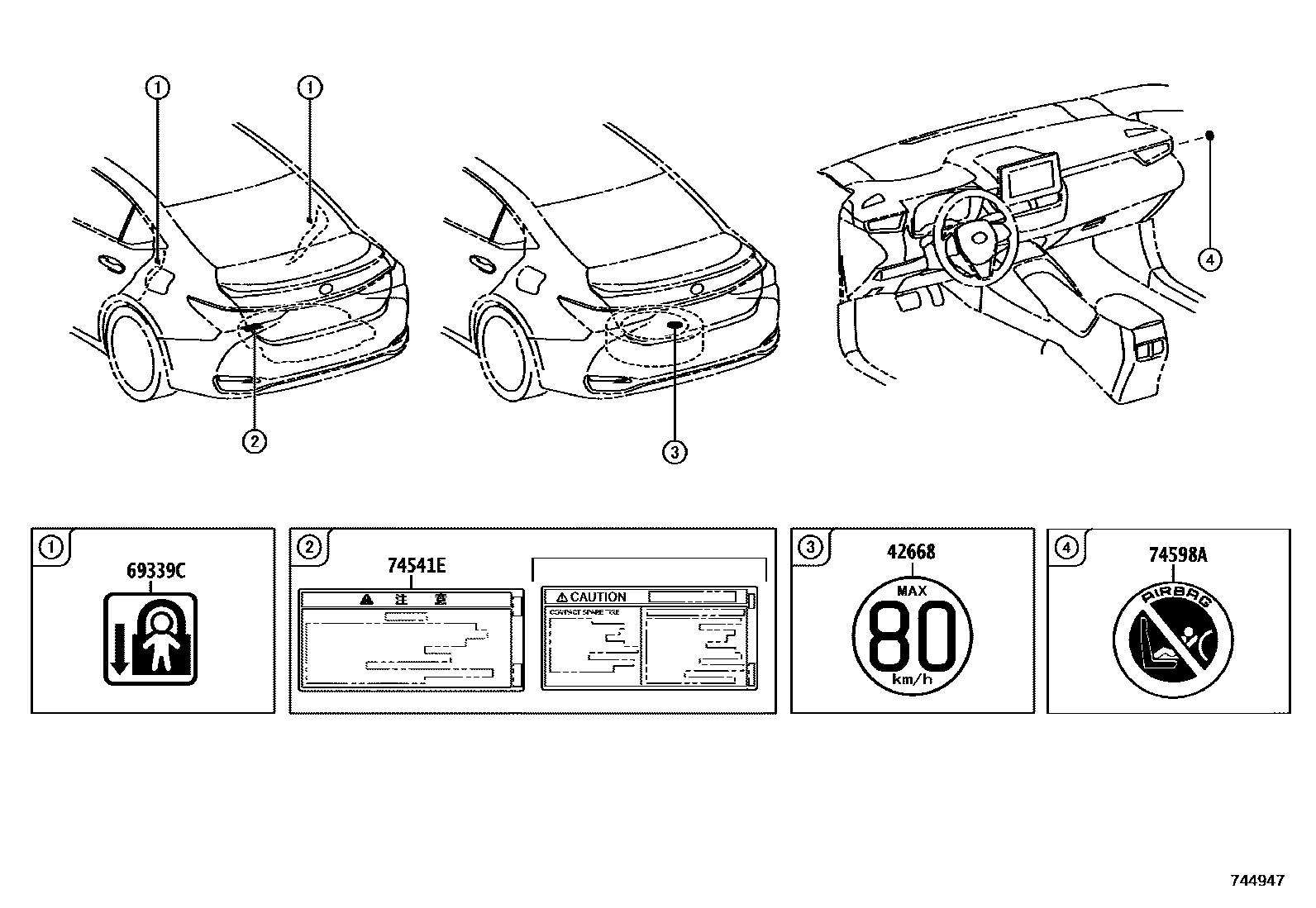

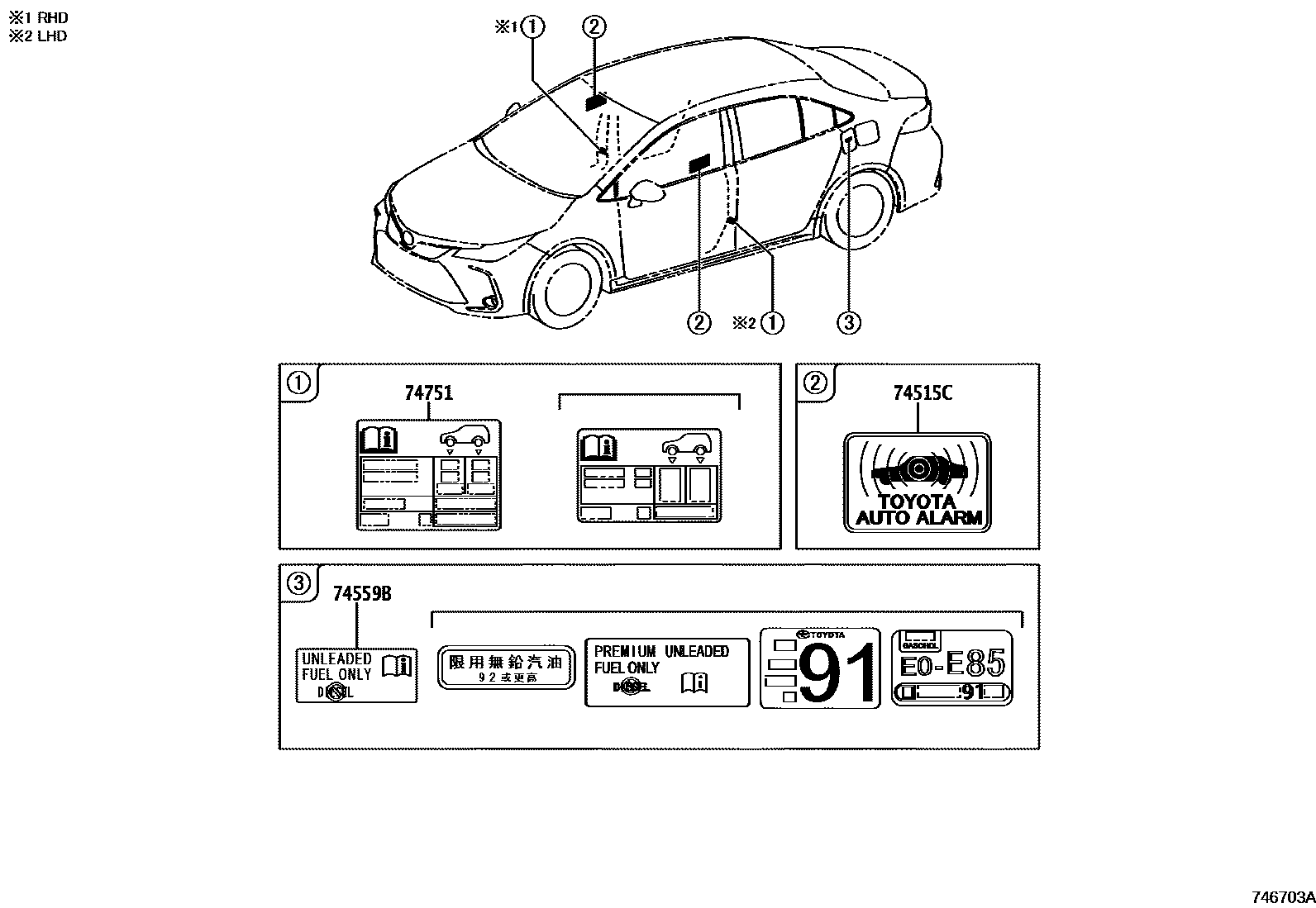

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0E030 · 11285-0T060 · 11285-11020 · 11285-11030 · 11285-33030 · 11285-33040 · 11285-36010 · 11285-37100 |
| 11291B | Engine name plate | 11290-37010 · 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-36070 · 11293-37060 |
| 11298B | Emission Control Information Label | 11298-0T470 · 11298-0T480 · 11298-0T490 · 11298-0T500 · 11298-0T610 · 11298-0T680 · 11298-0T690 · 11298-0T780 · 11298-0T790 · 11298-0T810 · 11298-0T820 · 11298-0T860 · 11298-0T870 · 11298-0T871 · 11298-F2020 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 288A2 | Battery location label | 288A2-37020 |
| 42668 | Small spare tire warning label | 42668-20020 |
| 47288 | Brake Fluid Caution Label | 47288-71010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 |
| 69339C | Child Restraint Information Label | 69339-06060 · 69339-06070 |
| 74515C | Anti-theft warning information label | 74515-0K020 |
| 74541E | Small spare tire warning plate | 42668-02060 · 42668-58030 · 42668-78020 |
| 74559B | fuel information label | 74559-02030 · 74559-02050 · 74559-20140 · 74559-60030 · 74579-0B010 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-02P10 · 42661-02S60 · 42661-02S70 · 42661-02S80 · 42661-02T10 · 42661-02T20 · 42661-02T30 · 42661-02T40 · 42661-02T41 · 42661-02U70 · 42661-02U71 · 42661-02V10 · 42661-12S40 |
| 88723H | Cooler maintenance warning label | 88723-02440 · 88723-02450 · 88723-02460 · 88723-02470 · 88723-02480 · 88723-F4110 · 88723-F4120 · 88723-F4130 |
| G9275 | No. 1 battery warning label | G9275-12040 · G9275-47110 · G9275-47200 |
