Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 3 images and 2 PNC and OE references.

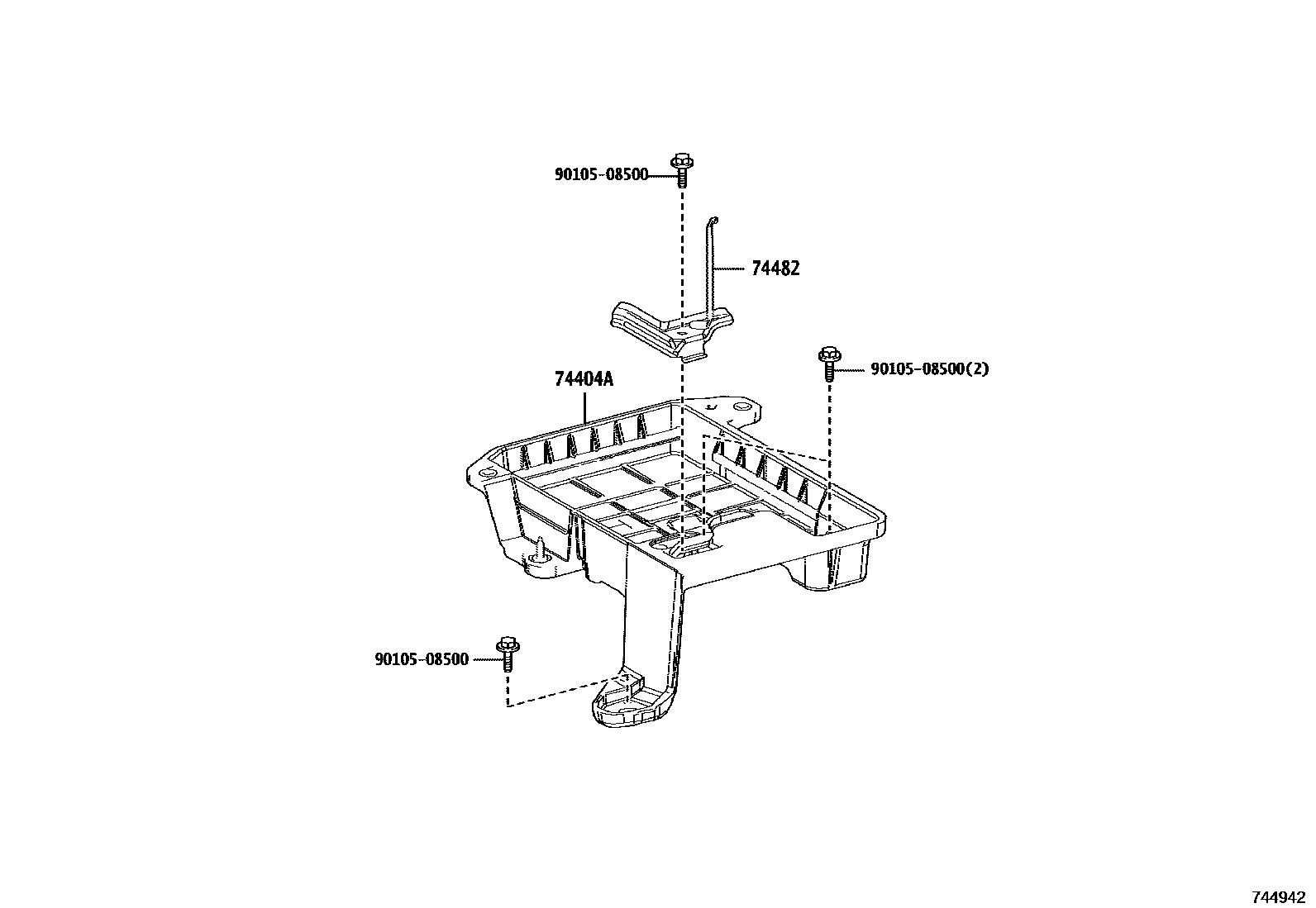

Toyota COROLLA battery holder EPC diagram — 744942
battery holder — 744942 (201904 – 999999)

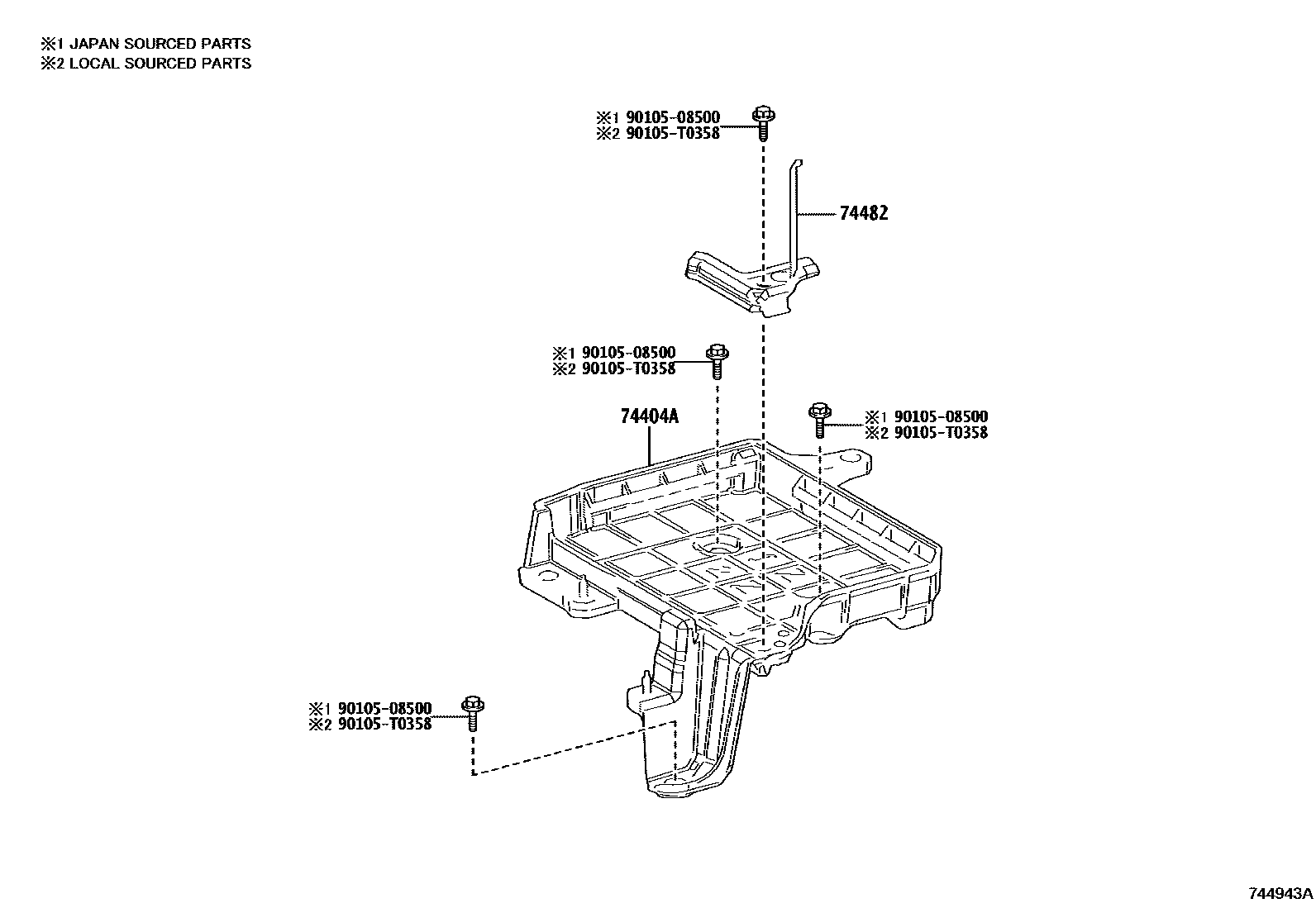

Toyota COROLLA battery holder EPC diagram — 744943A
battery holder — 744943A (201904 – 999999)

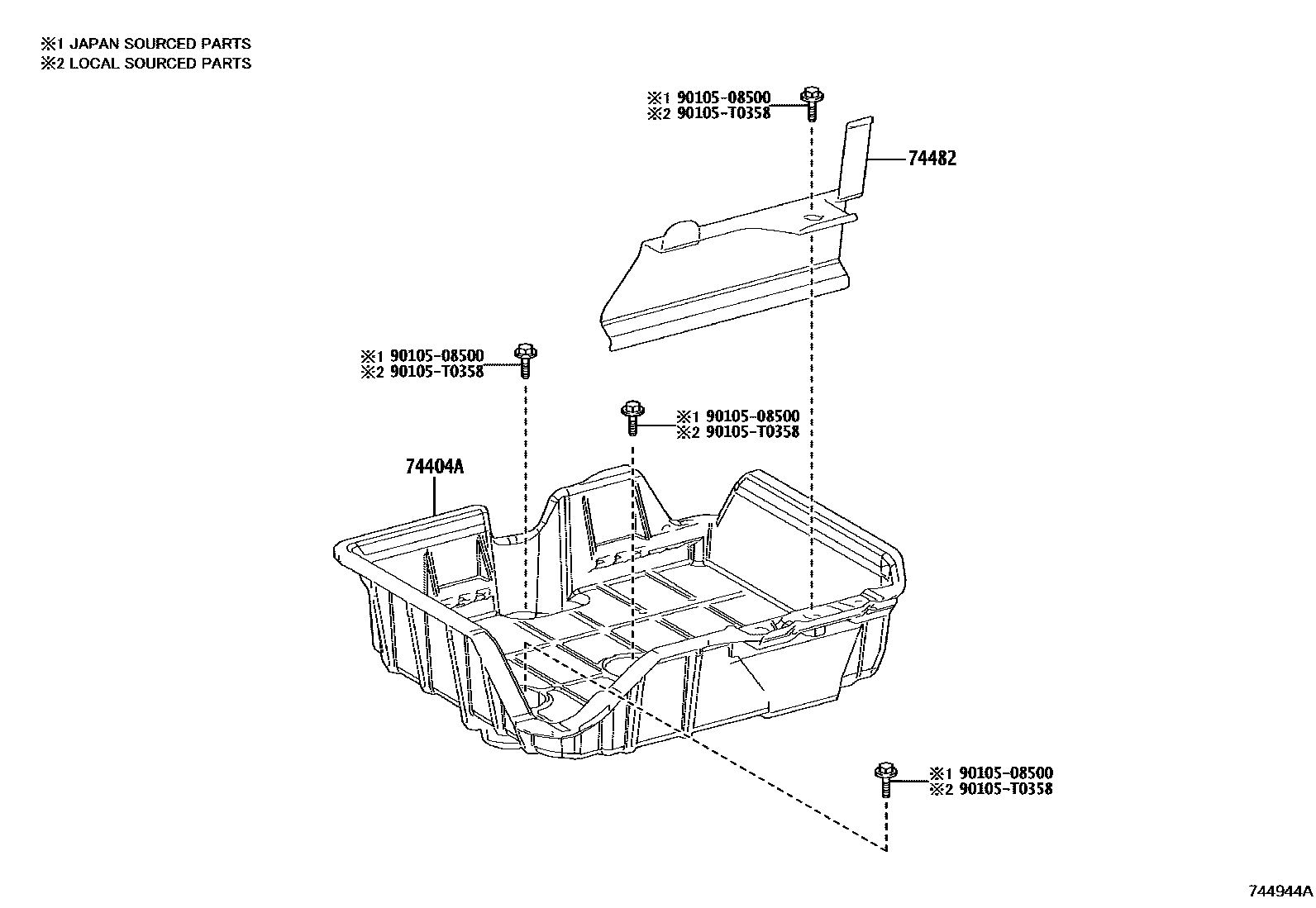

Toyota COROLLA battery holder EPC diagram — 744944A
battery holder — 744944A (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02850 · 74404-02880 · 74404-12540 · 74404-12570 · 74404-12600 · 74404-47030
74482No. 2 battery clip74405-02050 · 74405-02110 · 74482-02260 · 74482-F4030
