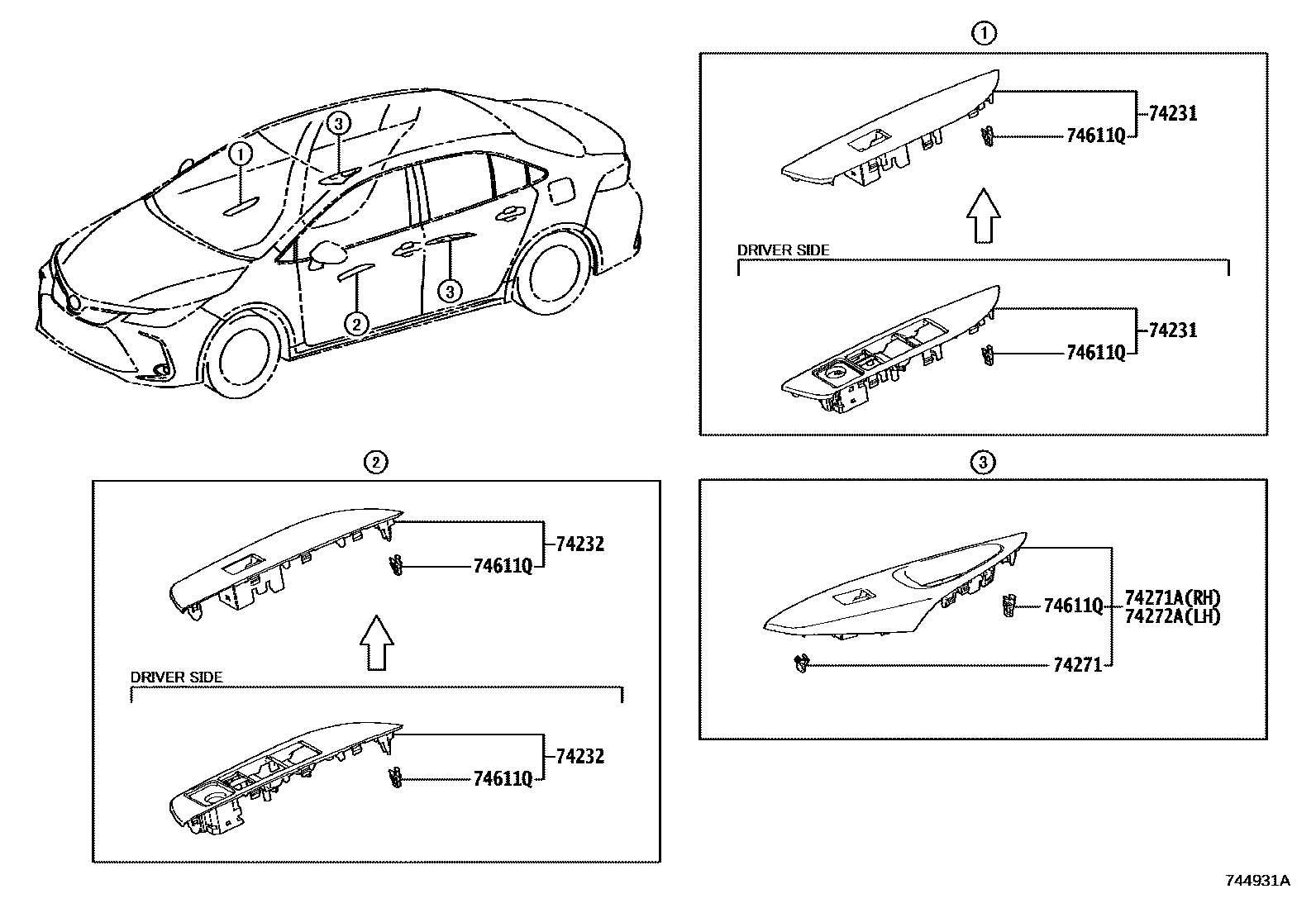

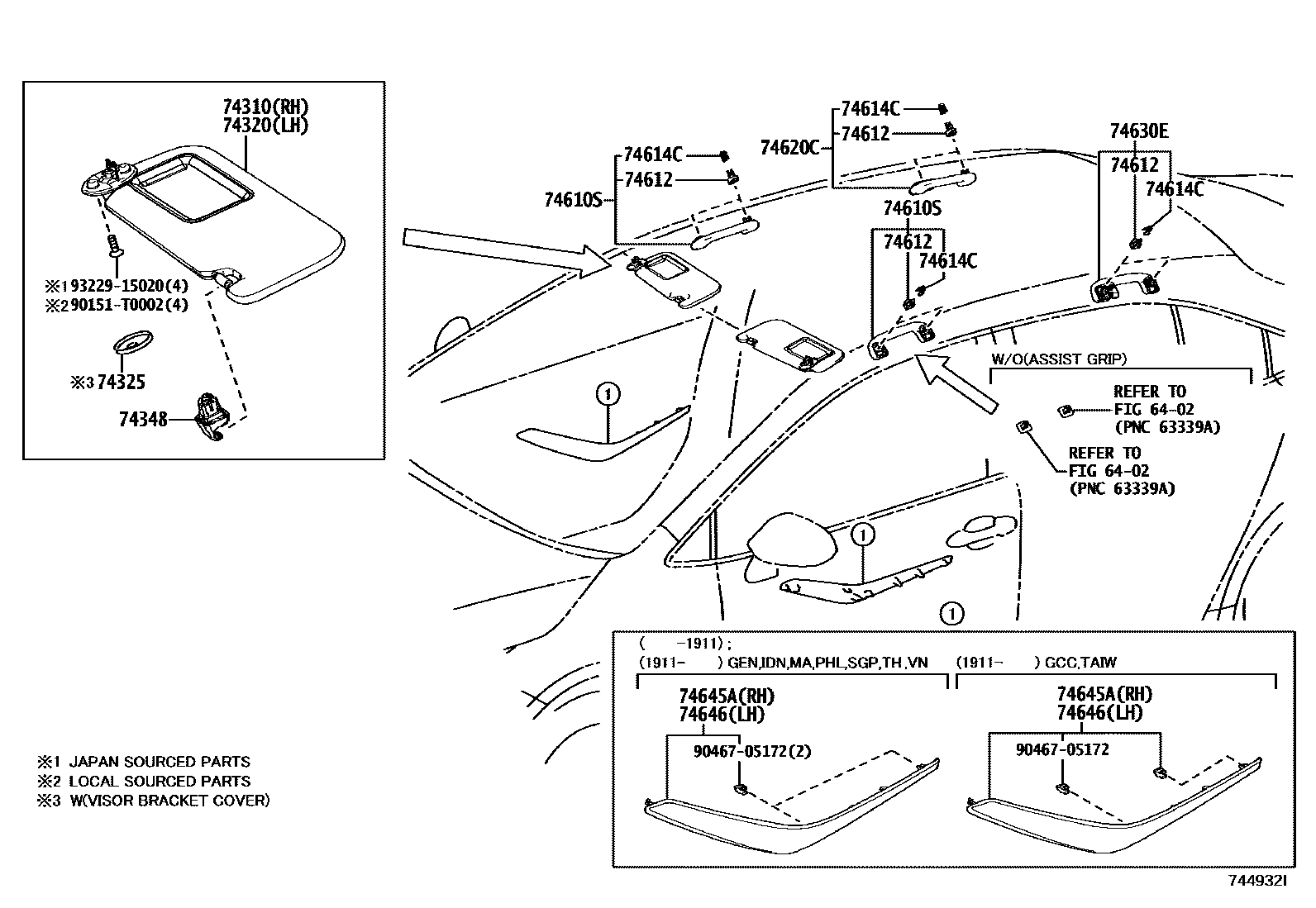

Toyota COROLLA 扶手和遮阳板 — Figure 7401
Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-02G30 · 74231-02G40 · 74231-02G50 · 74231-02G60 · 74231-02J00 · 74231-02K30 |
| 74232 | Left front armrest upper panel | 74232-02G90 · 74232-02J00 · 74232-02J10 · 74232-02J20 · 74232-02J30 · 74232-02J40 · 74232-02J50 · 74232-02K70 · 74232-02L20 |
| 74271 | door armrest fixings | 55416-60030 |
| 74271A | Right rear door armrest upper panel | 74271-02850 · 74271-02860 · 74271-02870 · 74271-02A80 |
| 74272A | Left rear door armrest upper panel | 74272-02840 · 74272-02850 · 74272-02860 · 74272-02A70 |
| 74611Q | clip | 90467-10203 · 90467-T0033 |
| 74614C | Auxiliary handle locking plate | 74614-06010 · 74614-12020 |
| 74645A | Right door auxiliary handle cover | 74645-02500 · 74645-02530 · 74645-02531 |
| 74646 | Left door auxiliary handle cover | 74646-02500 · 74646-02530 · 74646-02531 |
