Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

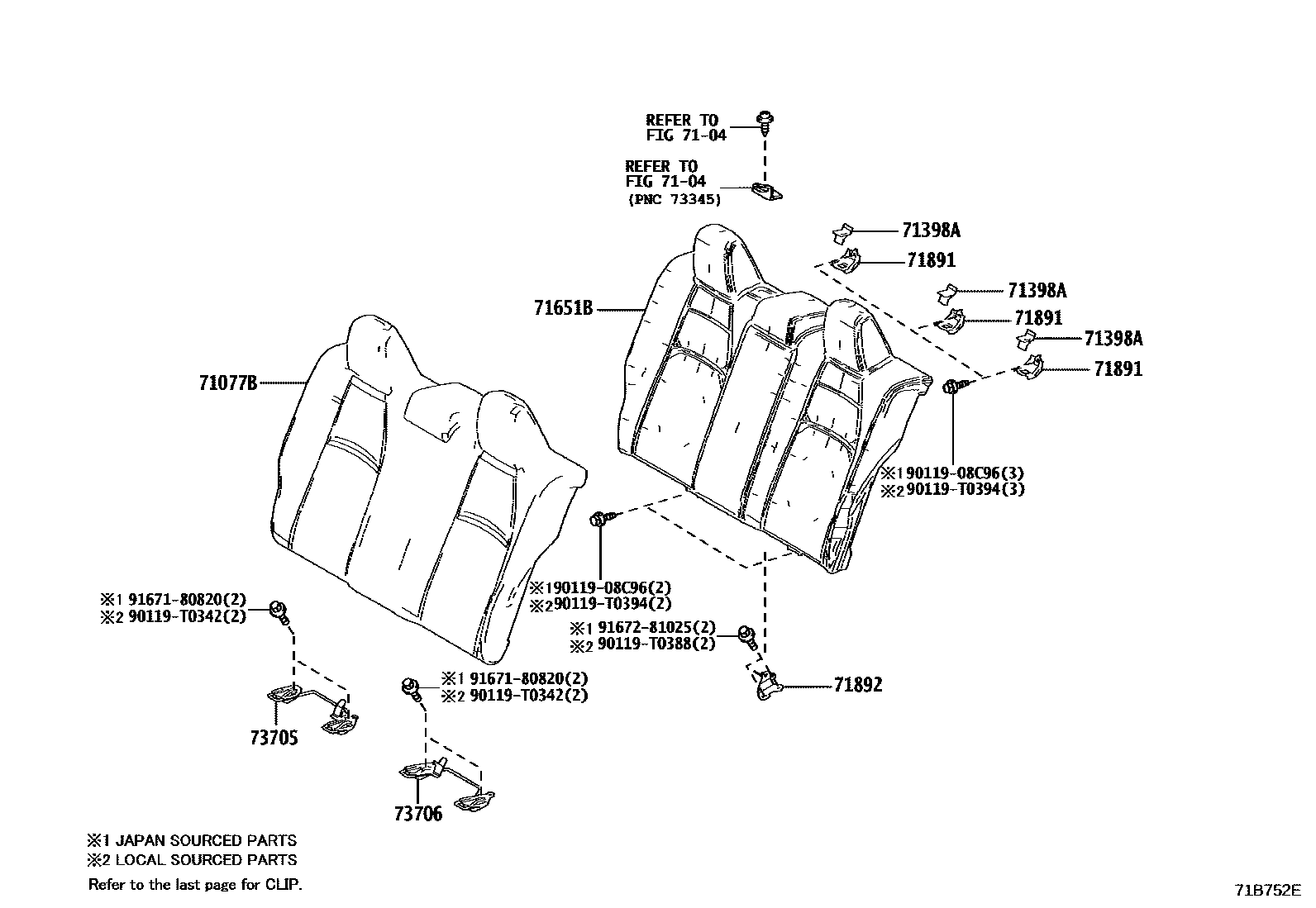

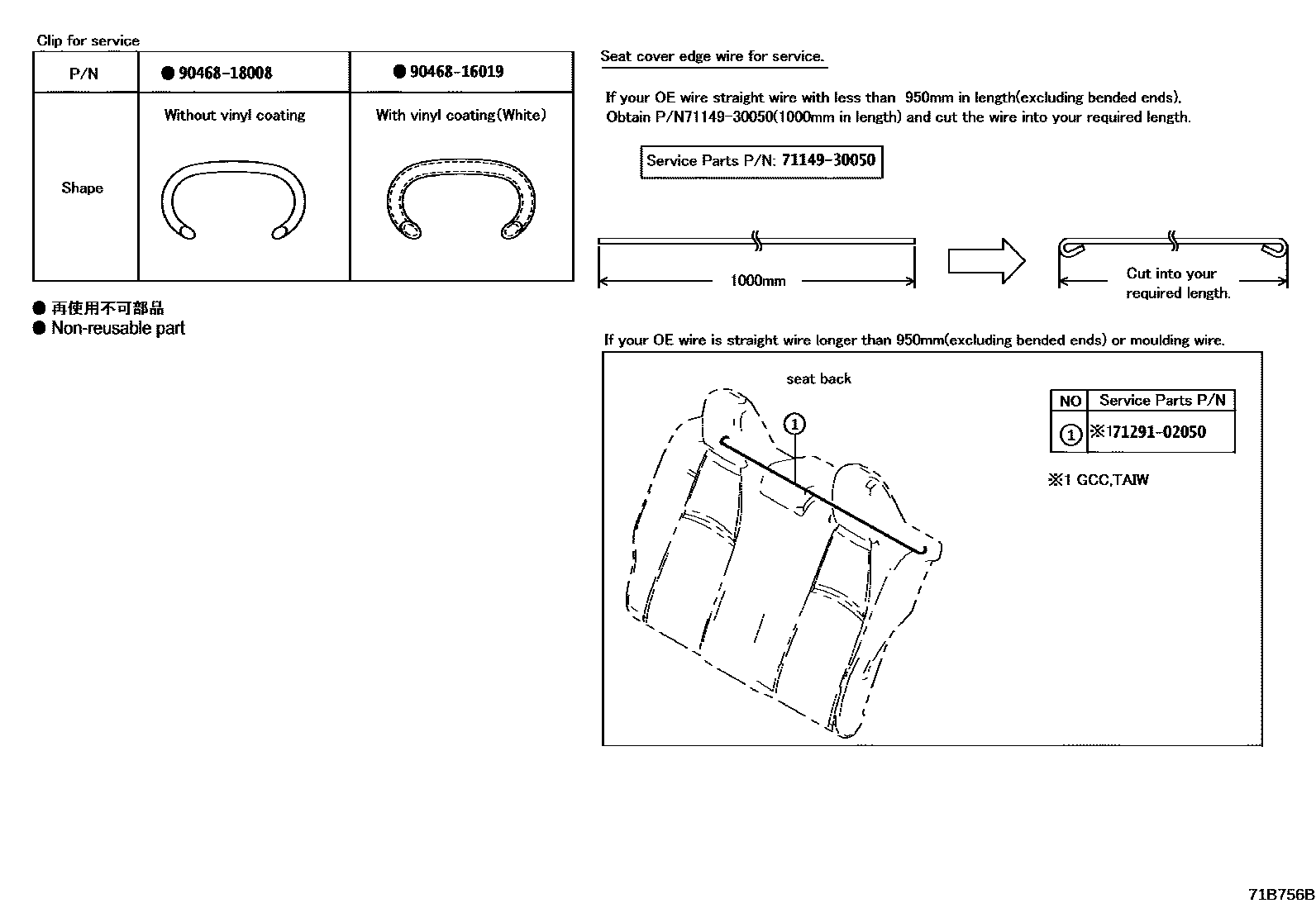

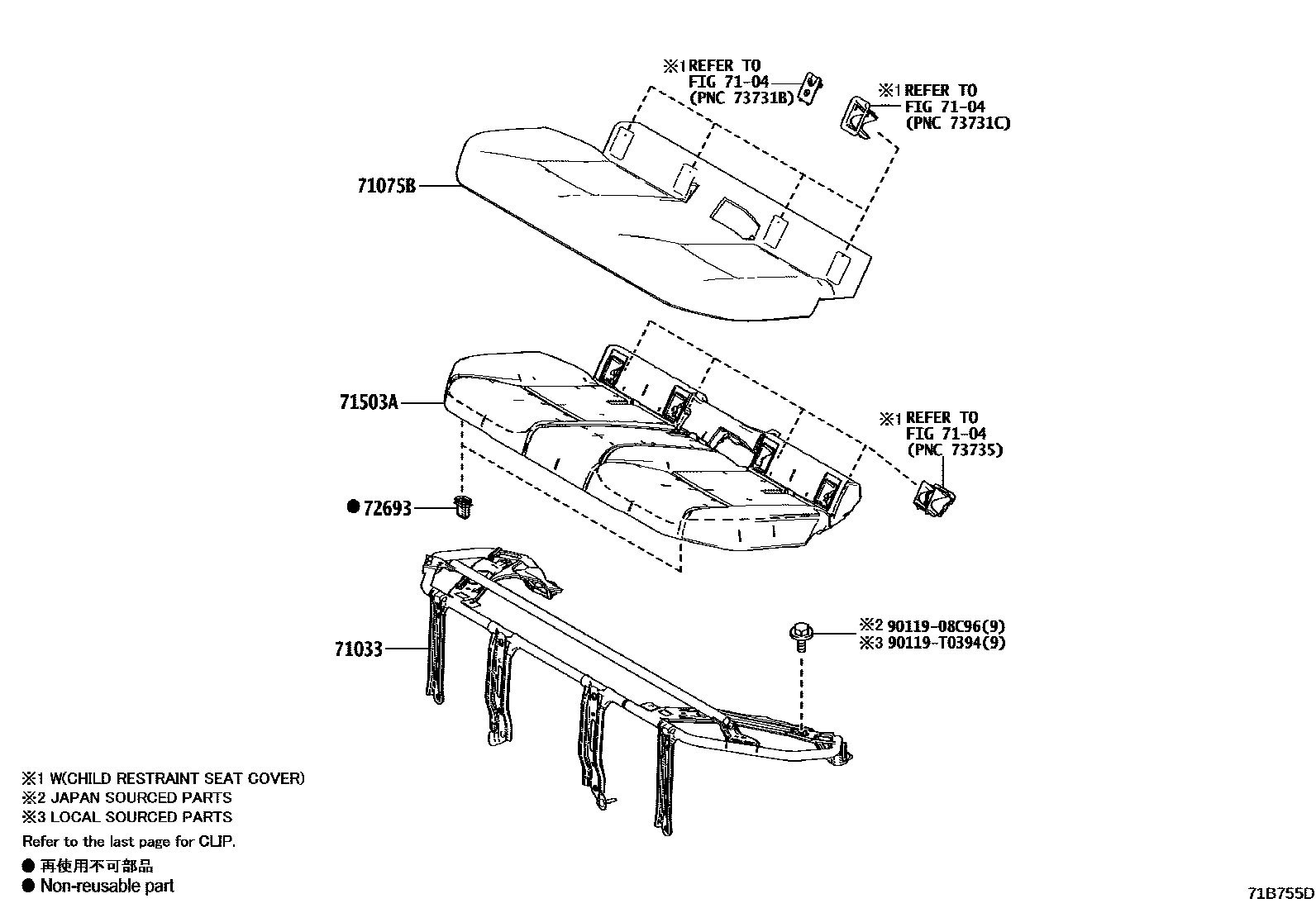

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02C30 · 71017-02C40 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02620 · 71018-02630 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-02030 · 71033-02040 · 71033-0A040 · 71033-0A050 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02350 · 71303-02360 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-02090 · 71304-02100 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02270 · 71305-02350 · 71305-02360 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71503A | Rear seat cushion sub-assembly | 71503-02530 · 71503-02700 · 71503-02750 · 71503-02751 · 71503-02760 · 71503-02761 · 71503-02B90 · 71503-02C10 · 71503-02C20 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02480 · 71507-02500 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02B00 · 71651-02B20 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02780 · 71652-02790 |
| 71891 | Rear seat No. 1 backrest fixing bracket | 71891-02060 · 71891-02080 |
| 71892 | Rear No. 2 seat backrest fixing bracket | 71891-02070 · 71891-02090 · 71891-02140 |
| 72630C | Rear right seat back lock assembly | 72630-02180 · 72630-02190 |
| 72640A | Rear left seat back lock assembly | 72640-02190 · 72640-02200 |
| 72693 | Rear seat cushion hook | 72693-02020 · 72693-12080 |
| 72839 | Rear seat armrest hinge gasket | 72839-12010 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02350 · 73705-02360 · 73705-02510 · 73705-02530 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73705-02480 · 73705-02490 · 73705-02520 · 73705-02540 |
