Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

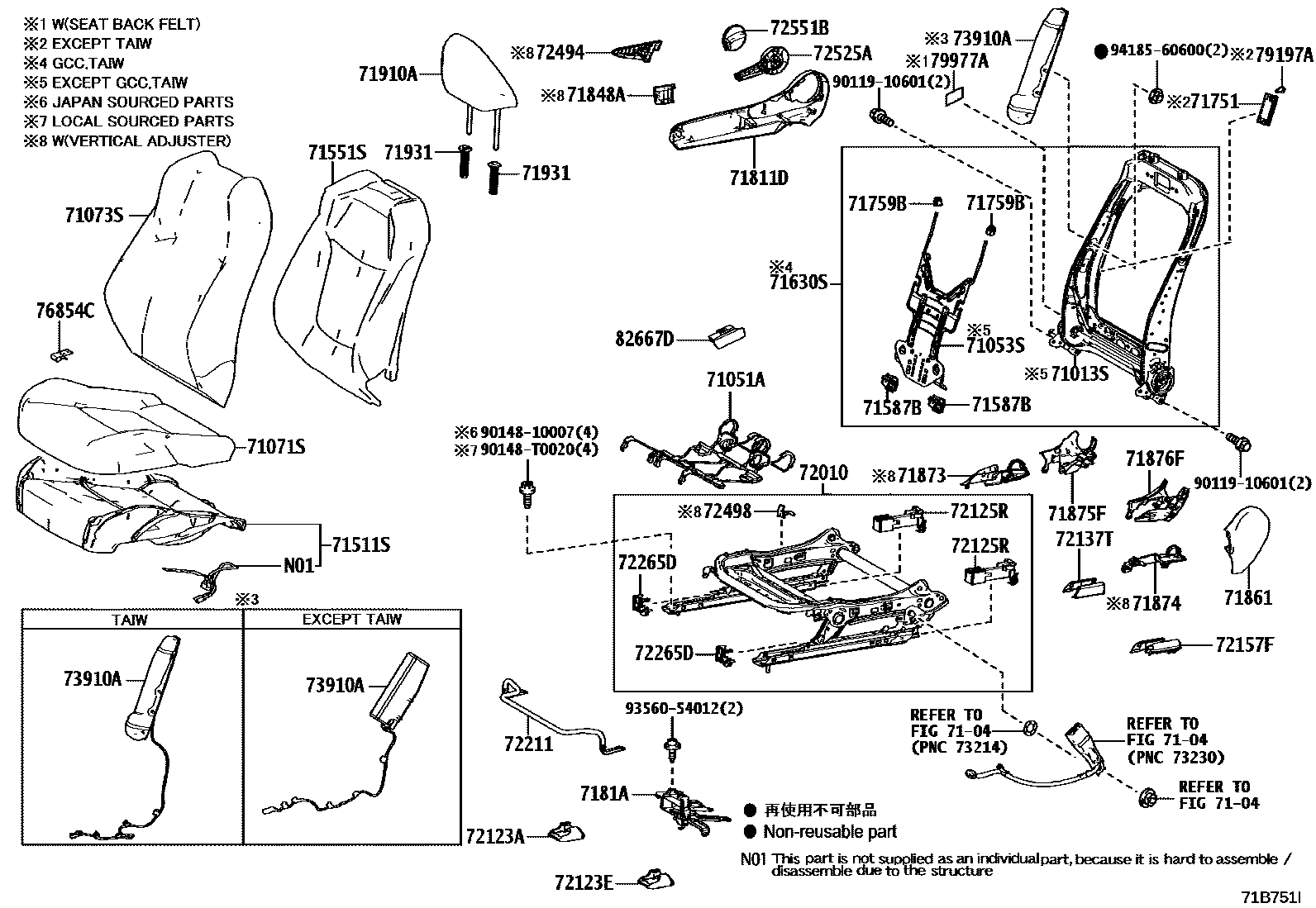

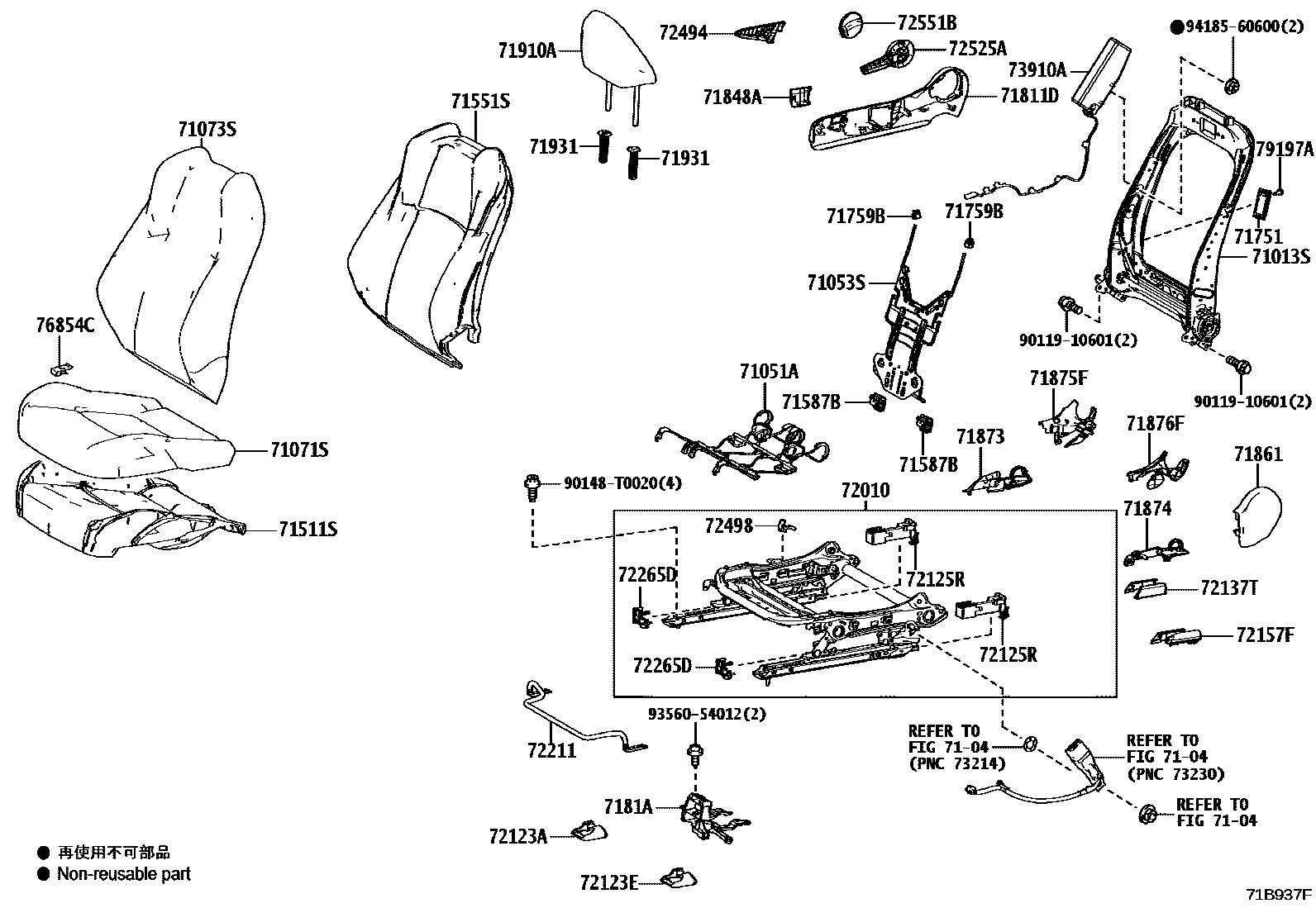

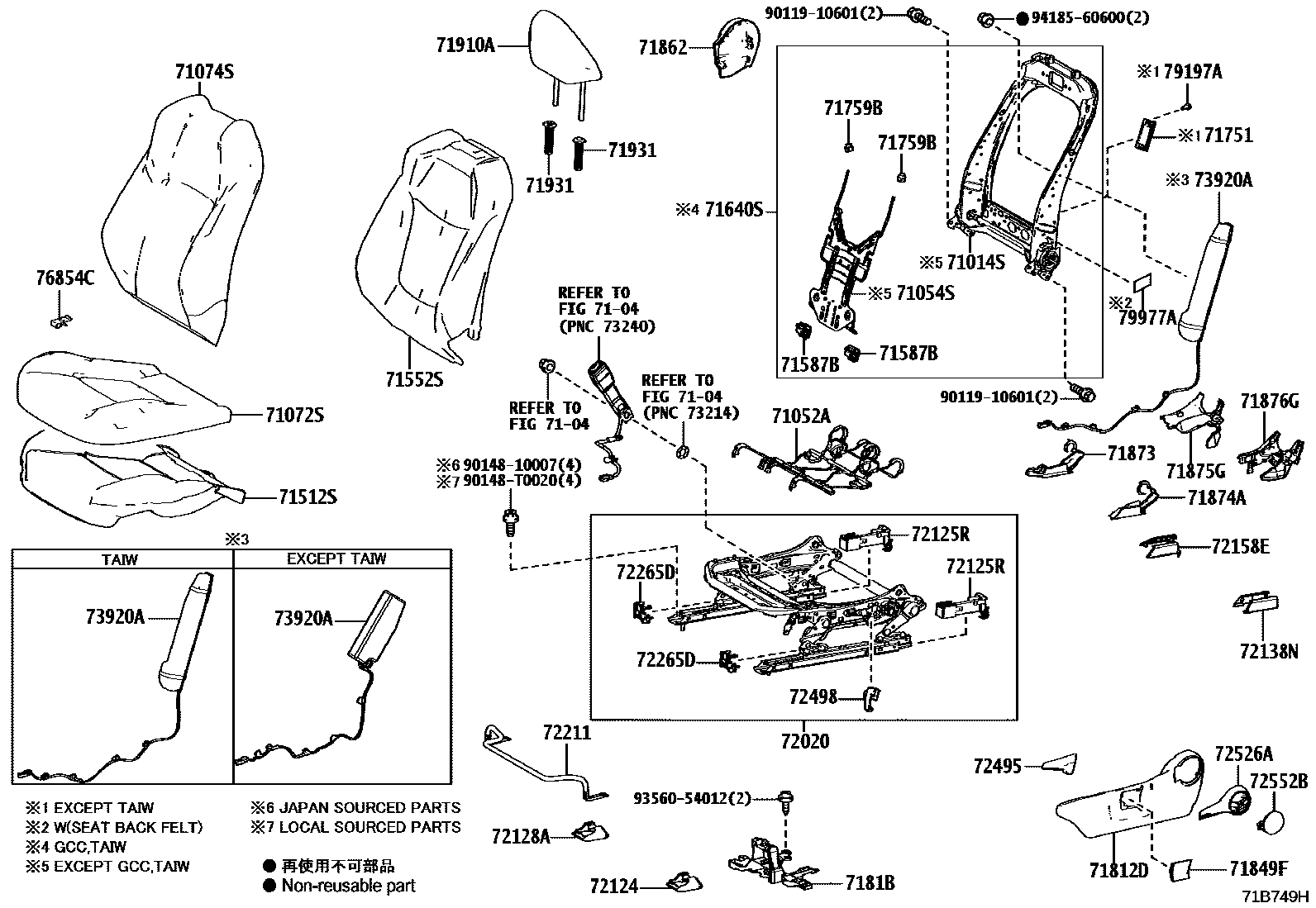

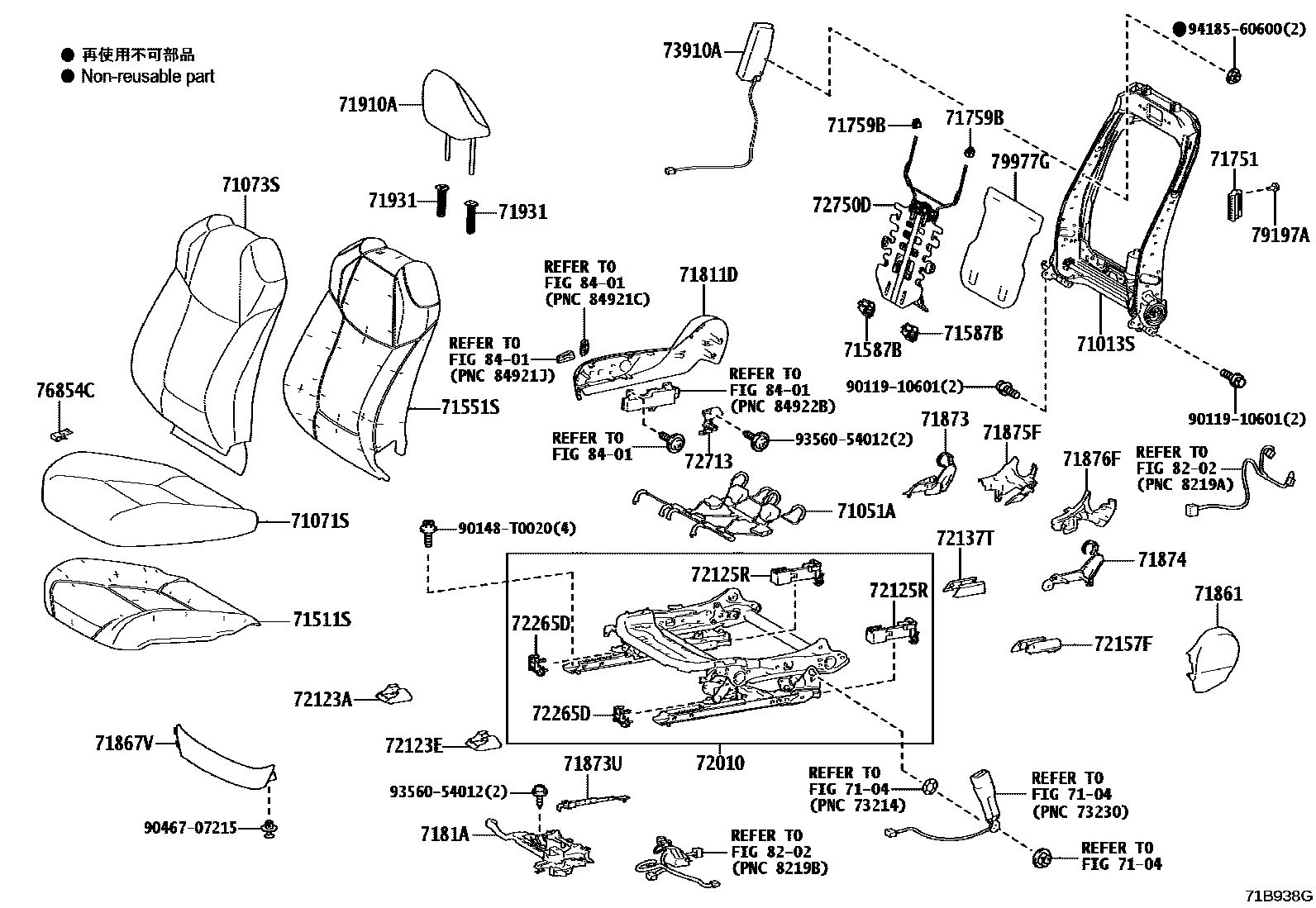

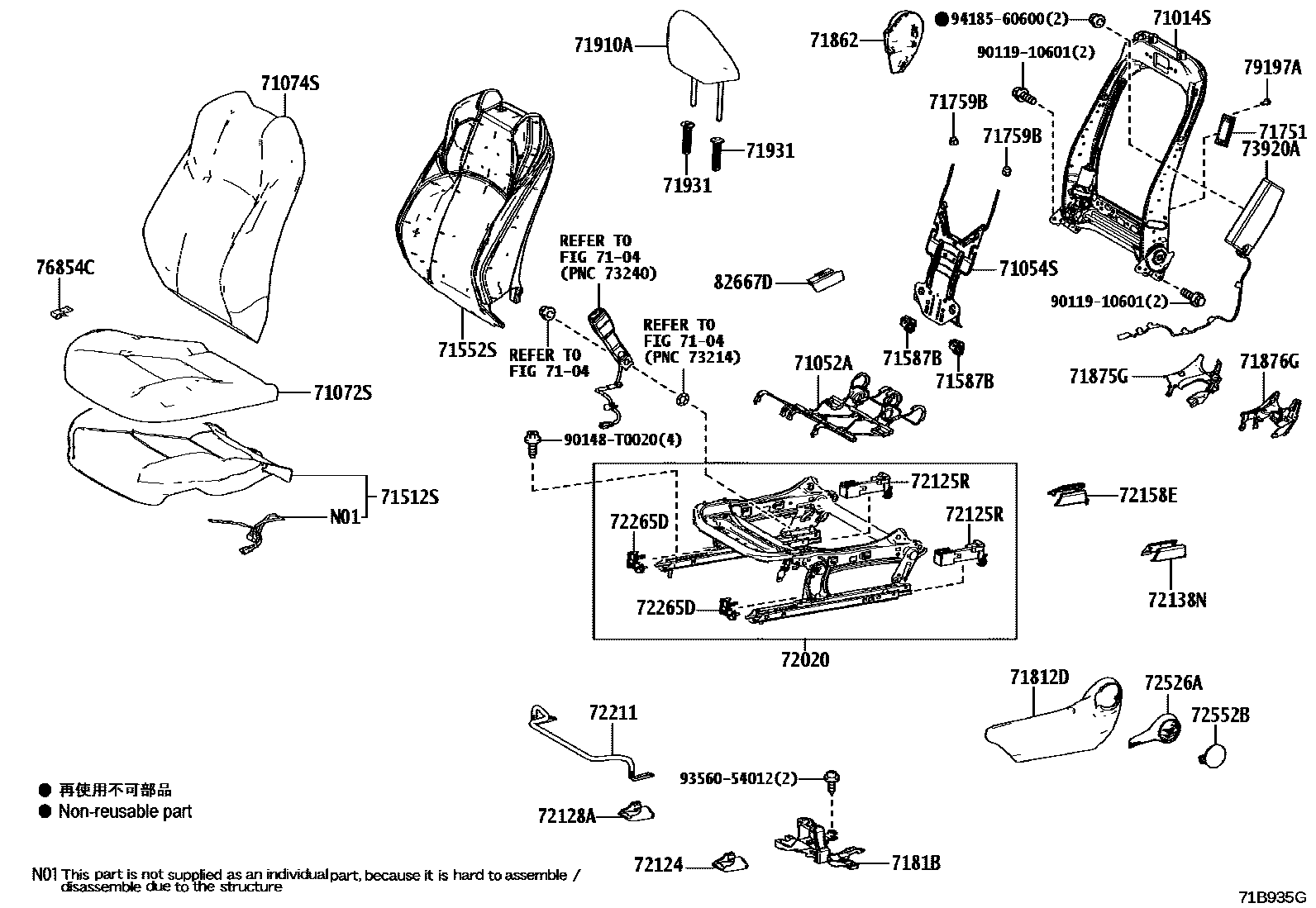

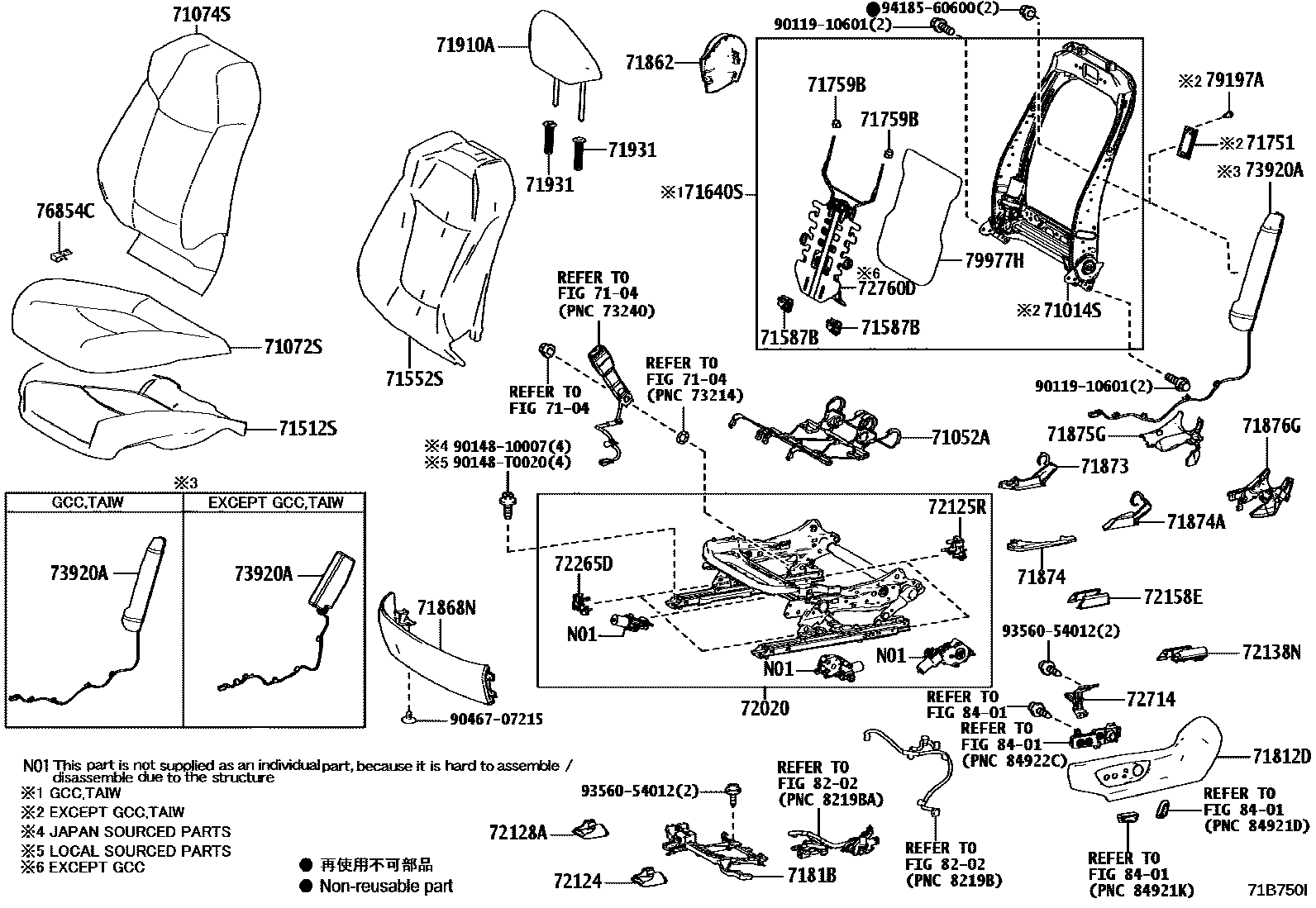

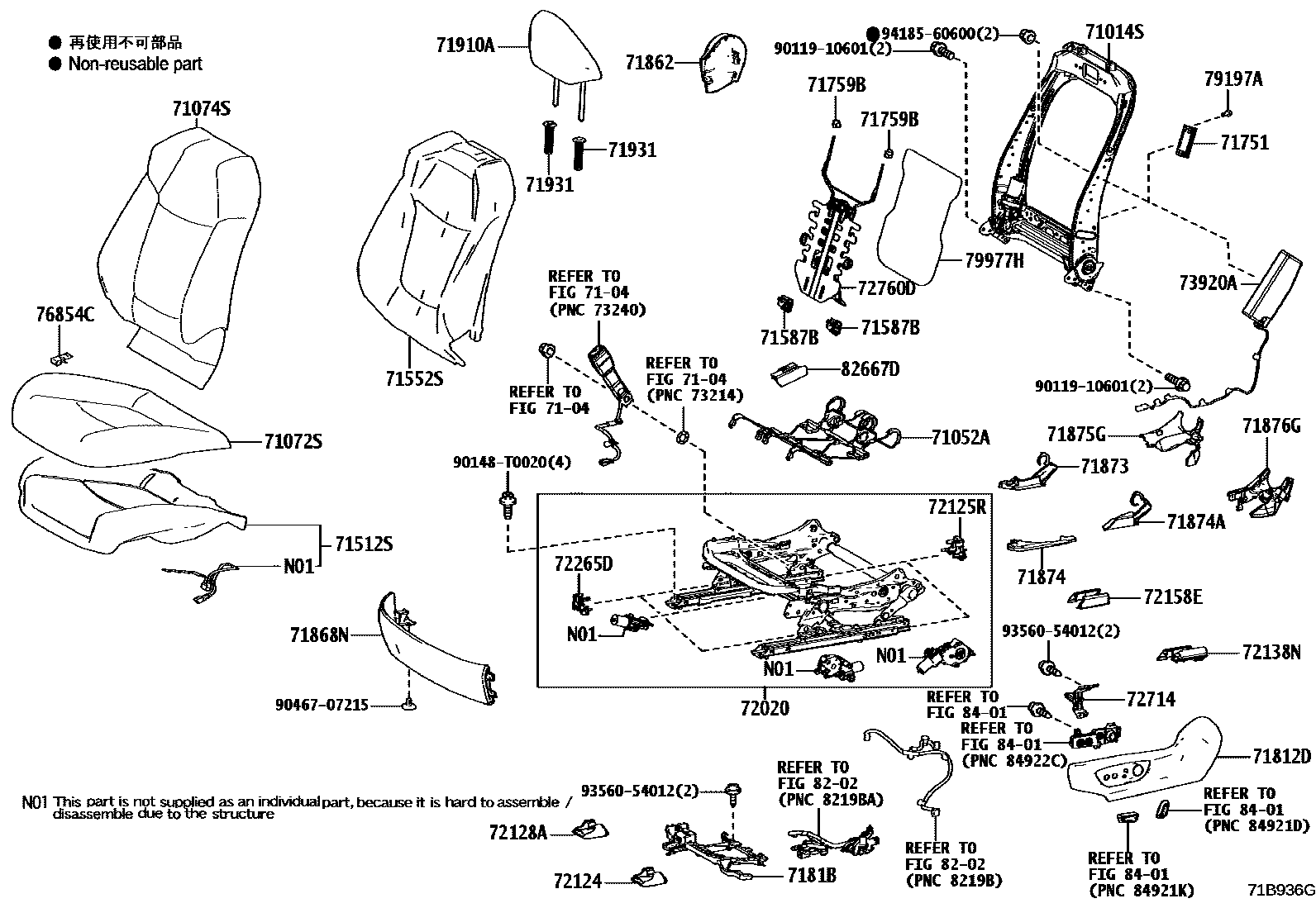

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 7 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-06580 · 71013-06581 · 71013-06620 |
| 71014S | Front left seat back frame sub-assembly | 71014-06520 · 71014-06521 · 71014-06560 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02400 · 71051-06120 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02400 · 71051-06120 |
| 71053S | Front right seat back spring sub-assembly | 71053-06160 |
| 71054S | Front left seat back spring sub-assembly | 71053-06160 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02340 · 71501-02350 · 71501-02360 · 71501-02370 · 71501-02420 · 71511-02D40 · 71511-02D50 · 71511-02D80 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02280 · 71502-02300 · 71502-02310 · 71502-02340 · 71512-02B20 · 71512-02B30 · 71512-02C00 · 71512-02C10 · 71512-02D20 · 71512-02D30 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02C60 · 71551-02E30 · 71551-02E40 · 71551-02E60 · 71551-02F50 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02C10 · 71552-02C20 · 71552-02C30 · 71552-02D20 · 71552-02D30 |
| 71587B | Front seat back edge protective cover | 71587-47010 · 71587-F4030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02A90 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02B90 · 71640-02C00 |
| 71751 | Seat cover hanger | 71751-0K070 |
| 71759B | Front seat back hook | 71759-0K060 · 71759-50040 |
| 7181A | Front right seat cushion harness holder | 7181A-02030 · 7181A-06030 · 7181A-F4020 |
| 7181B | Front left seat cushion harness holder | 7181B-02030 · 7181B-02060 · 7181B-06030 · 7181B-F4020 |
| 71873 | Front right seat cushion lower guard panel | 71873-06430 · 71874-02330 · 71874-06420 · 71874-06640 |
| 71873U | Front right seat cushion lower guard panel | 71873-06550 |
| 71874 | Front left seat cushion lower guard | 71873-06620 · 71874-02370 · 71874-06570 |
| 71874A | Front left seat cushion lower guard | 71874-02320 · 71874-06420 · 71874-06640 |
| 72010 | Front right seat adjuster assembly | 72010-02820 · 72010-02880 · 72010-06440 · 72010-06460 · 72010-06461 · 72010-06470 |
| 72020 | Front left seat adjuster assembly | 72020-02840 · 72020-02841 · 72020-02850 · 72020-06420 · 72020-06440 · 72020-06441 · 72020-06450 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02150 · 72123-06130 |
| 72123E | Front right seat inner slide rail bracket cover | 72123-02150 · 72123-06130 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-02150 · 72123-06130 |
| 72125R | Slide rail cover on rear seat No. 1 | 72125-02100 · 72125-02110 · 72125-06090 · 72125-06100 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-02150 · 72123-06130 |
| 72137T | Rear right seat outer slide rail bracket cover | 72137-02390 · 72137-06150 |
| 72138N | Rear left seat outer slide rail bracket cover | 72137-02390 · 72137-06150 |
| 72157F | Rear right seat inner slide rail bracket cover | 72157-02380 · 72157-06210 |
| 72158E | Rear left seat inner slide rail bracket cover | 72158-02350 · 72158-06210 |
| 72211 | Seat slide adjustment handle | 72211-02190 · 72211-06150 |
| 72265D | Seat rail upper rail cover | 72265-06040 · 72265-06060 · 72265-47010 · 72265-47020 |
| 72498 | Height adjuster bracket cover | 72498-02040 · 72498-06010 · 72498-06020 |
| 72713 | Right seat adjuster protective clip bracket | 72713-06020 |
| 72714 | Left seat adjuster protective clip bracket | 72714-02060 · 72714-06020 |
| 72750D | Right lumbar support adjuster assembly | 72750-33140 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 |
| 73910A | Front right seat airbag assembly | 73910-02270 · 73910-06210 · 73910-12100 |
| 73920A | Front left seat airbag assembly | 73920-02270 · 73920-06220 · 73920-12090 |
| 76854C | Front seat cushion cover wire fixings | 76854-44010 |
| 79197A | rivets | 79197-0K010 |
| 79977A | Seat back felt pad | 79977-02120 |
| 79977G | Front seat back right felt pad | 79977-06040 |
| 79977H | Felt pad, left side of front seat backrest | 79977-06040 · 79977-33030 |
| 82667D | Connector holder | 82666-47630 |
