Toyota COROLLA 锁芯组件 — Figure 6712

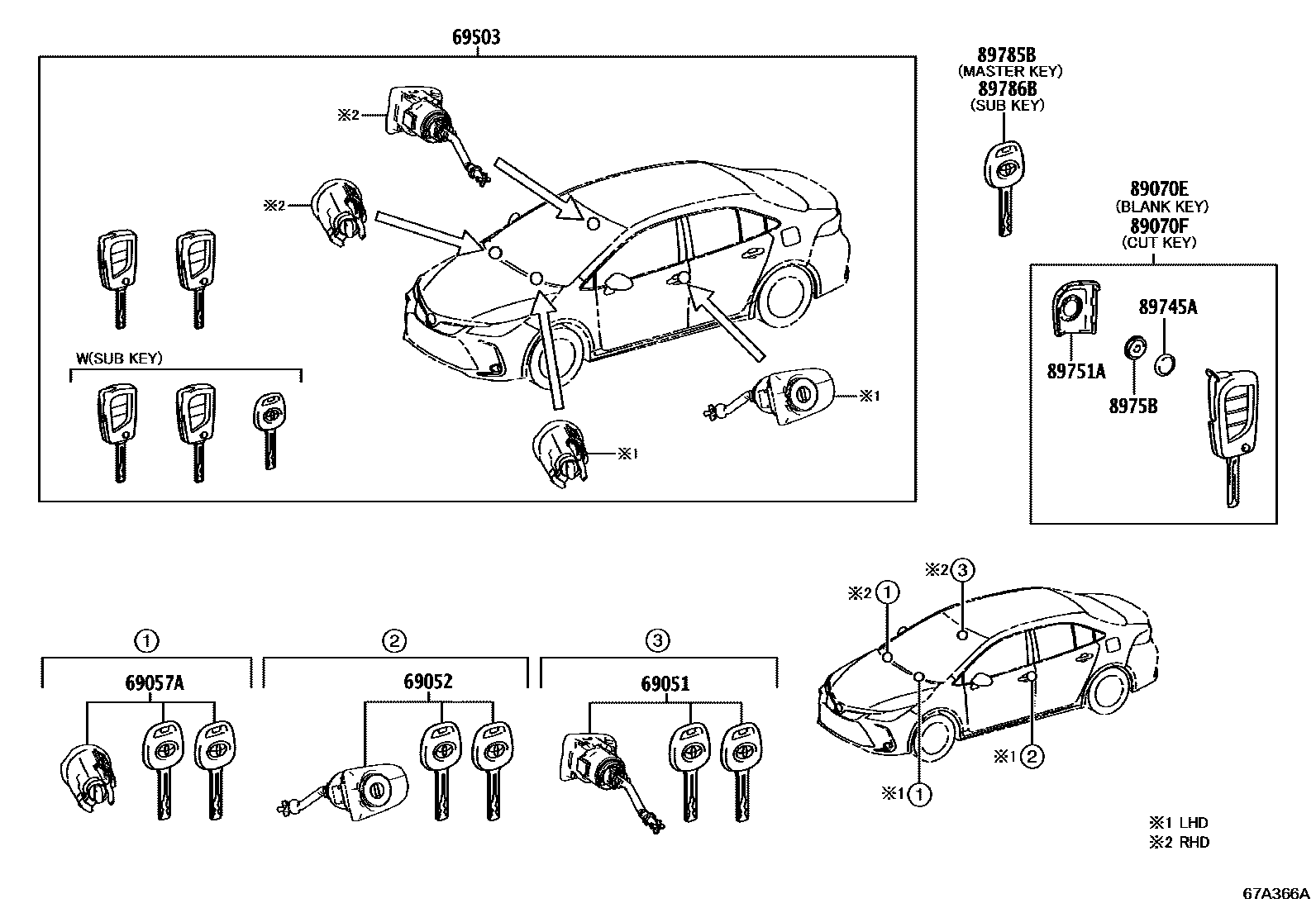

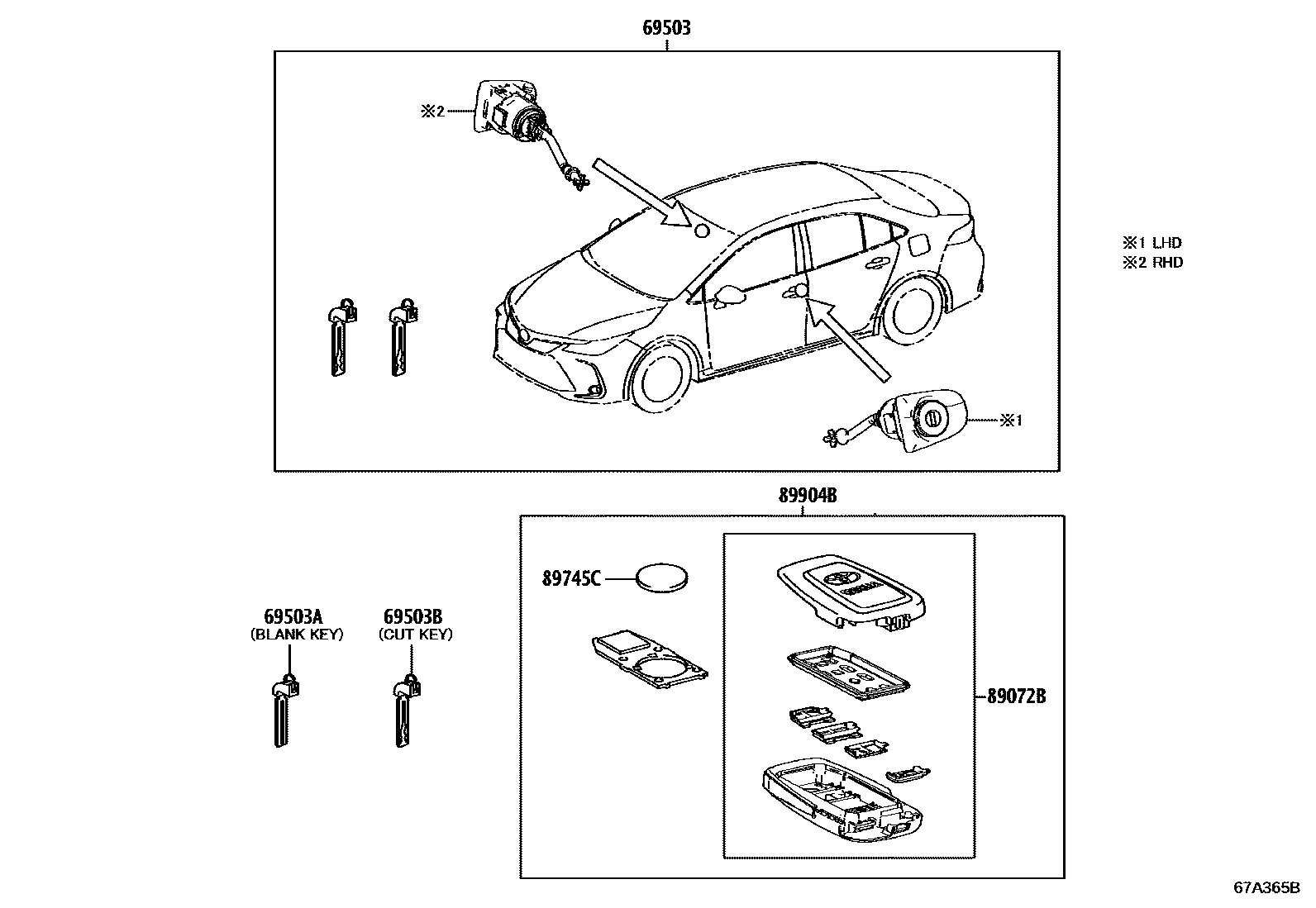

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02420 |
| 69052 | Left door lock cylinder and key assembly | 69052-02520 · 69052-02530 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02B40 · 69057-02B50 · 69057-02B60 · 69057-02B70 |
| 69503 | Door lock cylinder components | 69005-02K20 · 69005-02K21 · 69005-02K30 · 69005-02K40 · 69005-02K41 · 89704-02E10 · 89704-02E40 · 89704-02E50 · 89704-02E60 · 89704-02E70 |
| 69503A | external tooth key | 69515-06050 · 69515-16110 · 69515-47030 |
| 69503B | internal tooth key | 69515-06040 · 69515-0A010 · 69515-16100 · 69515-47020 |
| 89070E | Remote key assembly | 89070-02F80 · 89070-02F90 · 89070-02G00 · 89070-02J50 · 89070-02J60 |
| 89070F | Remote key assembly (internal tooth key) | 89070-02G30 · 89070-02K00 · 89070-02K20 |
| 89072B | Remote key shell assembly (for smart key) | 89072-02810 · 89072-02820 · 89072-02A00 · 89072-02A20 · 89072-02A50 · 89072-02A60 · 89072-02B20 · 89072-02B21 · 89072-02B30 · 89072-12560 · 89072-12590 · 89072-12B50 · 89072-12B60 |
| 89745A | Transmitter battery | 89745-02090 · 89745-0K010 |
| 89745C | Transmitter battery | 89745-0K010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-02280 |
| 8975B | Remote control battery case cover | 8975B-02030 · 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-0K080 · 89785-28070 |
| 89786B | transceiver key secondary transmitter | 89786-12130 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-02060 · 8990H-02070 · 8990H-02150 · 8990H-02160 · 8990H-02180 · 8990H-02190 · 8990H-02280 · 8990H-02281 · 8990H-02290 · 8990H-12070 · 8990H-12090 · 8990H-12500 · 8990H-12600 · 8990H-12620 · 8990H-12630 |
