Toyota COROLLA 后门车窗升降器和合页 — Figure 6707

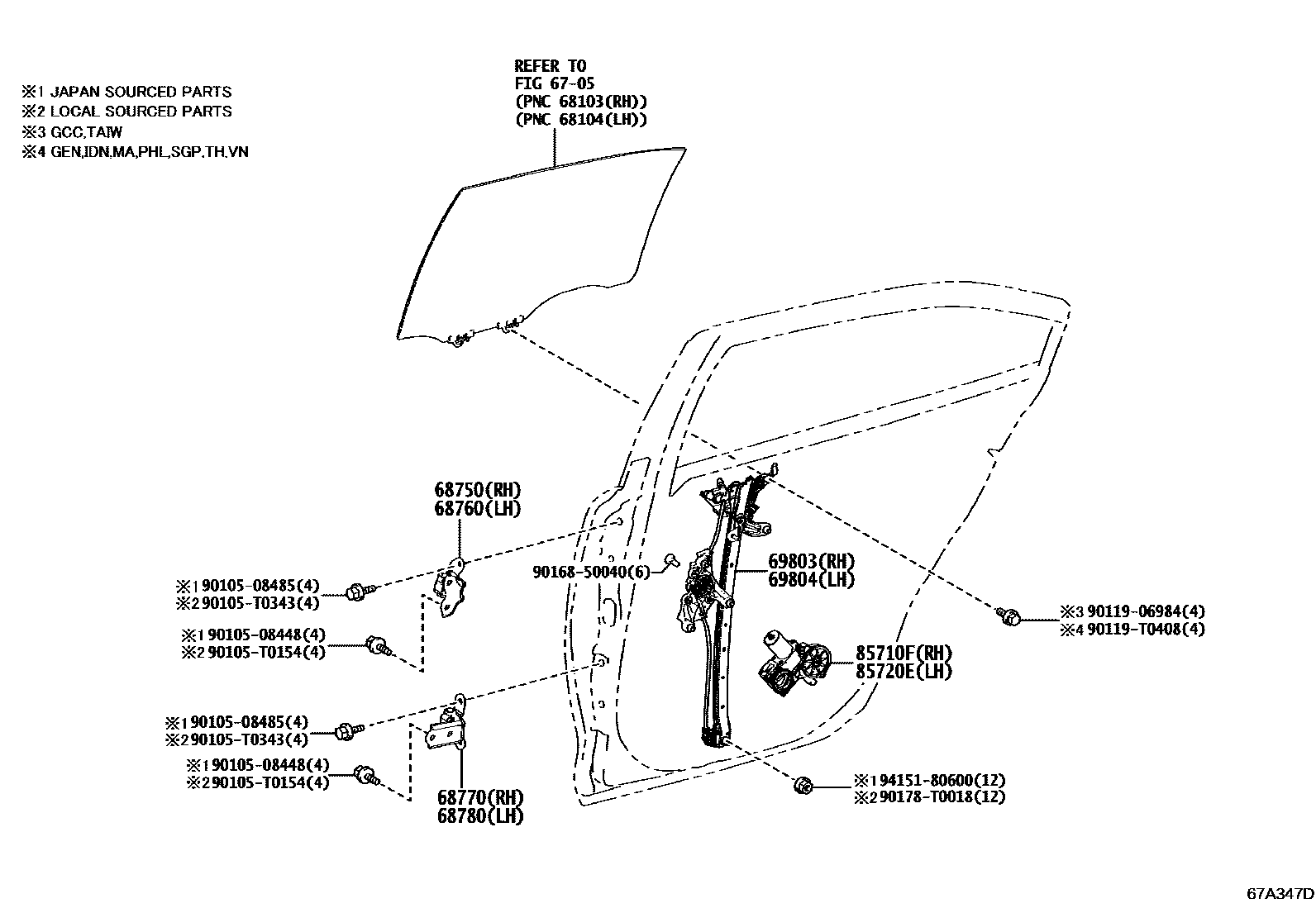

Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-0D030 · 68750-20122 |
| 68760 | Left rear door upper hinge assembly | 68760-0D030 · 68760-20122 |
| 68770 | Right rear door lower hinge assembly | 68770-02100 · 68770-06070 · 68770-33050 |
| 68780 | Left rear door lower hinge assembly | 68780-02100 · 68780-06070 · 68780-33050 |
| 69803 | Right rear door window lifter sub-assembly | 69803-02360 · 69803-02361 · 69803-02400 · 69803-02401 · 69803-02402 |
| 69804 | Left rear door window lifter sub-assembly | 69804-02360 · 69804-02361 · 69804-02400 · 69804-02401 · 69804-02402 |
| 85710F | Right power window lift motor assembly | 85710-02600 · 85710-02700 |
| 85720E | Left electric window lift motor assembly | 85720-02630 · 85720-02750 |
