Toyota COROLLA 后门锁和后门把手 — Figure 6706

Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 23 PNC and OE references.

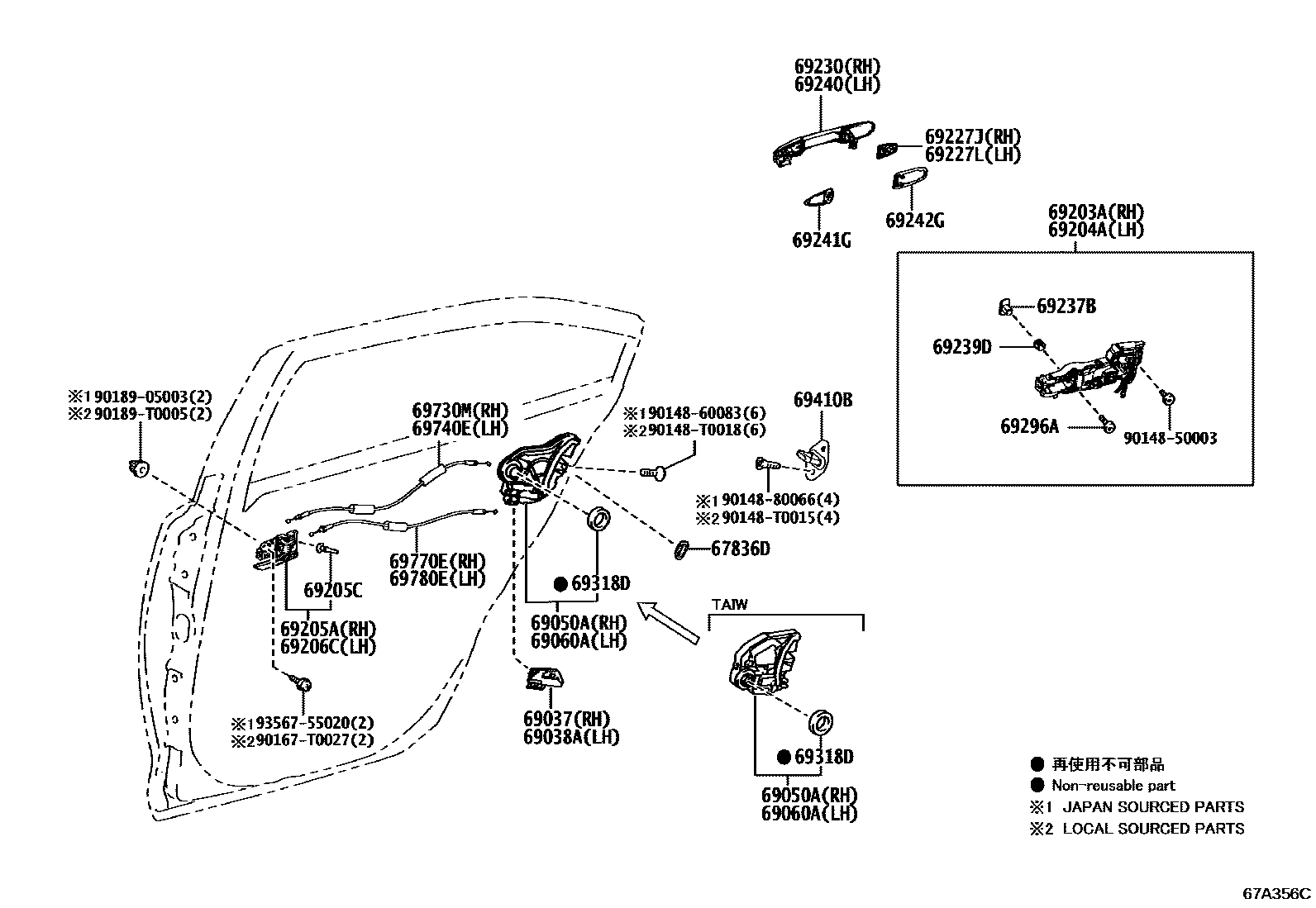

Toyota COROLLA 后门锁和后门把手 EPC diagram — 67A356C
后门锁和后门把手 — 67A356C (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
67836DRear door lock child restraint cover67836-33030
69037Right rear door door lock cover sub-assembly69037-02040 · 69037-02050
69038ALeft rear door door lock cover sub-assembly69038-02040 · 69038-02050
69050ARight rear door lock assembly with motor69050-02530 · 69050-02540 · 69050-02660
69060ALeft rear door lock assembly with motor69060-02530 · 69060-02540 · 69060-02660
69203ARight rear door outer handle frame sub-assembly69203-02420 · 69203-02430
69204ALeft rear door outer handle frame sub-assembly69204-02420 · 69204-02430
69205CCushion pad (for rear door inner handle)90541-04014
69227JRight rear door outer handle cover69227-02420 · 69227-06140
69227LLeft rear door outer handle cover69227-02420 · 69227-06140
69230Right rear door outer handle assembly69211-02420 · 69211-02938 · 69211-02940 · 69211-06170
69237BRear door handle nut69237-0K040 · 69237-62010
69239DRear door handle bushing69239-02080 · 69239-06060
69240Left rear door outer handle assembly69211-02420 · 69211-02938 · 69211-02940 · 69211-06170
69241GRear door front exterior handle pad69241-02300 · 69241-06140
69242GRear door rear outer handle pad69242-02290 · 69242-06140
69296ACar door inner handle screws69296-0M010 · 90148-50006
69318Ddoor lock harness seal69318-51010
69410BRear door lock plate assembly69410-02040 · 69410-0K070 · 69410-20110
69730MRight rear door lock remote control cable (for opening lever)69730-02340 · 69730-02350 · 69730-02480
69740ELeft rear door lock remote control cable (for opening lever)69730-02340 · 69730-02350 · 69730-02480
69770ERight rear door inner locking cable (for locking/unlocking handle)69770-02440 · 69770-02450 · 69770-02580
69780ELeft rear door inner lock cable (for locking/unlocking handle)69770-02440 · 69770-02450 · 69770-02580
