Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 34 PNC and OE references.

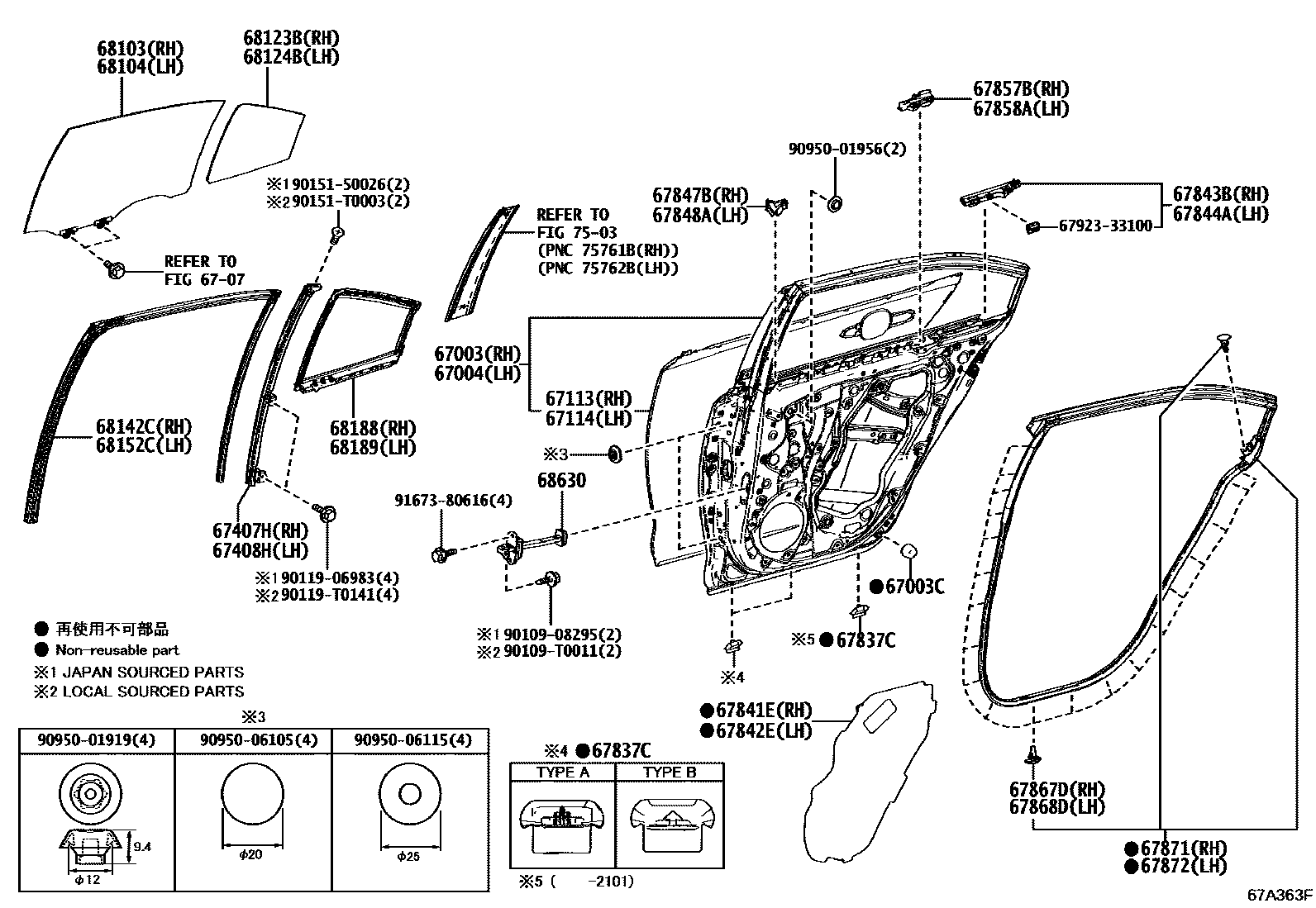

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 67A363F
后门板和后门玻璃 — 67A363F (201904 – 999999)

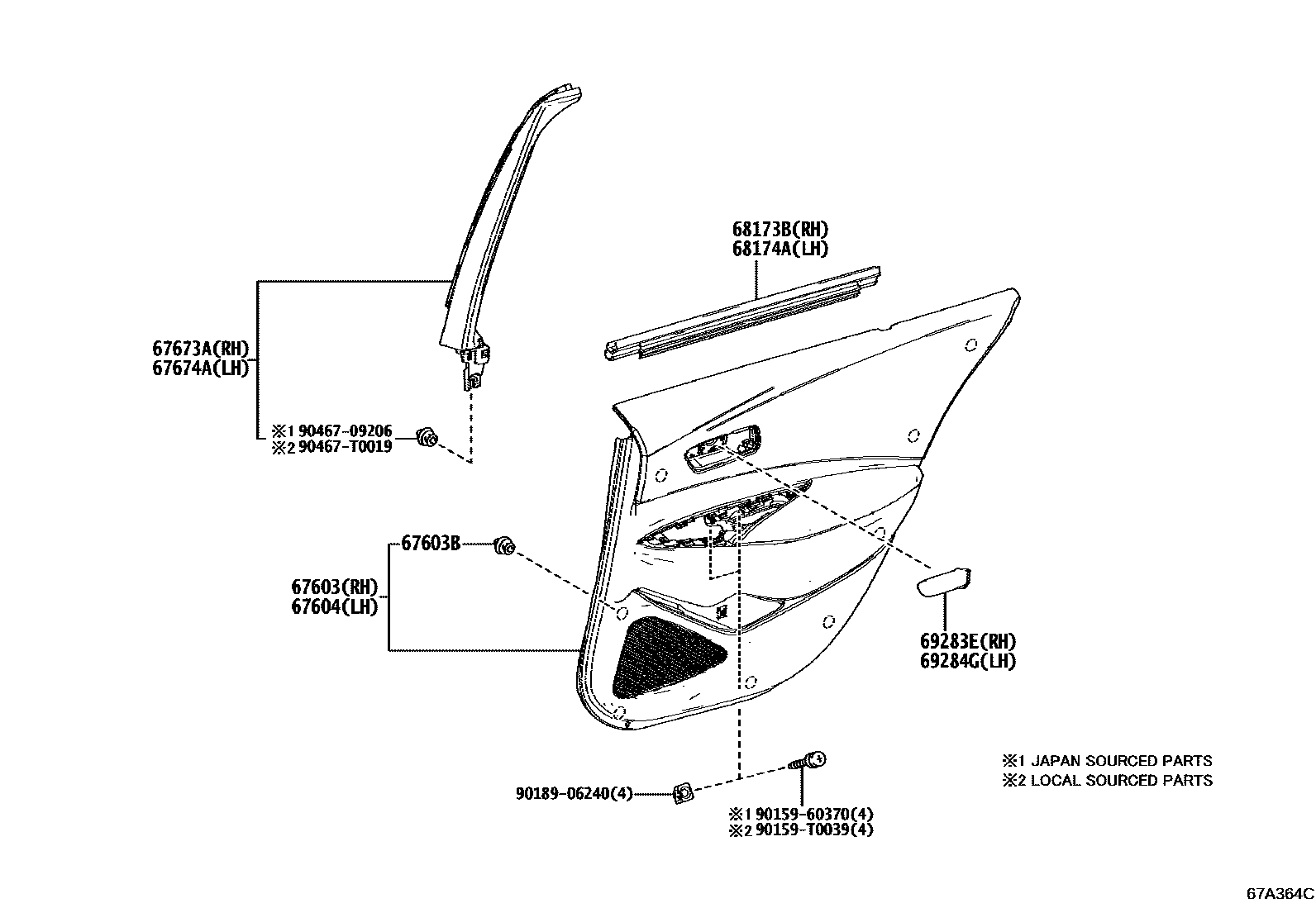

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 67A364C
后门板和后门玻璃 — 67A364C (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-02570 · 67003-02580
67003CRear door panel cushion90541-09124
67004Left rear door panel sub-assembly67004-02580 · 67004-02590
67113Right rear door outer panel67113-02320 · 67113-02330
67114Left rear door outer panel67114-02320 · 67114-02330
67407HRight sliding door window divider sub-assembly67407-02230 · 67407-02240
67408HLeft rear sliding door window divider sub-assembly67408-02230 · 67408-02240
67603BCatch (for rear door trim panel)90467-09206 · 90467-T0019
67673ARight rear door frame decorative strip67673-02040 · 67673-02050
67674ALeft rear door frame decorative strip67674-02040 · 67674-02050
67837CRear door dust seal retainer67837-0K090 · 67837-48050
67841ERight rear door access hole cover67841-02460 · 67841-02470
67842ELeft rear door access hole cover67842-02430 · 67842-02440
67843BRight rear door No. 2 access hole cover67843-02040 · 67843-02050
67844ALeft rear door No. 2 access hole cover67844-02040 · 67844-02050
67847BNo. 1 right rear door ventilation device seal67847-02120 · 67847-02130
67848ANo. 1 left rear door ventilator seal67848-02060 · 67848-02070
67857BRight rear door panel protector67857-02130 · 67857-02140
67858ALeft rear door panel protector67858-02130 · 67858-02140
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67871Right rear door sealing strip67871-02350 · 67871-02360
67872Left rear door sealing strip67872-02350 · 67872-02360
68103Right rear door glass sub-assembly68103-02610 · 68103-02620
68104Left rear door glass sub-assembly68104-02610 · 68104-02620
68123BRight rear door corner window glass68123-02530 · 68123-02540
68124BLeft rear door corner window glass68124-02530 · 68124-02540
68142CRight rear door glass lift slot68142-02380 · 68142-02381 · 68142-02390 · 68142-02391
68152CLeft rear door glass lift slot68152-02380 · 68152-02381 · 68152-02390 · 68152-02391
68173BRight rear door glass inner sealing strip68173-02420 · 68173-02430
68174ALeft rear door glass inner sealing strip68174-02360 · 68174-02370
68188Right rear door corner window seal68188-02270 · 68188-02280
68189Left rear door corner window seal68189-02270 · 68189-02280
68630Rear door opening limiter assembly68630-02360 · 68630-02370
