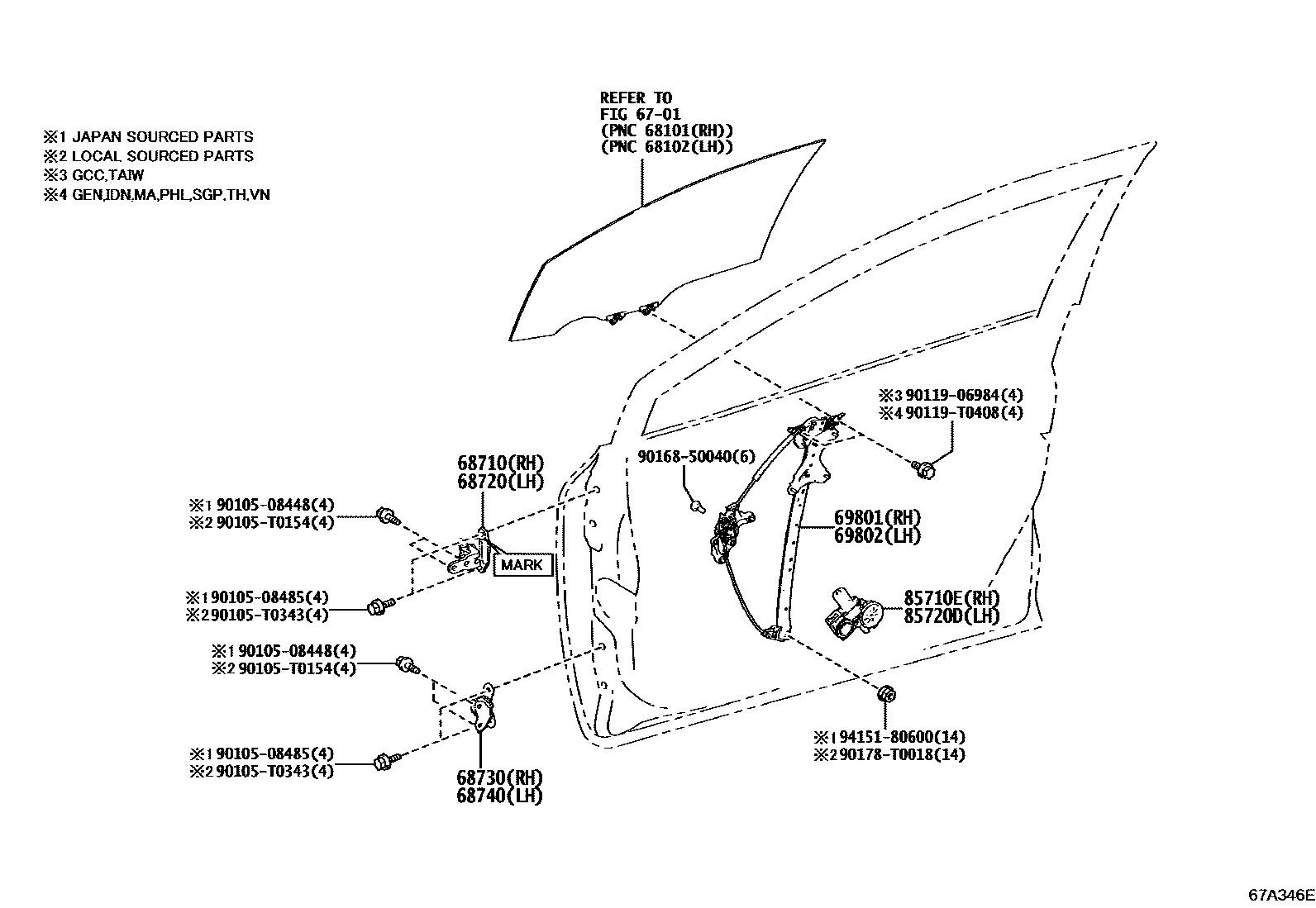

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-0D050 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-0D050 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-02100 |
| 68740 | Left front door lower hinge assembly | 68740-02100 |
| 69801 | Right front door window lifter sub-assembly | 69801-02420 · 69801-02421 · 69801-02460 · 69801-02461 |
| 69802 | Left front door window lifter sub-assembly | 69802-02430 · 69802-02431 · 69802-02470 · 69802-02471 |
| 85710E | Right power window lift motor assembly | 85710-02590 · 85710-02690 |
| 85720D | Left electric window lift motor assembly | 85720-02620 · 85720-02740 |
