Toyota COROLLA 前门锁和车门把手 — Figure 6703

Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 25 PNC and OE references.

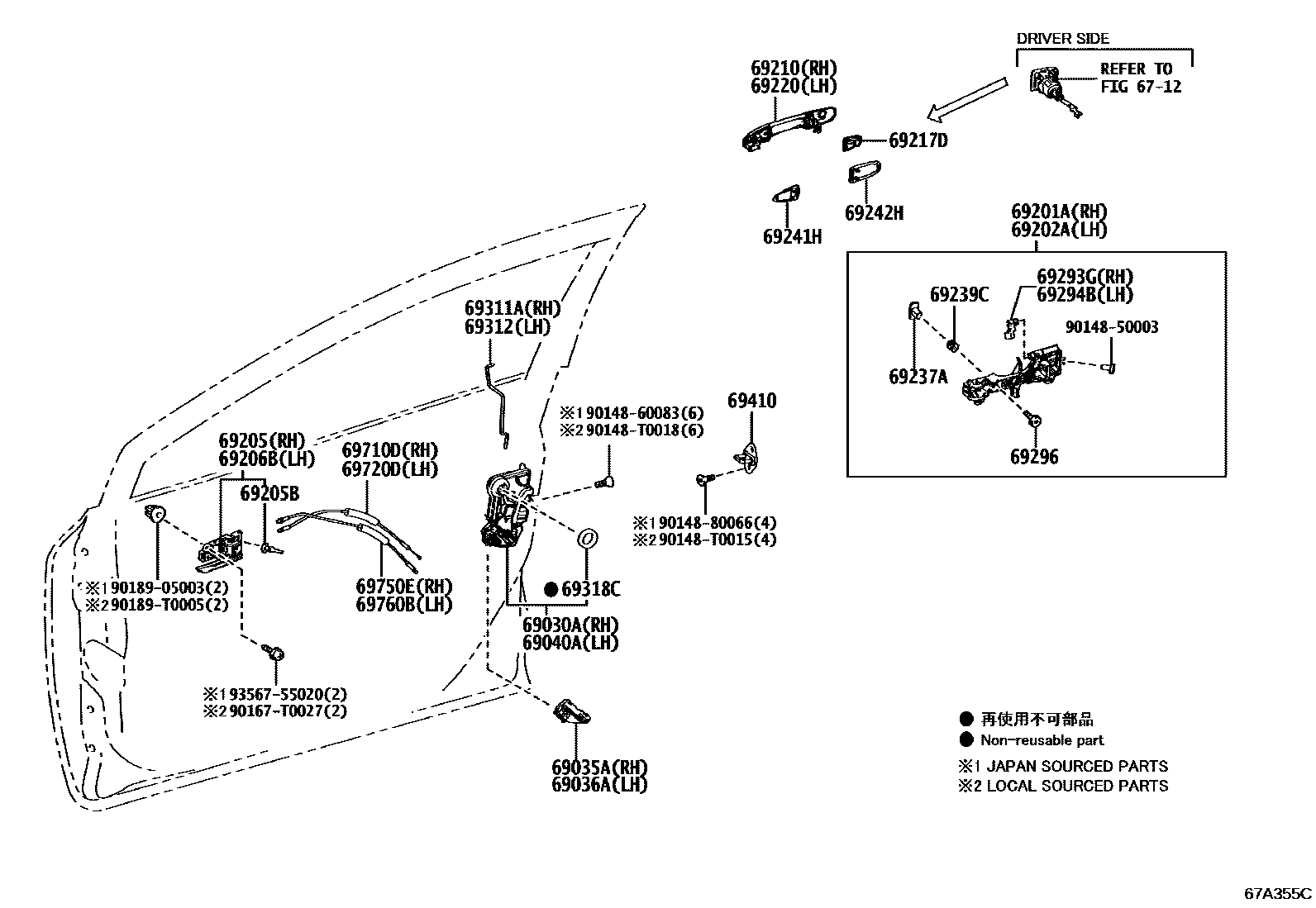

Toyota COROLLA 前门锁和车门把手 EPC diagram — 67A355C
前门锁和车门把手 — 67A355C (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-02470 · 69030-02480 · 69030-02580
69035ARight front door lock cover sub-assembly69035-02040 · 69035-02050
69036ALeft front door lock cover sub-assembly69036-02040 · 69036-02050
69040ALeft front door door lock assembly with motor69040-02450 · 69040-02470 · 69040-02560
69201ARight front door outer handle frame sub-assembly69201-02350 · 69201-02360
69202ALeft front door outer handle frame sub-assembly69202-02290 · 69202-02300
69205BCushion pad (for inner front door handle)90541-04014
69210Right front door outer handle assembly69210-33101 · 69210-33141 · 69211-02420 · 69211-02938 · 69211-02939 · 69211-02940 · 69211-06170
69217DFront door outer handle cover69217-02630 · 69217-06210
69220Left front door outer handle assembly69210-33100 · 69210-33101 · 69210-33141 · 69211-02937 · 69211-02939 · 69211-02940 · 69211-06170
69237AFront door handle nut69237-0K040 · 69237-62010
69239CFront door handle bushing69239-02080 · 69239-06060
69241HFront door exterior handle pad69241-02300 · 69241-06140
69242HFront door rear outer handle pad69242-02290 · 69242-06140
69293GRight front door outer handle buckle69293-02060 · 69293-06030
69294BLeft front door outer handle buckle69293-02080 · 69293-06040
69296Car door inner handle screws69296-0M010 · 90148-50006
69311ARight front door lock opening lever69311-02360 · 69311-02370
69312Left front door lock opening lever69312-02360 · 69312-02370
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-02040 · 69410-0K070 · 69410-20110
69710DRight front door lock remote control cable (for opening lever)69710-02370 · 69710-02380
69720DLeft front door lock remote control cable (for opening lever)69710-02370 · 69710-02380
69750ERight front door inner locking cable (for locking/unlocking handle)69750-02400 · 69750-02410
69760BLeft front door inner locking cable (for locking/unlocking handle)69750-02400 · 69750-02410
