Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 40 PNC and OE references.

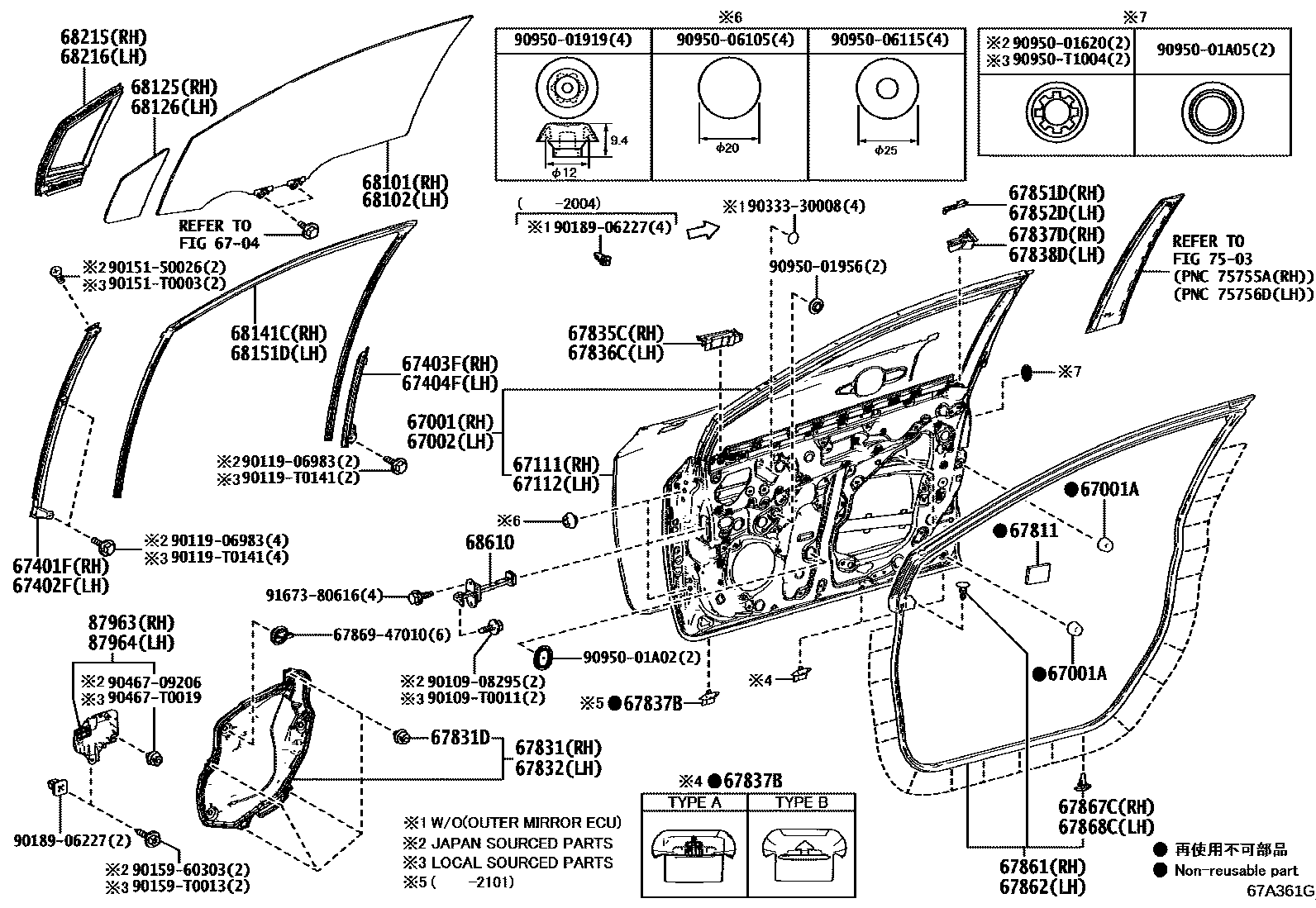

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 67A361G
前门板和前门玻璃 — 67A361G (201904 – 999999)

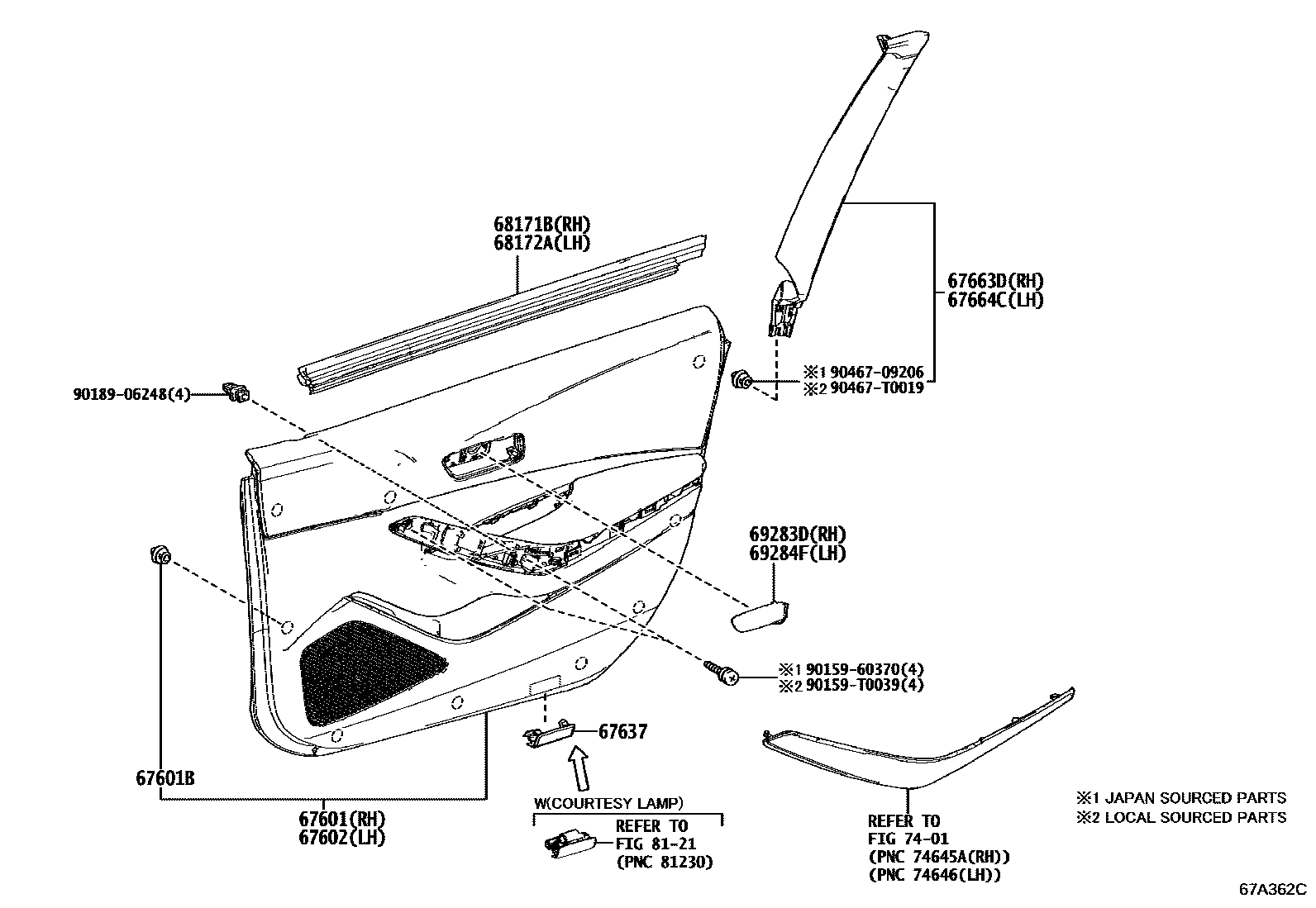

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 67A362C
前门板和前门玻璃 — 67A362C (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-02570 · 67001-02580
67001AFront door panel cushion90541-09124
67002Left front door panel sub-assembly67002-02560 · 67002-02570
67111Outer right front door panel67111-02340 · 67111-02350
67112Outer left front door panel67112-02340 · 67112-02350
67401FRight front door front lower door frame sub-assembly67401-02060 · 67401-02070
67402FLeft front door front lower door frame sub-assembly67402-02060 · 67402-02070
67403FRight front door rear lower door frame sub-assembly67403-02270 · 67403-02280
67404FLeft front door rear lower door frame sub-assembly67404-02270 · 67404-02280
67601BCatch (for front door trim panel)90467-09206 · 90467-T0019
67663DRight door frame decorative strip67663-02050 · 67663-02060
67664CLeft door frame decorative strip67664-02050 · 67664-02060
67811Front door silencer pad67811-0D010
67831Right front door access hole cover67831-02470 · 67831-02480
67831DCatch (for front door access hole cover)90467-09206 · 90467-T0019
67832Left front door access hole cover67832-02470 · 67832-02480
67835CRight front door No. 3 inspection hole cover67835-02040 · 67835-02050
67836CLeft front door No. 3 access hole cover67836-02100 · 67836-02110
67837BFront door dust seal retainer67837-0K090 · 67837-48050
67837DRight front door ventilator seal67837-02140 · 67837-02160
67838DLeft front door ventilator seal67838-02110 · 67838-02120
67851DRight front door rear outer seal67851-02040 · 67851-02050
67852DLeft front door rear outer seal67852-02040 · 67852-02050
67861Right front door seal67861-02360 · 67861-02370
67862Left front door seal67862-02360 · 67862-02370
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68101-02600 · 68101-02610
68102Left front door glass sub-assembly68102-02600 · 68102-02610
68125Right front door fixed window glass68125-02040 · 68125-02050
68126Left front door fixed window glass68126-02040 · 68126-02050
68141CRight front door glass lift channel68141-02410 · 68141-02411 · 68141-02420 · 68141-02421
68151DLeft front door glass lift channel68151-02400 · 68151-02401 · 68151-02410 · 68151-02411
68171BRight front door glass inner sealing strip68171-02390 · 68171-02400
68172ALeft front door glass inner sealing strip68172-02370 · 68172-02380
68215Right front door fixed window seal68215-02040 · 68215-02050
68216Left front door fixed window seal68216-02040 · 68216-02050
68610Front door opening limiter assembly68610-02360 · 68610-02370
87963Right exterior rearview mirror mounting hole cover87963-02030 · 87963-02070
87964Left exterior rearview mirror mounting hole cover87964-02030 · 87964-02070
