Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

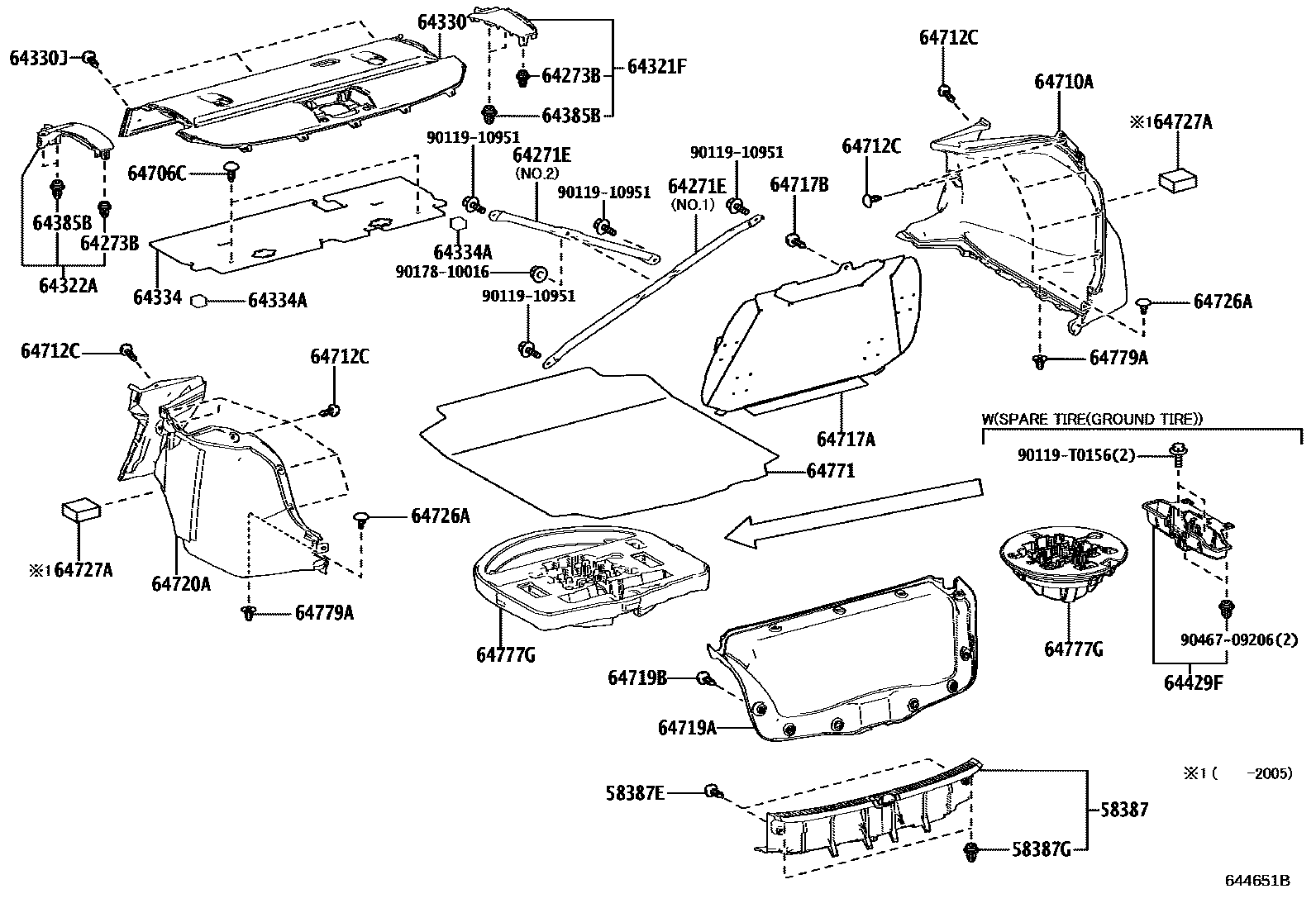

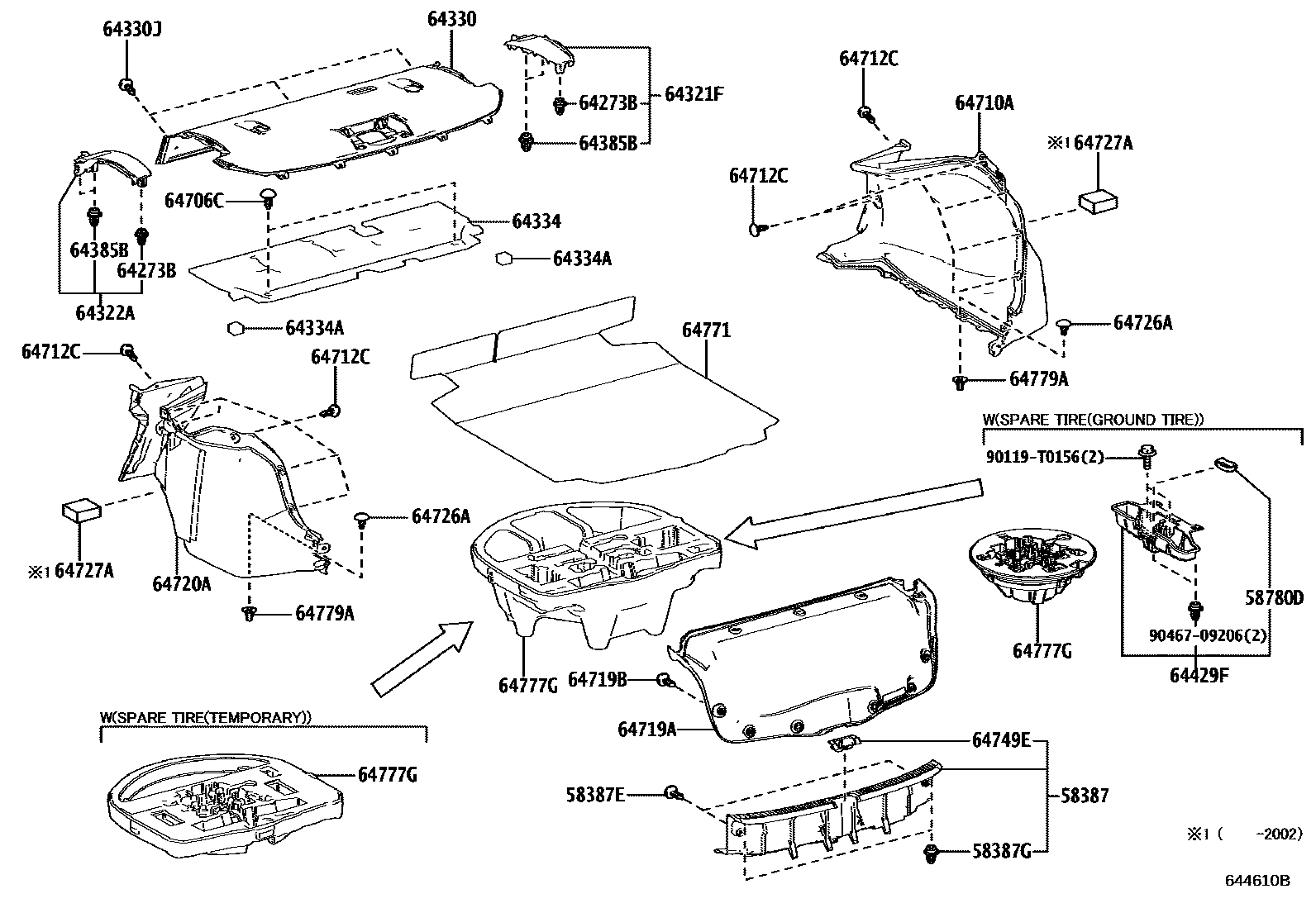

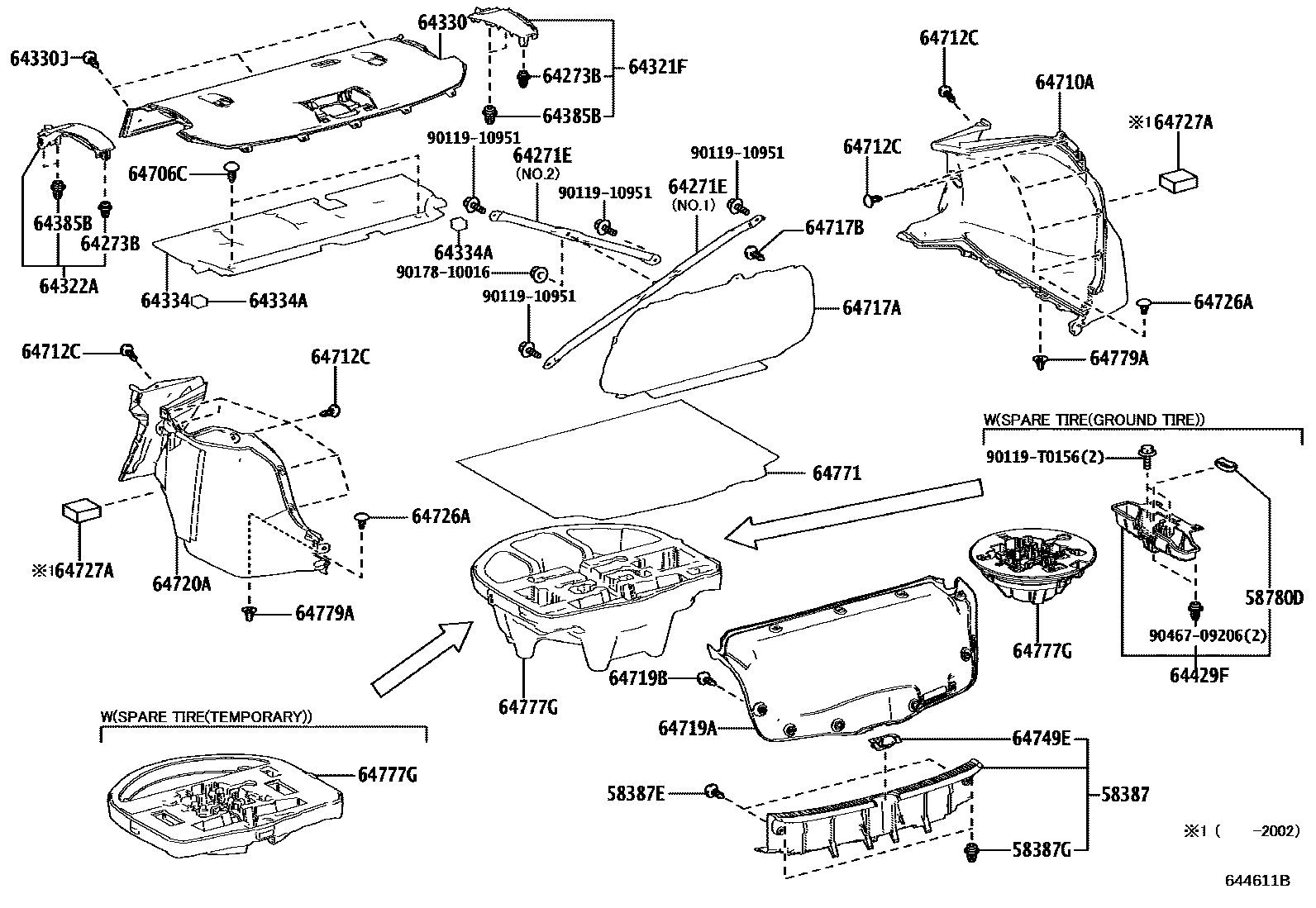

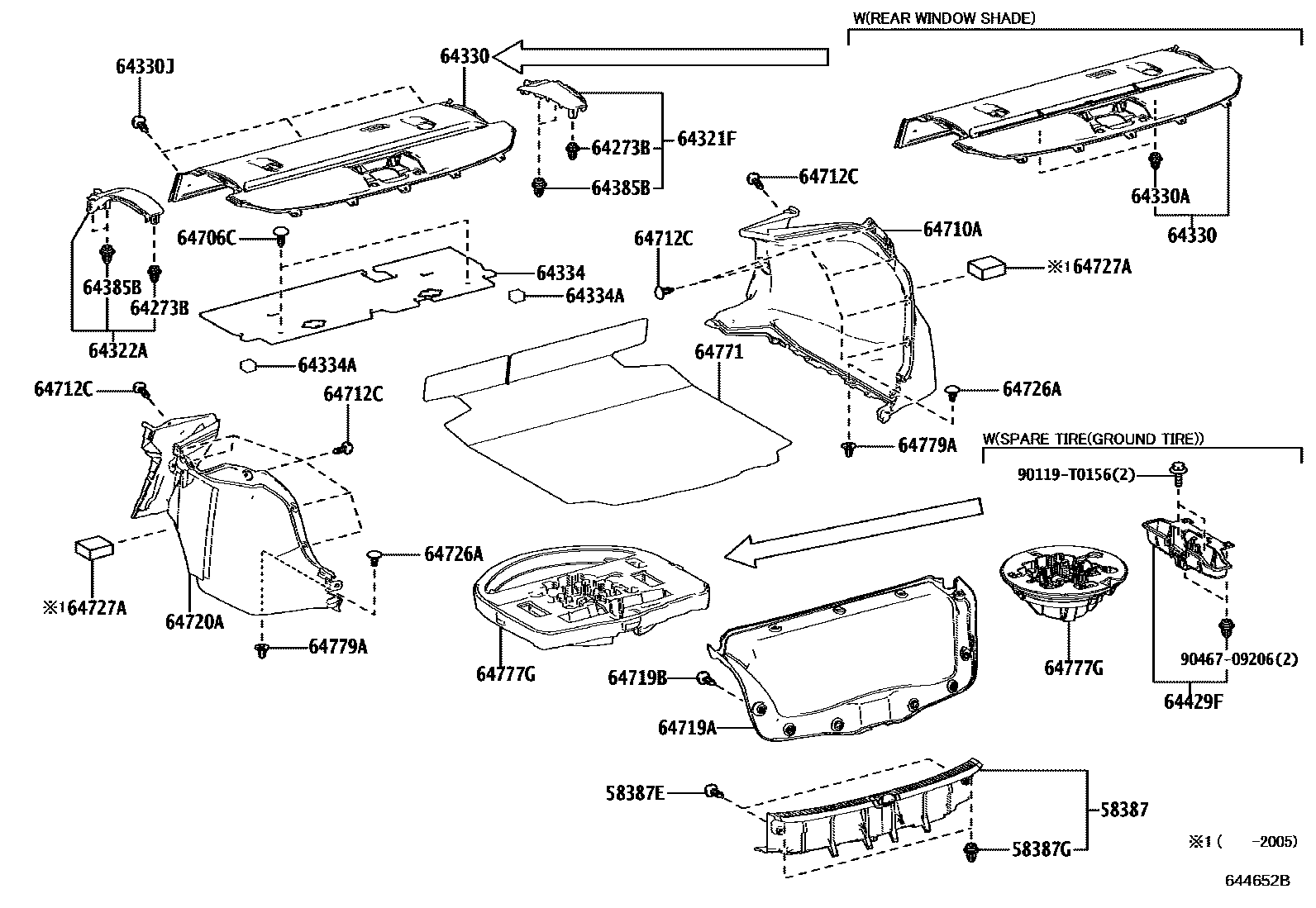

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387G | Clip (for rear floor trim panel) | 90467-10161 |
| 58780D | Tool box strap assembly | 58781-02010 · 58781-02030 · 58781-52010 |
| 64271E | compartment partition | 64241-02170 · 64241-02180 · 64242-02170 · 64242-02180 |
| 64273B | clip | 90467-09240 |
| 64330A | Clip (for glove box decorative panel) | 90467-T0021 |
| 64334 | Glove box decorative panel muffler pad | 64334-02380 · 64334-02390 |
| 64334A | Glove box decorative mat | 64334-02520 · 64334-02540 |
| 64385B | clip | 90467-10161 · 90467-T0021 |
| 64429F | suitcase decorative box | 64429-02040 · 64429-02050 |
| 64727A | Luggage interior decorative mat | 64727-02080 · 64727-02140 |
| 64777G | Spare tire cushion | 64777-02420 · 64777-02430 · 64777-02440 · 64777-02450 · 64777-02530 |
| 64779A | Spare tire cover stop | 64779-26010 |
